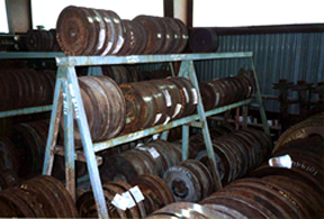

Crane Wheels   QTY 223

Crane Wheels
Casey can supply forged steel crane wheels from our inventory with the bore machined to suit your shaft. Our forged crane wheels are available in a wide range of standrard sizes. Contact Casey for more information on our crane wheels.
TREAD DIAMETER "A" TREAD TYPE "M" TREAD WIDTH LOWER "E" BORE DIAMETER "H" TAG # TITLE
Sort up Sort down Sort up Sort down Sort up Sort down Sort up Sort down Sort up Sort down
10" STRAIGHT 1 1/2" 2 7/8" 114699-000-00 10" CRANE WHEEL QTY. (4)
11 15/16 STRAIGHT 2 7/8 2 15/16 114716-000-00 12" CRANE WHEEL
12 STRAIGHT 1 7/8 3 5/8 110733-000-00 12" CRANE WHEEL QTY (3)
12 STRAIGHT 1 3/4 3 5/8 114898-000-00 12" CRANE WHEEL
12 STRAIGHT 3 2 7/8 110734-000-00 12" CRANE WHEEL
12" STRAIGHT 2 1/2" 4 1/2" 118236-000-00 12" CRANE WHEEL QTY (4)
13 1/2 STRAIGHT 1 5/8 2 15/16 114707-000-00 14" CRANE WHEEL QTY (3)
14 STRAIGHT 1.750 3.375 112667-000-00 14" CRANE WHEEL
14 3/4 STRAIGHT 2 4 110735-000-00 15" CRANE WHEEL QTY (4)
14 1/2 STRAIGHT 1 5/8 2 15/16 114706-000-00 15" CRANE WHEEL
14 3/4 STRAIGHT 2 5/8 3 3/8 114884-000-00 15" CRANE WHEEL
14 3/8 STRAIGHT 2 1/2 4 114880-000-00 14 1/2" CRANE WHEEL
14 5/8 STRAIGHT 2 1/2 4 114878-000-00 14 1/2" CRANE WHEEL
14 5/8 STRAIGHT 2 3/8 4 114879-000-00 14 1/2" CRANE WHEEL QTY (2)
14 7/8 STRAIGHT 2 1/2 3 3/4 114881-000-00 15" CRANE WHEEL
14 7/8 STRAIGHT 2 1/2 4 114877-000-00 15" CRANE WHEEL
15 STRAIGHT 1 3/4 4 114703-000-00 15" CRANE WHEEL
15 STRAIGHT 1.375 3.375 112631-000-00 15" CRANE WHEEL
15 STRAIGHT 2 1/2 3 1/2 114717-000-00 15" CRANE WHEEL QTY (2)
15 STRAIGHT 2 1/2 3 5/8 114719-000-00 15" CRANE WHEEL
15 STRAIGHT 2 1/4 3 9/16 114718-000-00 15" CRANE WHEEL
15 STRAIGHT 2 1/4 4 1/8 112646-000-00 15" CRANE WHEEL
15 STRAIGHT 2 1/8 4 1/8 112645-000-00 15" CRANE WHEEL
15 STRAIGHT 2 7/8 4 1/2 112643-000-00 15" CRANE WHEEL
15 1/32 STRAIGHT 2 1/2 4 1/16 112654-000-00 15" CRANE WHEEL QTY (4)
15 1/8 - 14 7/8 TAPERED 3 4 1/16 112648-000-00 15" CRANE WHEEL QTY (4)
15 1/8 - 14 7/8 TAPERED 3 4 1/16 112652-000-00 15" CRANE WHEEL QTY (2)
16 STRAIGHT 2 1/2 3 1/2 110738-000-00 16" CRANE WHEEL
16 STRAIGHT 2 5/8 3 1/2 112671-000-00 16" CRANE WHEEL QTY (4)
17 1/2 STRAIGHT 2 1/4 4 5/8 114891-000-00 18" CRANE WHEEL
17 1/2 STRAIGHT 3 4 114900-000-00 18" CRANE WHEEL QTY (2)
17 15/16 STRAIGHT 2 1/4 3 3/4 114882-000-00 18" CRANE WHEEL
17 3/4 STRAIGHT 2 3/4 4 1/16 114885-000-00 18" CRANE WHEEL
17 7/8 - 17 5/8 TAPERED 3 4 1/16 114933-000-00 17" CRANE WHEEL
18 STRAIGHT 2 1/2 5 1/8 112623-000-00 18" CRANE WHEEL QTY (3)
18 STRAIGHT 2 1/2 5 3/8 114735-000-00 18" CRANE WHEEL
18 STRAIGHT 2 1/4 4 114733-000-00 18" CRANE WHEEL QTY (2)
18 STRAIGHT 2 1/4 5 1/8 112622-000-00 18" CRANE WHEEL
18 STRAIGHT 2 3/4 3 3/8 114737-000-00 18" CRANE WHEEL
18 STRAIGHT 2 3/4 3 5/8 114736-000-00 18" CRANE WHEEL
18 STRAIGHT 2 3/4 5 112625-000-00 18" CRANE WHEEL
18 STRAIGHT 2 5/8 5 114731-000-00 18" CRANE WHEEL QTY (2)
18 STRAIGHT 2 7/16 5 1/2 114704-000-00 18" CRANE WHEEL
18 STRAIGHT 3 5 1/2 110740-000-00 18" CRANE WHEEL QTY (2)
18 STRAIGHT 3 1/4 5 114729-000-00 18" CRANE WHEEL
18 STRAIGHT 3 1/4 5 1/2 114726-000-00 18" CRANE WHEEL
18 STRAIGHT 3 1/4 5 7/8 114727-000-00 18" CRANE WHEEL
18 STRAIGHT 3 3/8 5 114728-000-00 18" CRANE WHEEL
18 TAPERED 3 1/4 4 9/16 121584-000-00 18" CRANE WHEEL
18 TAPERED 3 3/4 4 9/16 110739-000-00 18" CRANE WHEEL
18" STRAIGHT 2 1/2" NA 115502-000-00 18" CRANE WHEEL QTY (2)
18" STRAIGHT 2 3/4"   113475-000-00 18" CRANE WHEEL QTY (4)
18" STRAIGHT 3"   117394-000-00 18" CRANE WHEEL QTY (3)
18" STRAIGHT 3" 4.121 115490-000-00 18" CRANE WHEEL
18" STRAIGHT 3" 5.119 115475-000-00 QTY (2) 18" CRANE WHEEL
18" STRAIGHT 4" 3.493" 115470-000-00 18" CRANE WHEEL QTY
18" STRAIGHT 4" 5 7/8" 118192-000-00 18" CRANE WHEEL QTY (2)
20 STRAIGHT 3 3/4 5 121577-000-00 20" CRANE WHEEL QTY (2)
20 3/4 STRAIGHT 3 1/2 5 110742-000-00 21" CRANE WHEEL QTY (2)
20" TAPERED 3" 7 3/8" 118240-000-00 20" CRANE WHEEL (QTY 4)
21 STRAIGHT 2 2 3/4 114739-000-00 21" CRANE WHEEL QTY (2)
21 STRAIGHT 2 3 114738-000-00 21" CRANE WHEEL
21 STRAIGHT 2 1/2 2 3/4 114744-000-00 21" CRANE WHEEL
21 STRAIGHT 2 1/2 4 3/16 114890-000-00 21" CRANE WHEEL
21 STRAIGHT 2 1/4 4 1/4 114740-000-00 21" CRANE WHEEL
21 STRAIGHT 2 1/8 2 7/8 114741-000-00 21" CRANE WHEEL
21 STRAIGHT 2 3/4 2 3/4 114743-000-00 21" CRANE WHEEL
21 STRAIGHT 2 3/4 5 5/8 112670-000-00 21" CRANE WHEEL
21 STRAIGHT 2 7/8 5 11/16 112676-000-00 21" CRANE WHEEL
21 STRAIGHT 2 7/8 5 3/16 112626-000-00 21" CRANE WHEEL QTY (2)
21 STRAIGHT 3/4 4 3/4 112642-000-00 21" CRANE WHEEL
21 TAPERED 3 1/8 4 1/4 110744-000-00 21" CRANE WHEEL
21 1/16 STRAIGHT 2 3/4 5 1/4 112639-000-00 21" CRANE WHEEL QTY (3)
21 1/16 STRAIGHT 2 3/4 5 3/4 112633-000-00 21" CRANE WHEEL QTY (5)
21 1/2" H/E - 20 7/8" L/E TAPERED 3 1/4" 5 3/4" 118235-000-00 21" CRANE WHEEL
21" STRAIGHT 2 3/8" 6" 119769-000-00 21" CRANE WHEEL QTY (2)
21" H/E - 20 13/16" CRANE WHEEL TAPERED 3 1/4" 7 5/16" 118252-000-00 21" CRANE WHEEL QTY (2)
21" H/E - 20 3/4" L/E TAPERED 3 1/4" 5 3/4" 118233-000-00 21" CRANE WHEEL
22 STRAIGHT 4 3/8 6 114903-000-00 22" CRANE WHEEL
22 STRAIGHT 4 3/8 6 5/8 114906-000-00 22" CRANE WHEEL
23 1/4 STRAIGHT 2 3/4 4 1/2 110746-000-00 23-1/4" CRANE WHEEL
23 15/16 STRAIGHT 4 3/8 6 9/16 114876-000-00 24" CRANE WHEEL
23 3/4 STRAIGHT 3 6.7 115944-000-00 23 3/4" CRANE WHEEL (SET OF 4) UNUSED
23 3/4 STRAIGHT 3 1/4 6.6 115943-000-00 23 3/4" CRANE WHEEL (SET OF 4) UNUSED
23 3/4 STRAIGHT 4 7/8 6 1/4 110745-000-00 24" CRANE WHEEL
23 5/8 STRAIGHT 3 1/4 6.7 115945-000-00 23 5/8" CRANE WHEEL (SET OF 4) UNUSED
23 7/8 TAPERED 3 3/4 5.3 115942-000-00 23 7/8" CRANE WHEEL (SET OF 4) UNUSED
24 STRAIGHT 2 1/2 4 114679-000-00 24" CRANE WHEEL
24 STRAIGHT 2 1/2 5 1/4 114680-000-00 24" CRANE WHEEL
24 STRAIGHT 2 1/2 5 1/8 114769-000-00 24" CRANE WHEEL
24 STRAIGHT 2 1/2 5 3/4 114681-000-00 24" CRANE WHEEL
24 STRAIGHT 2 1/2 6 1/2 114765-000-00 24" CRANE WHEEL QTY (4)
24 STRAIGHT 2 1/2" 5 3/4" 112610-000-00 24" CRANE WHEEL
24 STRAIGHT 2 3/4 5 1/2 114770-000-00 24" CRANE WHEEL
24 STRAIGHT 2 3/4 6 114760-000-00 24" CRANE WHEEL
24 STRAIGHT 2 3/4 6 1/4 121583-000-00 24" CRANE WHEEL
24 STRAIGHT 2 5/16 2 1/4 114705-000-00 24" CRANE WHEEL
24 STRAIGHT 2 5/8 5 1/2 114772-000-00 24" CRANE WHEEL
24 STRAIGHT 2 5/8 5 3/4 114761-000-00 24" CRANE WHEEL
24 STRAIGHT 2 7/8 5 3/4 112628-000-00 24" CRANE WHEEL QTY (2)
24 STRAIGHT 2 7/8 7 114685-000-00 24" CRANE WHEEL
24 STRAIGHT 3 3 11/16 114683-000-00 24" CRANE WHEEL
24 STRAIGHT 3 6 1/2 114762-000-00 24" CRANE WHEEL
24 STRAIGHT 3 1/2 6 114682-000-00 24" CRANE WHEEL
24 STRAIGHT 3 1/2 6 3/4 114696-000-00 24" CRANE WHEEL QTY (2)
24 STRAIGHT 3 1/4 5 3/4 114777-000-00 24" CRANE WHEEL
24 STRAIGHT 3 1/8 5 1/4 114771-000-00 24" CRANE WHEEL
24 STRAIGHT 3 3/8 6 1/2 112615-000-00 24" CRANE WHEEL
24 STRAIGHT 3 5/8 6 115940-000-00 24" CRANE WHEEL QTY (8)
24 STRAIGHT 3 5/8 6 1/2 114773-000-00 24" CRANE WHEEL
24 STRAIGHT 3 9/16 6 1/8 110747-000-00 24" CRANE WHEEL
24 STRAIGHT 4 1/4 5 3/4 112616-000-00 24" CRANE WHEEL
24 STRAIGHT 4 1/4 6 114759-000-00 24" CRANE WHEEL
24 STRAIGHT 4 1/4 6 1/2 112658-000-00 24" CRANE WHEEL
24 STRAIGHT 4 1/8 5 3/4" - 6" BT 114889-000-00 24" CRANE WHEEL
24 STRAIGHT 4 1/8 6 5/8 112666-000-00 24" CRANE WHEEL
24 STRAIGHT 4 3/4 7 115937-000-00 24" CRANE WHEEL (SET OF 4) UNUSED
24 TAPERED 2 3/4 5 5/8 114745-000-00 24" CRANE WHEEL QTY (2)
24 TAPERED 3 5 1/4 114755-000-00 24" CRANE WHEEL
24 TAPERED 3 6 1/2 121582-000-00 24" CRANE WHEEL
24 TAPERED 3 1/2 6 1/2 114756-000-00 24" CRANE WHEEL
24 TAPERED 3 1/2 6 5/8 114758-000-00 24" CRANE WHEEL
24 TAPERED 3 1/4 5 114710-000-00 24" -CRANE WHEEL
24 TAPERED 3 1/4 5 3/4 114778-000-00 24" CRANE WHEEL
24 TAPERED 3 1/8 5 3/4 114780-000-00 24" CRANE WHEEL
24 TAPERED 3 1/8 7 114775-000-00 24" CRANE WHEEL
24 TAPERED 3 3/4 6 1/2 110749-000-00 24" CRANE WHEEL QTY (2)
24 TAPERED 3 3/4 7 114751-000-00 24" CRANE WHEEL
24 TAPERED 3 3/8 7 121581-000-00 24" CRANE WHEEL
24 TAPERED 3 5/8 6 3/4 114752-000-00 24" CRANE WHEEL
24 TAPERED 3 7/8 5 3/4 112630-000-00 24" CRANE WHEEL
24 TAPERED 4 6 1/2 114754-000-00 24" CRANE WHEEL
24 TAPERED 4 1/2 6 1/2 112665-000-00 24" CRANE WHEEL
24 TAPERED 4 1/4 4 1/2 121576-000-00 24" CRANE WHEEL
24 TAPERED 4 1/4 5.8 115938-000-00 24" CRANE WHEEL (SET OF 4) UNUSED
24 TAPERED 4 1/4 5.8 115939-000-00 24" CRANE WHEEL (SET OF 4) UNUSED
24 TAPERED 4 3/4 3 3/4 110748-000-00 24" CRANE WHEEL
24 TAPERED 4 5/8 4 1/2 114750-000-00 24" CRANE WHEEL
24 TAPERED 5 1/2 6 1/2 114757-000-00 24" CRANE WHEEL
24 - 23 13/16 TAPERED 2 7/8 7 114695-000-00 24 - 23-13-16 CRANE WHEEL
24 - 23 13/16 TAPERED 3 6 5/8 114698-000-00 24" CRANE WHEEL
24 - 23 3/4 TAPERED 2 13/16 6 1/2 114684-000-00 24" CRANE WHEEL
24 - 23 7/8 TAPERED 3 1/4 6 5/8 114873-000-00 24" CRANE WHEEL
24 1/4 - 23 13/16 TAPERED 3 7/8 6 1/2 X 4 5/8 BT 114870-000-00 24" CRANE WHEEL
24 1/4 - 23 7/8 TAPERED 5 6 3/8 114871-000-00 24" CRANE WHEEL
24 1/8 - 23 3/4 TAPERED 4 1/8 6 3/4 , 6 5/8, 4 1/2 114869-000-00 24" CRANE WHEEL
24" STRAIGHT 2 3/4" 5 5/8" 119775-000-00 24" CRANE WHEEL
24" STRAIGHT 2 3/4" 6 1/4" 118244-000-00 24" CRANE WHEEL QTY (7)
24" STRAIGHT 3 3/4" 5" 119772-000-00 24" CRANE WHEEL
24" STRAIGHT 3" 5 3/4" 119774-000-00 24" CRANE WHEEL
24" STRAIGHT 3" 5.248" 115480-000-00 24" CRANE WHEEL QTY (2)
24" STRAIGHT 3" 5.997" 115500-000-00 24" CRANE WHEEL QTY (2)
24" STRAIGHT 5" 6" 118194-000-00 24" CRANE WHEEL QTY (2)
24" TAPERED 3 1/2" 5 1/2" 117250-000-00 24" CRANE WHEEL
24" TAPERED 3 1/4" 5.992 115488-000-00 24" CRANE WHEEL QTY (5)
24" TAPERED 3 3/4 5.8 115920-000-00 24" CRANE WHEEL - UNUSED
24" TAPERED 4 1/4" 6.996 115477-000-00 24" CRANE WHEEL QTY (4)
24" TAPERED 4" 5.863 117251-000-00 24" CRANE WHEEL
24" TAPERED 5 3/8" 6 3/8" 119773-000-00 24" CRANE WHEEL
24" TAPERED 5" 5.743" 115478-000-00 24" CRANE WHEEL
24" TAPERED 5" NA 115504-000-00 24" CRANE WHEEL QTY (2)
26 STRAIGHT 4 1/2 6 1/2 114781-000-00 26" CRANE WHEEL (QTY 2)
26 STRAIGHT 4 3/4 6 1/2 114783-000-00 26" CRANE WHEEL
26 1/4 STRAIGHT 4 5/16 6 1/2 114697-000-00 26" CRANE WHEEL
26 7/8 STRAIGHT 5 7 1/2 114687-000-00 27" CRANE WHEEL
26 7/8 TAPERED 4 1/2 8.2 115933-000-00 26 7/8" CRANE WHEEL (SET OF 4) UNUSED
26.790" STRAIGHT 5.250" 8.500" 118544-000-00 27" CRANE WHEEL QTY (6)
27 STRAIGHT   6 3/4 114812-000-00 27" CRANE WHEEL
27 STRAIGHT 3 7/8 5 3/8 110566-000-00 27" CRANE WHEEL QTY (2)
27 STRAIGHT 3 1/2 6 3/4 112644-000-00 27" CRANE WHEEL
27 STRAIGHT 3 1/2 6.3 115946-000-00 27" CRANE WHEEL (SET OF 4) UNUSED
27 STRAIGHT 3 1/2 7 1/8 112621-000-00 27" CRANE WHEEL
27 STRAIGHT 3 1/4 6 3/4 112659-000-00 27" CRANE WHEEL (QTY 4)
27 STRAIGHT 3 1/4 6 3/4 112663-000-00 27" CRANE WHEEL QTY (2)
27 STRAIGHT 3 5/8 6 3/4 114811-000-00 27" CRANE WHEEL
27 STRAIGHT 4   113480-000-00 27" CRANE WHEEL
27 STRAIGHT 4 4 5/8" 113479-000-00 27" CRANE WHEEL
27 STRAIGHT 4 1/2 7 1/2 114790-000-00 27" CRANE WHEEL
27 STRAIGHT 4 1/4 6 3/4 114804-000-00 27" CRANE WHEEL
27 STRAIGHT 4 1/4 7 1/2 114785-000-00 27" CRANE WHEEL QTY (4)
27 STRAIGHT 4 1/8 8 114806-000-00 27" CRANE WHEEL QTY (2)
27 STRAIGHT 4 3/4 6 3/4 THRU 5 114894-000-00 27" CRANE WHEEL
27 STRAIGHT 5 6 1/4 114686-000-00 27" CRANE WHEEL
27 STRAIGHT 5 7 1/4 114693-000-00 27" CRANE WHEEL
27 STRAIGHT 5 7 7/16 114892-000-00 27" CRANE WHEEL
27 STRAIGHT 5 7.2 115924-000-00 27" CRANE WHEEL (SET OF 4) UNUSED
27 STRAIGHT 5 1/2 7 1/2 114791-000-00 27" CRANE WHEEL
27 STRAIGHT 5 1/4 6.9 115923-000-00 27" CRANE WHEEL (SET OF 4) UNUSED
27 STRAIGHT 5 1/4 8 121573-000-00 27" CRANE WHEEL QTY (3)
27 TAPERED 3 1/4 4 3/4 114711-000-00 27" CRANE WHEEL
27 TAPERED 4 6 1/2 114798-000-00 27" CRANE WHEEL
27 TAPERED 4 6 3/4 114784-000-00 27" CRANE WHEEL QTY (2)
27 TAPERED 4 6 5/8 114799-000-00 27" CRANE WHEEL
27 TAPERED 4 7 3/16 112619-000-00 27" CRANE WHEEL QTY (2)
27 TAPERED 4 1/2 7.7 115929-000-00 27" CRANE WHEEL (SET OF 4) UNUSED
27 TAPERED 4 1/2 7.9 115927-000-00 27" CRANE WHEEL QTY (8)
27 TAPERED 4 1/2 8.2 115926-000-00 27" CRANE WHEEL (SET OF 4) UNUSED
27 TAPERED 4 1/4 5 3/4 114802-000-00 27" CRANE WHEEL
27 TAPERED 4 1/4 6 3/4 114803-000-00 27" CRANE WHEEL
27 TAPERED 4 1/4 6 3/8 114801-000-00 27" CRANE WHEEL QTY (3)
27 TAPERED 4 1/8 6 1/2 114805-000-00 27" CRANE WHEEL
27 TAPERED 4 1/8 6 3/4 114810-000-00 27" CRANE WHEEL
27 TAPERED 4 3/8 6.3 115931-000-00 27" CRANE WHEEL QTY (8)
27 TAPERED 4 3/8 7.8 115930-000-00 27" CRANE WHEEL (SET OF 4) UNUSED
27 TAPERED 4 5/8 6 1/2 114788-000-00 27" CRANE WHEEL
27 TAPERED 5 7 1/2 114792-000-00 27" CRANE WHEEL QTY (2)
27 TAPERED 5 7 1/4 114794-000-00 27" CRANE WHEEL
27 TAPERED 5 1/4 6 1/2 114796-000-00 27" CRANE WHEEL
27 TAPERED 5 1/8 7 114793-000-00 27" CRANE WHEEL
27 TAPERED 6 6.8 115922-000-00 27" CRANE WHEEL (SET OF 4) UNUSED
27 1/4 - 26 3/4 TAPERED 4 3/4 6 7/8 114690-000-00 27" CRANE WHEEL
27 7/8 TAPERED 4 3/4 7 114691-000-00 28" CRANE WHEEL
27 7/8 TAPERED 4 3/4 7 1/2 114692-000-00 28" CRANE WHEEL
27" STRAIGHT 3 1/2" 7.247" 115498-000-00 27" CRANE WHEEL QTY (3)
27" STRAIGHT 4 1/4" 6 1/2" 119771-000-00 27" CRANE WHEEL
27" STRAIGHT 4 1/4" 7 1/2" 119767-000-00 27" CRANE WHEEL
27" STRAIGHT 4 3/8" 7 3/8" 119776-000-00 27" CRANE WHEEL
27" STRAIGHT 5" 6 1/4" 123267-000-00 27" CRANE WHEEL QTY (4)
27" TAPERED 3 1/2" 7.249" 115487-000-00 27" CRANE WHEEL
27" TAPERED 4 1/8" 6 1/2" 119768-000-00 27" CRANE WHEEL
29 STRAIGHT 3 7/8 5 3/8 110565-000-00 29" CRANE WHEEL
29 7/8" STRAIGHT 5 1/4"   117400-000-00 29 7/8" CRANE WHEEL QTY (3)
35 3/4" STRAIGHT 4 1/2"   117397-000-00 35 3/4" CRANE WHEEL QTY (3)







Casey logo
275 KAPPA DRIVE
PITTSBURGH, PA 15238
PHONE: (412) 963-1111
HOURS OF OPERATION: Monday – Friday
WAREHOUSE: 7:00am to 3:30pm
CORPORATE OFFICE: 7:30am to 4:00pm
Copyright © 2026 Casey Equipment Corporation
