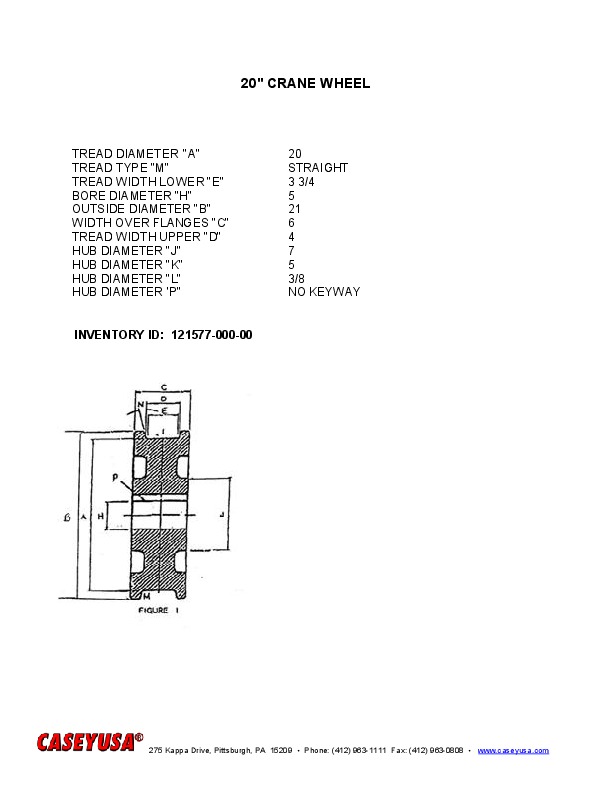

20" CRANE WHEEL QTY (2)
| INVENTORY ID | 12157700000 |
| TITLE | 20" CRANE WHEEL QTY (2) |
| TREAD DIAMETER "A" | 20 |
| TREAD TYPE "M" | STRAIGHT |
| TREAD WIDTH LOWER "E" | 3 3/4 |
| BORE DIAMETER "H" | 5 |
| OUTSIDE DIAMETER "B" | 21 |
| WIDTH OVER FLANGES "C" | 6 |
| TREAD WIDTH UPPER "D" | 4 |
| HUB DIAMETER "J" | 7 |
| HUB LENGTH "K" | 5 |
| HUB OFFSET "L" | 3/8 |
| HUB KEYWAY "P" | NO KEYWAY |
