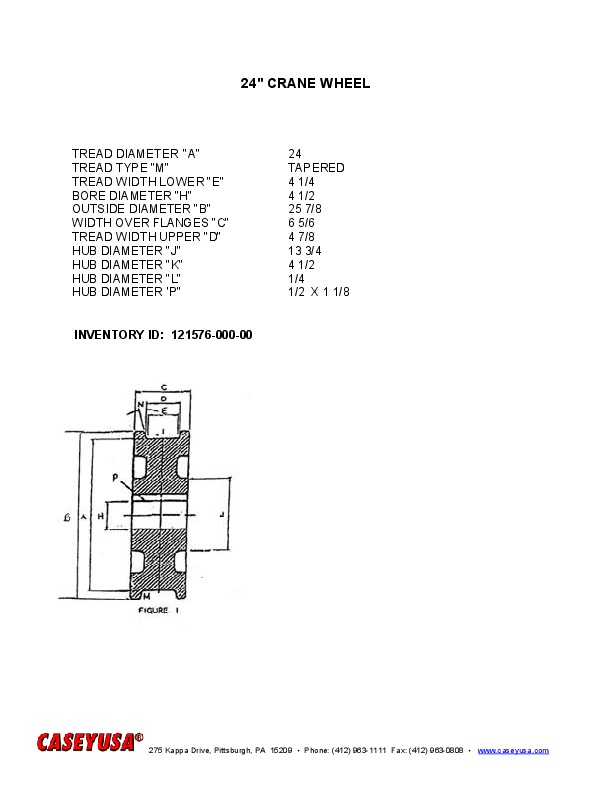

24" CRANE WHEEL
| INVENTORY ID | 12157600000 |
| TITLE | 24" CRANE WHEEL |
| TREAD DIAMETER "A" | 24 |
| TREAD TYPE "M" | TAPERED |
| TREAD WIDTH LOWER "E" | 4 1/4 |
| BORE DIAMETER "H" | 4 1/2 |
| OUTSIDE DIAMETER "B" | 25 7/8 |
| WIDTH OVER FLANGES "C" | 6 5/6 |
| TREAD WIDTH UPPER "D" | 4 7/8 |
| HUB DIAMETER "J" | 13 3/4 |
| HUB LENGTH "K" | 4 1/2 |
| HUB OFFSET "L" | 1/4 |
| HUB KEYWAY "P" | 1/2 X 1 1/8 |
