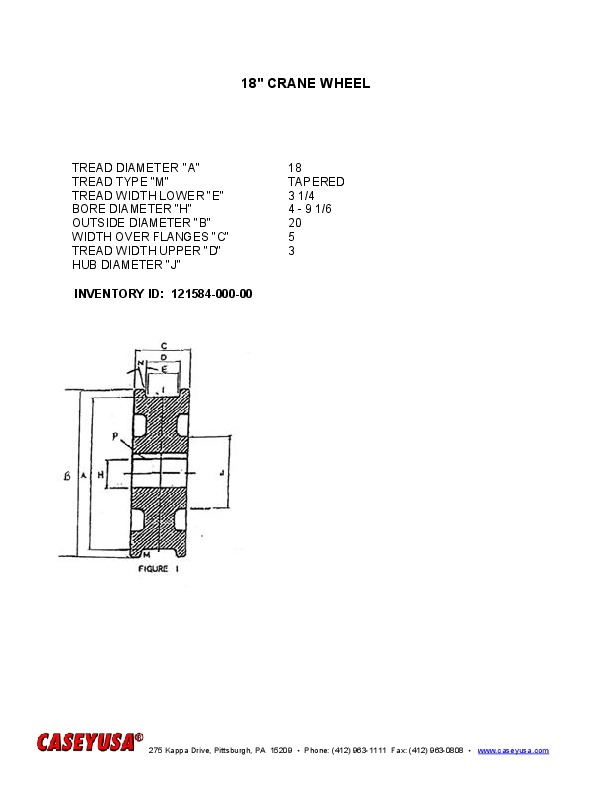

18" CRANE WHEEL
| INVENTORY ID | 12158400000 |
| TITLE | 18" CRANE WHEEL |
| TREAD DIAMETER "A" | 18 |
| TREAD TYPE "M" | TAPERED |
| TREAD WIDTH LOWER "E" | 3 1/4 |
| BORE DIAMETER "H" | 4 9/16 |
| OUTSIDE DIAMETER "B" | 20 |
| WIDTH OVER FLANGES "C" | 5 |
| TREAD WIDTH UPPER "D" | 3 |
