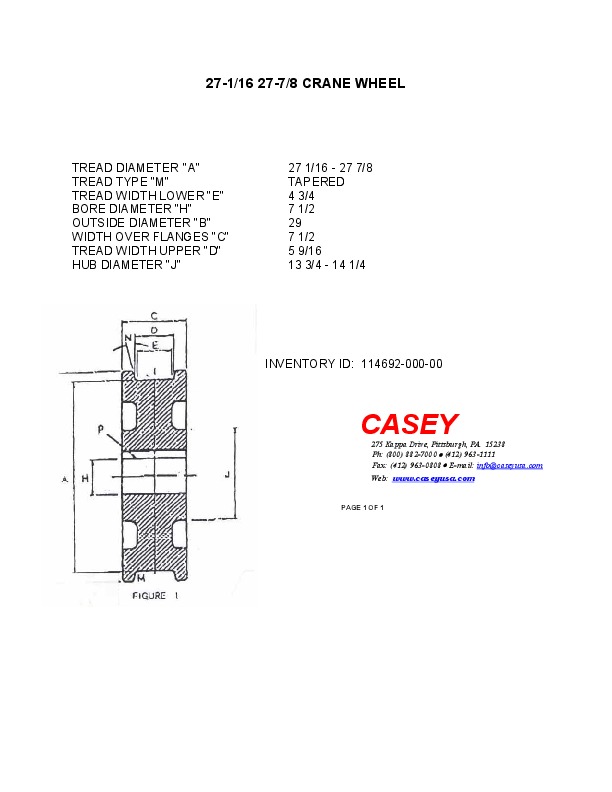

28" CRANE WHEEL
| INVENTORY ID | 11469200000 |
| TITLE | 28" CRANE WHEEL |
| TREAD DIAMETER "A" | 27 7/8 |
| TREAD TYPE "M" | TAPERED |
| TREAD WIDTH LOWER "E" | 4 3/4 |
| BORE DIAMETER "H" | 7 1/2 |
| OUTSIDE DIAMETER "B" | 29 |
| WIDTH OVER FLANGES "C" | 7 1/2 |
| TREAD WIDTH UPPER "D" | 5 9/16 |
| HUB DIAMETER "J" | 13 3/4 - 14 1/4 |
