| INVENTORY ID | 20033900000 |

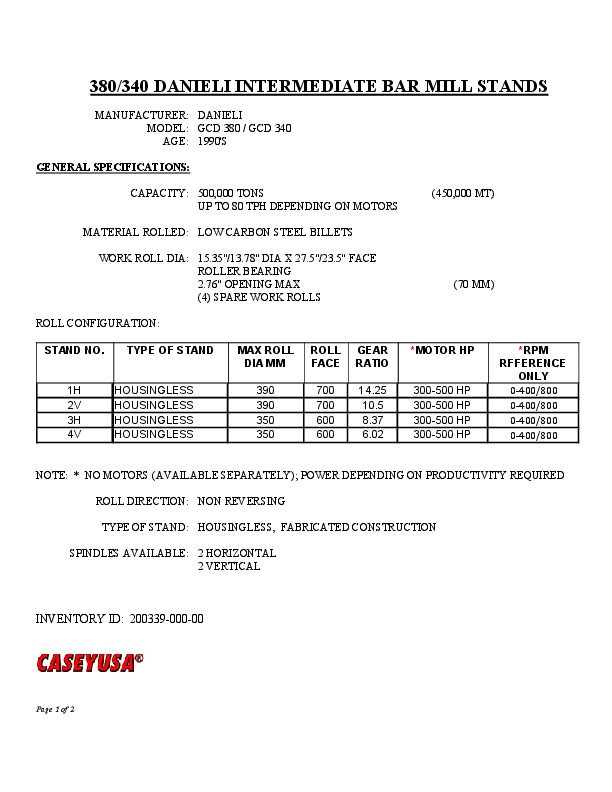

| TITLE | 380/340 DANIELI INTERMEDIATE BAR MILL STANDS |
| WORK ROLL DIA. |
13.78" |
| WORK ROLL FACE |
23.5" |
| ROLL CONFIGURATION (H/V) |
H/V |
| MANUFACTURER OF EQUIPMENT |
DANIELI |
| YEAR OF MANUFACTURE |
1990'S |
| CAPACITY |
500,000 |
| MATERIAL ROLLED (STNLESS, LO CARBON, HI CARBON) |
LOW CARBON |
| PREVIOUS USE |
BAR |
| REVERSING / NON REVERSING |
NON REVERSING |
| NUMBER OF WR AVAILABLE |
4 |
| WR BRG TYPE (ROLLER, SLEEVE, FABRIC) |
ROLLER |
| WR BRG LUBE TYPE (GREASE, MORGOIL, SPRAY, AIR MIST) |
GREASE |
| ROLL OPENING MAX |
2.76 |
| NUMBER WR CHOCKS AVAILABLE |
380 - 1 / 340 - 1 |
| CLOSED-OPEN TOP/HOUSINGLESS |
HOUSINGLESS |
| HSG CONSTR (FAB OR CAST) |
FAB |
| NUMBER HORIZONTAL SPINDLES AVAILABLE |
2 |
| NUMBER VERTICAL SPINDLES AVAILABLE |
2 |
| MOTOR HP |
300 - 500 |
| MOTOR RPM |
400 - 600 |
| MOTOR AVAILABLE |
NO |
| SCREWDOWN TYPE (MANUAL/ELECTROMECHANICAL/HYDRAULIC) |
HYDRAULIC MECHANICAL |
| SCREW / CYLINDER DIA |
3.150 |
| HSG LENGTH |
59.1 |
| HSG WIDTH |
49.2 |
| HSG HEIGHT |
57.1 |
| HSG WEIGHT |
7.8 |
| HORIZONTAL GEARBOX RATIO (:1) |
SEE CHART |
| PINION CONFIG (2 HI) |
2 |
| PINION AVAILABILITY |
YES |
| DIRECTION OF TRAVEL (VIEWED FROM OPERATOR SIDE) |
RIGHT TO LEFT |
| FEATURES 1 |
ALREADY DISASSEMBLED AND IN CONTAINERS |
| FEATURES 2 |
ADDITIONAL COMPONENTS AVAILABLE SEPARATELY |
