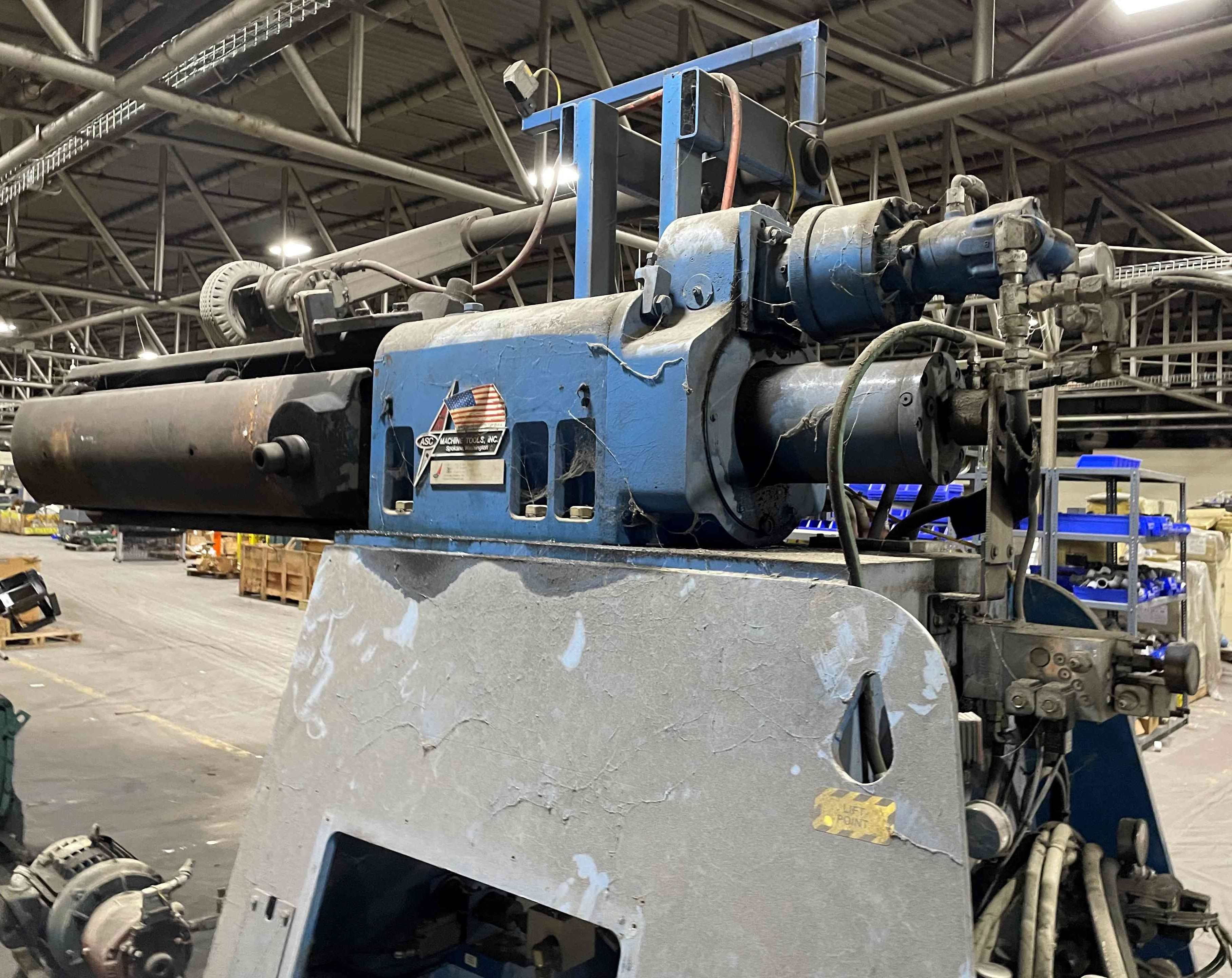

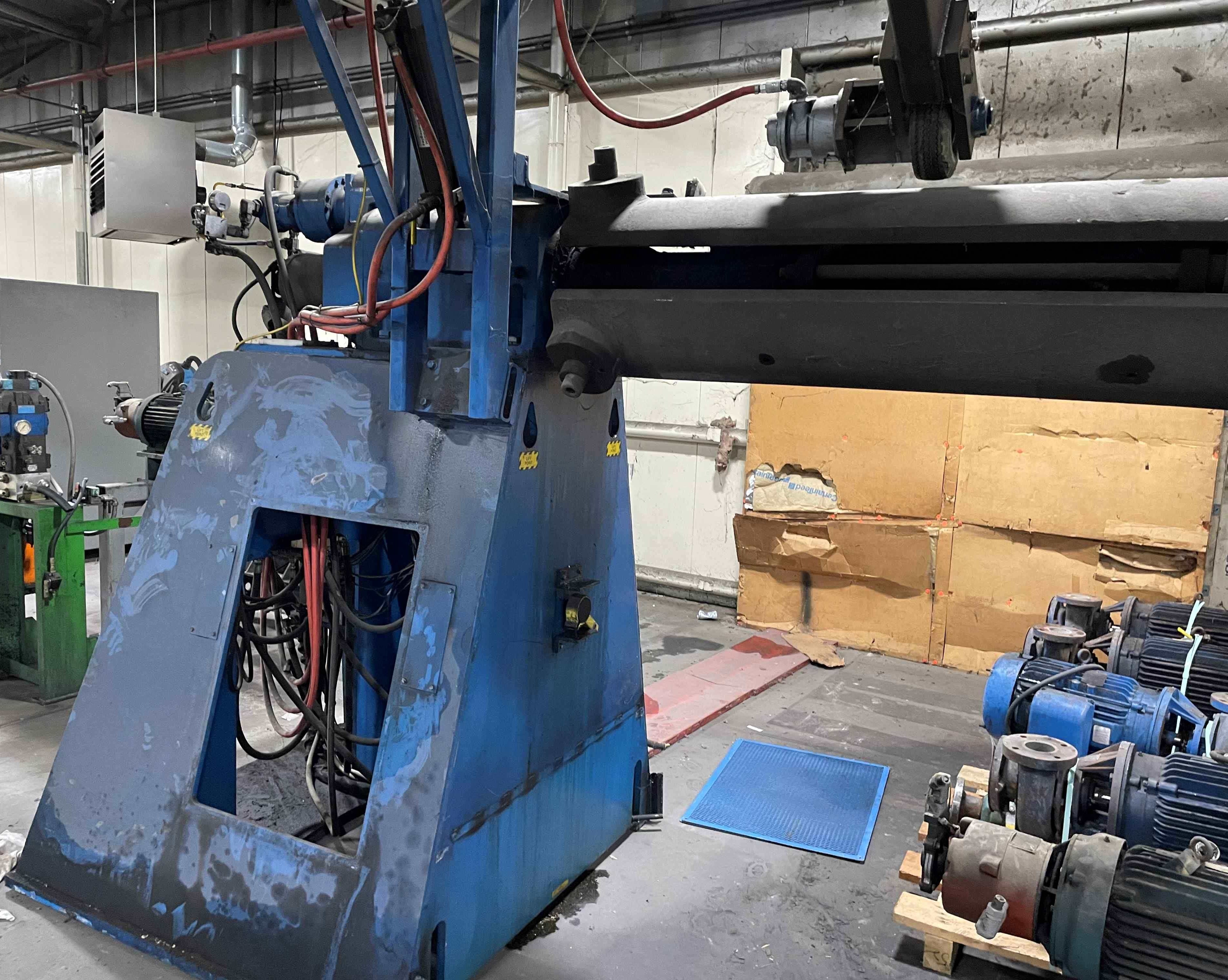

54" 30,000 LB ASC SINGLE ARM REEL
 "20086600000 54\" 30,000 LB ASC SINGLE ARM REEL")
 "20086600000 54\" 30,000 LB ASC SINGLE ARM REEL")
 "20086600000 54\" 30,000 LB ASC SINGLE ARM REEL")
 "20086600000 54\" 30,000 LB ASC SINGLE ARM REEL")
30,000 LBS 54" X 20" ASC UNCOILER / PAYOFF REEL

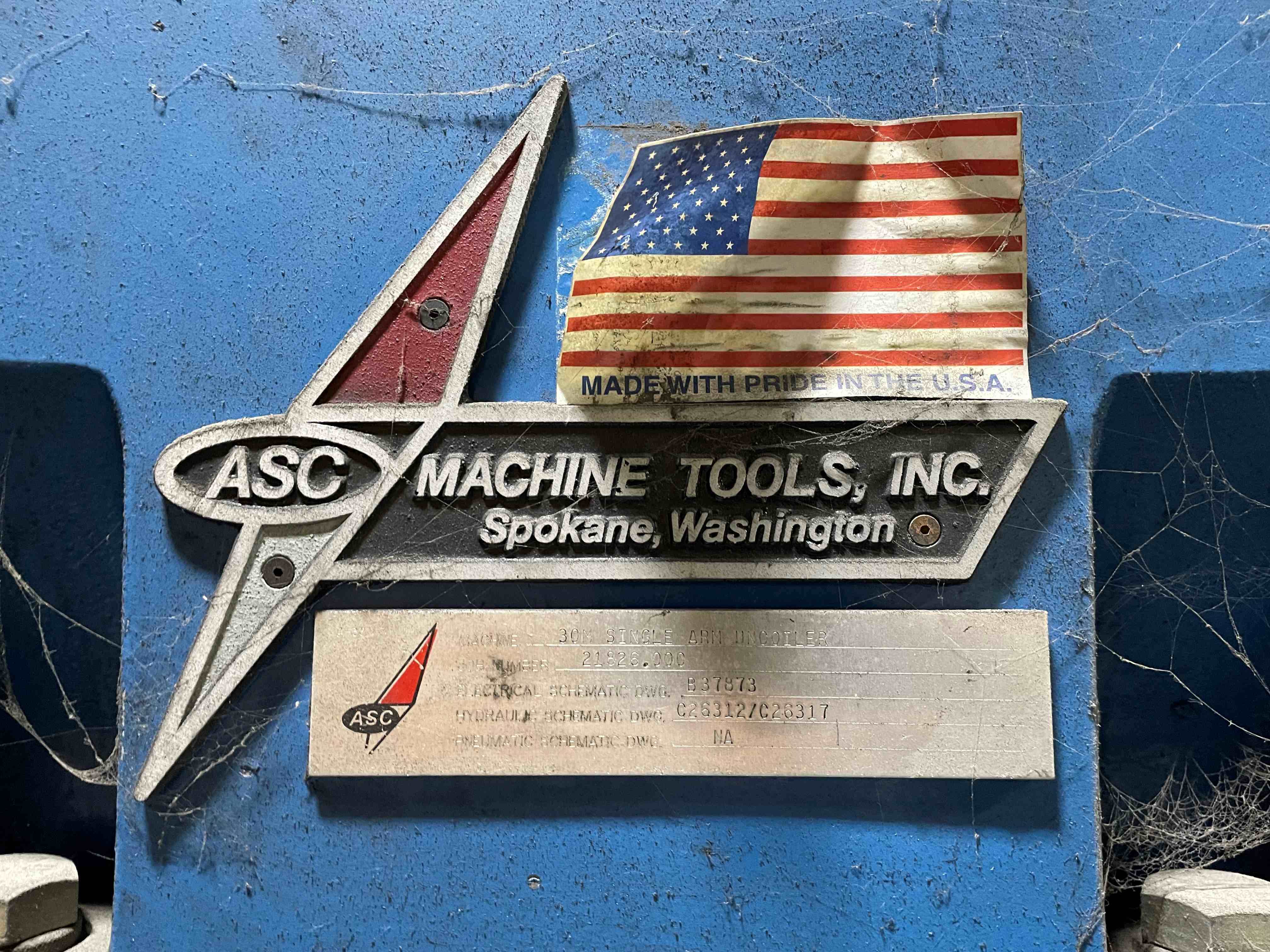

MANUFACTURER: ASC
MODEL #: 30M UNCOILER
SERIAL #: 21826.000

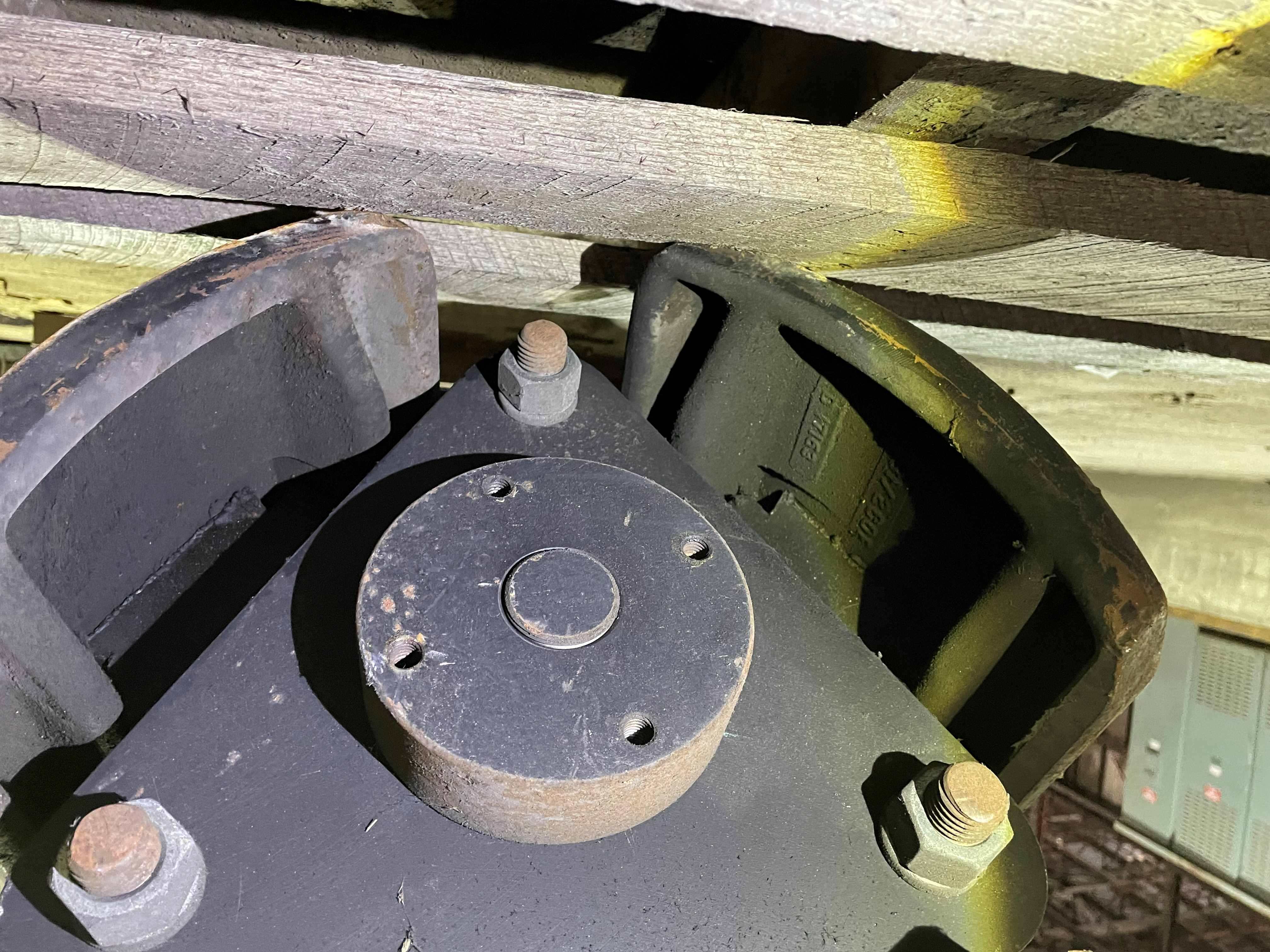

TYPE: THREE SEGMENT - EXPANDING MANDREL
COIL WEIGHT: 30,000 LBS (13608 KG)
COIL DIAMETER: 60" (1524 MM)
COIL WIDTH: 54" (1372 MM)
COIL I.D.: 20" (508 MM)
COIL GAUGE: .012 - .060" (0.3048 MM - 15.24 MM)
DRIVEN: HYDRAULIC MOTOR
MANDREL: HYDRAULIC EXPANSION
FEATURES: HOLD DOWN ROLL WITH HYDRAULIC MOTOR
INVENTORY #: 200866-000-00
| INVENTORY ID | 20086600000 |
| TITLE | 54" 30,000 LB ASC SINGLE ARM REEL |
| MANDREL FACE | 54" |
| COIL O.D. | 60" |
| MANUFACTURER OF EQUIPMENT | ASC MACHINE TOOLS |
| MODEL NO | 30M UNCOILER |
| SERIAL NO | 21826.000 |
| MANDREL (SINGLE, DOUBLE) | THREE SEGMENT - EXPANDING MANDREL |
| MANDREL DIA. COLLAPSED | 19" |
| COIL O.D. MAX | 60" |
| COIL WEIGHT MAX. | 30,000 |
| OVERALL LENGTH | 150" |
| OVERALL WIDTH | 70" |
| OVERALL HEIGHT | 102" |
| TOTAL WEIGHT | 7,900 LBS |
| FEATURES 1 | HOLD DOWN ROLL WITH HYDRAULIC MOTOR |
