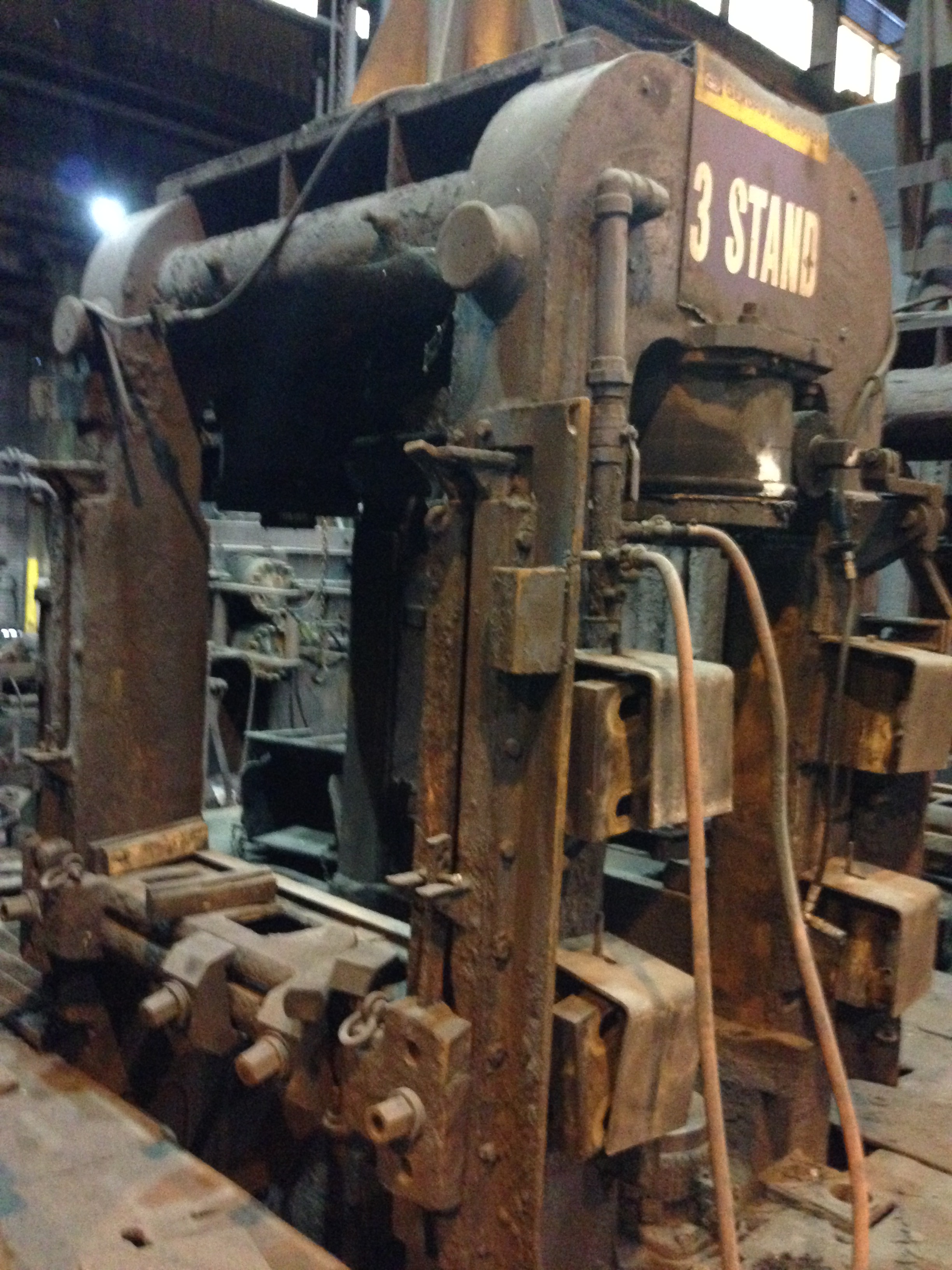

20" (515 MM) SMS BAR MILL STANDS (NCO)
 "20082600000 20\" (515 MM) SMS BAR MILL STANDS (NCO)")
 "20082600000 20\" (515 MM) SMS BAR MILL STANDS (NCO)")
(5) 20" (515MM) SMS BAR MILL STANDS
MANUFACTURER: SMS
AGE: 1983
ROLL DIA.: 18.89" TO 22.60" (480 MM TO 574 MM)
ROLL FACE: 48" (1244 MM)
ROLL CONFIGURATION: HORIZONTAL
QUANTITY: 5
MATERIAL ROLLED: STEEL
PREVIOUS USE: CONTINUOUS BAR MILL
REVERSING / NON-REVERSING: NON- REVERSING
WR BRG TYPE: ROLLER
CLOSED-OPEN TOP/HOUSINGSLESS: CLOSED TOP
HOUSING CONSTRUCTION: CAST
WEIGHT: 15 TONS
NUMBER OF HORIZONTAL SPINDES AVAILABLE: 12
MOTOR HP: 1070 HP (800 KW)
SCREWDOWN TYPE: ELECTROMECHANICAL
POST WIDTH: 10.62" (270 MM)
POST DEPTH: 15.77" (395 MM)
WINDOW HEIGHT: 88" (2240 MM)
WINDOW WIDTH: 34.25" (870 MM)
PINION AVAILABILITY: COMBINATION PINION AVAILABLE SEPARATELY
ALREADY DISMANTLED
INVENTORY ID 200826-000-00
| INVENTORY ID | 20082600000 |
| TITLE | 20" (515 MM) SMS BAR MILL STANDS (NCO) |
| WORK ROLL DIA. | 20" |
| WORK ROLL FACE | 48" |
| ROLL CONFIGURATION (H/V) | HORIZONTAL |
| MANUFACTURER OF EQUIPMENT | SMS |
| YEAR OF MANUFACTURE | 1983 |
| CAPACITY | QTY OF 5 HOUSINGS |
| MATERIAL ROLLED (STNLESS, LO CARBON, HI CARBON) | STEEL |
| PREVIOUS USE | CONTINUOUS BAR MILL |
| REVERSING / NON REVERSING | NON REVERSING |
| WR BRG TYPE (ROLLER, SLEEVE, FABRIC) | ROLLER |
| CLOSED-OPEN TOP/HOUSINGLESS | CLOSED TOP |
| HSG CONSTR (FAB OR CAST) | CAST |
| WEIGHT | 15 TONS |
| NUMBER HORIZONTAL SPINDLES AVAILABLE | 12 |
| MOTOR HP | 1070 HP (800 KW) |
| MOTOR AVAILABLE | SEPARATELY |
| SCREWDOWN TYPE (MANUAL/ELECTROMECHANICAL/HYDRAULIC) | ELECTROMECHANICAL |
| POST WIDTH | 10.62" (270 MM) |
| POST DEPTH | 15.77" (395 MM) |
| WINDOW HEIGHT | 88" (2240 MM) |
| WINDOW WIDTH | 34.25" (870 MM) |
| PINION AVAILABILITY | COMBINATION PINION AVAILABLE SEPARATELY |
| FEATURES 1 | ALREADY DISMANTILED |
