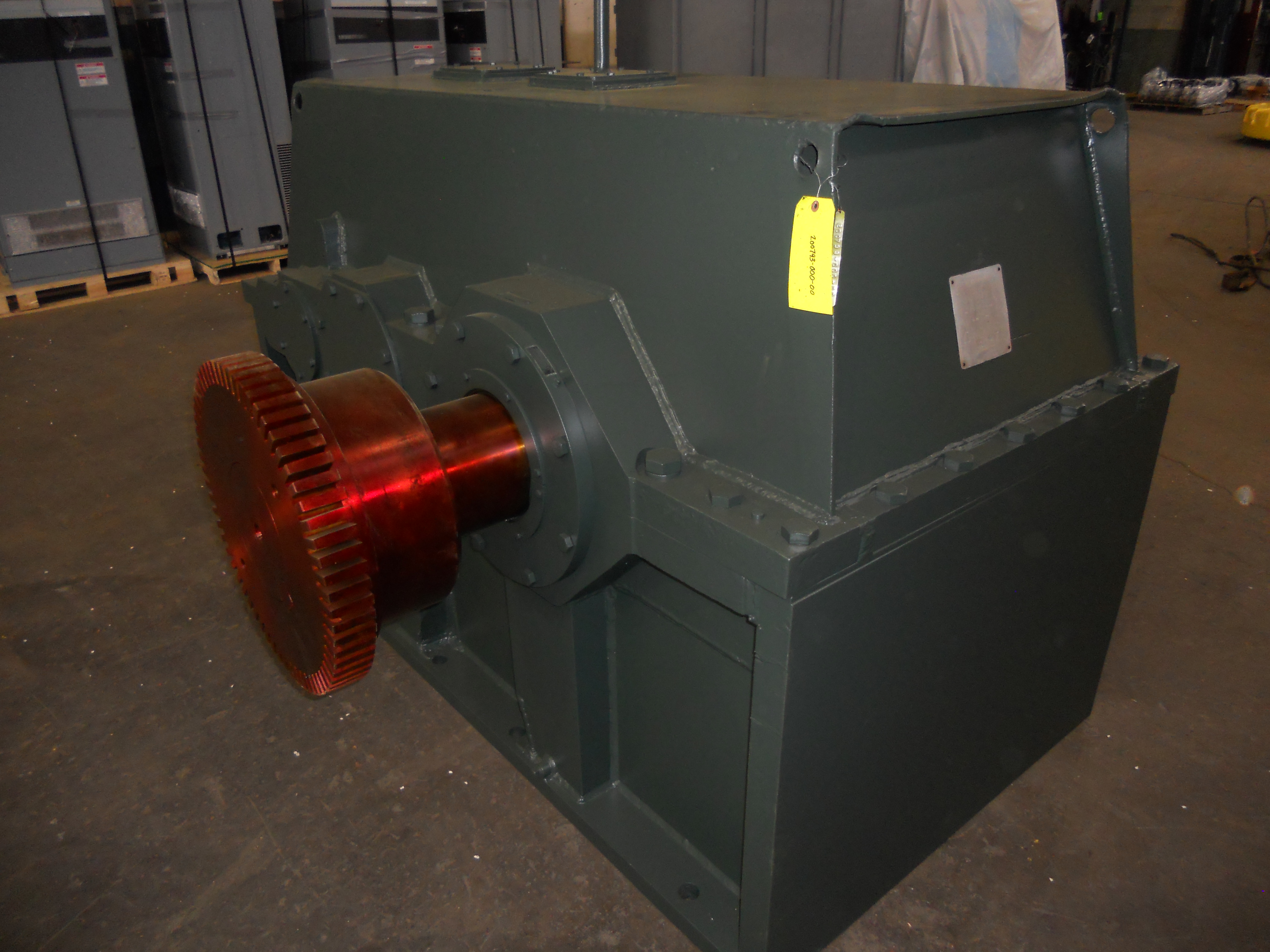

765 HP (567 KW), RPM INPUT 1750, 24.67 RATIO, RPM OUTPUT 71, MCDOWELL WELLMAN 8224 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED
 "20079300000 765 HP (567 KW), RPM INPUT 1750, 24.67 RATIO, RPM OUTPUT 71, MCDOWELL WELLMAN 8224 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20079300000 765 HP (567 KW), RPM INPUT 1750, 24.67 RATIO, RPM OUTPUT 71, MCDOWELL WELLMAN 8224 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20079300000 765 HP (567 KW), RPM INPUT 1750, 24.67 RATIO, RPM OUTPUT 71, MCDOWELL WELLMAN 8224 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20079300000 765 HP (567 KW), RPM INPUT 1750, 24.67 RATIO, RPM OUTPUT 71, MCDOWELL WELLMAN 8224 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20079300000 765 HP (567 KW), RPM INPUT 1750, 24.67 RATIO, RPM OUTPUT 71, MCDOWELL WELLMAN 8224 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20079300000 765 HP (567 KW), RPM INPUT 1750, 24.67 RATIO, RPM OUTPUT 71, MCDOWELL WELLMAN 8224 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
| INVENTORY ID | 20079300000 |
| TITLE | 765 HP (567 KW), RPM INPUT 1750, 24.67 RATIO, RPM OUTPUT 71, MCDOWELL WELLMAN 8224 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED |
| NEW ARRIVAL | TRUE |
| HORSEPOWER | 765 |
| RPM INPUT | 1750 |
| RATIO | 24.67:1 RATIO |
| RPM OUTPUT | 71 |
| GEARBOX SHAFT ARRANGEMENT | PARALLEL |
| MANUFACTURER OF EQUIPMENT | MCDOWELL WELLMAN |
| MODEL NUMBER | 8224 |
| SERIAL NUMBER | 601643 |
| REDUCTION | DOUBLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1.5 |

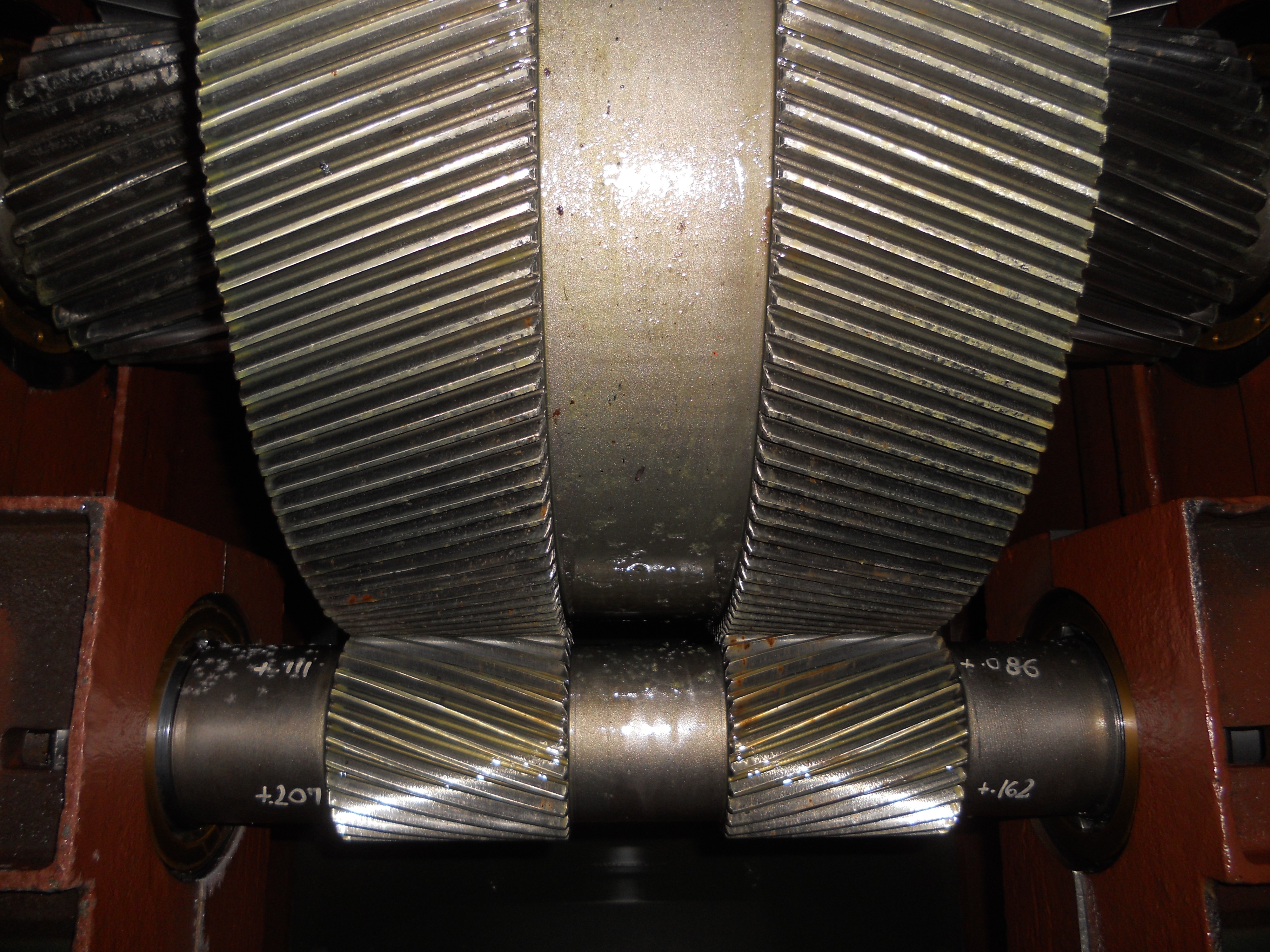

| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |

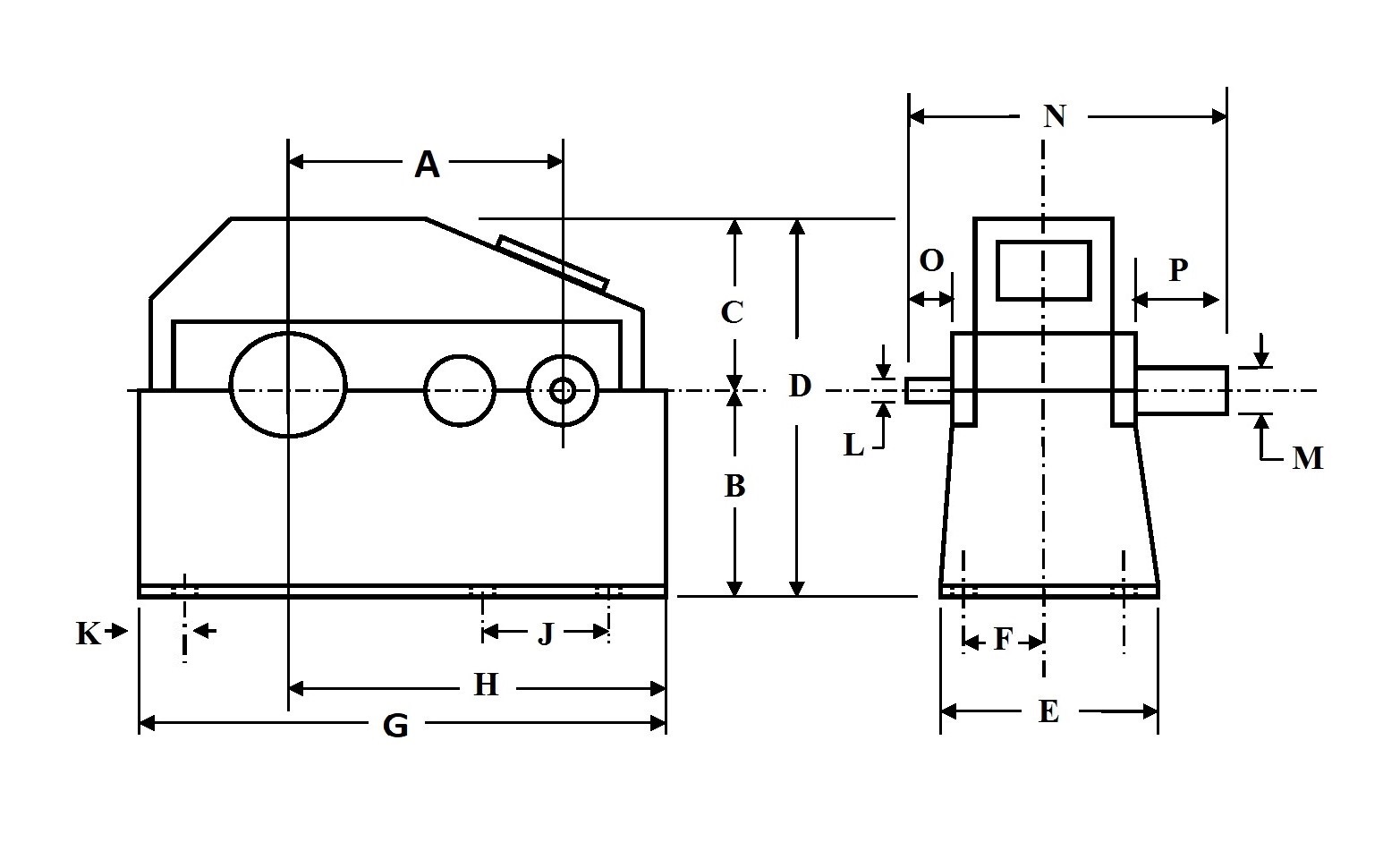

| DIMENSION A | 38 |
| DIMENSION B | 79 |
| DIMENSION C | 20 |
| DIMENSION D | 54 |
| DIMENSION E | 45 |
| DIMENSION F | 21 |
| DIMENSION G | 78.5 |
| DIMENSION H | 54 |
| DIMENSION J | 18 |
| DIMENSION K | 18.5 |
| DIMENSION L | 3.5 |
| DINEMSION M | 8.625 |
| DIMENSION N | 74.75 |
| DIMENSION O | 16.75 |
| DIMENSION P | 10.25 |
