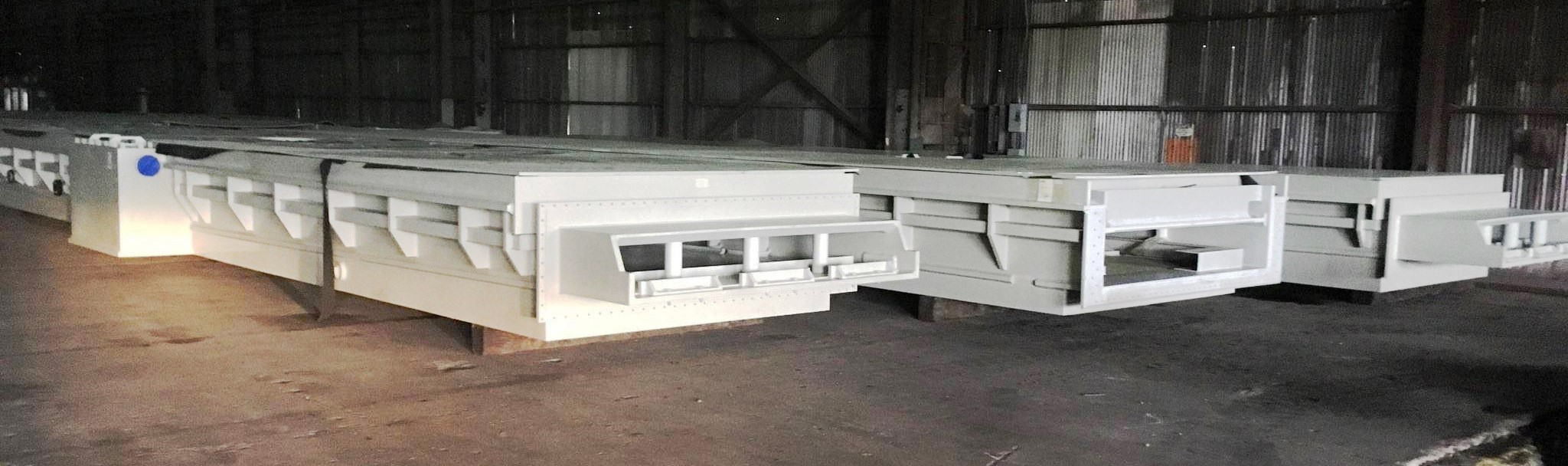

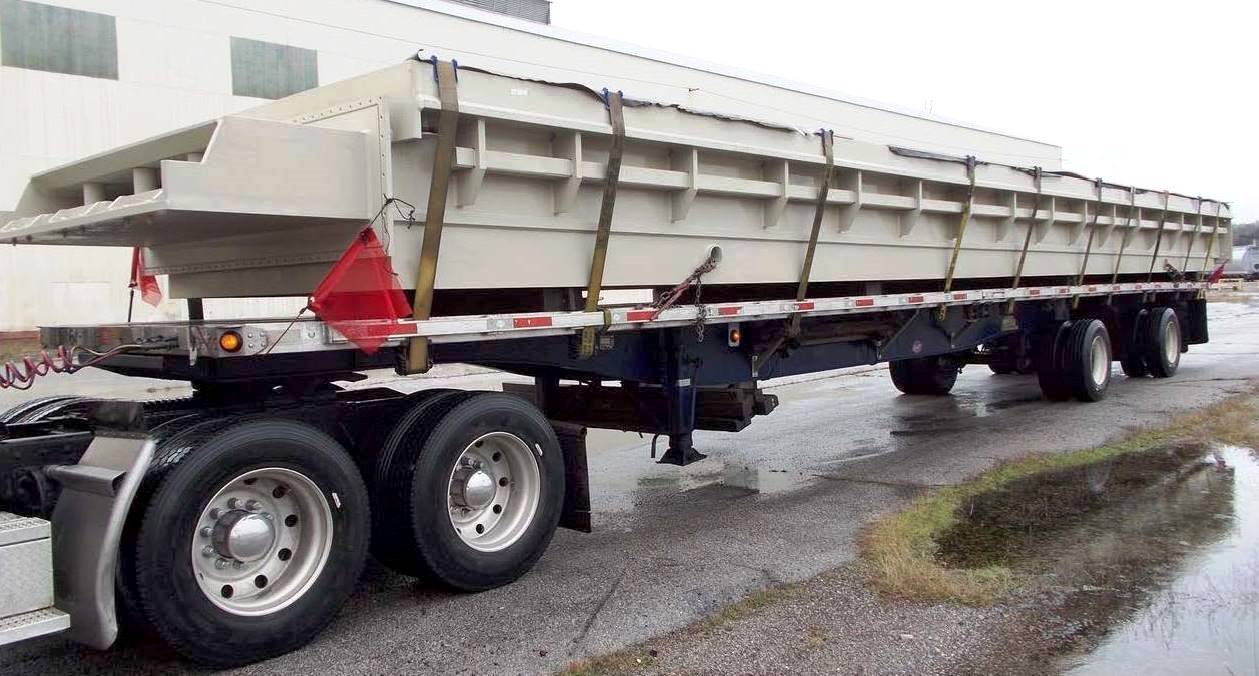

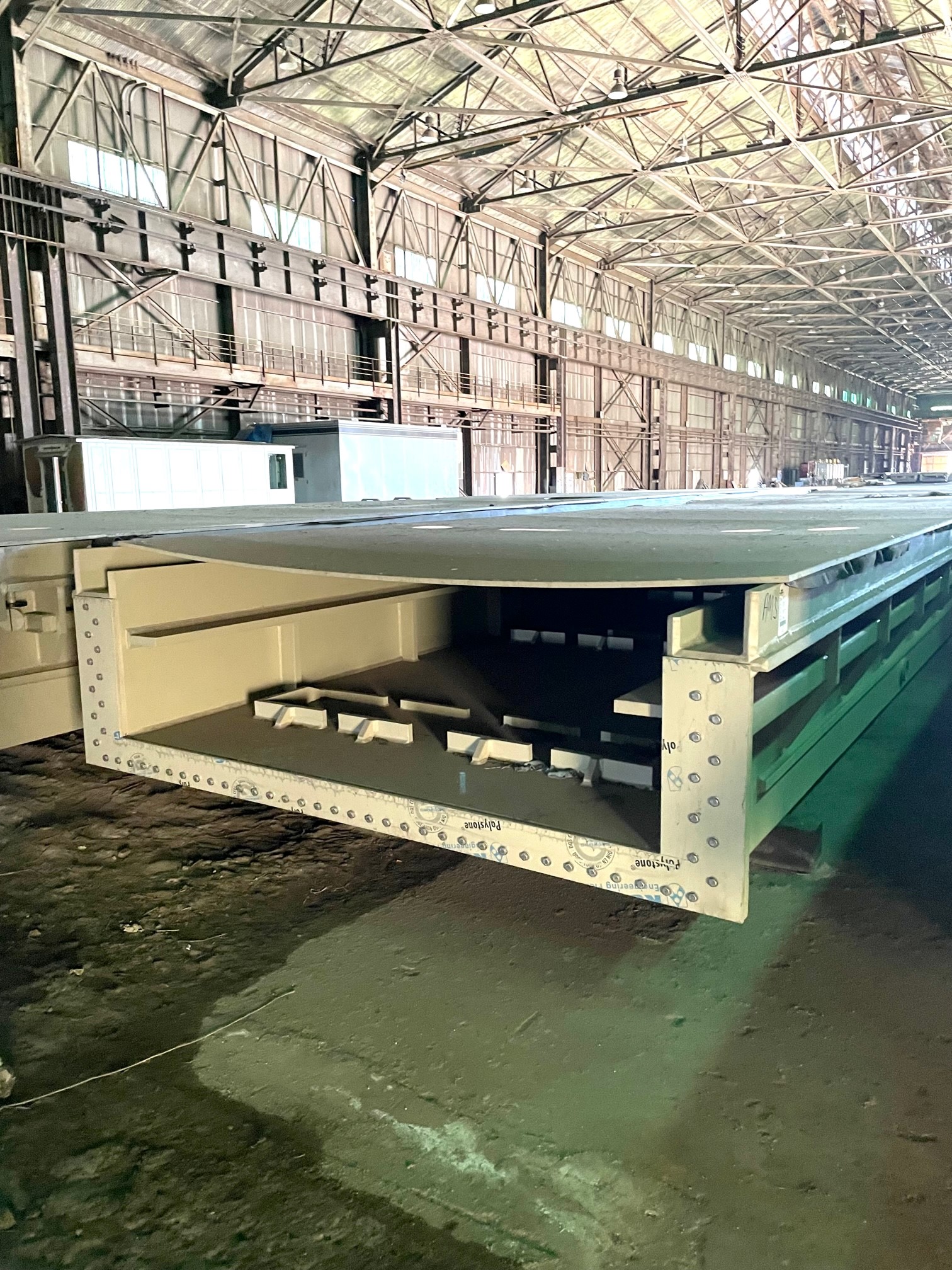

(4) UNUSED PICKLING LINE TANKS, EACH 109' (33,223 MM) LONG X 86" (2185 MM) WIDE FOR 74" WIDE STRIP

MANUFACTURER: SMS SIEMAG

AGE: 2011

INSIDE WIDTH: 86" (2185 MM)

PASS LINE: 24.6" (625 MM)

TANKS: QTY 4 TANKS (2 SECTIONS ARE 109' (33,223 MM) CONSISTING OF ONE 53.26" (16.2 MM) SECTION AND ONE 55.88" (17 MM) SECTION

TANK CONNECTION: TANKS CAN BE BOLTED TOGETHER FOR 109' OR USED SEPARATELY

CONSTRUCTION: FABRICATED AND WELDED

MATERIAL: POLYPROPYLENE

COVERS: NOT AVAILABLE

PREVIOUS APPLICATION: PICKLING TANKS (NEVER INSTALLED)

WEIGHT PER 109' SECTION: 30,400 LBS. (13,793 KG)

DIMENSIONS PER SECTION: 109' LENGTH X 10' WIDTH X 3' HEIGHT (33,223 MM LENGTH X 3 MM WIDTH X 0.91 MM HEIGHT)

FEATURES: FABRICATED PLASTIC SUB PLATES INCLUDED

NEVER INSTALLED

READY TO SHIP

INVENTORY ID 200683-000-00

INVENTORY ID	20068300000
TITLE	(4) UNUSED PICKLING LINE TANKS, EACH 109' (33,223 MM) LONG X 86" (2185 MM) WIDE FOR 74" WIDE STRIP
ENTRY COIL WIDTH MAX	86"
YEAR OF MANUFACTURE	2011
AGE COMMENTS	NEVER INSTALLED
MATERIAL	POLYPROPYLENE
FEATURES 1	FABRICATED PLASTIC SUB PLATES INCLUDED
FEATURES 2	NEVER INSTALLED
FEATURES 3	READY TO SHIP
