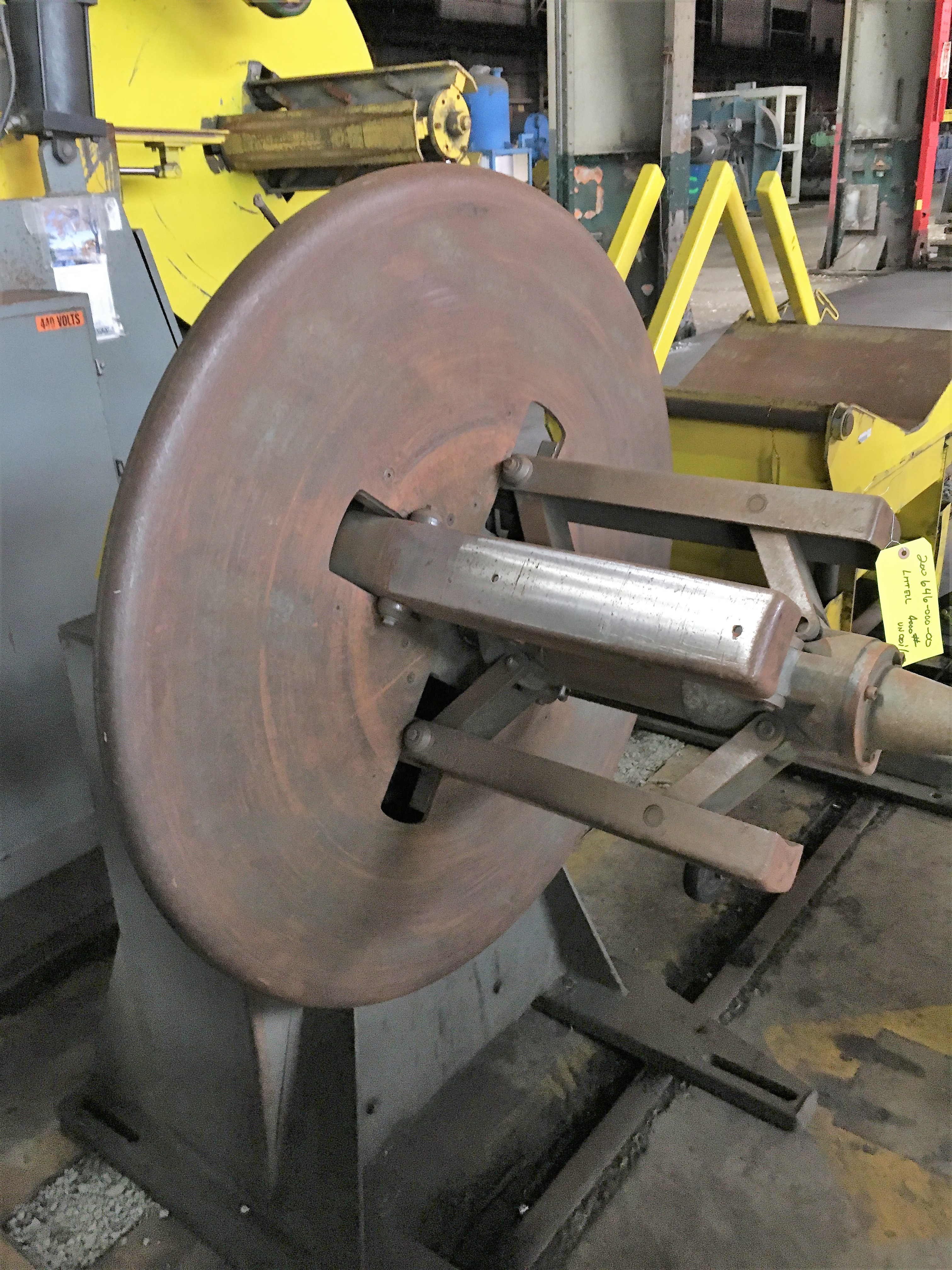

18" 4,000 LBS LITTELL 40-18 PAYOFF REEL
 "20064600000 18\" 4,000 LBS LITTELL 40-18 PAYOFF REEL")
 "20064600000 18\" 4,000 LBS LITTELL 40-18 PAYOFF REEL")
18" 4,000 LBS (455 MM) LITTELL 4,000 PAYOFF REEL

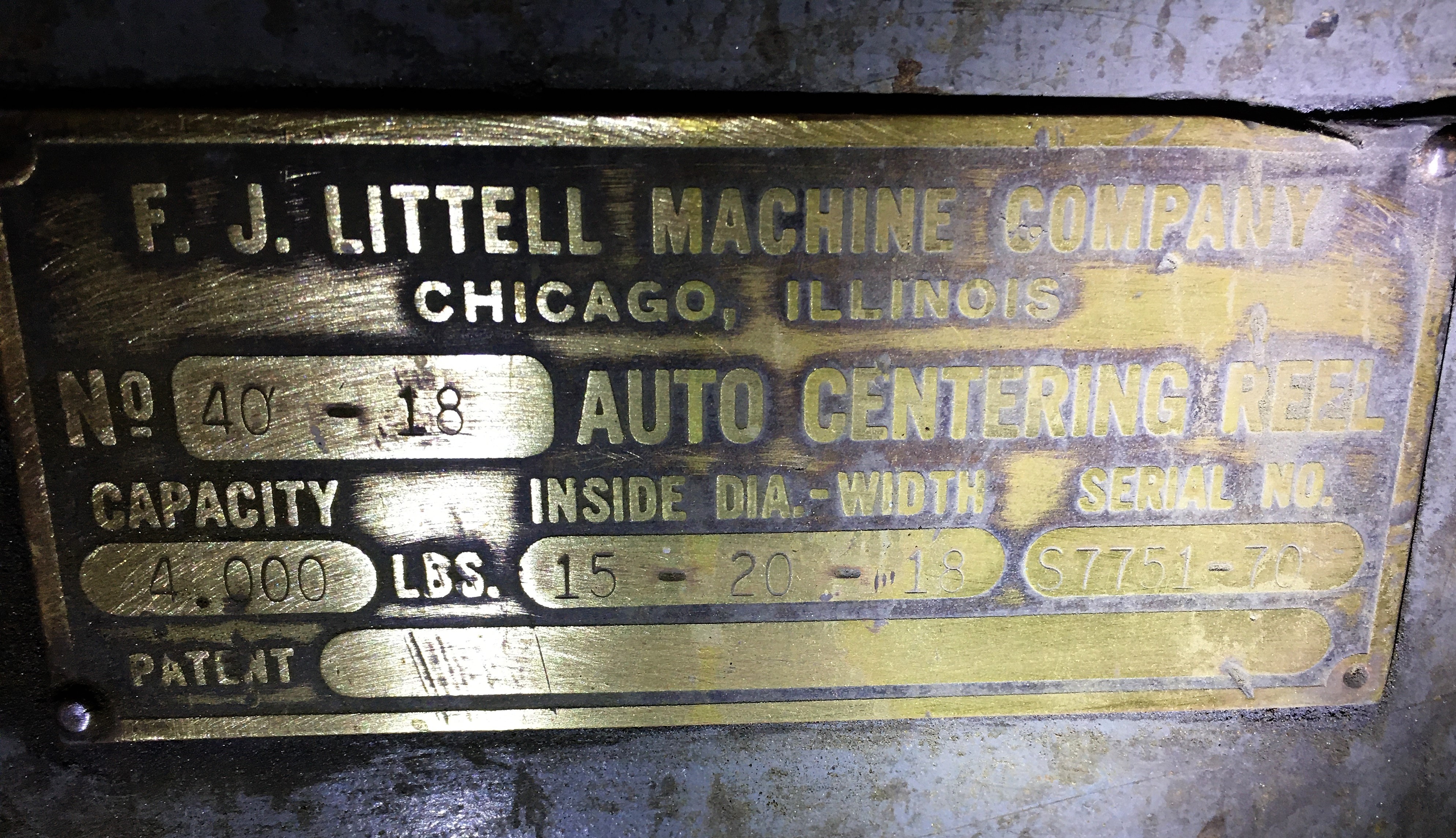

MANUFACTURER: LITTELL
MODEL #: 40-18
SERIAL #: S7751-70
GENERAL SPECIFICATIONS:
MANDREL FACE: 20" (500 MM)
MANDREL DATA:
4 SEGMENT
20" DIAMETER EXPANDED (500MM)
16" DIAMETER COLLAPSED (400 MM)
COIL O.D.: 60" MAX
COIL WEIGHT: 4000 LBS (1525 MM)
MOTOR DATA: 2 HP, 1140 RPM, 230/460 V, WESTINGHOUSE 184T FRAME
DIMENSIONS: 62" LENGTH X 45" WIDTH X 64" HEIGHT (157 MM LENGTH X 1140 MM WIDTH X 1625 MM HEIGHT)
WEIGHT: 1640 LBS (744 KG)
PREVIOUS USE: CLADDING LINE
FEATURES: ALREADY DISMANTLED - READY TO SHIP
INVENTORY #: 200646-000-00
| INVENTORY ID | 20064600000 |
| TITLE | 18" 4,000 LBS LITTELL 40-18 PAYOFF REEL |
| MANDREL FACE | 20 |
| COIL O.D. | 60 |
| MANUFACTURER OF EQUIPMENT | LITTELL |
| MODEL NO | 40-18 |
| SERIAL NO | S7751-70 |
| MANDREL FACE | 20 |
| MANDREL DIA. EXPANDED | 20 |
| MANDREL DIA. COLLAPSED | 16 |
| COIL O.D. MAX | 60 |
| COIL WEIGHT MAX. | 4000 |
| OVERALL LENGTH | 62 |
| OVERALL WIDTH | 45 |
| OVERALL HEIGHT | 64 |
| TOTAL WEIGHT | 1640 |
| FEATURES 1 | ALREADY DISMANTLED |
