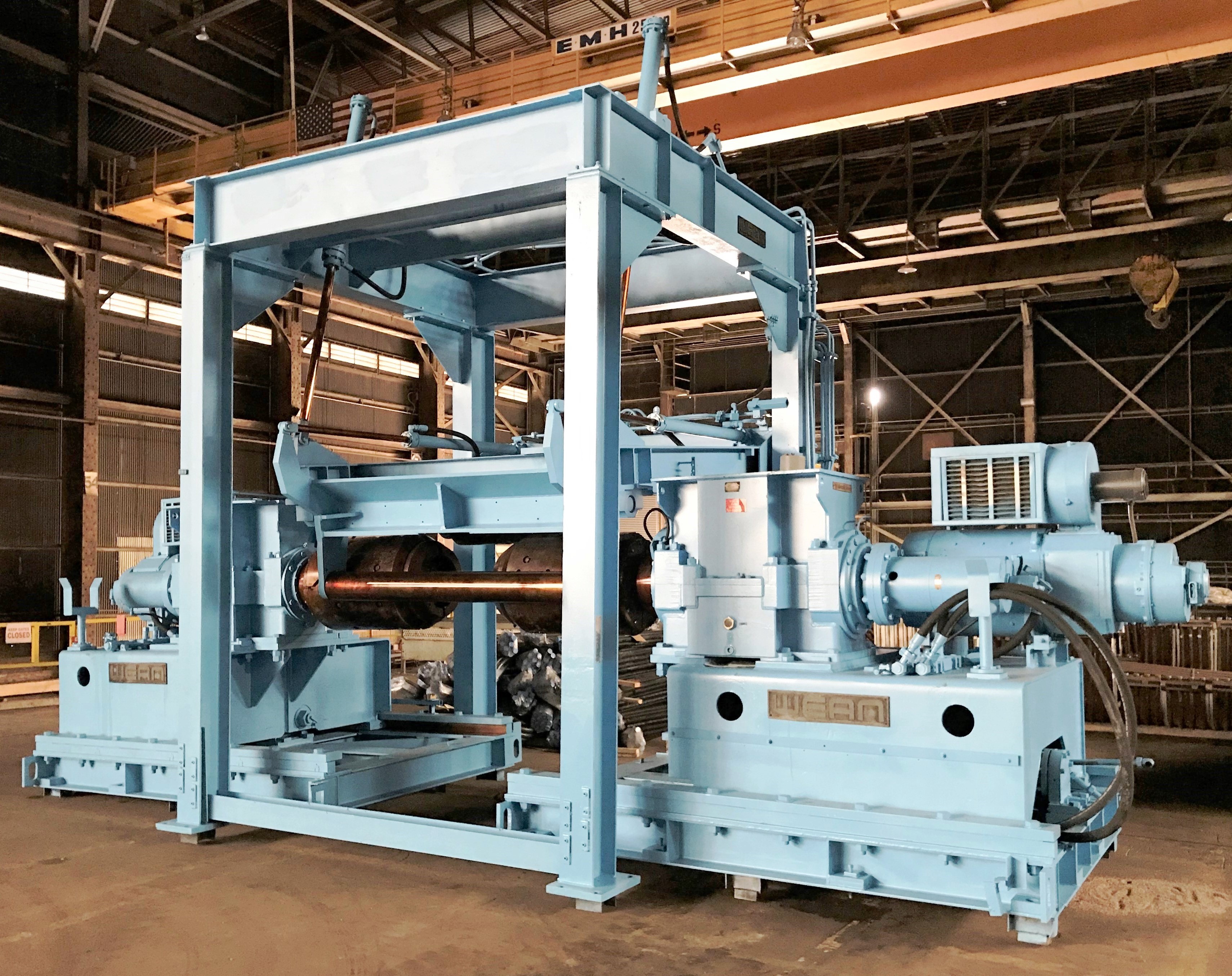

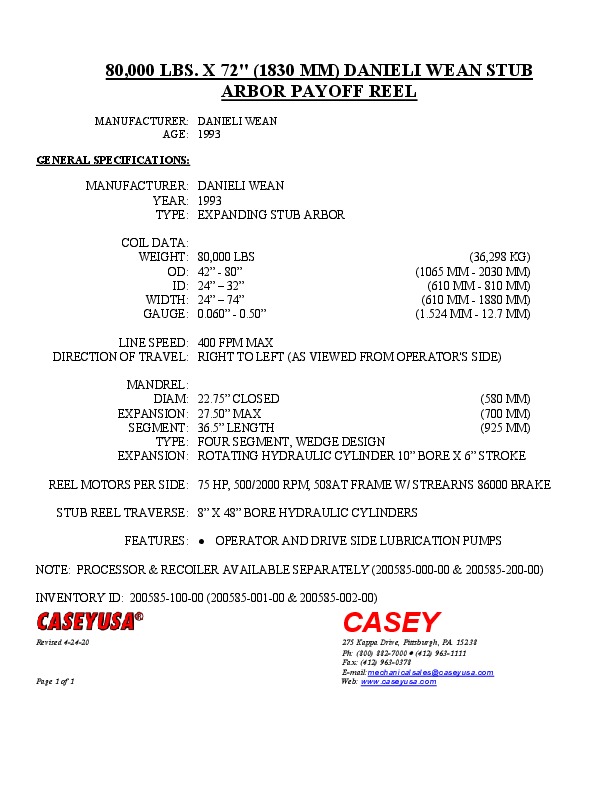

80,000 LBS. X 72" (1830 MM) DANIELI WEAN STUB ARBOR PAYOFF REEL
 "20058510000 80,000 LBS. X 72\" (1830 MM) DANIELI WEAN STUB ARBOR PAYOFF REEL")
 "20058510000 80,000 LBS. X 72\" (1830 MM) DANIELI WEAN STUB ARBOR PAYOFF REEL")
| INVENTORY ID | 20058510000 |
| TITLE | 80,000 LBS. X 72" (1830 MM) DANIELI WEAN STUB ARBOR PAYOFF REEL |
| MANDREL FACE | 24 |
| COIL O.D. | 42" - 80" |
| MANUFACTURER OF EQUIPMENT | DANIELI WEAN |
| YEAR OF MANUFACTURE | 1993 |
| MANDREL DIA. EXPANDED | 27.50 |
| MANDREL DIA. COLLAPSED | 22.75 |
| COIL O.D. MAX | 80 |
| COIL WEIGHT MAX. | 80,000 |
| LINE SPEED | 400 |
| DRIVE MOTOR HP | 75 |
| MOTOR FRAME | 508AT |
| MOTOR RPM | 500/2000 |
| FEATURES 1 | OPERATOR AND DRIVE SIDE LUBRICATION PUMPS |
