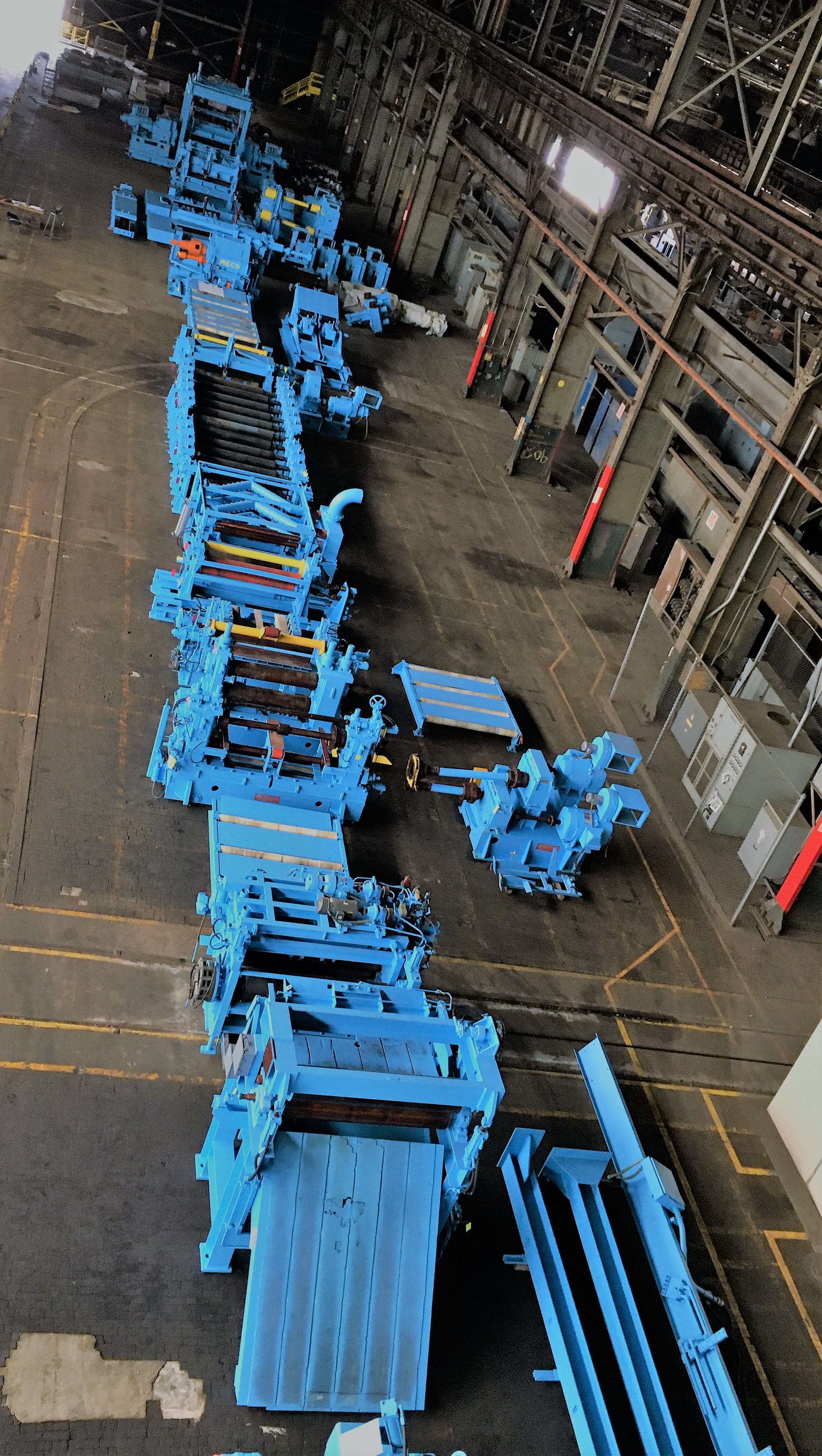

1/2" X 72" WIDE, 80,000 LBS, DANIELI WEAN PUSH PULL PICKLE LINE WITH MECO TEMPER MILL

MANUFACTURER: DANIELI WEAN

AGE: 1993

GENERAL SPECIFICATIONS:

COIL WIDTH: 24" - 74" (610 MM - 1880 MM)

COIL GAUGE: 0.060" - 0.500" (1.52 MM - 12.7 MM)

COIL ID ENTRY: 24" - 32" (610 MM - 810 MM)

EXIT: 24" (610 MM)

COIL WEIGHT: 80,000 LBS. (36,300 KG)

MATERIAL: MILD STEEL - 80,000 PSI YIELD

PAYOFF REEL: STUB ARBOR TYPE 75HP EACH SIDE

ENTRY COIL PROCESSOR: 2 OVER 3 FLATTENER AND PINCH ROLL

PICKLING SECTION: 172' NEVER USED POLYPROPELENE TANKS AVAILABLE

RINSE SECTION: 60' NEVER USED POLYPROPELENE TANKS AVAILABLE

ADDITIONAL COMPONENTS:

SLITTER / SIDE TRIMMER

TENSION ROLL DEVICE

VARIOUS CARRYOVER TABLES

BUTECH SHEAR

SCRAP REMOVAL SYSTEM

STRIP DRYERS

BRUSH SCRUBBING ROLLS

TURRET TYPE RECOILER

WRAPPER ROLL / BELT WRAPPER UNIT

COIL CARS

COIL TURNSTILE

FEATURES: ALREADY DISMANTLED

INVENTORY#: 200585-000-00

INVENTORY ID	20058500000
TITLE	1/2" X 72" WIDE, 80,000 LBS, DANIELI WEAN PUSH PULL PICKLE LINE WITH MECO TEMPER MILL
ENTRY COIL WIDTH MAX	72"
YEAR OF MANUFACTURE	1993
MODEL NO	40-18
SERIAL NO	S7751-70
MATERIAL	STEEL
ENTRY COIL WIDTH MIN	24"
ENTRY COIL GAUGE MIN	0.060"
ENTRY COIL GAUGE MAX	0.500"
ENTRY COIL O.D. MIN	42"
ENTRY COIL O.D. MAX	80"
ENTRY COIL I.D. MIN	24"
ENTRY COIL I.D. MAX	32"
EXIT COIL GAUGE MAX	0.5" @ 48" WIDE
EXIT COIL O.D. MIN	42"
EXIT COIL O.D. MAX	80"
EXIT COIL I.D. MAX	24"
LINE SPEED MIN	300 FPM UP TO 0.25" GAUGE
LINE SPEED MAX	150 FPM ABOVE 0.25" GAUGE
DIRECTION OF TRAVEL (VIEWED FROM OPERATORS SIDE)	RIGHT TO LEFT
ENTRY COIL CAR (PIT/ ABOVE GROUND)	PIT - (NOT AVAILABLE)
NUMBER OF ENTRY REELS	1 - STUB ARBOR TYPE
ENTRY REEL MANDREL DIA (EXPANDING/SLEEVE)	22.75" - 27.50"
ENTRY REEL MOTOR HP	75 HP PER SIDE
ENTRY REEL MOTOR RPM	500/2000
ENTRY PINCHROLL DIA	14"
ENTRY PINCHROLL FACE	75"

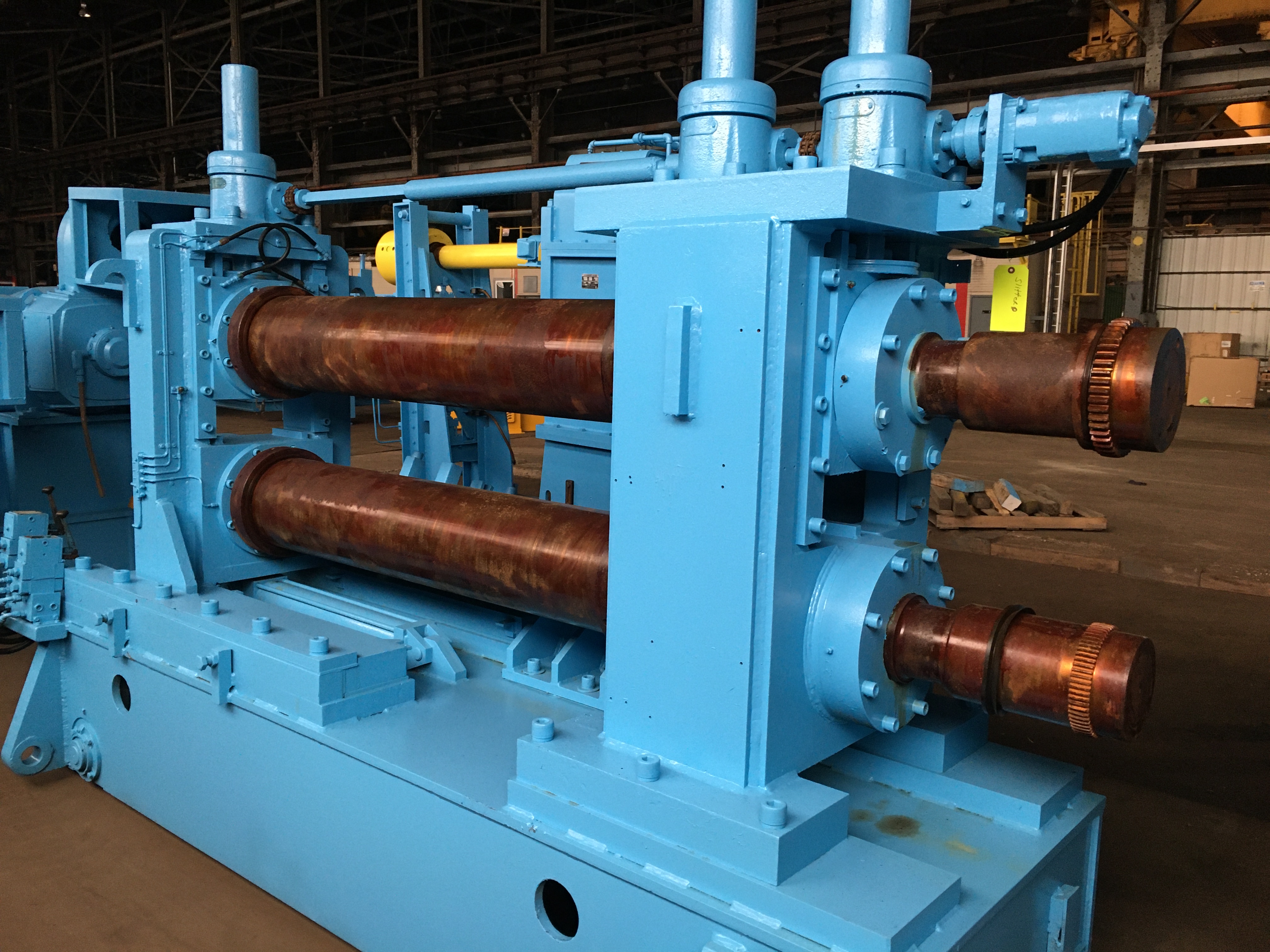

LEVELER ROLL ARRGT (X OVER Y)	2 OVER 3
LEVERER WR MOTOR HP	200
LEVELER WR MOTOR RPM	650/2000
LEVELER MAIN GEAR BOX RATIO ( :1 )	14.743 :1
NUMBER OF SPINDLES	7
CARRY OVER TABLE (YES OR NO)	VARIOUS
SHEAR TYPE ( HYD,UPCUT,DOWNCUT,FLYING)	HYDRAULIC
NUMBER OF EXIT REELS	2 - ROTATING TURRET TYPE
EXIT REEL MOTOR HP	250 HP
EXIT REEL MOTOR RPM	644
EXIT COIL CAR (PIT/ ABOVE GROUND)	COIL CAR
FEATURES 1	ENTRY COIL PROCESSING UNIT

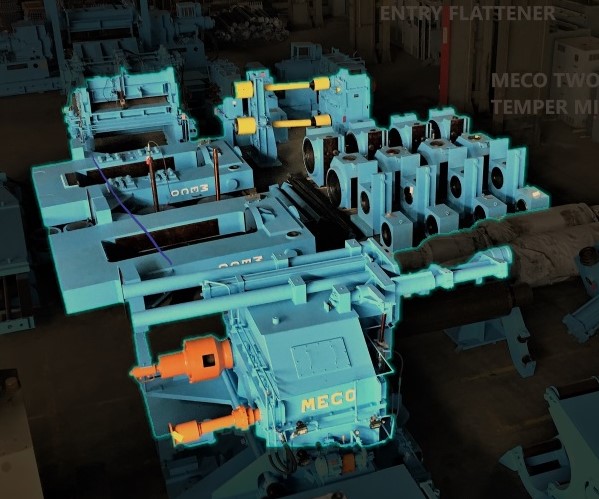

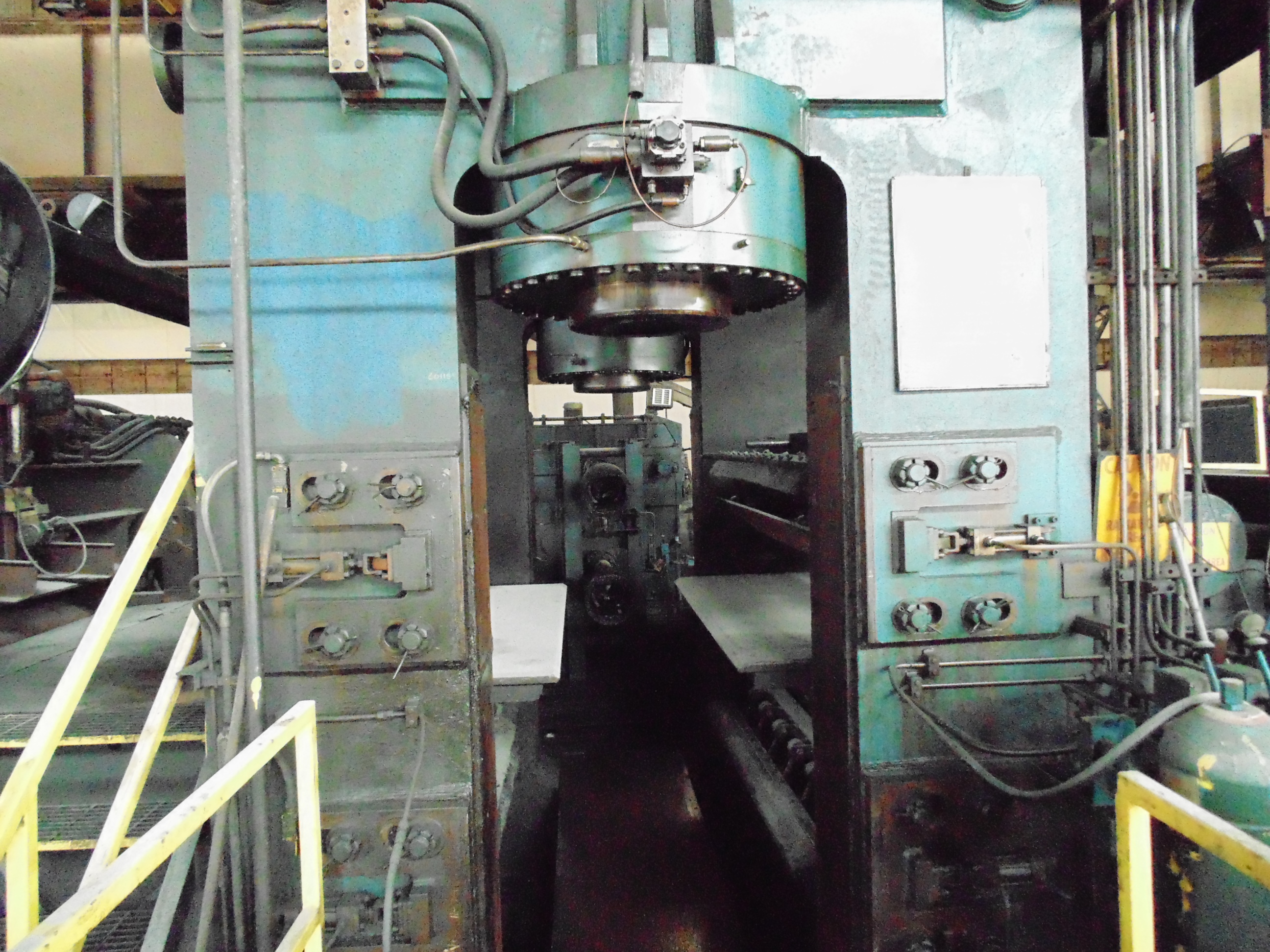

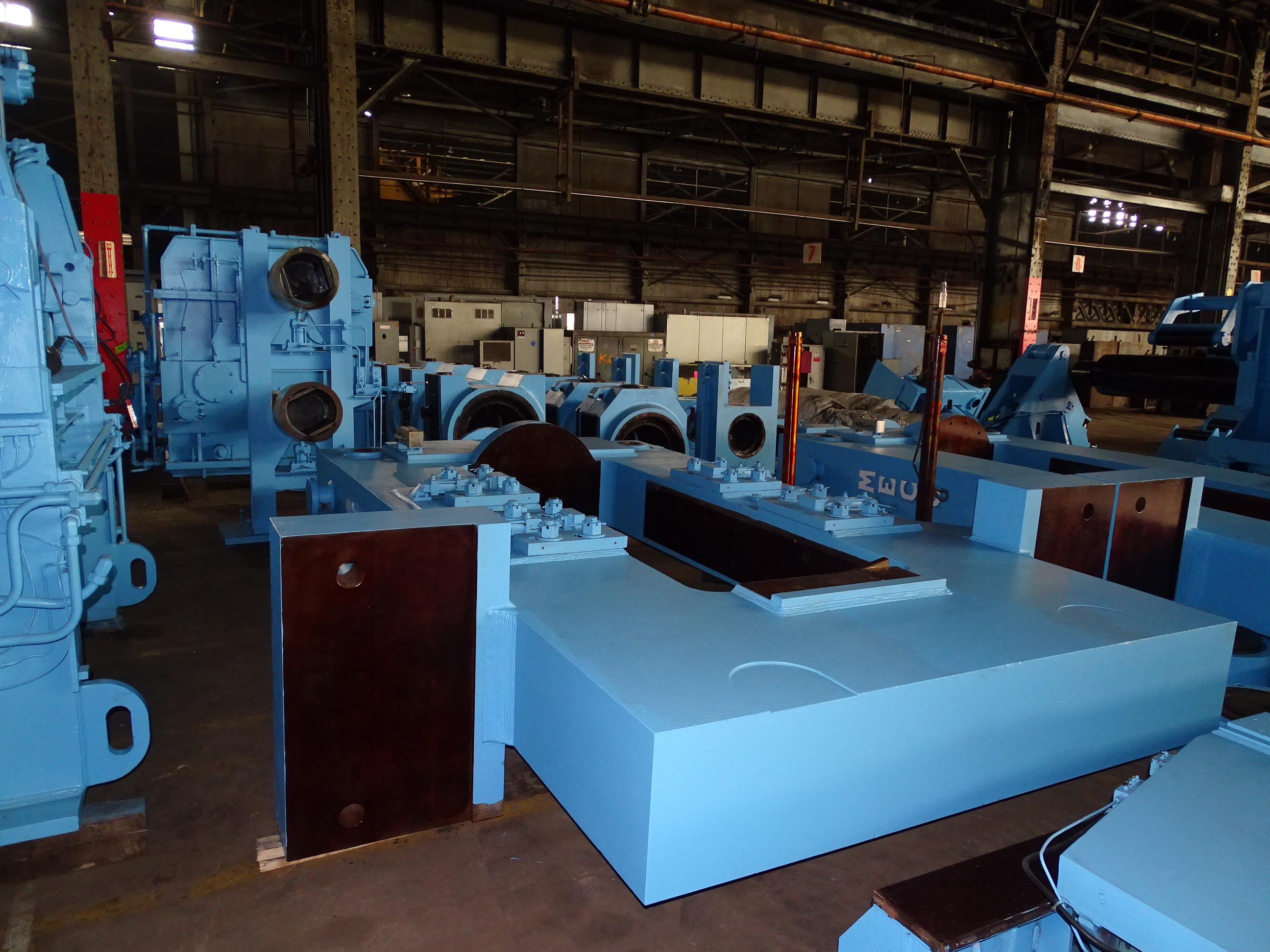

FEATURES 2	72" MECO TWO HIGH TEMPER MILL
FEATURES 3	NEW PICKLE TANKS
