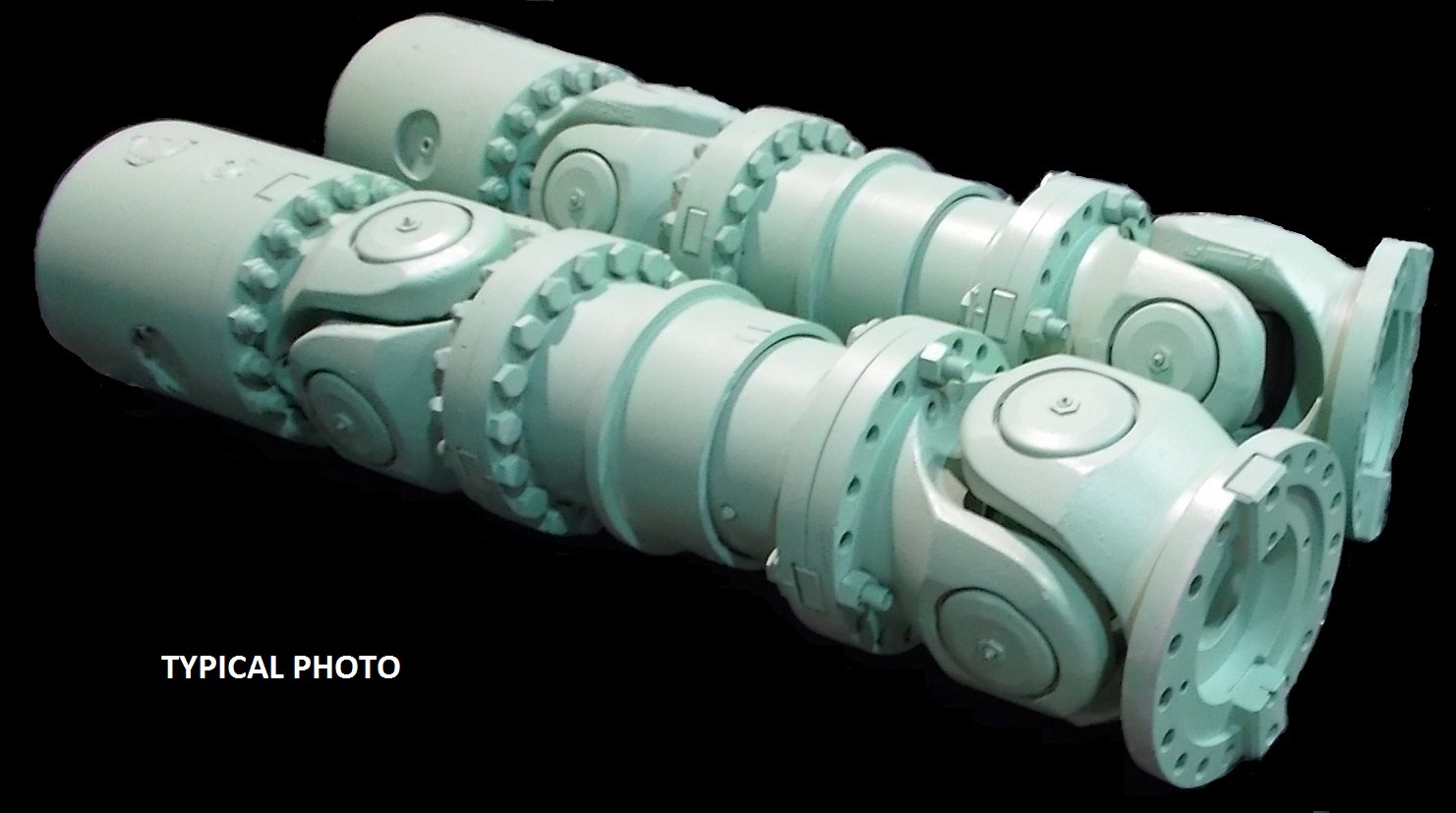

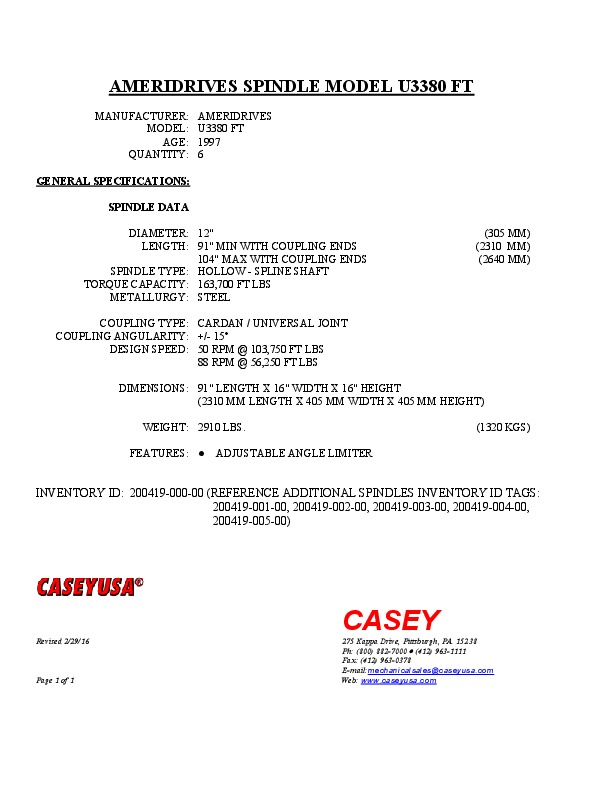

AMERIDRIVES SPINDLE MODEL U3380 FT, ROLLING MILL SPINDLE
 "20041900000 AMERIDRIVES SPINDLE MODEL U3380 FT, ROLLING MILL SPINDLE")
| INVENTORY ID | 20041900000 |
| TITLE | AMERIDRIVES SPINDLE MODEL U3380 FT, ROLLING MILL SPINDLE |
| MANUFACTURER OF EQUIPMENT | AMERIDRIVES |
| YEAR OF MANUFACTURE | 1997 |
| MODEL NO | U3380 FT |
| QUANTITY | 6 |
| SPINDLE DIAMETER | 12 |
| SPINDLE LENGTH | 91" MIN to 104" MAX |
| TORQUE CAPACITY | 163,700 FT LBS. |
| METALLURGY | STEEL |
| SPINDLE TYPE (TUBULAR OR SOLID) | HOLLOW - SPLINE SHAFT |
| COUPLING TYPE (CARDAN-FLEX-RIGID-UNIVERSAL SPINDLE COUPLING) | CARDAN / UNIVERSAL JOINT |
| COUPLING ANGULARITY | +/- 15° |
| DESIGN SPEED | 50 RPM @ 103,750 FT LBS |
| OVERALL LENGTH | 91 |
| OVERALL WIDTH | 16 |
| OVERALL HEIGHT | 16 |
| TOTAL WEIGHT | 2910 |
| FEATURE 1 | ADJUSTABLE ANGLE LIMITER |
