300 HP (222 KW), RPM INPUT 1750/2000, 41.422 RATIO, RPM OUTPUT 42/48, NUTTALL 90R55388 CAT NO. WT 20 GEAR REDUCER / SPEED REDUCER / GEARBOX, USED
 "20016455012 300 HP (222 KW), RPM INPUT 1750/2000, 41.422 RATIO, RPM OUTPUT 42/48, NUTTALL 90R55388 CAT NO. WT 20 GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20016455012 300 HP (222 KW), RPM INPUT 1750/2000, 41.422 RATIO, RPM OUTPUT 42/48, NUTTALL 90R55388 CAT NO. WT 20 GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20016455012 300 HP (222 KW), RPM INPUT 1750/2000, 41.422 RATIO, RPM OUTPUT 42/48, NUTTALL 90R55388 CAT NO. WT 20 GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20016455012 300 HP (222 KW), RPM INPUT 1750/2000, 41.422 RATIO, RPM OUTPUT 42/48, NUTTALL 90R55388 CAT NO. WT 20 GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20016455012 300 HP (222 KW), RPM INPUT 1750/2000, 41.422 RATIO, RPM OUTPUT 42/48, NUTTALL 90R55388 CAT NO. WT 20 GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
| INVENTORY ID | 20016455012 |
| TITLE | 300 HP (222 KW), RPM INPUT 1750/2000, 41.422 RATIO, RPM OUTPUT 42/48, NUTTALL 90R55388 CAT NO. WT 20 GEAR REDUCER / SPEED REDUCER / GEARBOX, USED |
| HORSEPOWER | 300 |
| RPM INPUT | 1750/2000 |
| RATIO | 41.422:1 RATIO |
| RPM OUTPUT | 45.5 |
| GEARBOX SHAFT ARRANGEMENT | PARALLEL |
| MANUFACTURER OF EQUIPMENT | NUTTALL GEAR CORP. |
| YEAR OF MANUFACTURE | 1990 |
| MODEL NUMBER | 90R55388 |
| SERIAL NUMBER | 9101 |
| MFG SIZE REFERENCE | CATALOG NUMBER WT 20 |
| REDUCTION | TRIPLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1.69 |
| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |
| PREVIOUS USE | BIRDLE ROLL DRIVE |

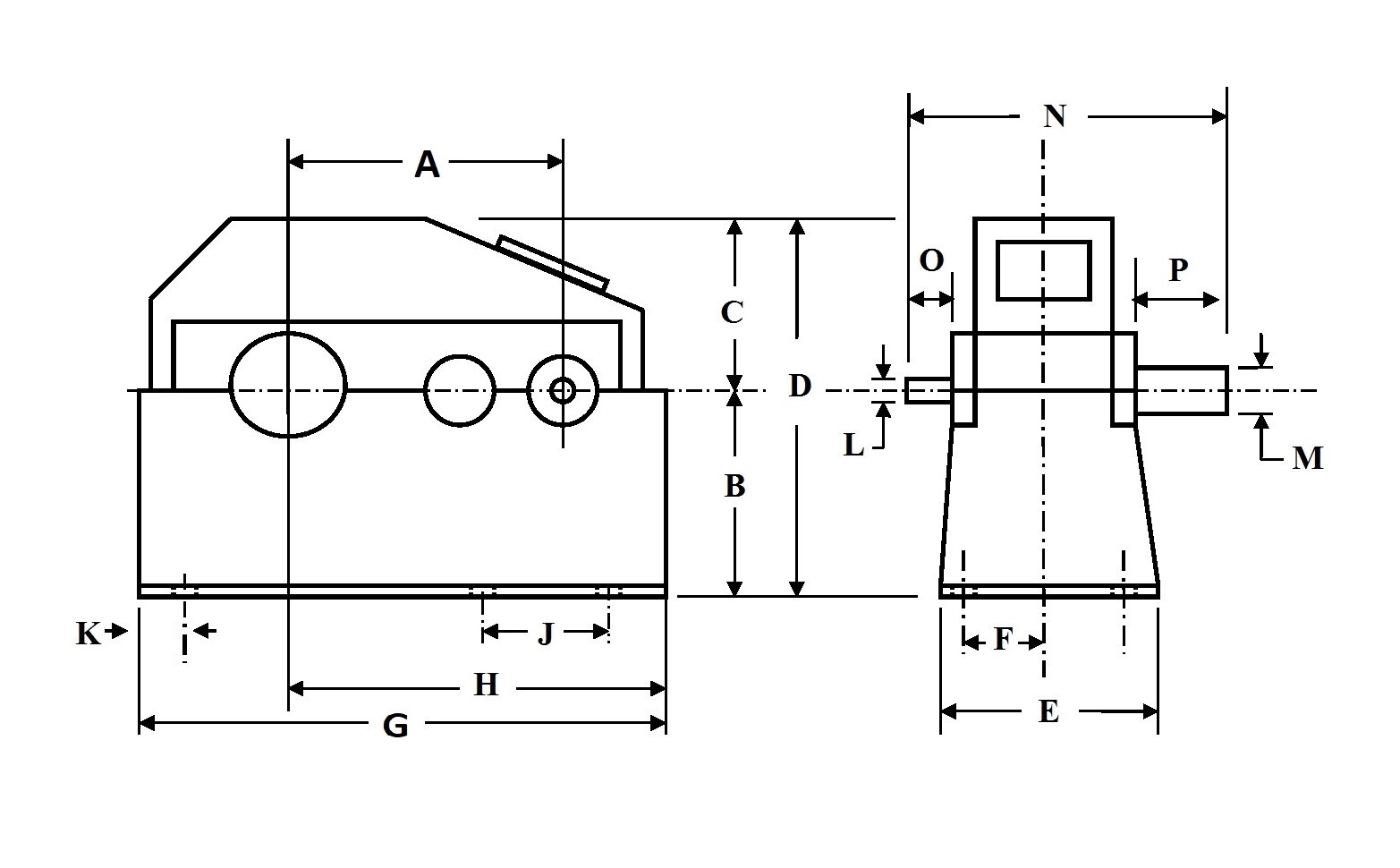

| DIMENSION A | 32.75 |
| DIMENSION B | 20 |
| DIMENSION C | 19.375 |
| DIMENSION D | 39.375 |
| DIMENSION E | 31 |
| DIMENSION F | 14 |
| DIMENSION G | 67 |
| DIMENSION H | 42.5 |
| DIMENSION J | 25.5 |
| DIMENSION K | 6.25 |
| DIMENSION L | 1.4375 |
| DINEMSION M | 7.5 |
| DIMENSION N | 47.5 |
| DIMENSION O | 4.625 |
| DIMENSION P | 11.25 |
