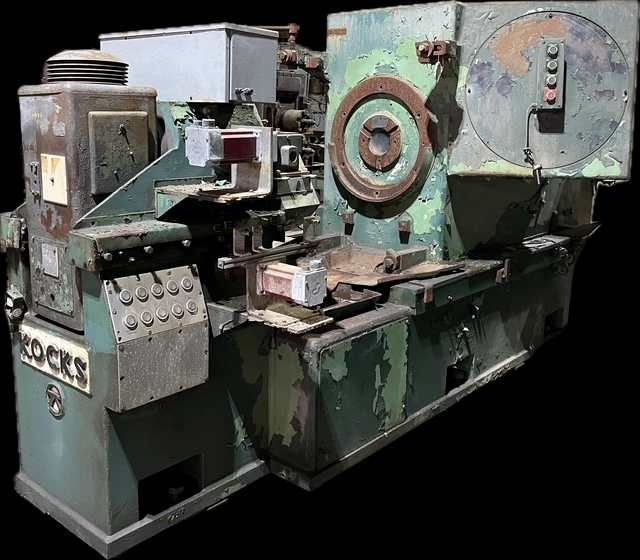

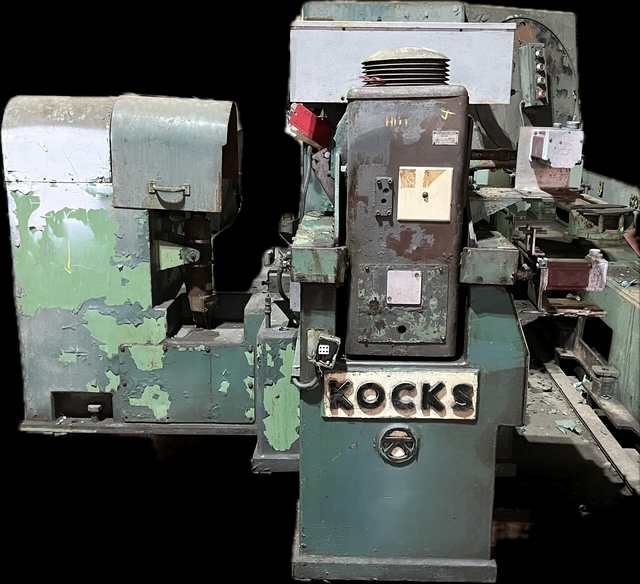

290 MM (11") KOCKS MODEL E 560 ROLL GRINDER
MANUFACTURER: WERTH
AGE: 1966
MODEL #: E 560
MODERNIZED: GRINDER WAS MODERNIZED IN 2004 BY OSRAM SYLVANIA
CAPACITY: 290 MM (11") DIAMETER CARBIDE RING ROLLS
DIMENSIONS: 127" L X 94" W X 88" H (3225 MM X 2387 MM X 2235 MM)
CUTTING DISC: 8.5" DIAMETER; 0.5" THICK
ROLL CASSETTE WEIGHT: 1600 LBS (725 KG)
OPERATION: THE MACHINE GRINDS THE CENTER PASS INSIDE THE CARBIDE RING ROLLS FOR A 290 MM KOCKS BLOCK. THE CASSETTE IS INDEXED VIA A DRIVE MOTOR ON THE GINDER THAT MESHES WITH THE SPLINE SHAFT OF THE KOCKS CASSETTE AND INDEXES THE RINGS FOR THE DISC TO CUT INTO.

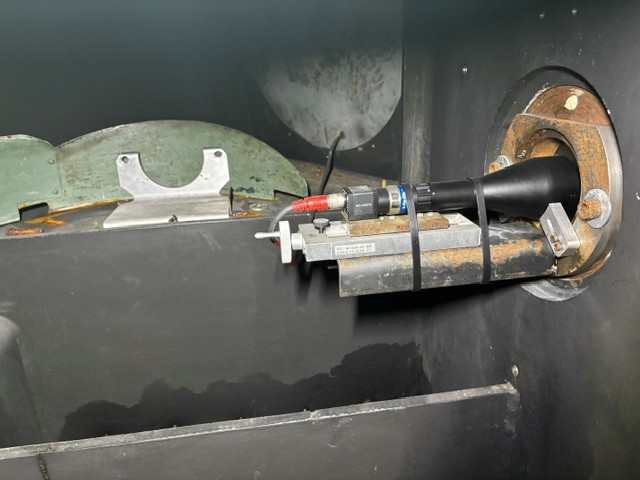

THE MACHINE USES AN OPTICAL PROJECTION SYSTEM TO MAGNIFY THE CUTTING AGAINST DESIRED PROFILES.
MACHINE WEIGHT: 11,500 LBS (5216 KG)
PREVIOUS USE: GRIND ROLLS FOR A 12-STAND KOCKS CAR THAT ROLLED TUNGSTEN STEEL
INVENTORY ID#: 200157-054-00
| INVENTORY ID | 20015705400 |
| TITLE | 290 MM (11") KOCKS MODEL E 560 ROLL GRINDER , USED BILLET AND BLOOM GRINDERS |
| MANUFACTURER OF EQUIPMENT | MODEL E 560 |
| YEAR OF MANUFACTURE | 1966 |
| YEARS WHEN UPGRADES PERFORMED | GRINDER WAS MODERNIZED IN 2004 BY OSRAM SYLVANIA |
| CAPACITY | 290 MM (11") |
| PREVIOUS USE | GRIND ROLLS FOR A 12-STAND KOCKS CAR THAT ROLLED TUNGSTEN STEEL |
| MOTOR HP | 3 HP MOTOR DRIVEN GEAR REDUCER |
| WEIGHT | MACHINE WEIGHT: 11,500 LBS (5216 KG) ROLL CASSETTE WEIGHT: 1600 LBS (725 KG) |
