600 HP (445 KW), RPM INPUT 780-1150, 1.82/3.64 RATIO, BRAD FOOTE GEAR WORKS TWO SPEED GEAR REDUCER / SPEED REDUCER / GEARBOX, USED
 "20002300100 600 HP (445 KW), RPM INPUT 780-1150, 1.82/3.64 RATIO, BRAD FOOTE GEAR WORKS TWO SPEED GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20002300100 600 HP (445 KW), RPM INPUT 780-1150, 1.82/3.64 RATIO, BRAD FOOTE GEAR WORKS TWO SPEED GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20002300100 600 HP (445 KW), RPM INPUT 780-1150, 1.82/3.64 RATIO, BRAD FOOTE GEAR WORKS TWO SPEED GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
| INVENTORY ID | 20002300100 |
| TITLE | 600 HP (445 KW), RPM INPUT 780-1150, 1.82/3.64 RATIO, BRAD FOOTE GEAR WORKS TWO SPEED GEAR REDUCER / SPEED REDUCER / GEARBOX, USED |
| NEW ARRIVAL | TRUE |
| HORSEPOWER | 600 |
| RPM INPUT | 780-1150 |
| RATIO | 1.82 / 3.64 RATIO |
| GEARBOX SHAFT ARRANGEMENT | RIGHTANGLE |

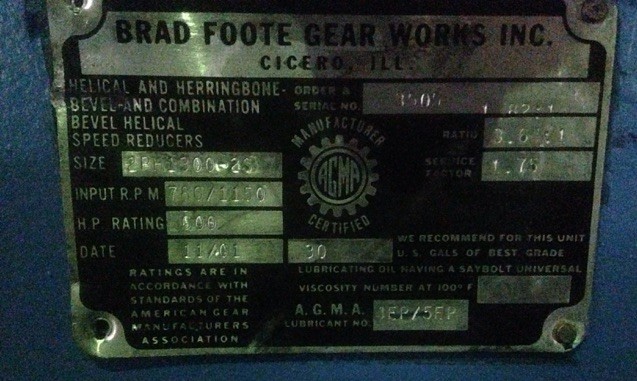

| MANUFACTURER OF EQUIPMENT | BRAD FOOTE |
| YEAR OF MANUFACTURE | 2001 |
| MODEL NUMBER | 2PH1300-25 |
| SERIAL NUMBER | 3505 |
| REDUCTION | DOUBLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1.75 |
| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |

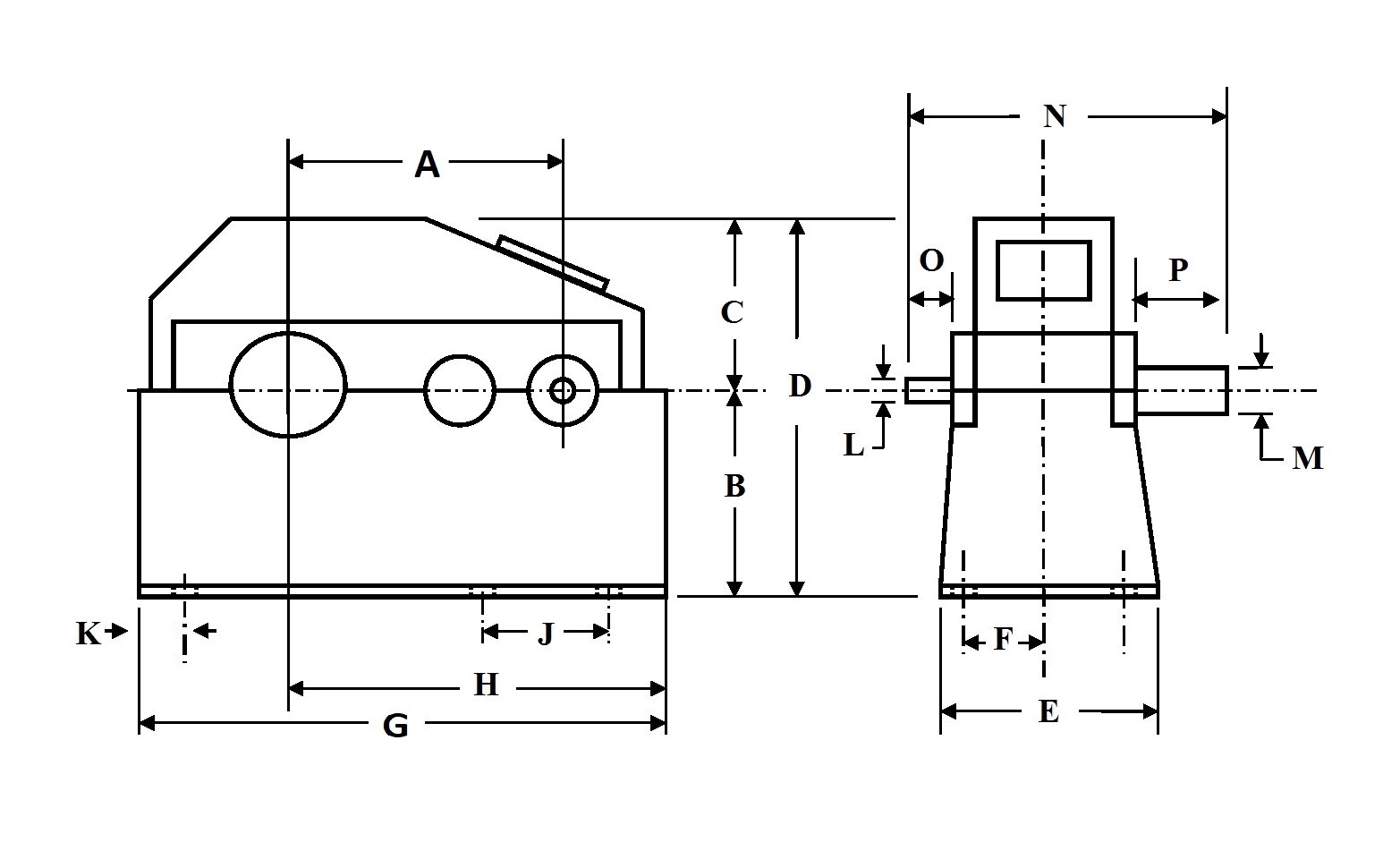

| DIMENSION B | 18.25 |
| DIMENSION C | 14.50 |
| DIMENSION D | 32.75 |
| DIMENSION E | 28 |
| DIMENSION F | 12.75 |
| DIMENSION G | 34 |
| DIMENSION H | 24.75 |
| DIMENSION J | 15.25 |
| DIMENSION K | 1.75 |
| DIMENSION L | 3.750 |
| DINEMSION M | 5.50 |
| DIMENSION N | 37.87 |
| DIMENSION O | 5 |
| DIMENSION P | 7.25 |
