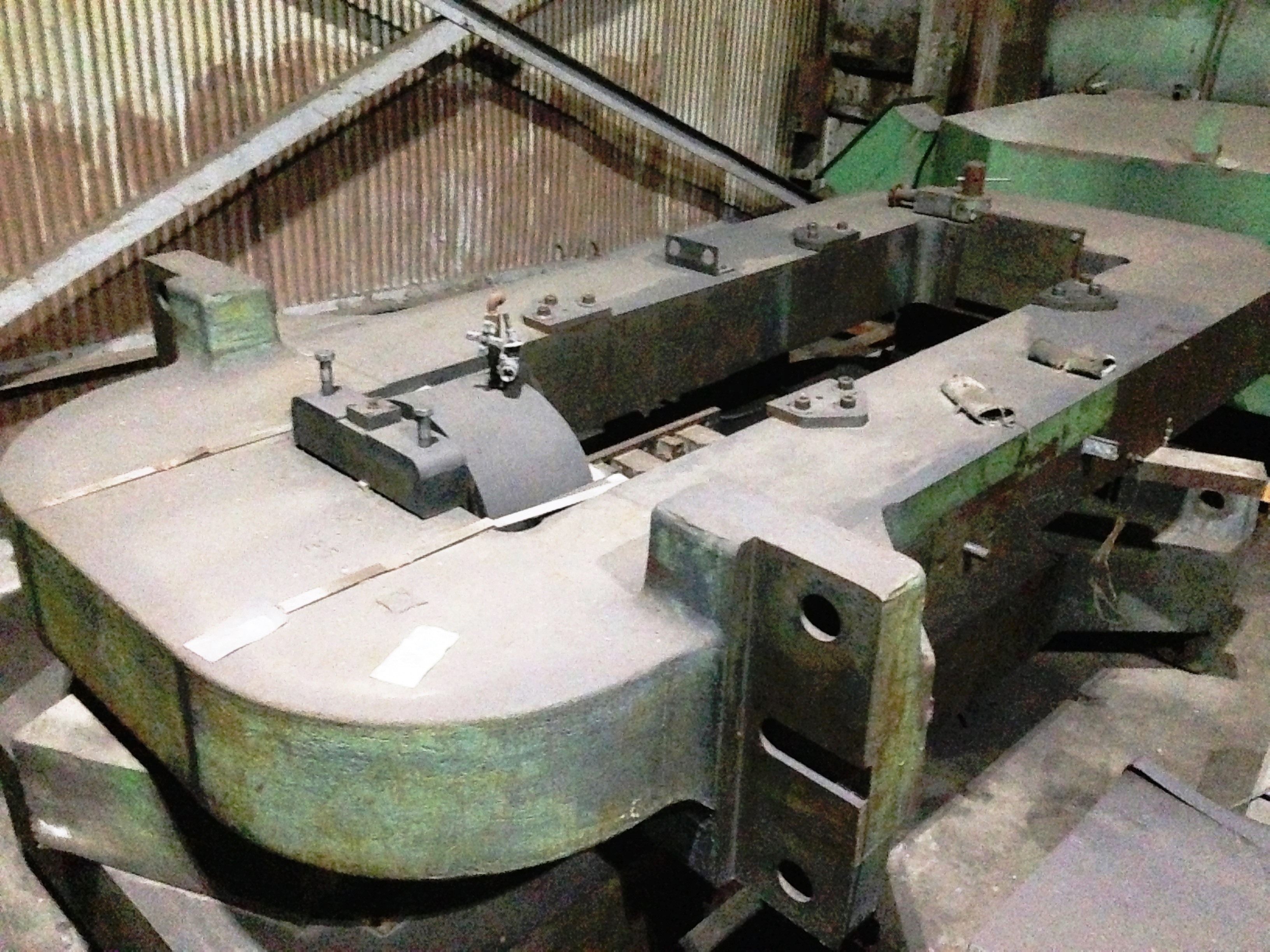

36" (915 MM) WIDE FATA HUNTER 4-HIGH COLD MILL
 "20000200000 36\" (915 MM) WIDE FATA HUNTER 4-HIGH COLD MILL")
 "20000200000 36\" (915 MM) WIDE FATA HUNTER 4-HIGH COLD MILL")
 "20000200000 36\" (915 MM) WIDE FATA HUNTER 4-HIGH COLD MILL")
| INVENTORY ID | 20000200000 |
| TITLE | 36" (915 MM) WIDE FATA HUNTER 4-HIGH COLD MILL |
| MILL WIDTH | 36 |
| NUMBER STANDS | 1 |
| MANUFACTURER OF EQUIPMENT | FATA HUNTER |
| YEAR OF MANUFACTURE | 1984 |
| DESCRIPTION OF UPGRADES | AGC |
| MATERIAL ROLLED | ALUMINUM |
| NUMBER STANDS | 1 |
| REVERS/NONREV | NONREVERSING |
| ROLL CONFIGURATION (2 HI, 4 HI, 6 HI) | 4 HI |
| STARTING COIL WIDTH | 28 |
| STARTING COIL GAUGE MAX | 0.110 |
| STARTING COIL GAUGE MIN | 0.0075 |
| STARTING COIL WEIGHT | 10,000 |
| LINE SPEED | 4000 |
| HSG CLOSED-OPEN TOP | CLOSED TOP |
| HSG CONSTR (FAB OR CAST) | CAST |
| WORK ROLL DIA STAND 1 | 11 |
| WR FACE | 36 |
| NUMBER OF WR AVAILABLE | 2 |
| NUMBER OF WR CHOCKS AVAILABLE | 4 |
| BU ROLL DIA | 28 |
| BU ROLL FACE | 32 |
| NUMBER OF BU ROLLS AVAILABLE | 2 |
| NUMBER OF BU ROLL CHOCKS AVAILABLE | 4 |
| MOTOR HP | 1750 |
| NUMBER OF MOTORS | 1 |
| MOTOR RPM | 480 |
| MOTOR VOLTS | 700 |
| AC OR DC | DC |
| MOTOR MFR | GE |
| SCREWDOWN TYPE | ROLL FORCE CYLINDER |
| POST WIDTH | 18.5 |
| POST DEPTH | 13.5 |
| WINDOW WIDTH | 32 |
| HSG LENGTH | 163 |
| HSG WIDTH | 69 |
| WEIGHT | 40000 |
| ENTRY REEL MOTOR HP | 300 |
