| INVENTORY ID | 10763100000 |

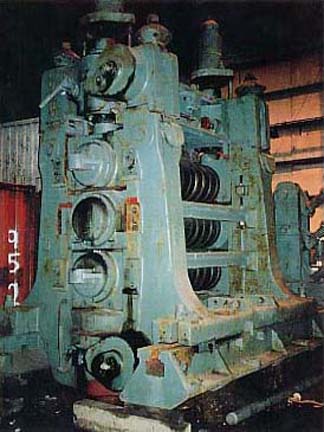

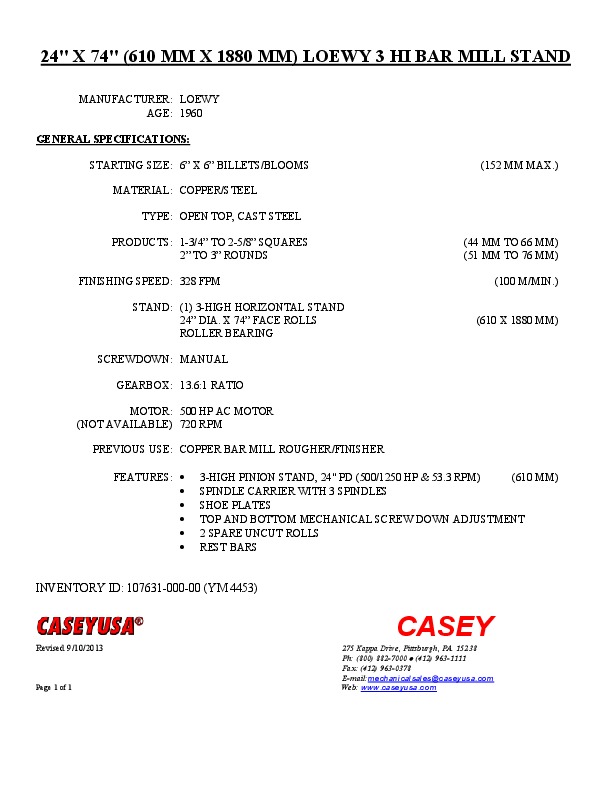

| TITLE | 24" X 74" (610 MM X 1880 MM) LOEWY 3 HI BAR MILL STAND |
| WORK ROLL DIA. |
24" |
| WORK ROLL FACE |
74" |
| ROLL CONFIGURATION (H/V) |
3 HIGH |
| MANUFACTURER OF EQUIPMENT |
LOEWY |
| YEAR OF MANUFACTURE |
1960 |
| MATERIAL ROLLED (STNLESS, LO CARBON, HI CARBON) |
COPPER/STEEL |
| WR BRG TYPE (ROLLER, SLEEVE, FABRIC) |
AF |
| CLOSED-OPEN TOP/HOUSINGLESS |
OPEN |
| HSG CONSTR (FAB OR CAST) |
CAST |
| MOTOR RPM |
720 |
| AC OR DC |
AC |
| SCREWDOWN TYPE (MANUAL/ELECTROMECHANICAL/HYDRAULIC) |
MANUAL |
| PINION AVAILABILITY |
YES |
| FEATURES 1 |
3 HIGH PINION STAND (500/1250 HP & 53.3 RPM) |
| FEATURES 2 |
SPINDLE CARRIER W/ 3 SPINDLES, SHOE PLATES, REST BARS, 2 SPARE UNCUT ROLLS |
| FEATURES 3 |
TOP AND BOTTOM MECHANICAL SCREW DOWN ADJUSTMENT |
