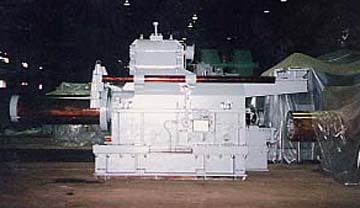

44,000 LBS. X 60" (1524 MM) WIDE BLAWKNOX EXIT RECOILER TENSION REEL
 "10737400000 44,000 LBS. X 60\" (1524 MM) WIDE BLAWKNOX EXIT RECOILER TENSION REEL")
 "10737400000 44,000 LBS. X 60\" (1524 MM) WIDE BLAWKNOX EXIT RECOILER TENSION REEL")
| INVENTORY ID | 10737400000 |
| TITLE | 44,000 LBS. X 60" (1524 MM) WIDE BLAWKNOX EXIT RECOILER TENSION REEL |
| COIL O.D. | 65 |
| MANUFACTURER OF EQUIPMENT | BLAWKNOX |
| YEAR OF MANUFACTURE | 1976 |
| MANDREL FACE | 60 |
| MANDREL DIA. EXPANDED | 24.5 |
| MANDREL DIA. COLLAPSED | 22 |
| LINE SPEED | 590 |
| DRIVE MOTOR HP | 200 |
| MOTOR RPM | 600 |
| AC OR DC | DC |
| MOTOR AVAILABLE | NOT AVAILABLE |
| OVERALL LENGTH | 243 |
| OVERALL WIDTH | 120 |
| OVERALL HEIGHT | 104 |
| FEATURES 1 | 6" CENTERING STROKE CYLINDER |
| FEATURES 2 | HYDR ROTATING EXPANDING CYL |
| FEATURES 3 | 3 PIECE EXPANDING MANDREL WEDGE TYPE |
