37" 15,000 LBS MANDREL PAYOFF REEL WITH 15,000 LBS COIL

10729300000

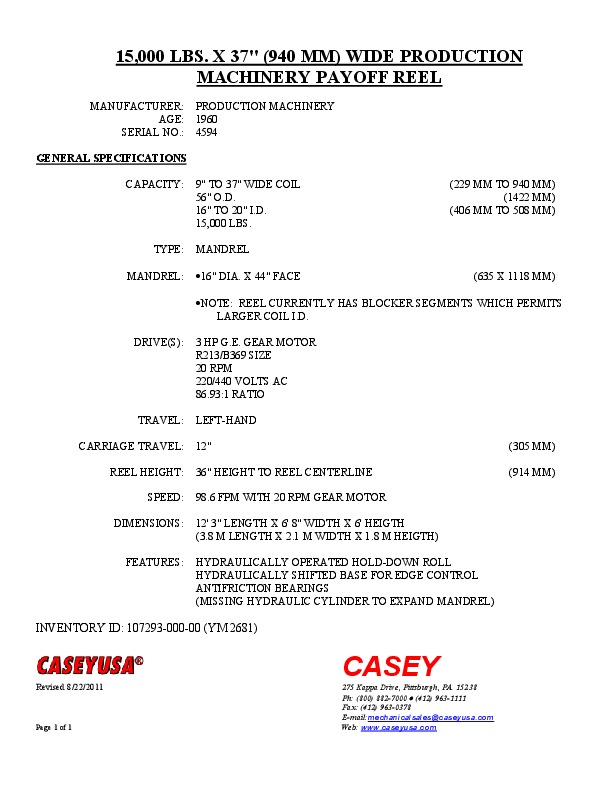

37" 15,000 LBS PAYOFF REEL WITH 15,000 LBS COIL

MANUFACTURER: PRODUCTION MACHINERY

AGE: 1960

SERIAL #: 4594

GENERAL SPECIFICATIONS:

CAPACITY: 9" TO 37" WIDE COILE (229 MM TO 940 MM)

56" O.D. (1422 MM)

16: TO 30" I.D. (406 MM TO 508 MM)

15,000 LBS (6804 KG)

TYPE: MANDREL

MANDREL: 16" DIA X 44" FACE (635 X 1118 MM)

NOTE: REEL CURRENTLY HAS BLOCKER SEGMENTS WHICH PERMITS LARGER COIL I.D.

DRIVE(S): 3 HP G.E. GEAR MOTOR

R213 / B369 SIZE

20 RPM

220 / 440 VOLTS AC

86.93:1 RATIO

TRAVEL: LEFT HAND

CARRIAGE TRAVEL: 12" (305 MM)

REEL HEIGHT: 36" HEIGHT TO REEL CENTERLINE (914 MM)

SPEED: 98.6 FPM WITH 20 RPM GEAR MOTOR

DIMENSIONS: 12' 3" LENGTH X 6' 8" WIDTH X 6' HEIGHT (3.8M LENGTH X 2.1M WIDTH X 1.8M HEIGHT)

FEATURES: HYDRAULICALLY OPERATED HOLD-DOWN ROLL

HYDRAULICALLY SHIFTED BASE FOR EDGE CONTROL

ANTIFRICTION BEARINGS

(MISSING HYDRAULIC CYLINDER TO EXPAND MANDREL)

INVENTORY #: 107293-000-00

INVENTORY ID	10729300000
TITLE	37" 15,000 LBS MANDREL PAYOFF REEL WITH 15,000 LBS COIL
MANDREL FACE	44
COIL O.D.	56
MANUFACTURER OF EQUIPMENT	PRODUCTION MACHINERY
YEAR OF MANUFACTURE	1960
SERIAL NO	4594
MANDREL FACE	44"
LINE SPEED	98.6
