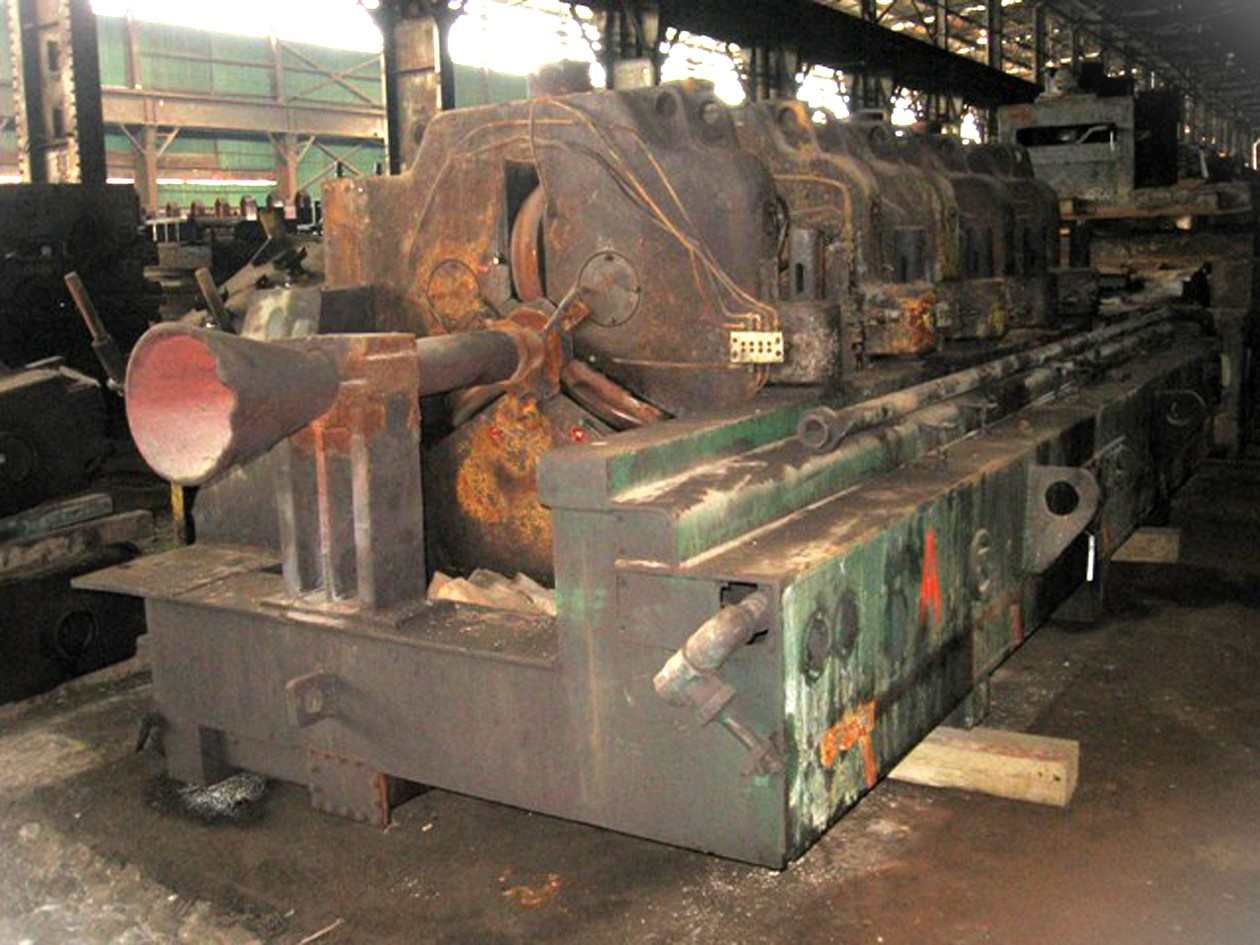

500 MM KOCKS 5 STAND CAR WITH CASSETTES

MANUFACTURER: KOCKS

QUANTITY: ONE COMPLETE CAR WITH 5 CASSETTES

GENERAL SPECIFICATIONS:

CASSETTES: NINE (9) TOTAL (6 COMPLETE; 1 HOUSING ONLY; 2 PARTIAL ASSEMBLIES)

PRODUCT: ENTRY: 2 1/8" (54 MM)

EXIT: 1 1/4" (32 MM)

CARS: TWO, LESS WHEELS

ROLLS: THREE ROLLS TRIANGULAR POSITION PER CASSETTE 3 5/8" WIDTH X 19 11/16" DIA NOMINAL (92 MM X 500 MM)

MAIN GEARBOX: 5 OUTPUTS @ 29 1/4" CENTERS (742 MM)

PREVIOUS USE: ROD MILL ROUGHING CAR (MILL CAPACITY 275,000 TYP OPERATING AT 14,000 FPM)

FEATURES:

SPARE CAR, LESS WHEELS

(1) SECTION OF CAR TRACKS WITH WHEEL TURNSTILES

ROLL CHANGING STAND

WATER, LUBE, GREASE DISTRIBUTION SYSTEM

NOTE 1: MAIN GEARBOX IS DISASSEMBLED

NOTE 2: THE ABOVE CAR AND GEARBOX WAS USED TO ROLL CARBON STEEL. IF SLOWER SPEED IS REQUIRED

IN ORDER TO ROLL TITANIUM OR NON-FERROUS MATERIALS, A LARGER REDUCTION GEARBOX IS AVAILABLE SEPARATELY

INVENTORY #: 100351-001-00

INVENTORY ID	10035100100
TITLE	500 MM KOCKS 5 STAND CAR WITH CASSETTES
WORK ROLL DIA.	500 MM
ROLL CONFIGURATION (H/V)	CAR WITH CASSETTE
MANUFACTURER OF EQUIPMENT	KOCKS
YEAR OF MANUFACTURE	1967
