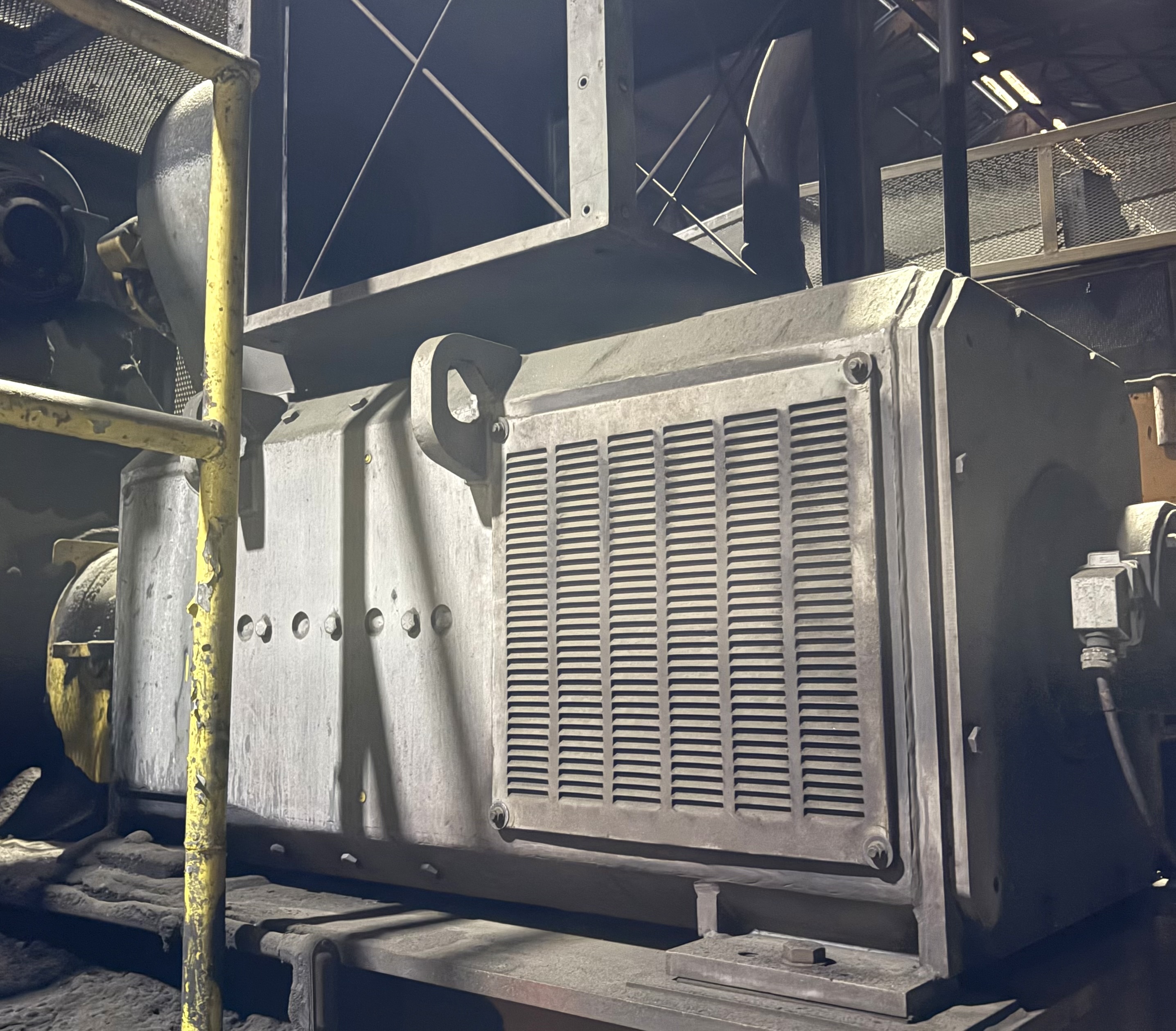

375 HP, 870 RPM, 500 VOLT GENERAL ELECTRIC FRAME CD6063 (NCO)
 "70009600000 375 HP, 870 RPM, 500 VOLT GENERAL ELECTRIC FRAME CD6063 (NCO)")
 "70009600000 375 HP, 870 RPM, 500 VOLT GENERAL ELECTRIC FRAME CD6063 (NCO)")
 "70009600000 375 HP, 870 RPM, 500 VOLT GENERAL ELECTRIC FRAME CD6063 (NCO)")
| INVENTORY ID | 70009600000 |
| TITLE | 375 HP, 870 RPM, 500 VOLT GENERAL ELECTRIC FRAME CD6063 (NCO) |
| HORSEPOWER | 375 |
| SPEED | 870 |
| VOLTAGE | 500 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | CD6062 |
| WINDING | SHUNT |
| ENCLOSURE | TENV-BV |
| AMPERAGE | 595 |
| DUTY | SHEAR DUTY-START STOP |
| BEARINGS | ROLLER |
| YEAR OF MANUFACTURE | 2002 |
| FIELD VOLTAGE | 300/150 |
| FIELD AMPERAGE | 14.5/29 |
| FIELD RESISTANCE | 14.4/3.6 |
| DEGREE OF TEMPERATURE RISE | 40 C |
| SERIAL NUMBER OR ID NUMBER | ZT-4-11 |
| MODEL NUMBER OR STYLE NUMBER | CD6D4Z803C800 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 6000 |
| DRIVE SHAFT DIMENSION | 3-7/8 |
| DRIVE SHAFT LENGTH | 6 |
| MOTOR LENGTH | 72 |
| WIDTH BETWEEN FEET | 30 |
| LENGTH BETWEEN FEET | 45 |
