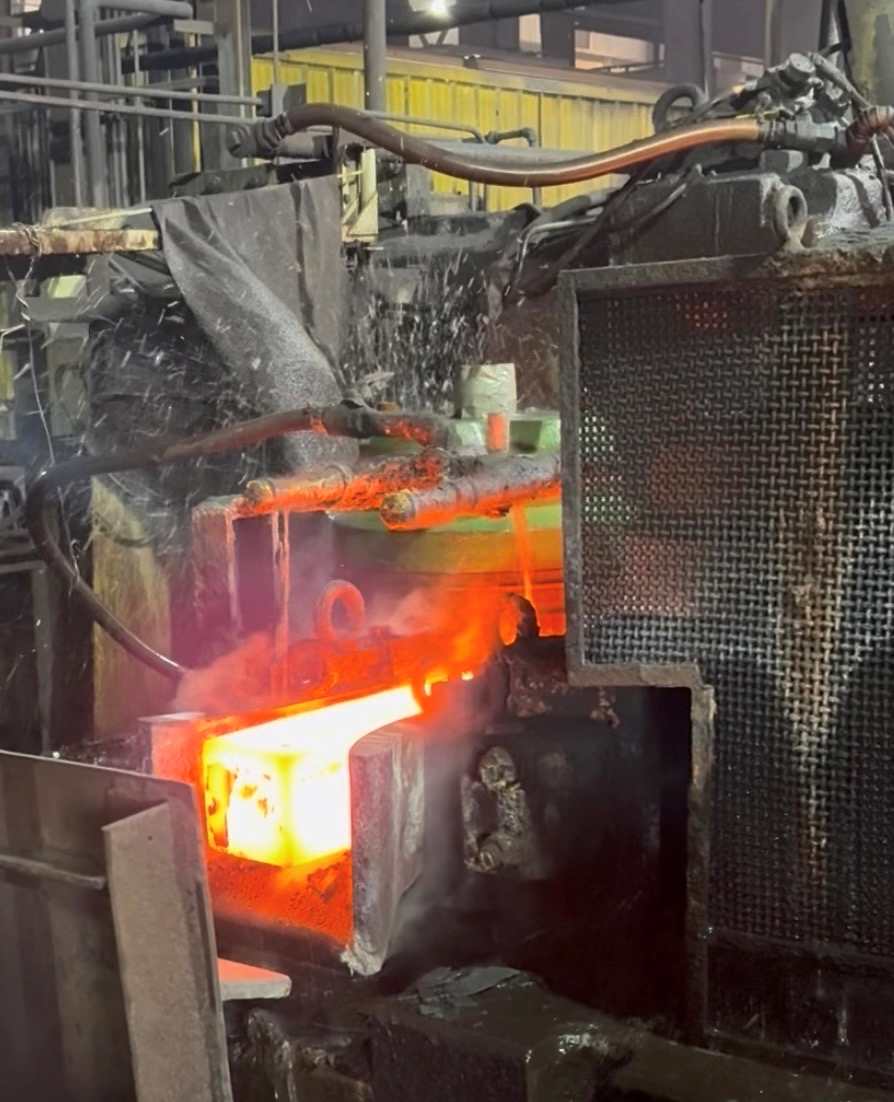

28" (700 mm) VERTICAL/HORIZONTAL SMS, 2013 (2) ROUGHING MILL STANDS

MANUFACTURER: SMS / MEER

CAPACITY: 6.25" or 160 MM SQUARE BILLETS

2 TON (4,000 LBS OR 1814 KG) WEIGHT X 36' (432" OR 10972 MM) LONG BILLETS

INPUT BILLET: 39 SQUARE INCH BILLET

VERTICAL #1 STAND OUTPUT: 31.8 SQUARE INCH OVAL

HORIZONTAL #2 STAND OUTPUT: 26.4 SQUARE INCH OVAL

CAPACITY: 70 TO 80 TPH

TYPE: CANTILEVER BOTTOM DRIVEN VERTICAL STAND AND HORIZONTAL STAND

ONE VERTICAL STAND: CL 700V (Bottom Driven Stand 1) WITH 82.45:1 GEAR RATIO OF INTERNAL GEARING

ONE HORIZONTAL STAND: CL 700H (STAND 2) WITH 69.28:1 GEAR RATIO (INTERNAL GEARING OF 3.401:1 WITH A 20.4:1 INTERMEDIATE BOX)

MILL SPEED:

STAND 1: 17 to 27.6 FEET/MIN (.09 TO .14 M/SEC)

STAND 2: 25.6 to 34.4 Feet/MIN (0.13 to 0.19 M/SEC)

ROLL DIAMETER: 24" TO 28" (609 MM TO 711 MM)

ROLL FACE: 11.81" (300 MM)

ROLL CENTERLINE DISTANCE GAP: 14.84" (377 MM) MIN TO 20.16" (512 MM) MAX

ROLL CENTERLINES: 23.23" (590 MM) MIN TO 28" (711 MM)

EACH STAND IS DRVEN BY ITS OWN AC INVERTER MOTOR

INVERTER DUTY MOTOR: 500 HP, AC DRIVEN MOTOR, 743 RPM, 480 V

PASS DIRECTION: LEFT TO RIGHT

ABB VF POWER SUPPLY

COMPLETE WITH LUBRICATION, HYDRAULIC AND COOLING SYSTEMS

SPARE PARTS

ELECTRICAL AND MECHANICAL DRAWINGS AND MANUALS

DISMANTLED AND READY TO BE SHIPPED

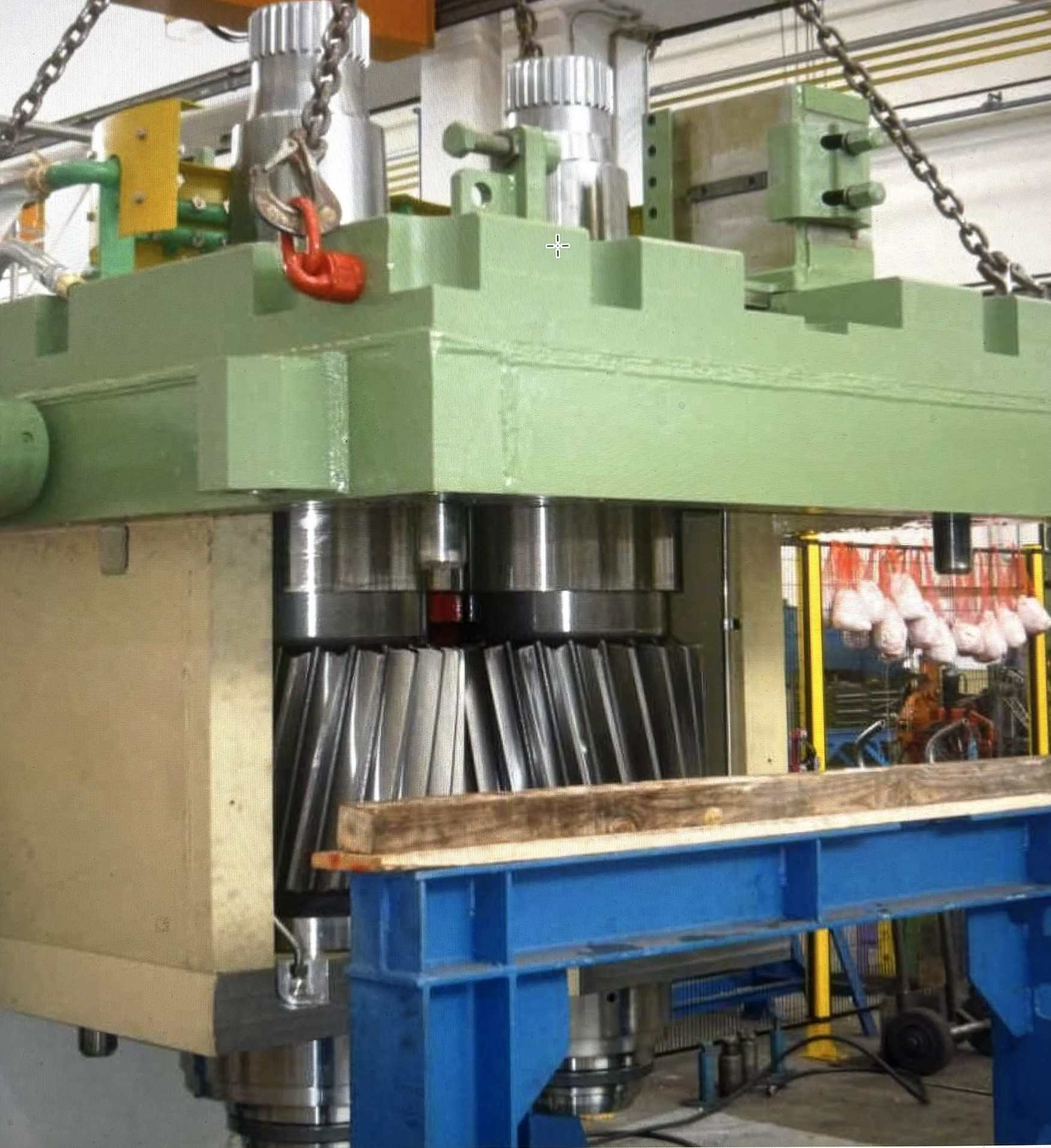

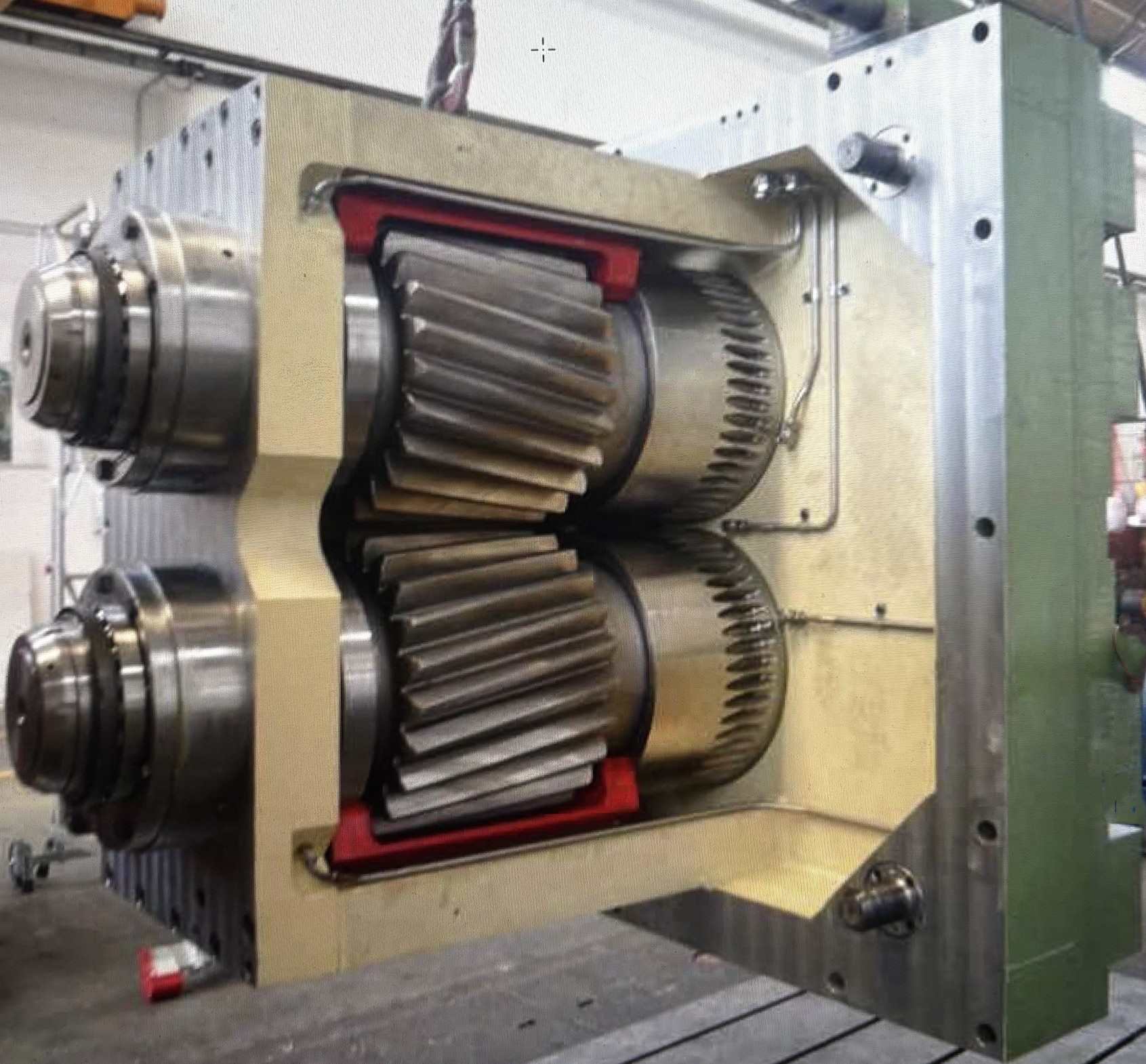

PINION CARTRIDGE WEIGHT: 390,000 LBS (17690 KG) (HORIZONTAL AND VERTICAL CARTRIDGES CAN INTERCHANGE)

FEATURES: SPARE PINION CARTRIDGE ASSEMBLY

PREVIOUS USE: 350,000 TPY ROD MILL

INVENTORY #: 200928-000-00

INVENTORY ID	20092800000
