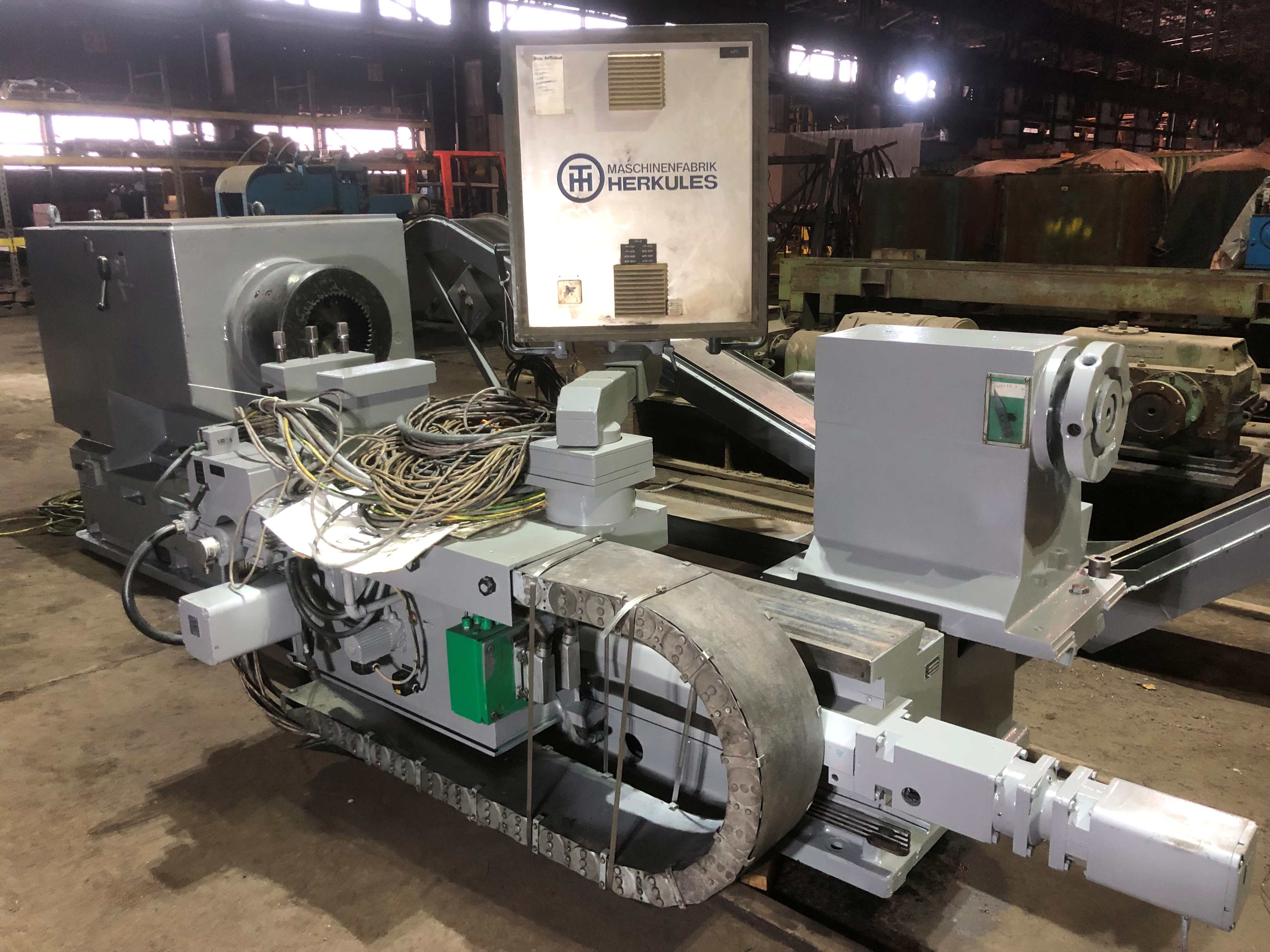

31 INCH ROLL X 59 INCHES LONG HERKULES AUTOMATIC ROLL TURNING LATHE MODEL M 30 V FOR CHANNEL, HEX AND ROD
MANUFACTURER: HERKULES
AGE: 1994
MODEL #: M 30 V
TYPE: P 300/400 CNC X 1500
S/N: 78 860 21.94
59" CENTER TO CENTER
400 IS THE DISTANCE IN MM FROM CENTER LINE TO RAIL
1500 IS THE DISTANCE IN MM BETWEEN CENTERS
MAKES 4 GROVES ON ROLLS
100 KW MOTOR

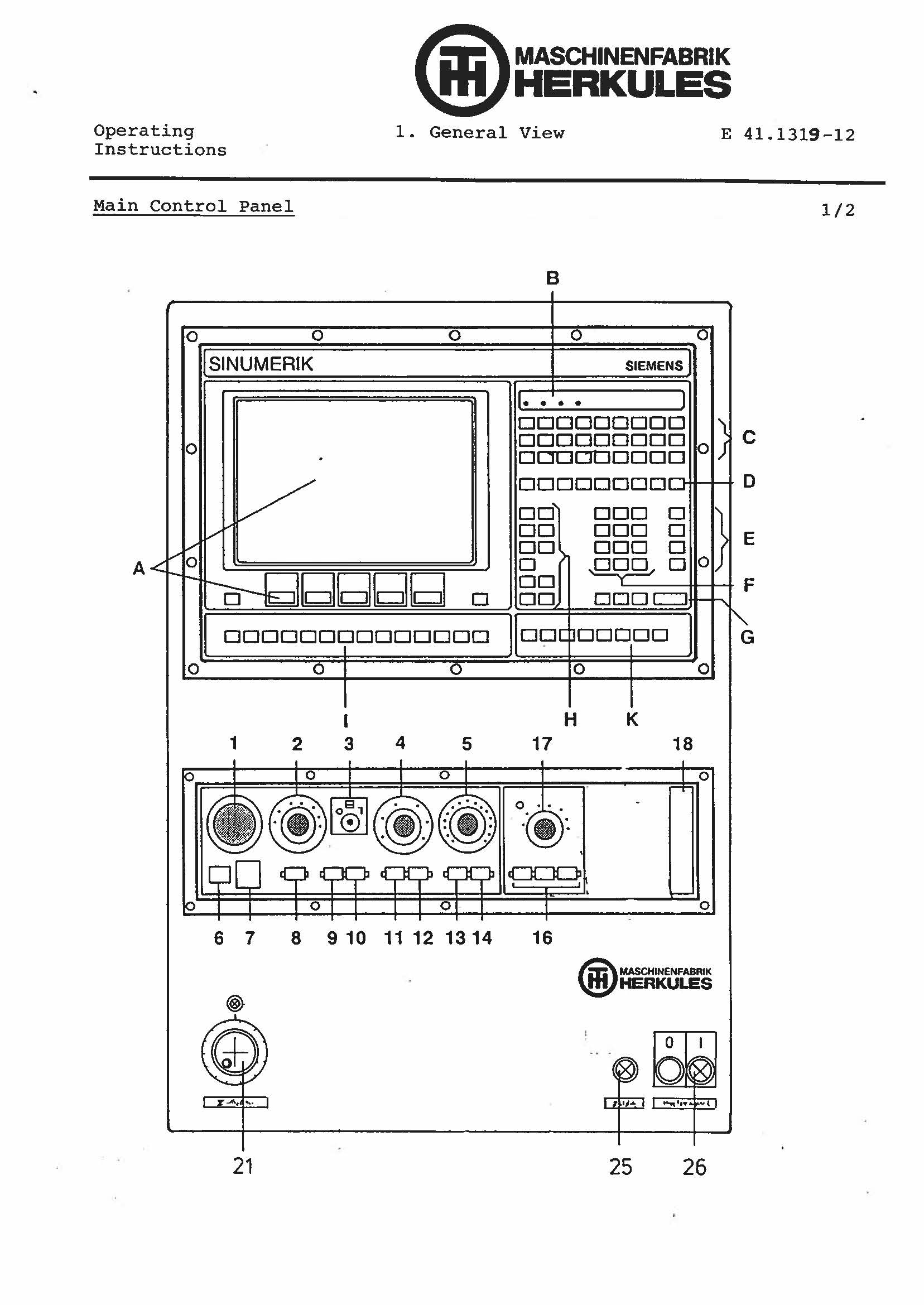

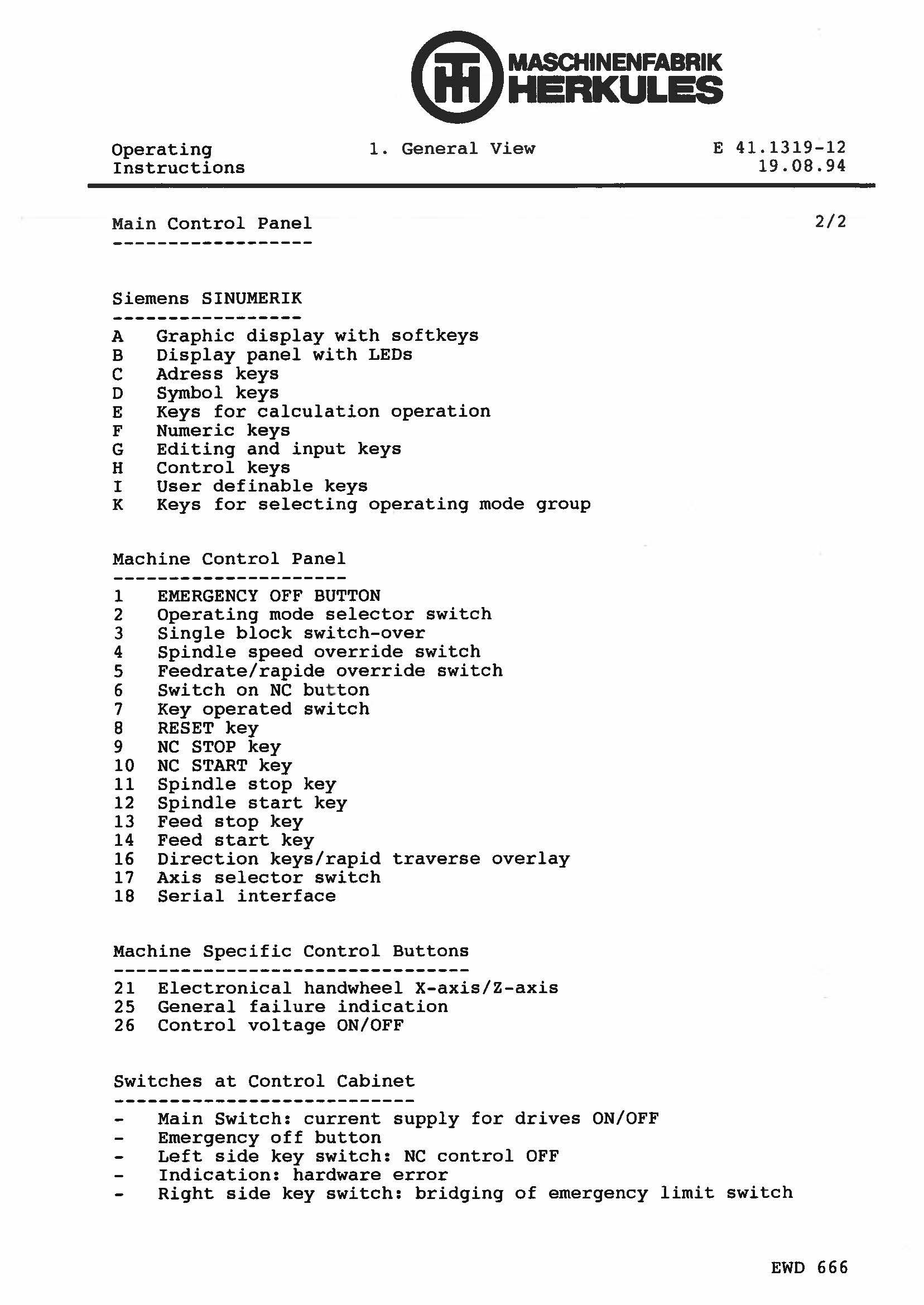

SINUNERIK SPLIT 800 CONTROL - WHICH STORES SUBROUTINES IN USER MEMORY

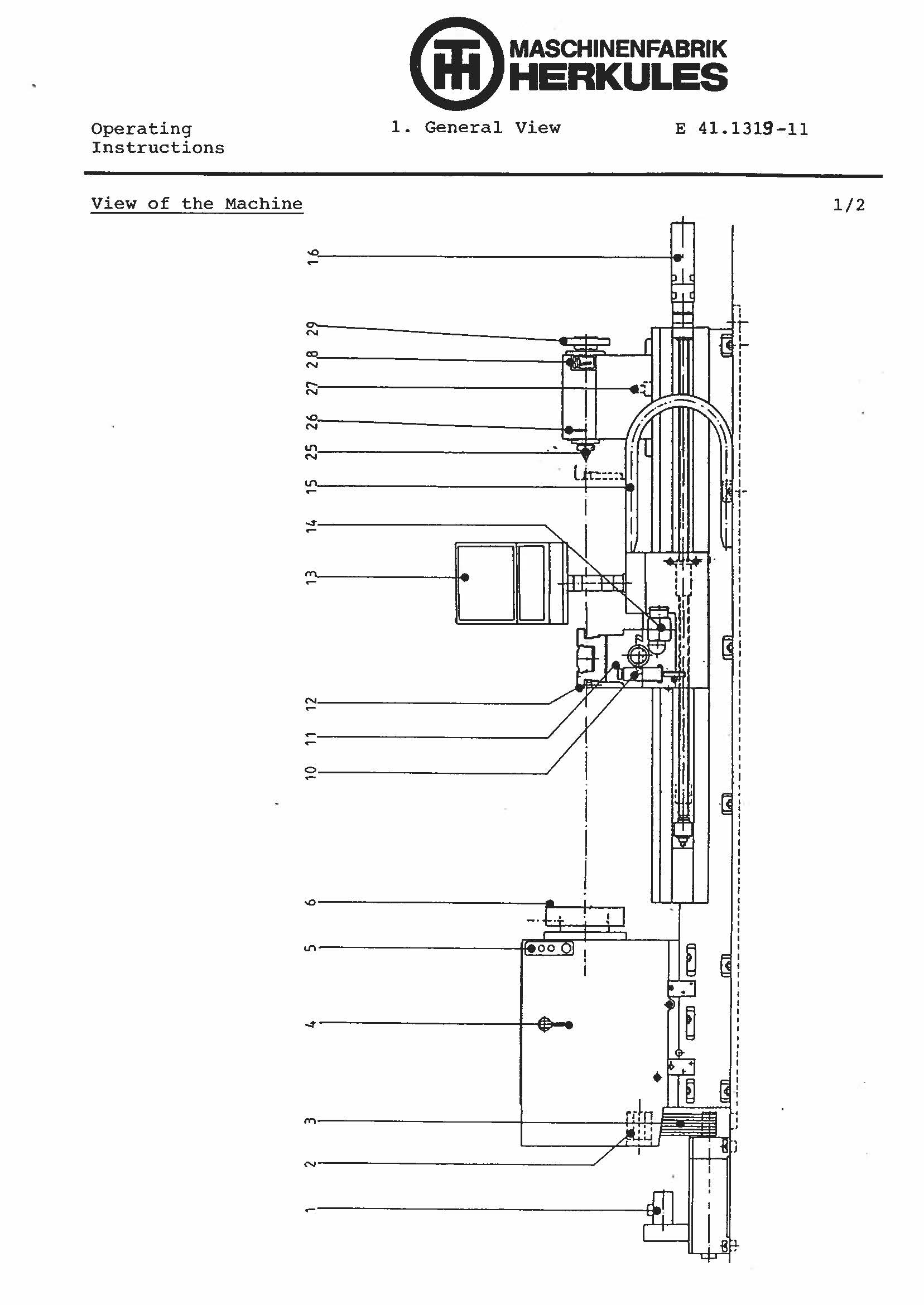

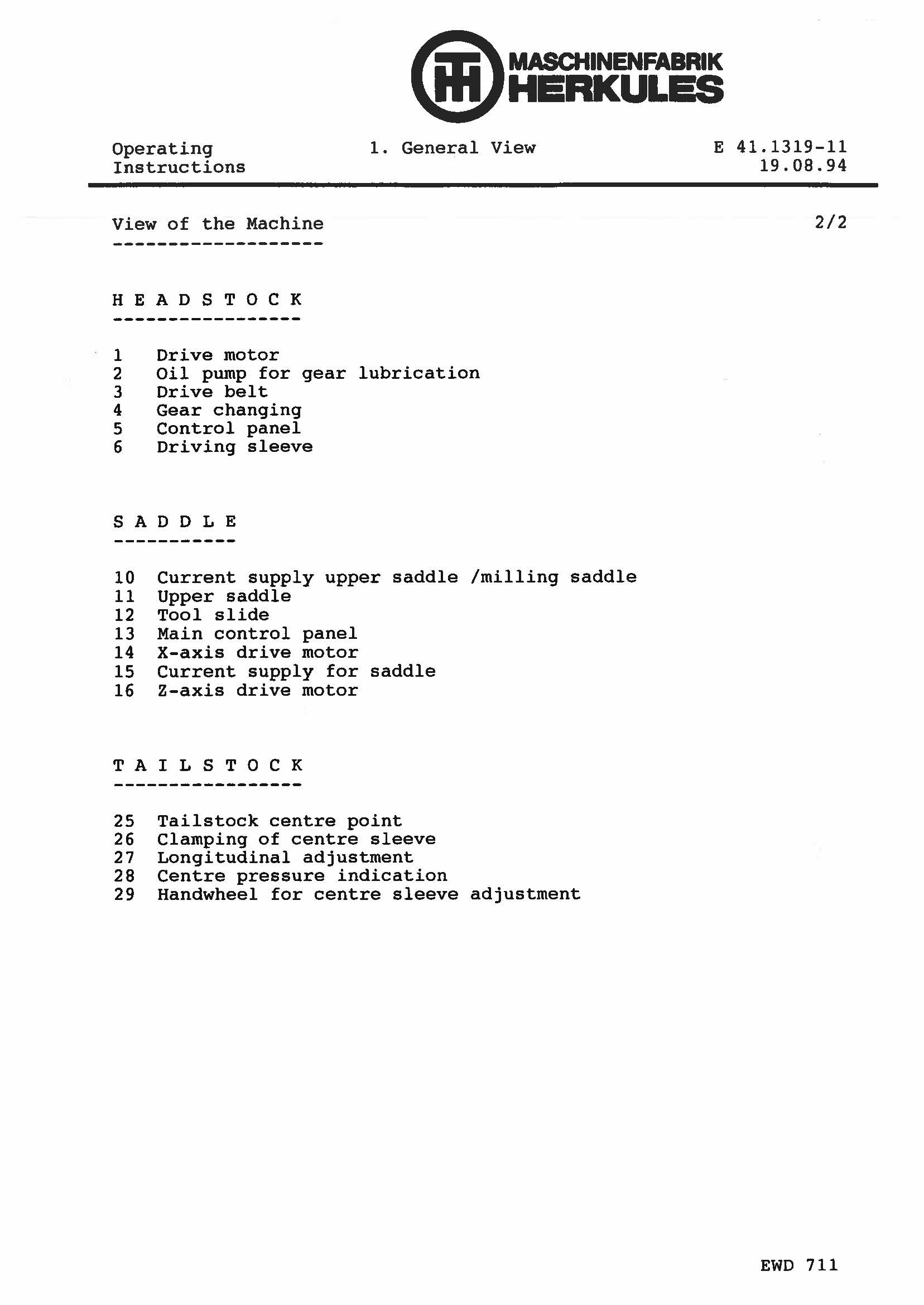

MAJOR COMPONENTS: HEAD STOCK, SADDLE WITH X AXIS AND Z AXIS DRIVES, TAIL STOCK
WEIGHT: 26,000 LBS.
USED - GOOD CONDITION
INVENTORY#: 200911-000-00
| INVENTORY ID | 20091100000 |
| TITLE | 31" ROLL X 59" LONG HERKULES AUTOMATIC ROLL TURNING LATHE MODEL M 30 V FOR CHANNEL, HEX AND ROD |
| SWING | 31" |
| CENTERS | 59" |
| MANUFACTURER OF EQUIPMENT | HERKULES |
| YEAR OF MANUFACTURE | 1994 |
| TYPE (ROLL, ENGINE, TRACER) | ROLL |
| MODEL NO | M 30 V |
| SERIAL NO | 78 860 21.94 |
| MOTOR HP | 100 KW (134 HP) |
| TOTAL WEIGHT | 26,000 LBS |
