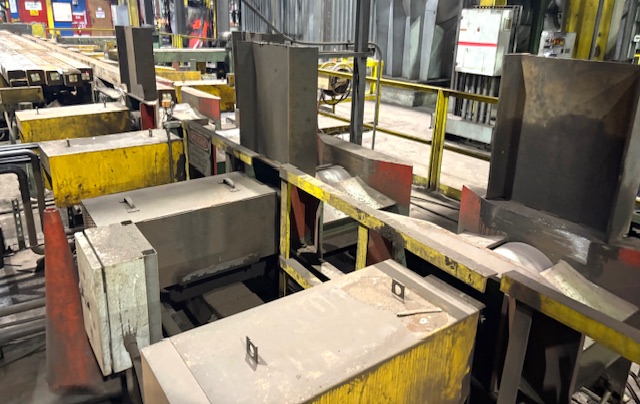

87 FT INDIVIDUALLY DRIVEN BILLET ROLLER TABLE, 22" ROLLS, 14" FACE, 13" DIA

20090300200

87 FT INDIVIDUALLY DRIVEN BILLET ROLLER TABLES

MANUFACTURER: SMS / MEER

AGE: 2013

22 ROLLS ON 3' 11" CENTERS

FOR 6 1/4" X 6 1/4" COLD BILLETS

13 INCH DIAMETER ROLLS

14 INCH ROLL FACT

2.2 KW AC 460 VOLT INVERTER DUTY MOTORS

PASS LINE: 33 INCHES

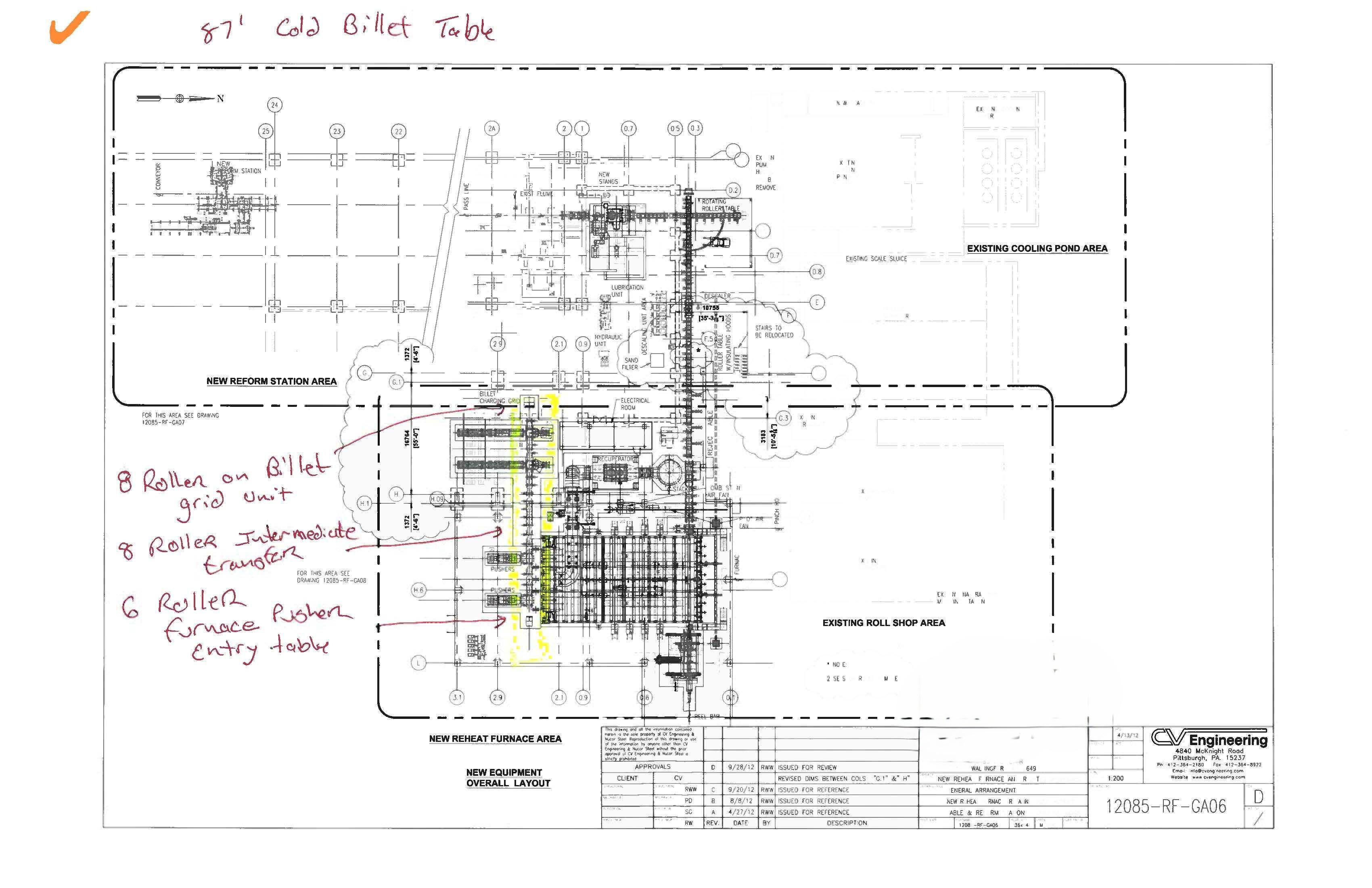

SET GROUPS OF TABLES IN A ROW

8 ROLLS APPROXIMATELY 32 FEET

6 ROLLS APPROXIMATELY 24 FEET

PREVIOUS APPLICATION WAS TO TRANSFER COLD BILLETS FROM BILLET ENTRY TABLE TO THE REHEAT FURNACE

INVENTORY#: 200903-002-00

INVENTORY ID	20090300200
TITLE	87 FT INDIVIDUALLY DRIVEN BILLET ROLLER TABLE, 22" ROLLS, 14" FACE, 13" DIA
ROLL FACE	14"
ROLL DIAMETER	13"
MANUFACTURER OF EQUIPMENT	SMS / MEER
YEAR OF MANUFACTURE	2013
NUMBER OF ROLLS	22
MOTOR VOLTS	460V
MOTOR VOLTAGE TYPE (AC / DC)	AC
PREVIOUS USE	PREVIOUS APPLICATION WAS TO TRANSFER COLD BILLETS FROM BILLET ENTRY TABLE TO THE REHEAT FURNACE.
TOTAL WEIGHT	ESTIMATED: 22 TONS
