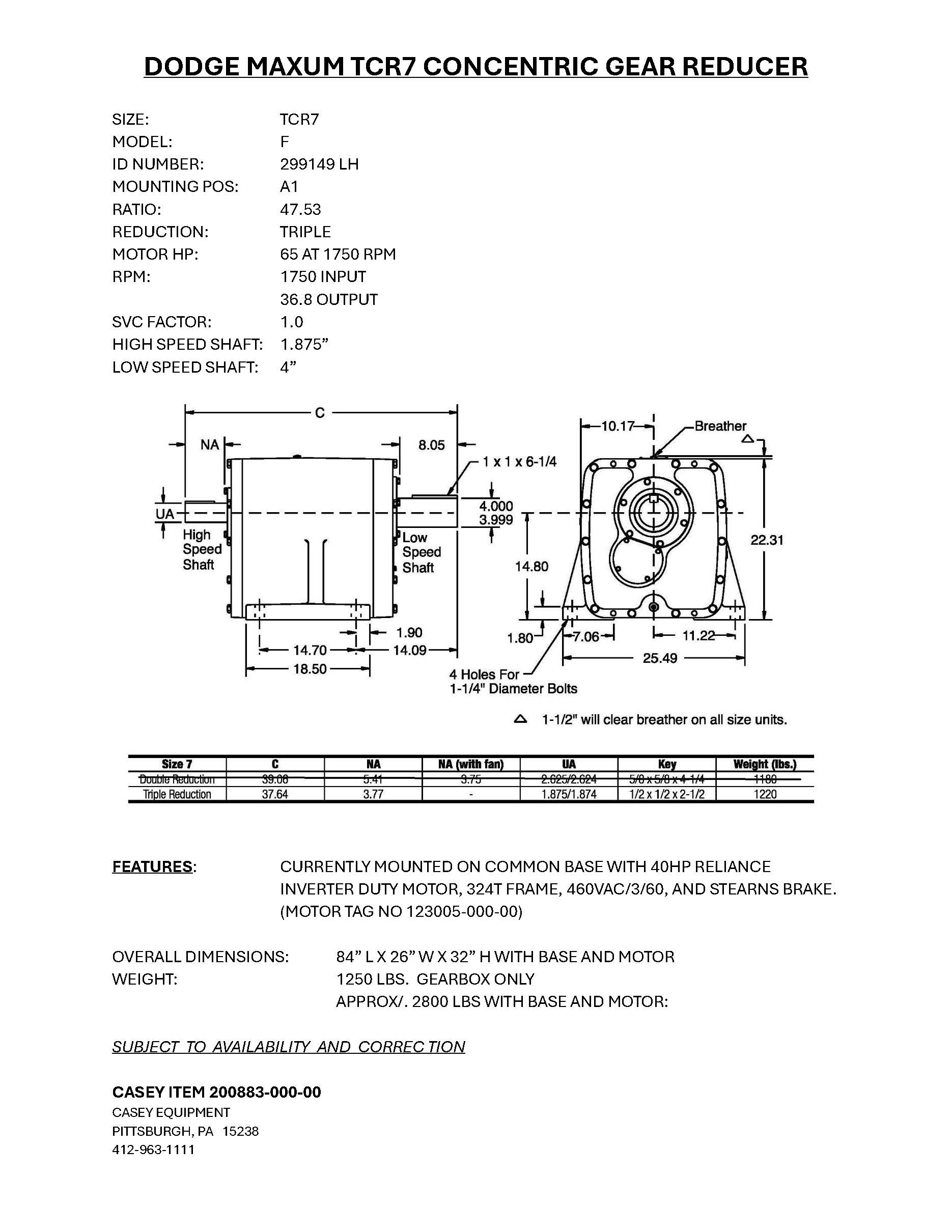

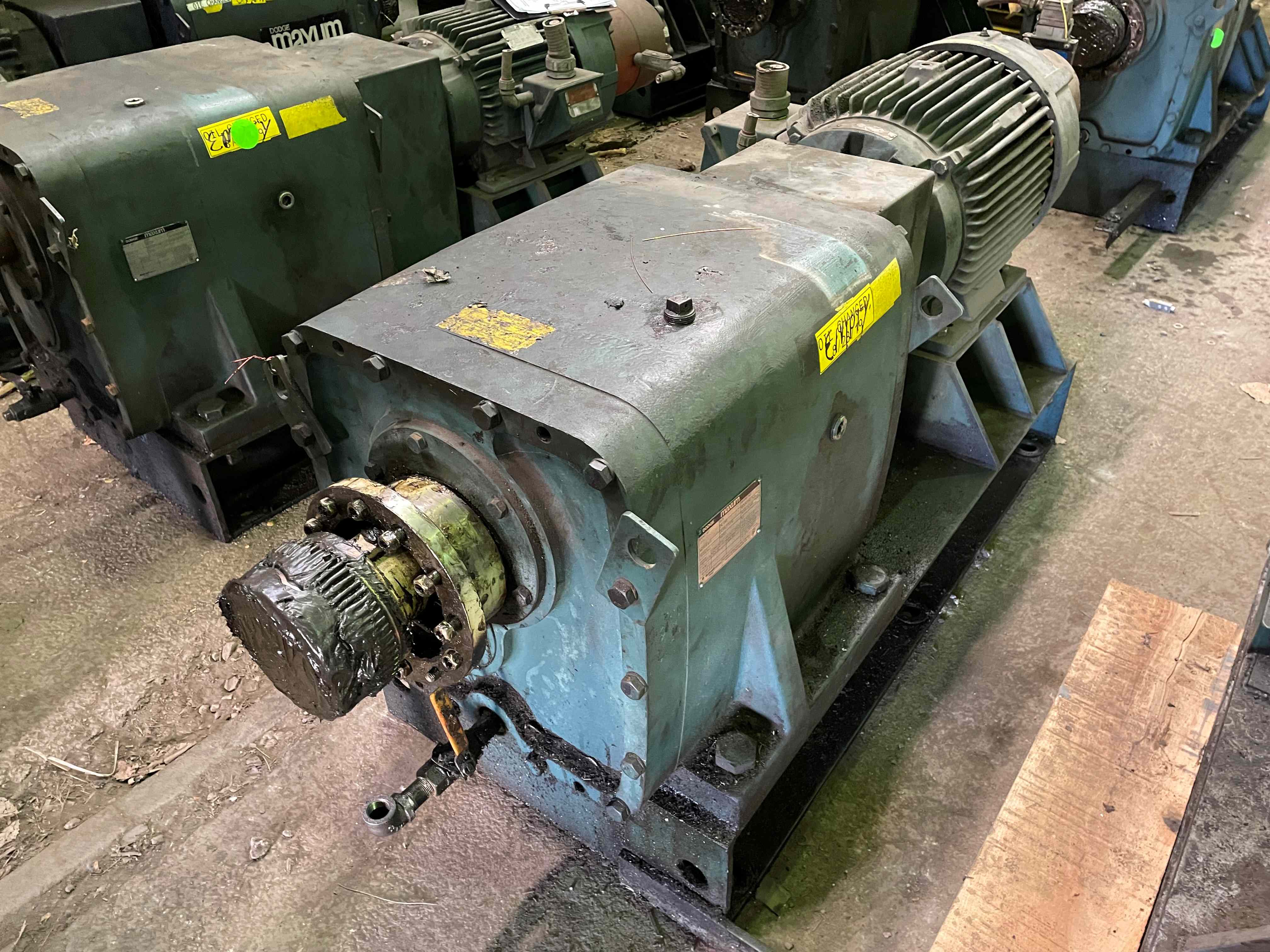

DODGE MAXUM TCR7 CONCENTRIC GEAR REDUCER
 "20088300000 DODGE MAXUM TCR7 CONCENTRIC GEAR REDUCER")
 "20088300000 DODGE MAXUM TCR7 CONCENTRIC GEAR REDUCER")
 "20088300000 DODGE MAXUM TCR7 CONCENTRIC GEAR REDUCER")
| INVENTORY ID | 20088300000 |
| TITLE | DODGE MAXUM TCR7 CONCENTRIC GEAR REDUCER |
| HORSEPOWER | 65 AT 1750 RPM |
| RPM OUTPUT | 36.8 |
| RPM INPUT | 1750 |
| RATIO | 47.53 |
| MANUFACTURER OF EQUIPMENT | DODGE |
| MODEL NUMBER | TCR7 |
| SERIAL NUMBER | 299149 LH |
| INPUT SHAFT DIA | 1.875" |
| OUTPUT SHAFT DIA | 4" |
| REDUCTION | TRIPLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1.0 |
| GEAR TYPE (HERRINGBONE, WORM, ETC) | CONCENTRIC |
| WEIGHT | 1250 LBS FOR GEARBOX ONLY; APPROXIMATELY 2800 LBS WITH BASE AND MOTOR |
| FEATURES 1 | 84" L X 26" W X 32" H WITH BASE AND MOTOR (MOTOR TAG# 123005-000-00) |
