| INVENTORY ID | 20088200000 |
| TITLE | DODGE MAXUM TCR7 CONCENTRIC GEAR REDUCER |
| HORSEPOWER | 54.9 AT 1750 RPM |
| RPM OUTPUT | 4" |
| RPM INPUT | 1.875" |
| RATIO | 57.29 |
| MANUFACTURER OF EQUIPMENT | DODGE |
| MODEL NUMBER | TCR7 |
| SERIAL NUMBER | 299150 LH |
| MFG SIZE REFERENCE | F |
| INPUT SHAFT DIA | 1.875" |
| OUTPUT SHAFT DIA | 4" |
| REDUCTION | TRIPLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1.0 |
| GEAR TYPE (HERRINGBONE, WORM, ETC) | CONCENTRIC |
| WEIGHT | 1250 LBS. FOR GEARBOX ONLY; APPROXIMATELY 2800 LBS WITH BASE AND MOTOR. |

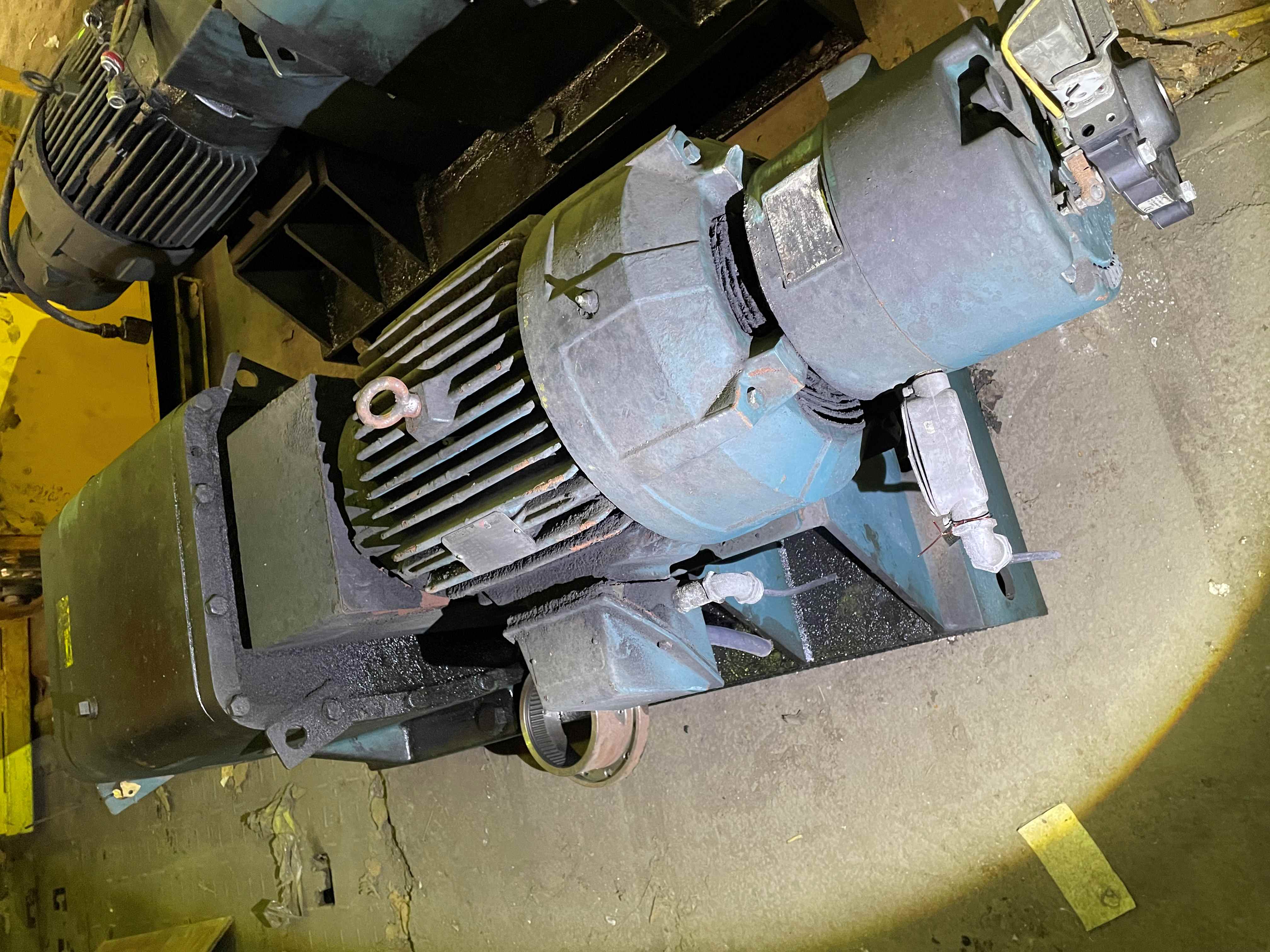

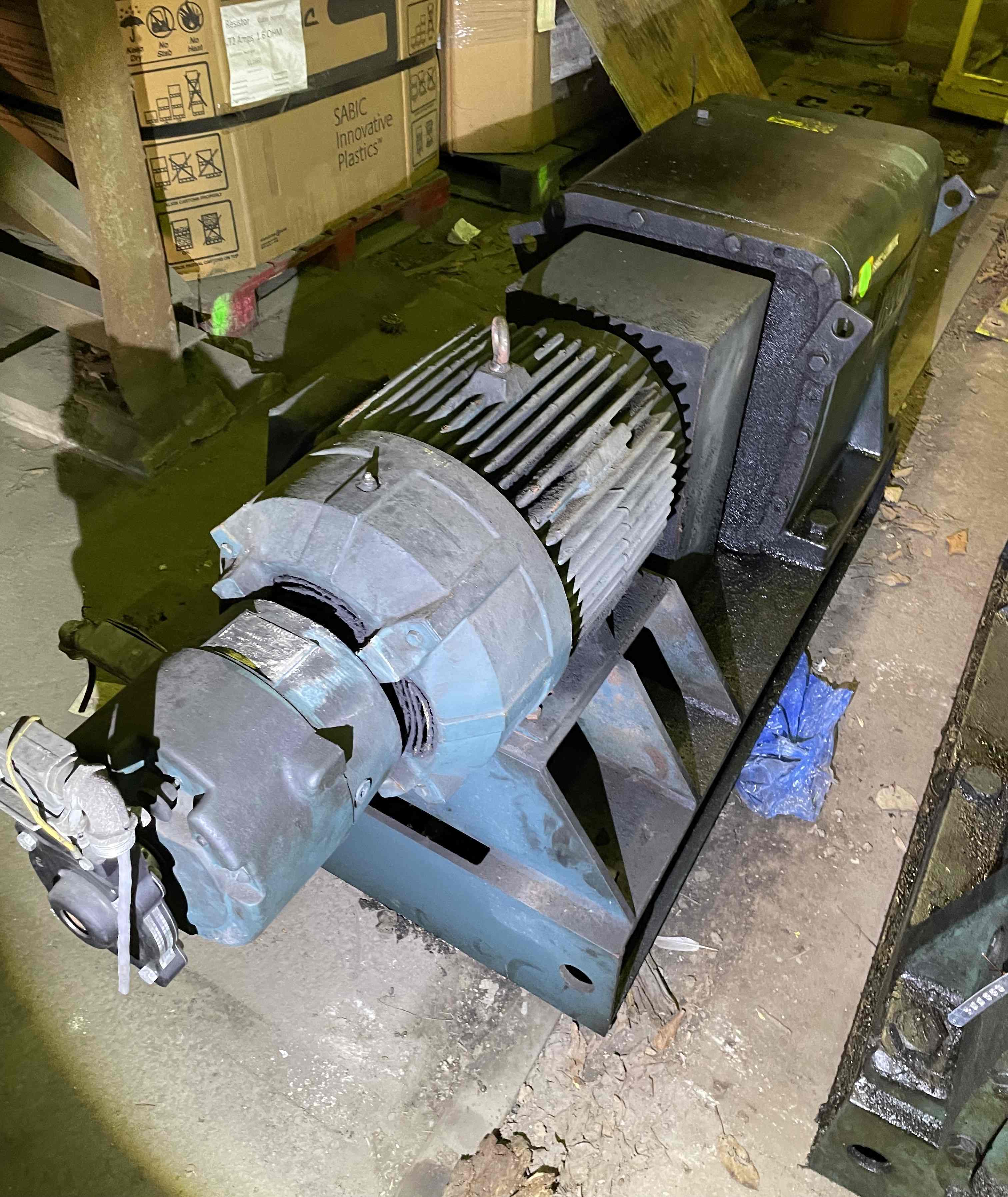

| FEATURES 1 | 79" L X 26" W X 32" H WITH BASE AND MOTOR; 1250 LBS - GEARBOX ONLY CURRENTLY MOUNTED ON COMMON BASE WITH 30HP RELIANCE INVERTER DUTY MOTOR, 286T FRAME, 460 VAC/3/60, AND STERNS BRAKE. MOTOR TAG# 123006-000-00 |
