60" X .051" BRADBURY 5-ROLL STRIP LEVELER
 "20086700000 60\" X .051\" BRADBURY 5-ROLL STRIP LEVELER")
 "20086700000 60\" X .051\" BRADBURY 5-ROLL STRIP LEVELER")
 "20086700000 60\" X .051\" BRADBURY 5-ROLL STRIP LEVELER")
 "20086700000 60\" X .051\" BRADBURY 5-ROLL STRIP LEVELER")
 "20086700000 60\" X .051\" BRADBURY 5-ROLL STRIP LEVELER")
 "20086700000 60\" X .051\" BRADBURY 5-ROLL STRIP LEVELER")
 "20086700000 60\" X .051\" BRADBURY 5-ROLL STRIP LEVELER")

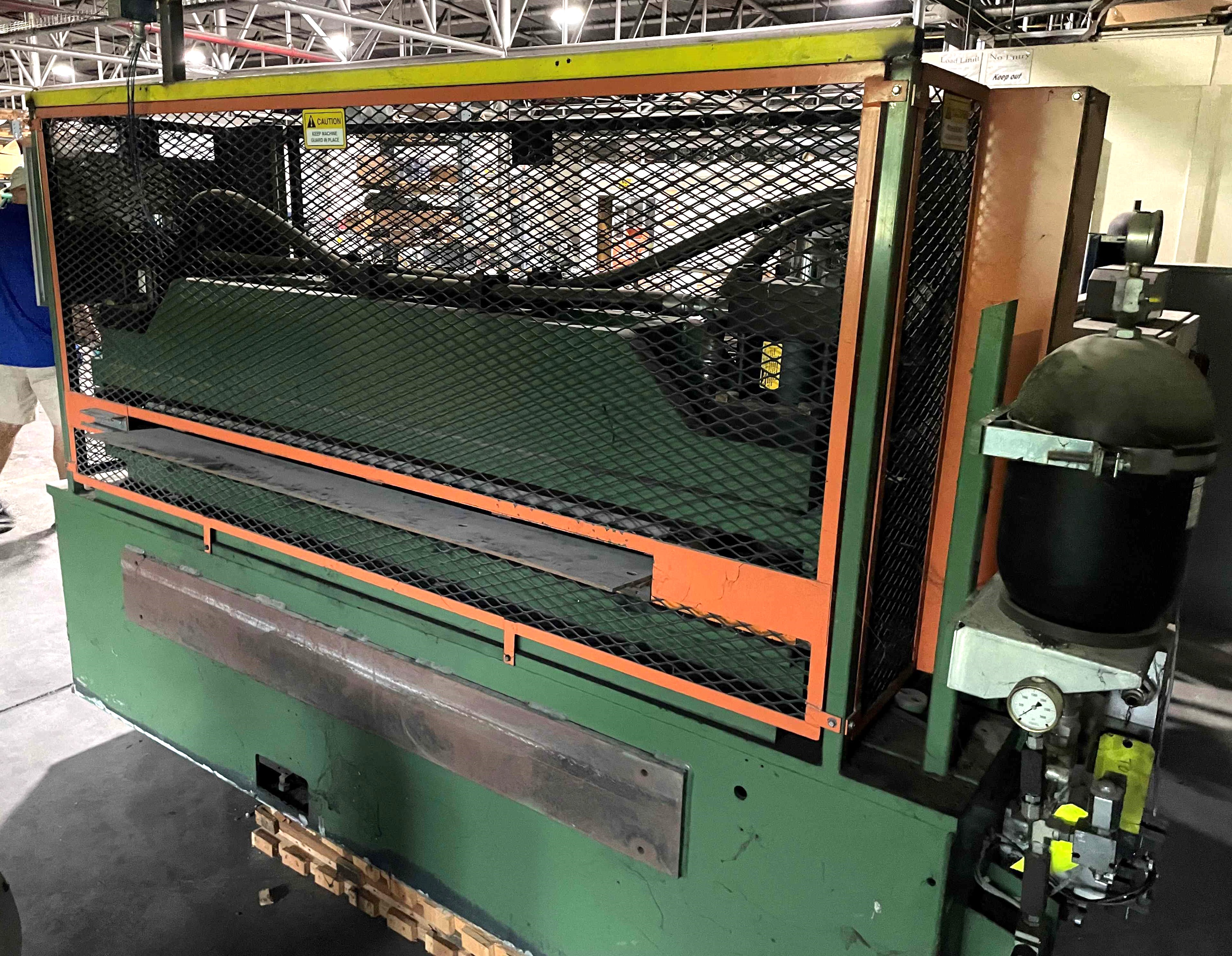

60" BRADBURY 5 ROLL LEVELER / SHEAR UNIT
MANUFACTURER: BRADBURY
AGE: 2015

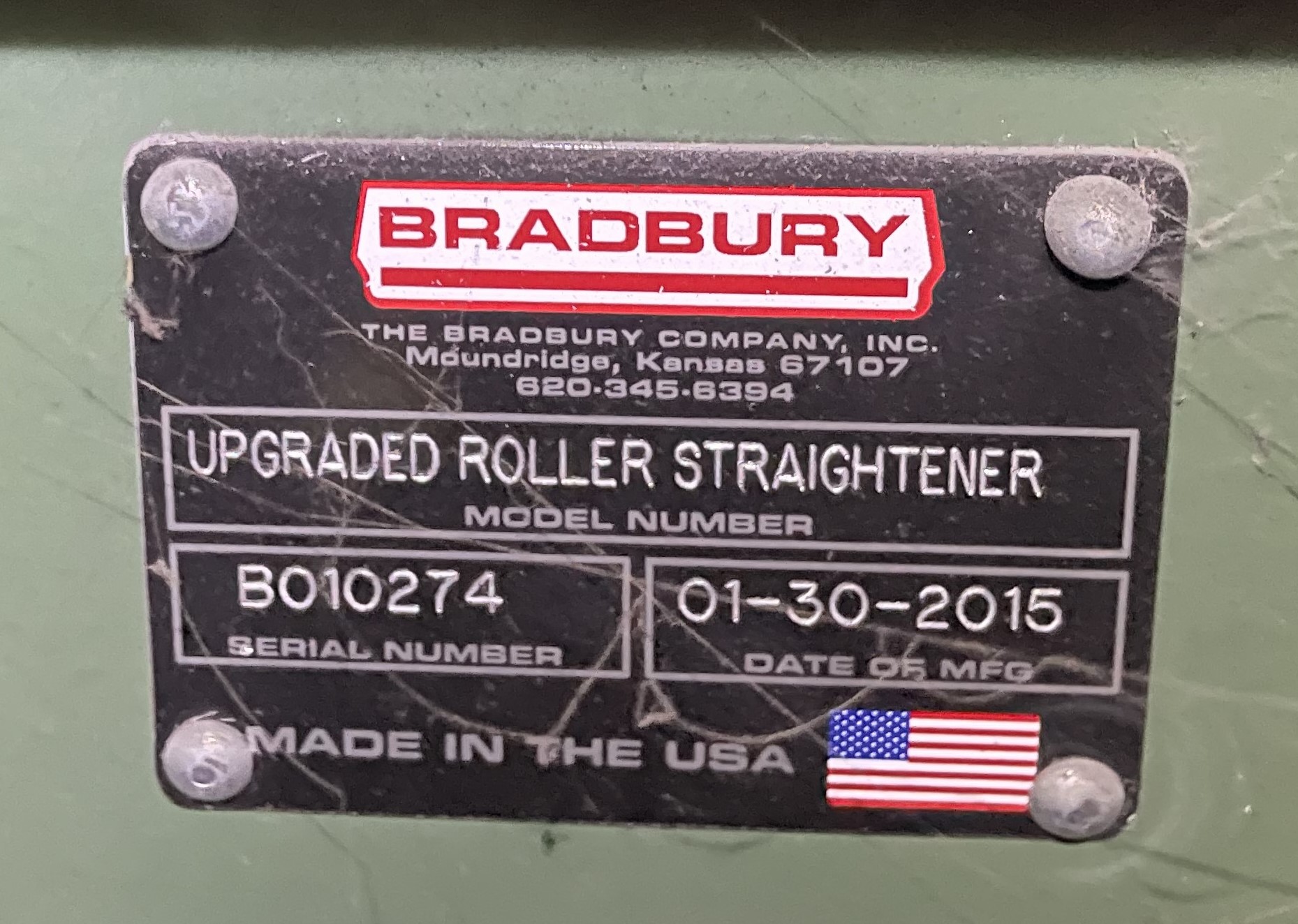

S/N: BO10274
GAUGE: 0.018" - 0.051" (0.458 -1.33 MM) (ALUMINUM)
0.021" - 0.051" (0.53 MM - 1.3 MM) (STEEL)
YIELD: 36,000 (250 MPA) PSI
CUT LENGTH: 24" (610 MM) MINIMUM
LINE DIRECTION: LEFT TO RIGHT
LINE SPEED: 150 (0.77 MPS) FPM

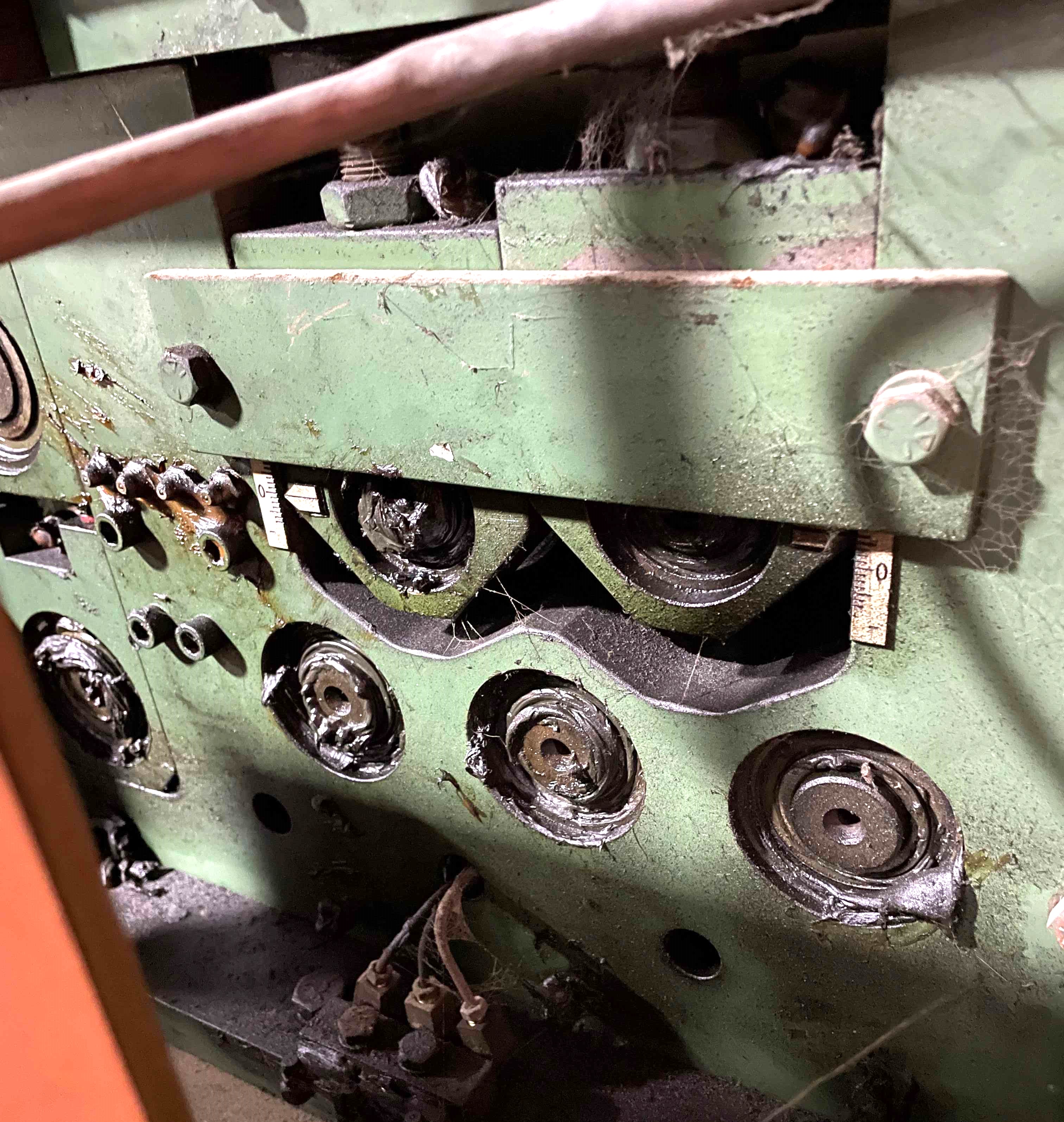

ROLL CONFIGURATION: 2 OVER 3 WITH PINCH ROLLS
ROLL DIAMETER: 3" (76 MM)
ROLL FACE: 60" (1524 MM)

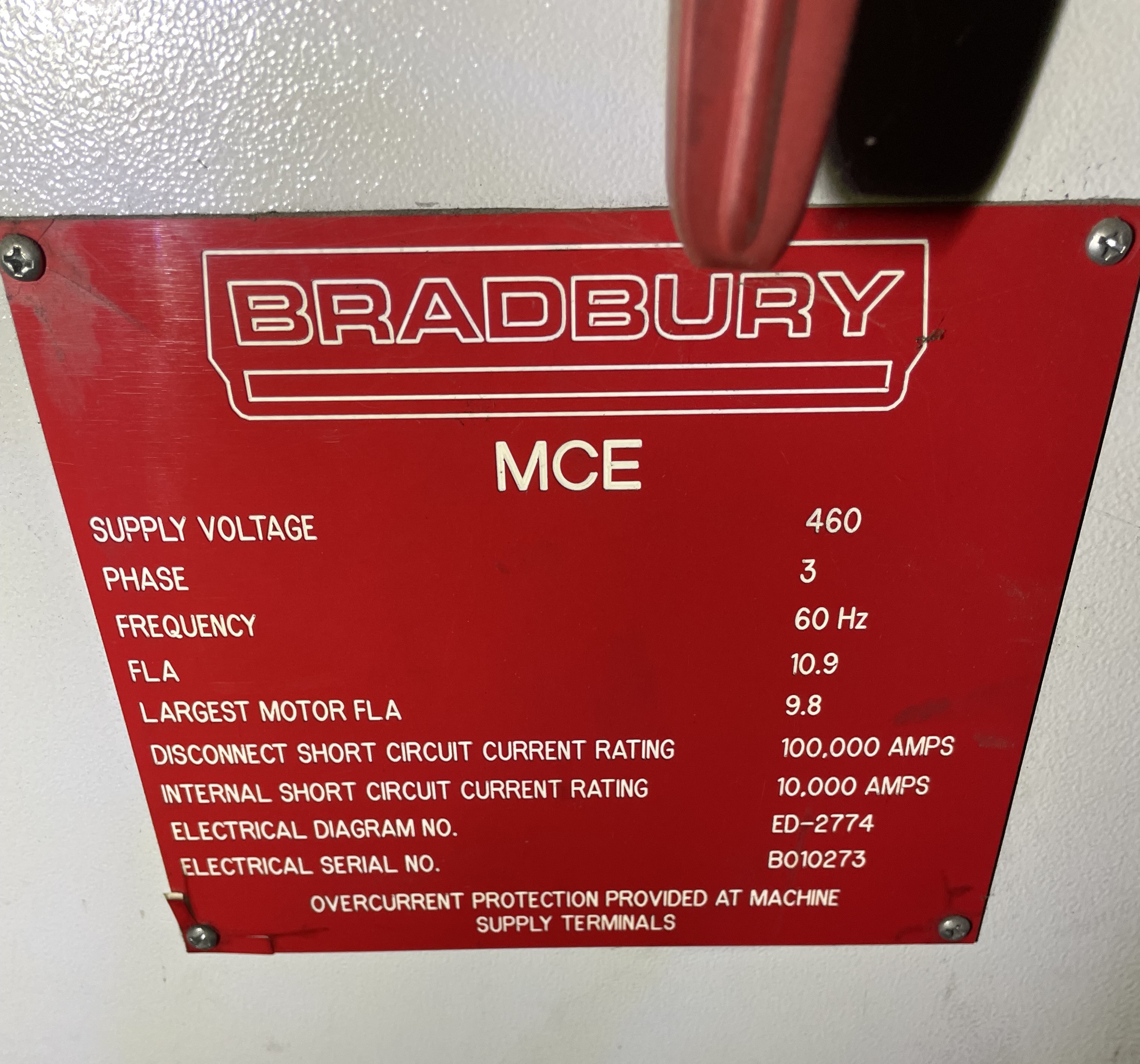

POWER REQUIREMENTS: 460 VAC / 60 HZ / 3 PH
CONTROL VOLTS: 24
AIR REQUIREMENT: 80 PSI (550kPa)
HYDRAULIC REQUIREMENT: 1500 PSI (103 BAR)
INVENTORY#: 200867-000-00
| INVENTORY ID | 20086700000 |
| TITLE | 60" X .051" BRADBURY 5-ROLL STRIP LEVELER |
| NEW ARRIVAL | 200867-000-00 |
| SPECIAL | BRADBURY 5-ROLL LEVELER |
| WIDTH | 60" |
| GAUGE MAX | 0.051" (1.3MM) |
| MANUFACTURER OF EQUIPMENT | BRADBURY |
| YEAR OF MANUFACTURE | 2015 |
| YEARS WHEN UPGRADES PERFORMED | 2015 |
| SERIAL NO | B0101274 |
| MATERIAL GRADE | STEEL |
| PROD CAPAC WIDE MIN | 60" |
| GAUGE MIN | 0.18 - 0.051" (0.458 - 1.3 MM) |
| ROLL ARRANGEMENT (X OVER Y) | 5 (2 OVER 3) |
| WR DIA | 3" |
| WR FACE | 60" |
| MATERIAL FLOW DIRECTION (FROM OPERATORS SIDE) | LEFT TO RIGHT |
| MOTOR HP | HYDRAULIC 1500 PSI |
