STRAIGHTEN, SHEAR, STACK AND BAND LINE FOR ANGLES, CHANNELS AND FLATS (NCO)
 "20081810000 STRAIGHTEN, SHEAR, STACK AND BAND LINE FOR ANGLES, CHANNELS AND FLATS (NCO)")
 "20081810000 STRAIGHTEN, SHEAR, STACK AND BAND LINE FOR ANGLES, CHANNELS AND FLATS (NCO)")
 "20081810000 STRAIGHTEN, SHEAR, STACK AND BAND LINE FOR ANGLES, CHANNELS AND FLATS (NCO)")
 "20081810000 STRAIGHTEN, SHEAR, STACK AND BAND LINE FOR ANGLES, CHANNELS AND FLATS (NCO)")
 "20081810000 STRAIGHTEN, SHEAR, STACK AND BAND LINE FOR ANGLES, CHANNELS AND FLATS (NCO)")
STRAIGHTEN, SHEAR, STACK AND BAND LINE FOR ANGLES, CHANNELS AND FLATS CONSISTS OF
MANUFACTURER: SIMAC
YEAR: 1997

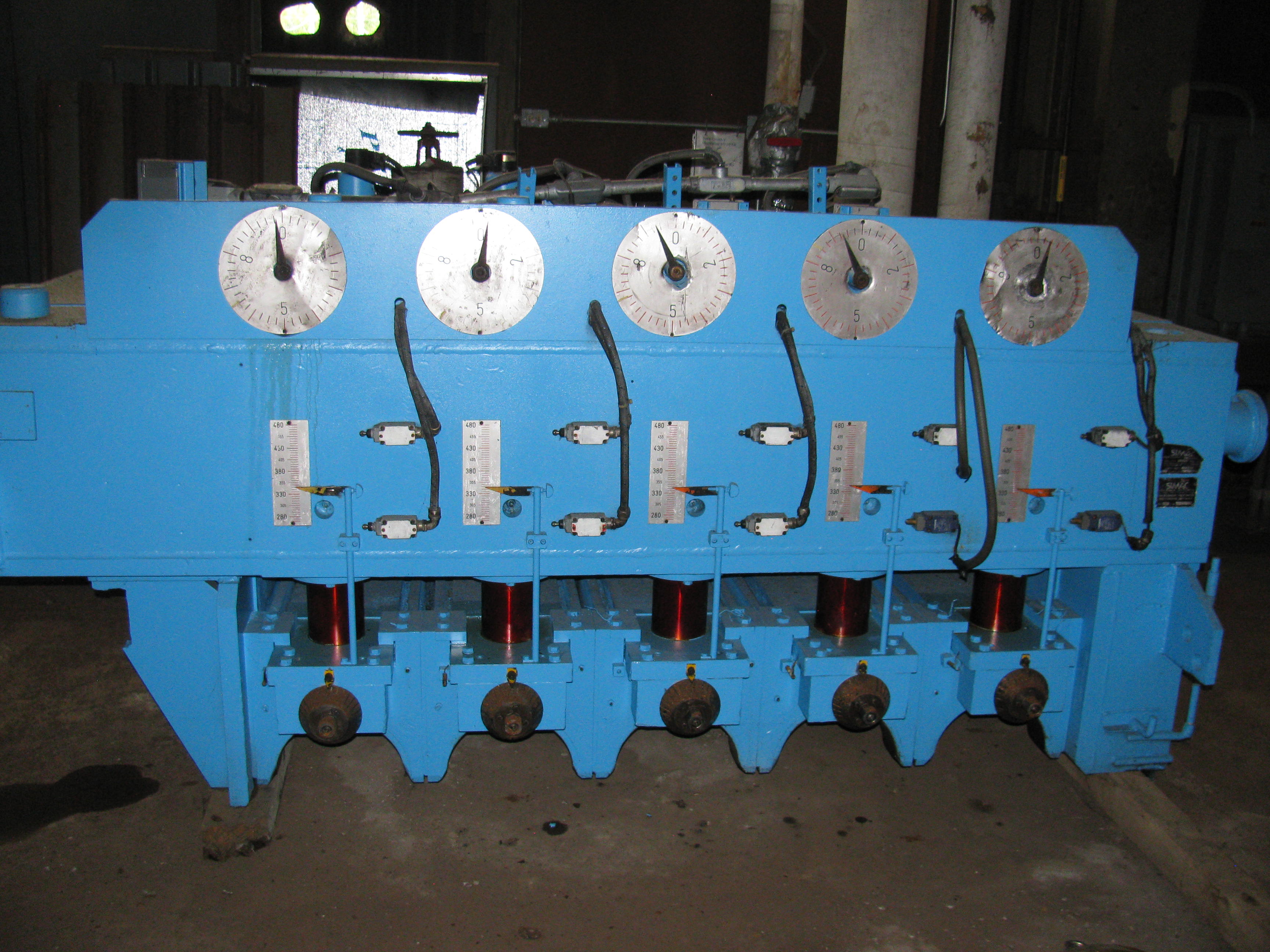

5 OVER 5 MULTISTAND SHAPE STRAIGHTENER
15" DIAMETER ROLLS X 22" FACE
175 HP
300 TO 500 FPM
5 BARS AT A TIME
225 TON FLYING SHEAR
23" BLADE
2 X 400 HP MOTORS
STACKER 16" BUNDLES SIZES UP TO 40 FT LONG
ORGAPACK 2 HEAD ADJUSTABLE BANDER
COMPLETE WITH ALL NECESSARY TABLES
PRODUCTS:
FLATS: 1” TO 4”
ANGLES: ¾” TO 2-1/2”
CHANNELS: 1” TO 4“
ROUNDS: 0.5” TO 1.25” (12MM TO 32MM)
STRAIGHTENER: 10 ROLL MULTI-STRAND (5 OVER 5); 300HP MOTOR
SHEAR: 220T CRANK TYPE: 2 X 400HP MOTORS
BUNDLING SECTION: 16” (400 MM) NOMINAL BUNDLE SIZE
INVENTORY ID 200818-100-00
| INVENTORY ID | 20081810000 |
| TITLE | STRAIGHTEN, SHEAR, STACK AND BAND LINE FOR ANGLES, CHANNELS AND FLATS (NCO) |
| PREVIOUS USE | CONTINUOUS CUT LINE FOR SHAPED |
| MANUFACTURER OF EQUIPMENT | SIMAC |
| YEAR OF MANUFACTURE | 1997 |
| MATERIAL PROCESSED (STEEL, STAINLESS, ETC.) | STEEL |
| TYPE (NON-CONT. OR CONTINUOUS) | CONTINUOUS |
| DIRECTION OF TRAVEL (VIEWED FROM OPERATORS SIDE) | LEFT TO RIGHT (VIEWED FROM OPERATOR'S SIDE) |
