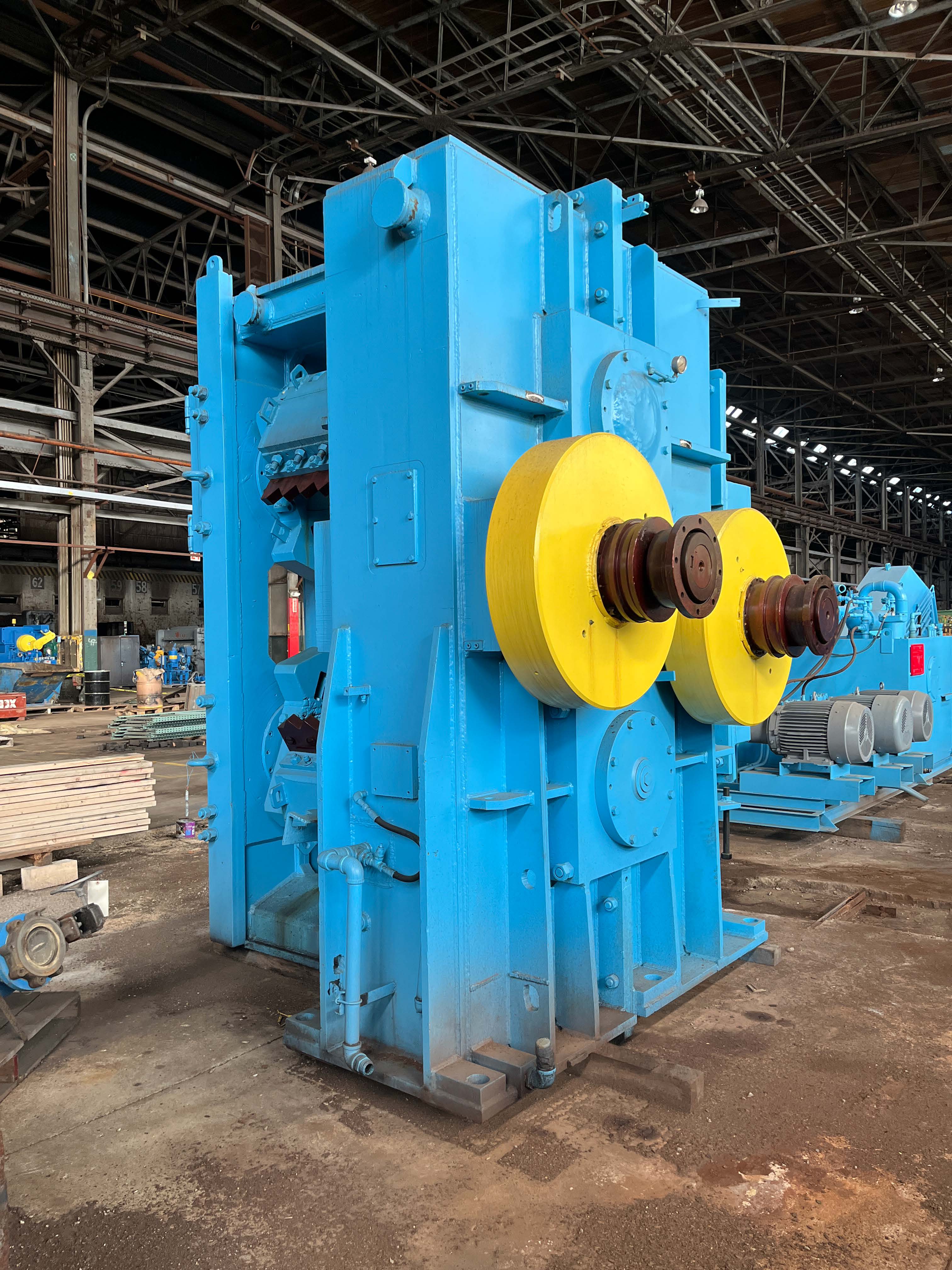

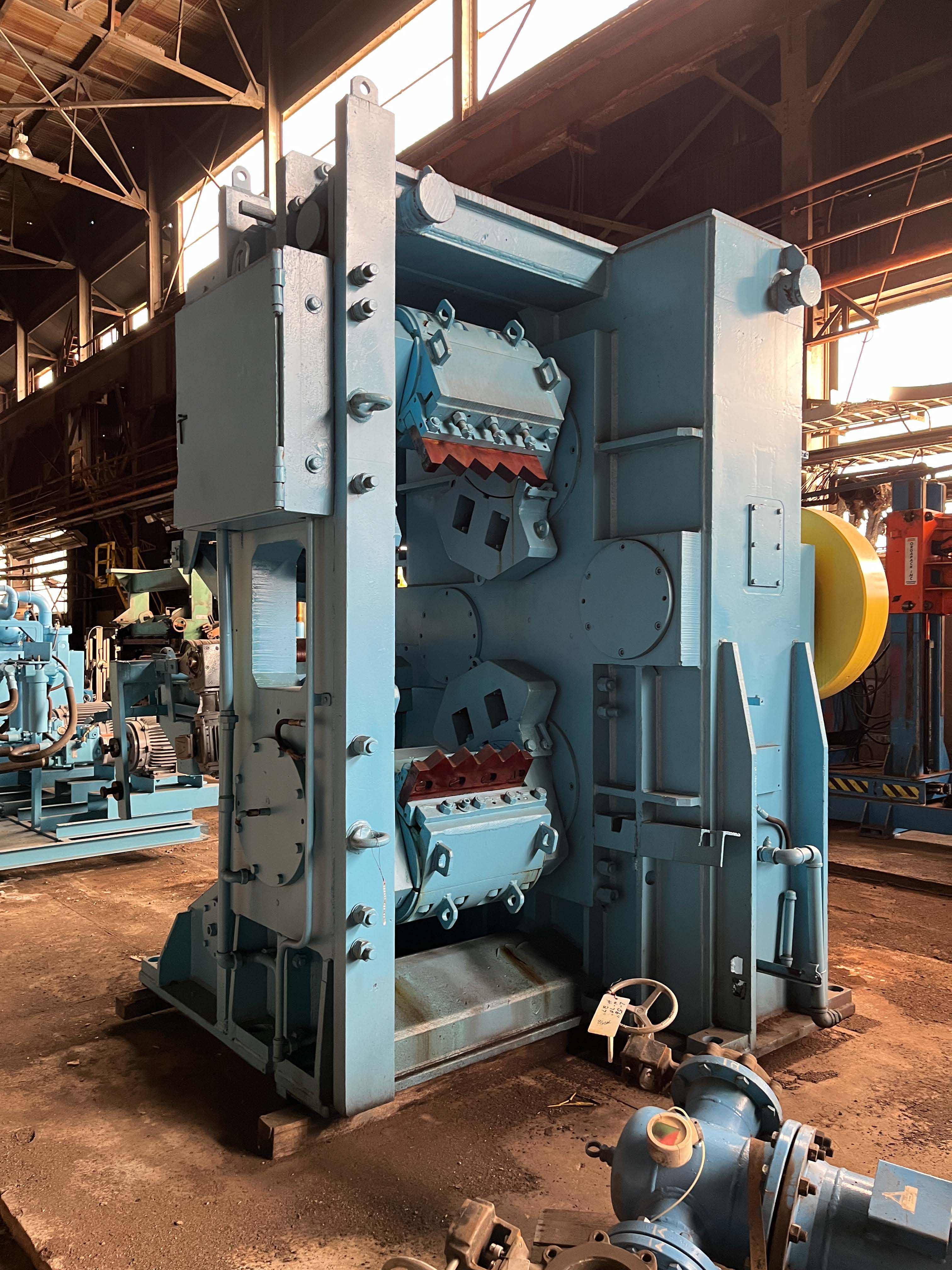

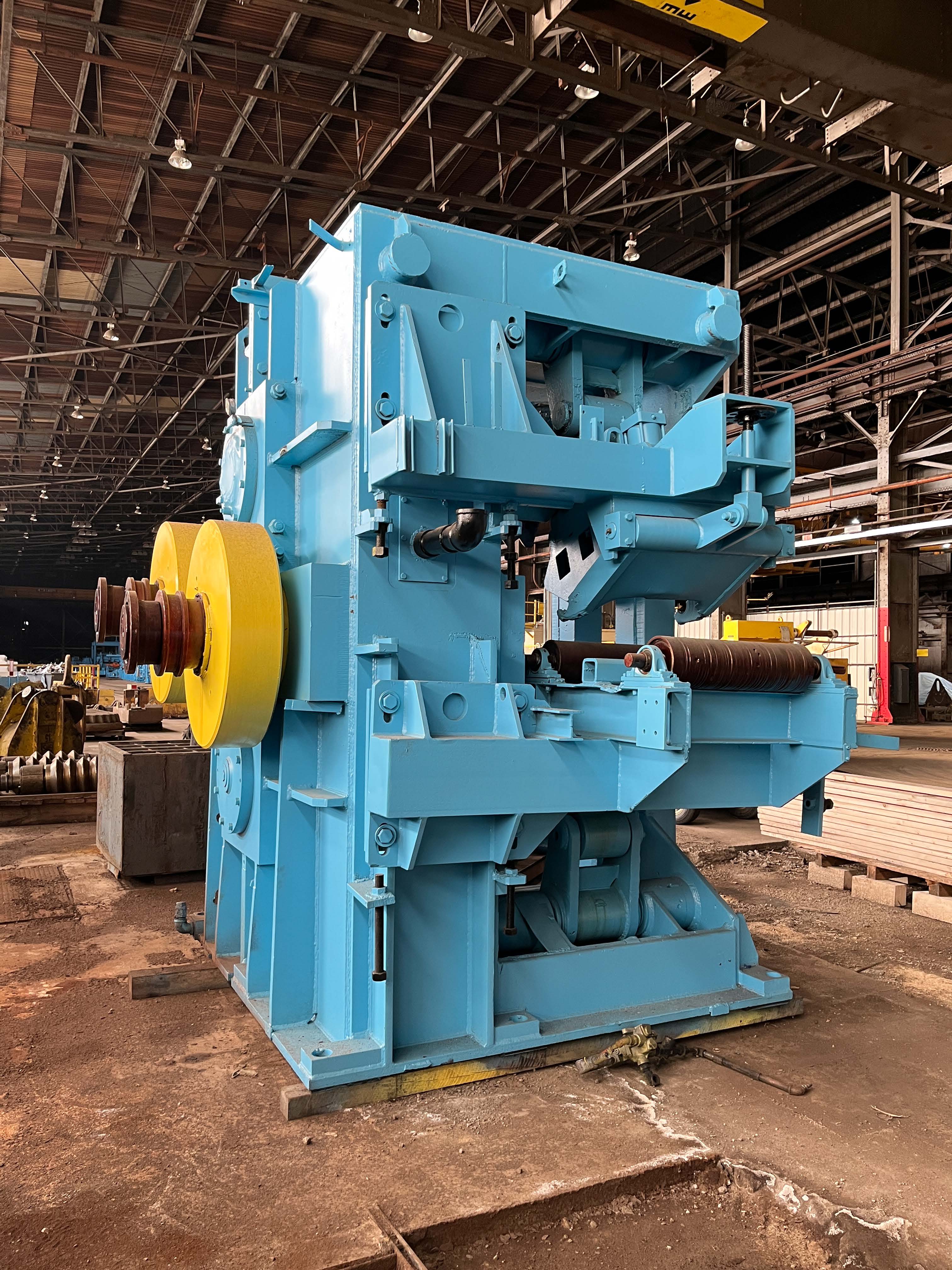

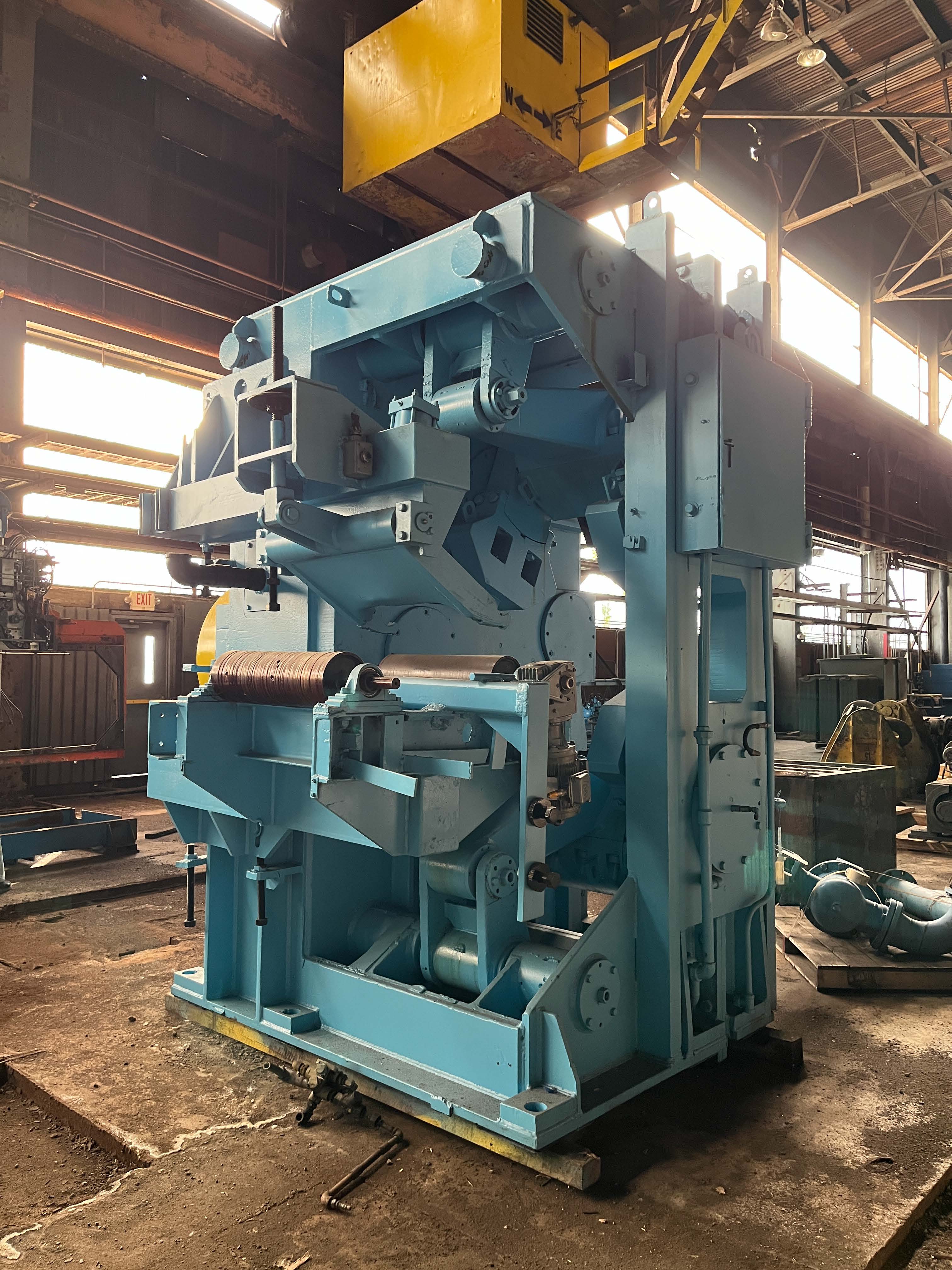

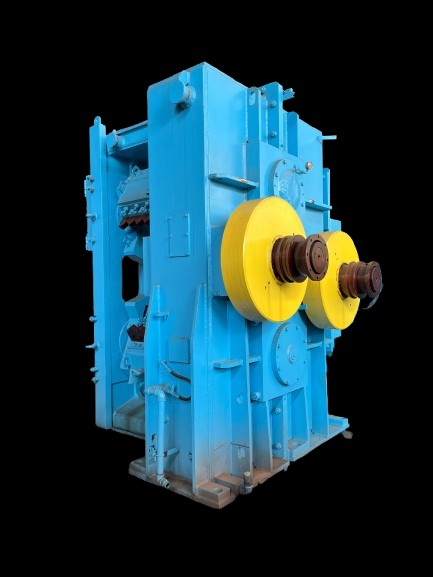

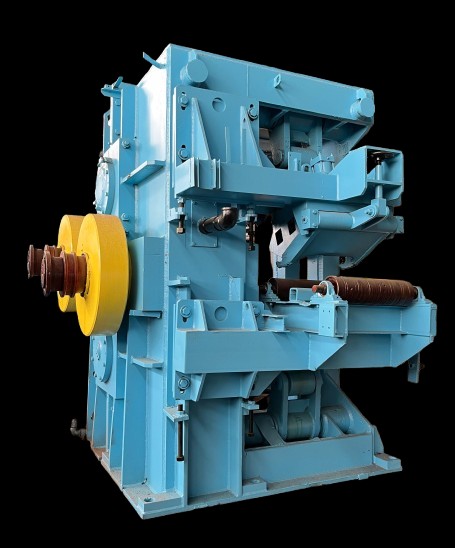

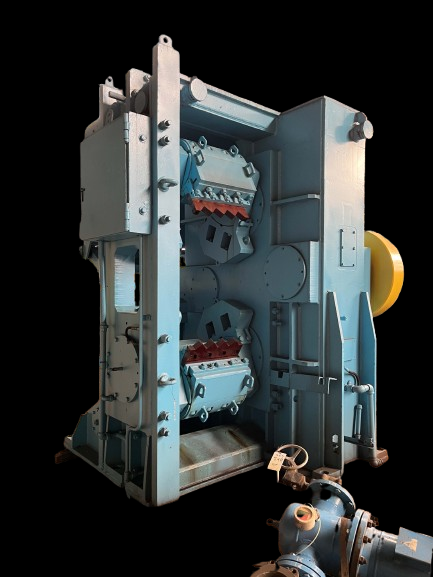

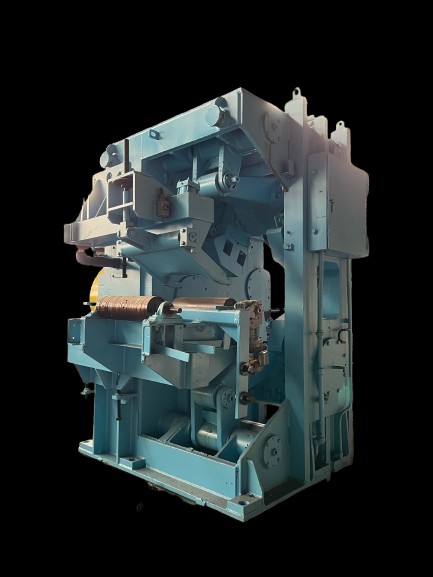

200 TON SIMAC FLYING COLD PRODUCT SHEAR FOR ANGLES, CHANNELS, AND FLATS (NCO)

200 TON SIMAC FLYING COLD PRODUCT SHEAR FOR ANGLES, CHANNELS, AND FLATS

MANUFACTURER: SIMAC

YEAR: 1995

TYPE: CRANK TYPE

MODEL: CVMF200

DIRECTION OF TRAVEL: LEFT TO RIGHT VIEWED FROM THE OPERATOR SIDE

CUTTING FORCE: 225 TON (200 MT)

MAIN DRIVE MOTOR: 2 X 400 HP (300 KW), 500 RPM, 500 VDC, 622 AMP, 15.2 FIELD AMPS, ANSALDO FRAME 355

MAIN GEAR DRIVE: 5.11 RATIO

BLADE SIZE: 23" FACE (610 MM)

LINE SPEED: 150 TO 500 FPM (0.8 TO 2 MPS) DEPENDING ON PRODUCT MIX

PRODUCTS:

FLATS: 1" X 3/16" TO 4" X 1/2"

ANGLES: 3/4" TO 2-1/2"

CHANNELS: 1" TO 4"

REBAR: 3 TO 14 REBAR (9.52 MM TO 43 MM)

ROUNDS: 0.5" TO 1.25" (12 MM TO 32 MM)

DIRECTION OF TRAVEL: LEFT TO RIGHT VIEWED BY OPERATOR'S SIDE

PREVIOUS USE: CONTINUOUS CUT LINE FOR SHAPES

FEATURES:

NUMEROUS PROFILE SHAPE BLADES AVAILABLE

EXIT TABLE AND MULTI-STRAND STRAIGHTENER AVAILABLE

ALREADY DISMANTLED

INVENTORY ID 200815-000-00

INVENTORY ID	20081500000
TITLE	200 TON SIMAC FLYING COLD PRODUCT SHEAR FOR ANGLES, CHANNELS, AND FLATS (NCO)
MANUFACTURER OF EQUIPMENT	SIMAC
