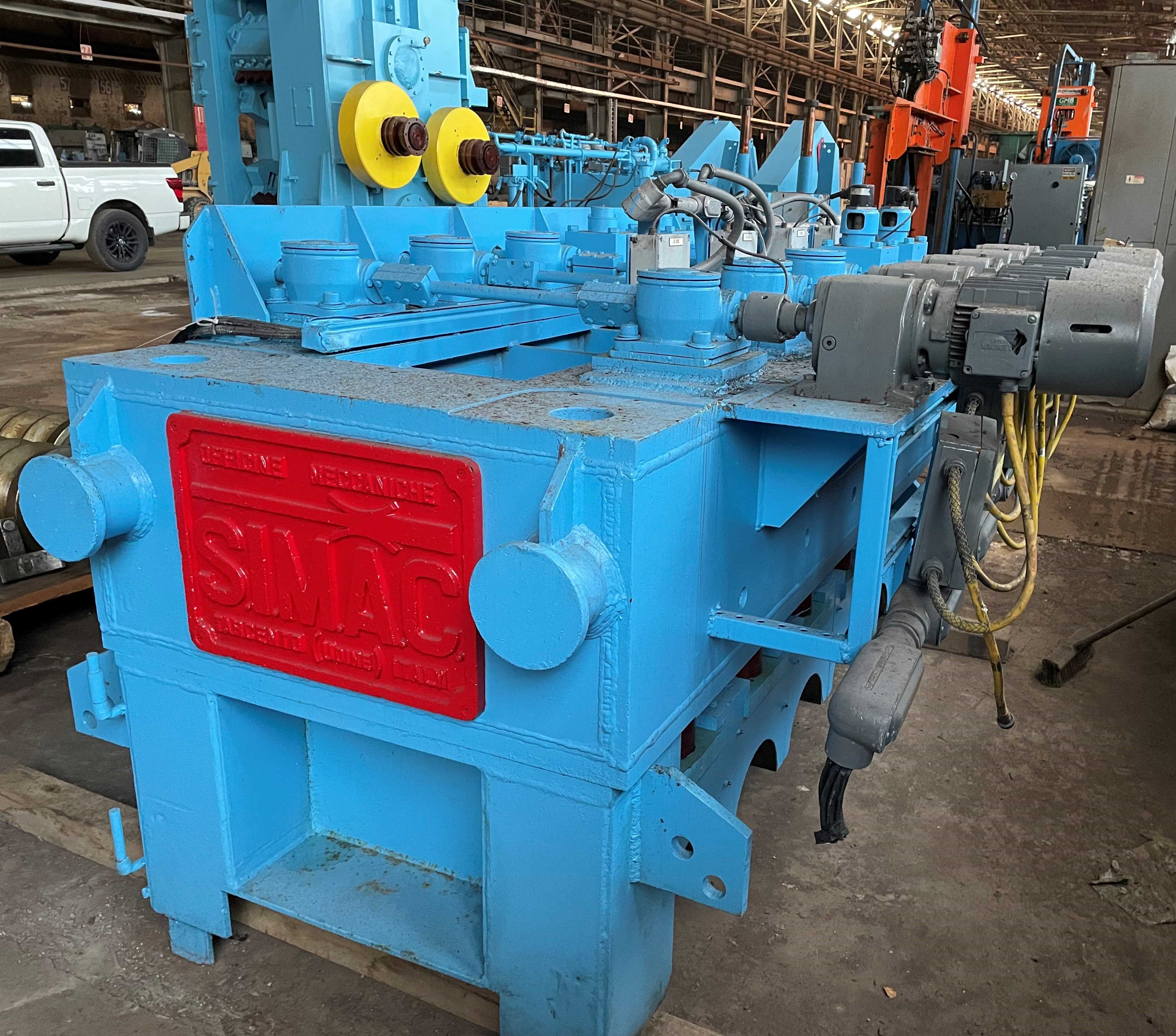

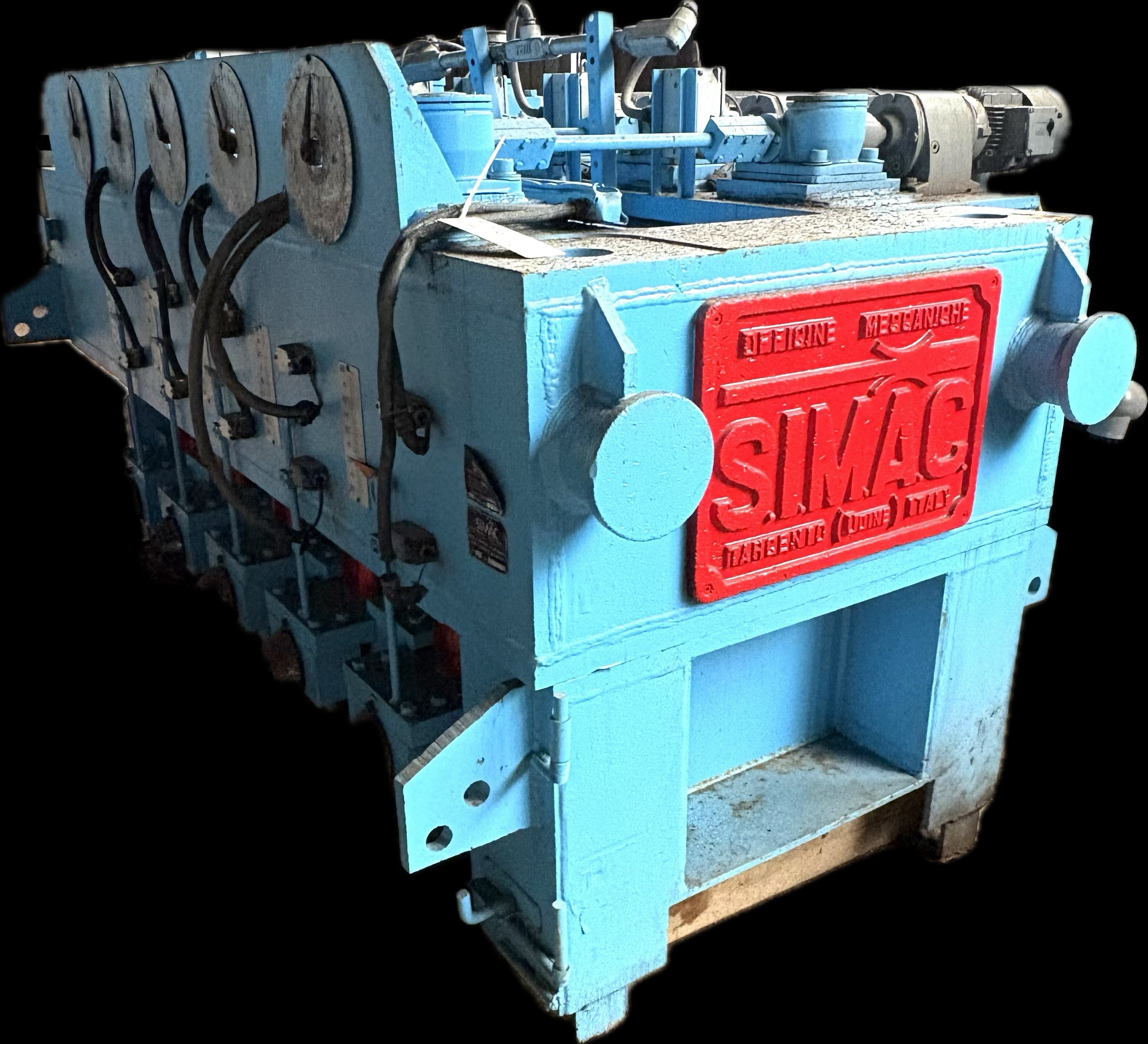

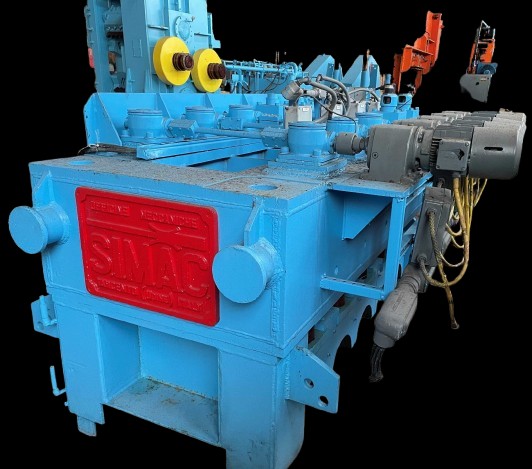

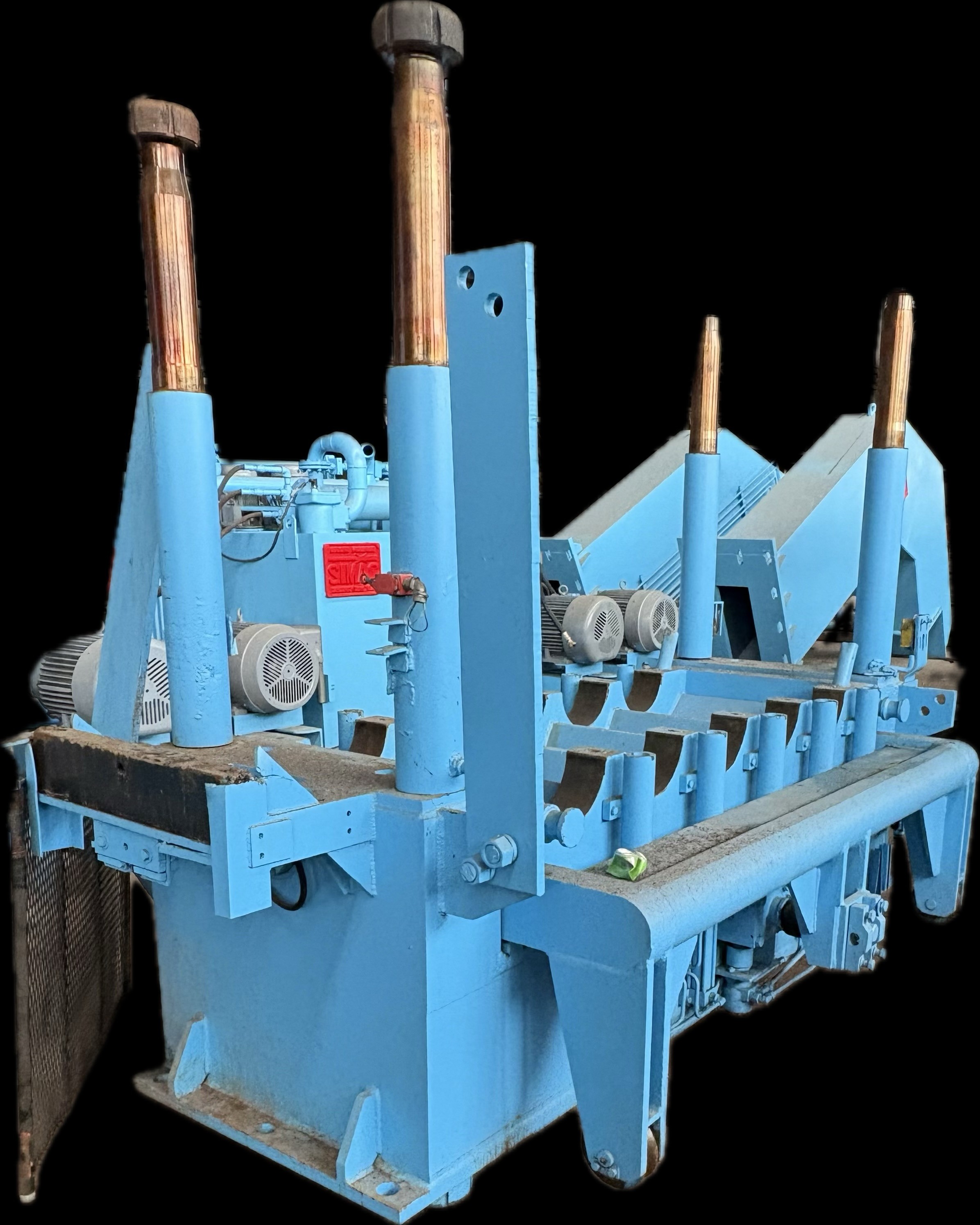

5 OVER 5, MULTI-STAND SHAPE STRAIGHTENER FOR ANGLES, CHANNELS AND FLATS (NCO)

5 OVER 5, MULTI-STAND SHAPE STRAIGHTENER FOR ANGLES, CHANNELS AND FLATS

MANUFACTURER: SIMAC

YEAR: 1995

MODEL: RDM 400

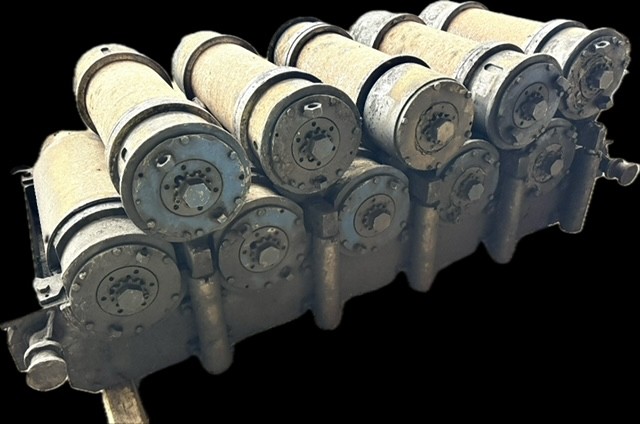

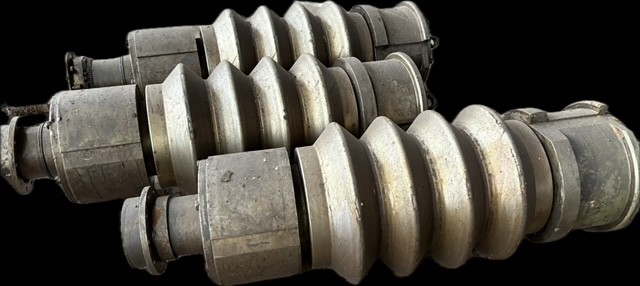

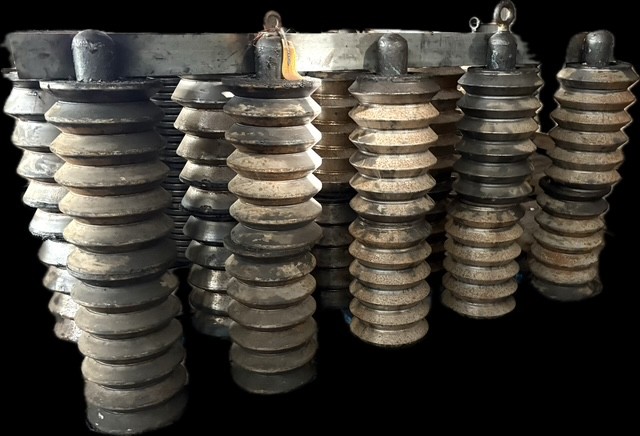

15" DIAMETER ROLLS X 22" FACE

5 BARS AT A TIME

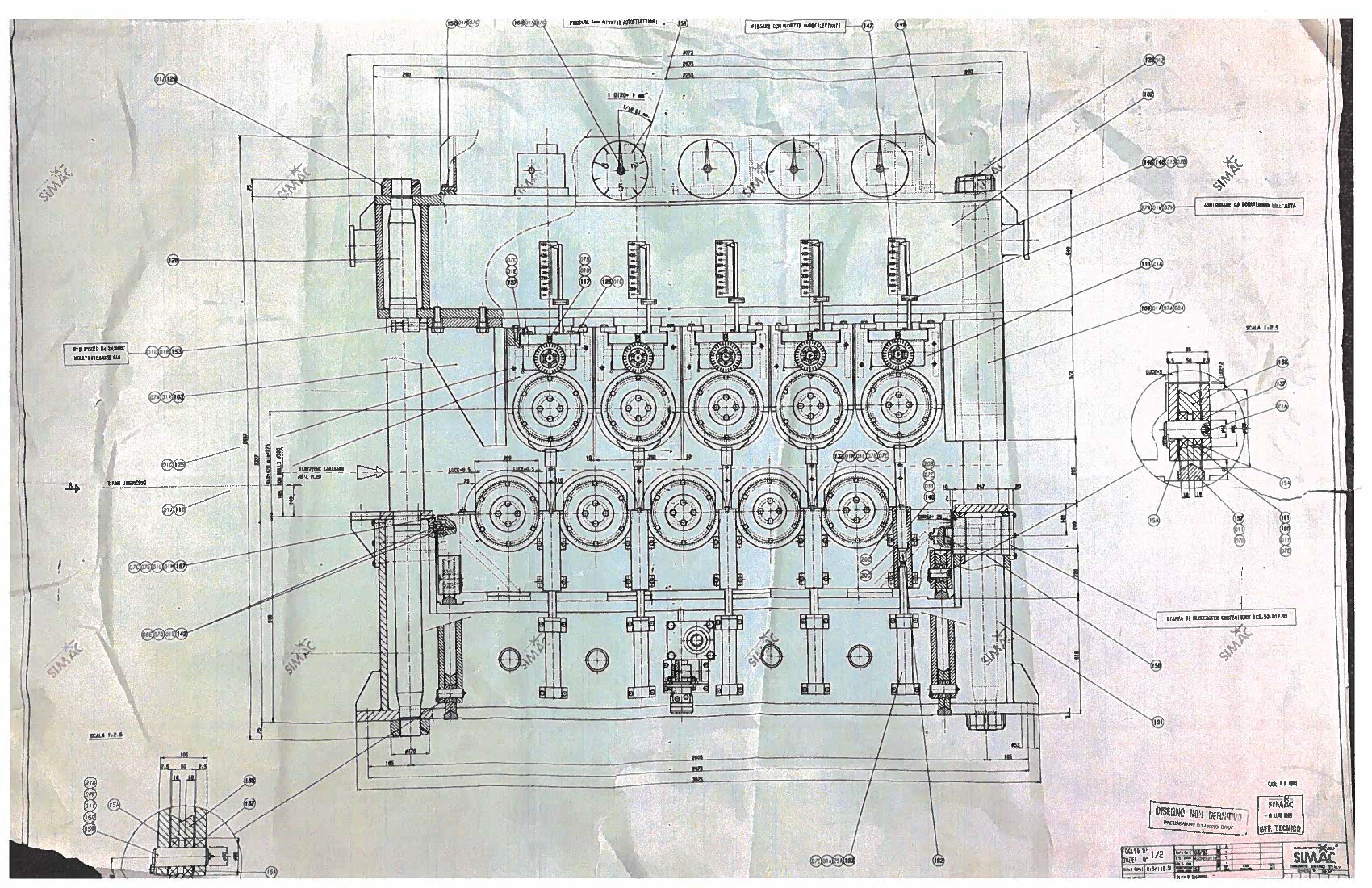

ROLL CONFIGURATION: 5 OVER 5

TOP ROLL ADJUSTMENT

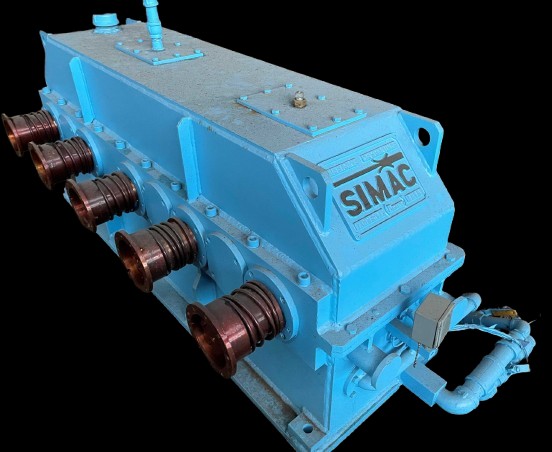

BOTTOM ROLL DRIVEN

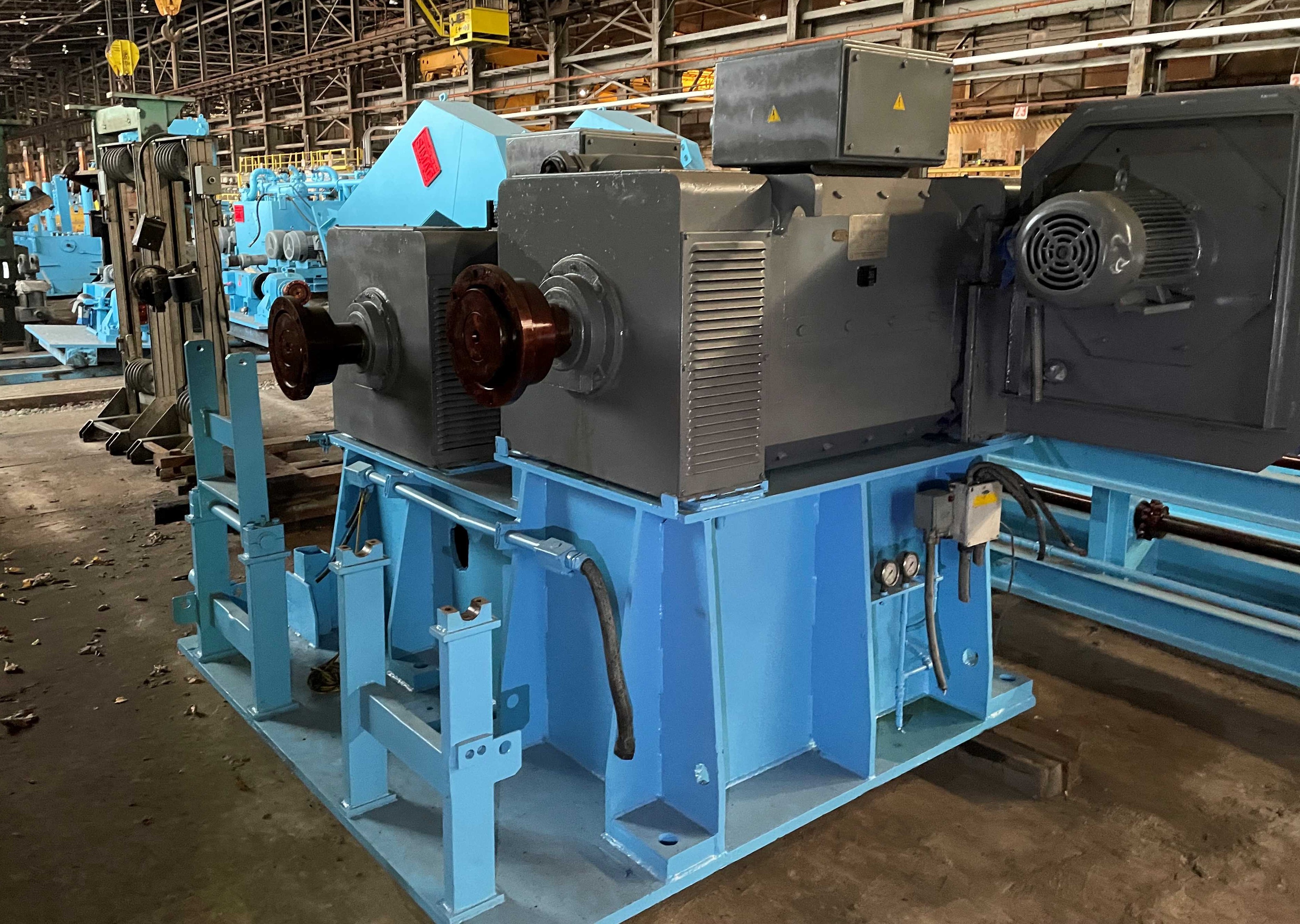

175 HP DC MOTOR

LINE SPEED: 295 TO 500 FPM

DIRECTION OF TRAVEL: LEFT TO RIGHT

CAN TRAVEL IN AND OUT OF LINE

PRODUCTS: CHANNELS:1" TO 4"

ANGLES: 3/4" TO 2-1/2"

FLATS: 1" TO 4"

INVENTORY ID: 200814-000-00

INVENTORY ID	20081400000
TITLE	5 OVER 5, MULTI-STAND SHAPE STRAIGHTENER FOR ANGLES, CHANNELS AND FLATS (NCO)
MODEL NO	RDM400
MANUFACTURER OF EQUIPMENT	SIMAC
YEAR OF MANUFACTURE	1995
NUMBER OF PLANES	1
DIRECTION OF TRAVEL	LEFT TO RIGHT VIEWED FROM OPERATORS SIDE
SPEED OF STRAIGHTENER MIN.	295 FPM
SPEED OF STRAIGHTENER MAX	500 FPM
NUMBER OF MOTORS	1
MOTOR HP	175 (130 KW)
MOTOR RPM	1300 RPM
MOTOR VOLTS	500 VDC
AC OR DC	DC
MOTOR MFR	ANSALDO
