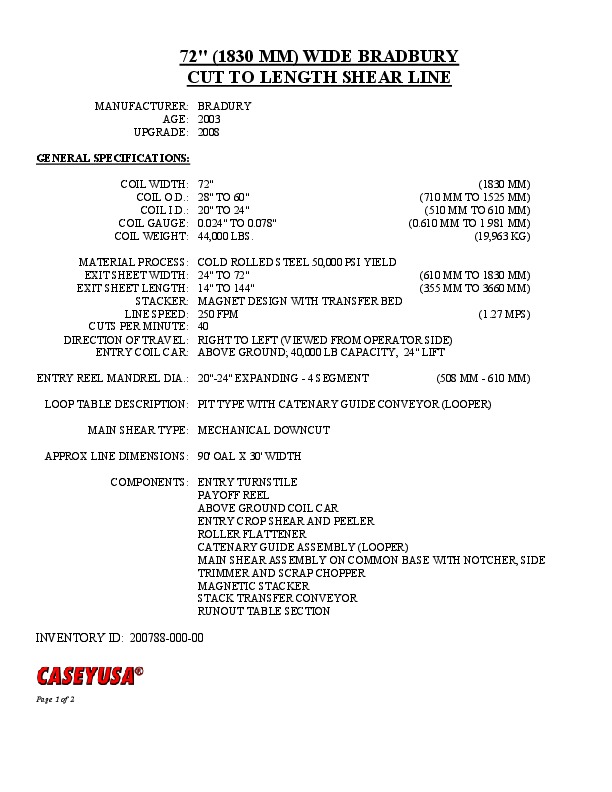

72" (1830 mm) WIDE BRADBURY CUT-TO-LENGTH SHEAR LINE
MANUFACTURER: BRADBURY
AGE: 2003
UPGRADE: 2008
GENERAL SPECIFICATIONS
COIL WIDTH: 72" (1830 mm)
COIL O.D.: 28" TO 60" (710 mm TO 1525 mm)
COIL I.D.: 20" TO 24"(508 mm TO 640 mm)
COIL GAUGE: 0.024" TO 0.078" (0.610 mm TO 1.981 mm)
COIL WEIGHT: 44,000 lbs (19,963 kg)
MATERIAL PROCESS: COLD ROLLED STEEL 50,000 PSI YIELD
WEIGHT (SHEAR LINE): 72,000 lbs (32,658 kg)
EXIT SHEET WIDTH: 24" TO 72" (610 mm TO 1830 mm)
STACKER: MAGNET DESIGN WITH TRANSFER BED
LINE SPEED: 250 FPM (127 MPS)
CUTS PER MINUTE: 40
DIRECTION OF TRAVEL: RIGHT TO LEFT (VIEWED FROM OPERATOR SIDE)
ENTRY COIL CAR: ABOVE GROUND, 40,000 lbs (18,143 kg) CAPACITY, 24" (609 mm) LIFT
ENTRY REEL MANDREL DIAMETER: 20" - 24" (508 mm - 610 mm) EXPANDING - 4 SEGMENT
LOOP TABLE DESCRIPTION: PIT TYPE WITH CATENARY GUIDE CONVEYOR (LOOPER)
MAIN SHEAR TYPE: MECHANICAL DOWNCUT
APPROXIMATE LINE DIMENSIONS: 90' OAL X 30' WIDTH (1080 in OR 27.432 mm) X (360 in OR 9,144 mm)

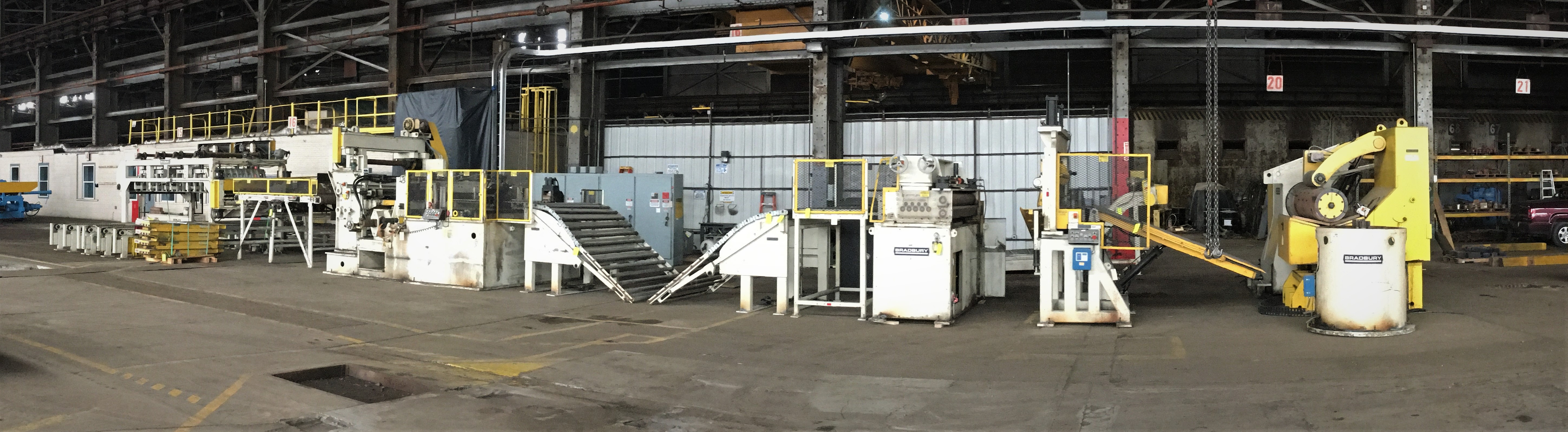

COMPONENTS:
ENTRY TURNSTILE
PAYOFF REEL
ABOVE GROUND COIL CAR

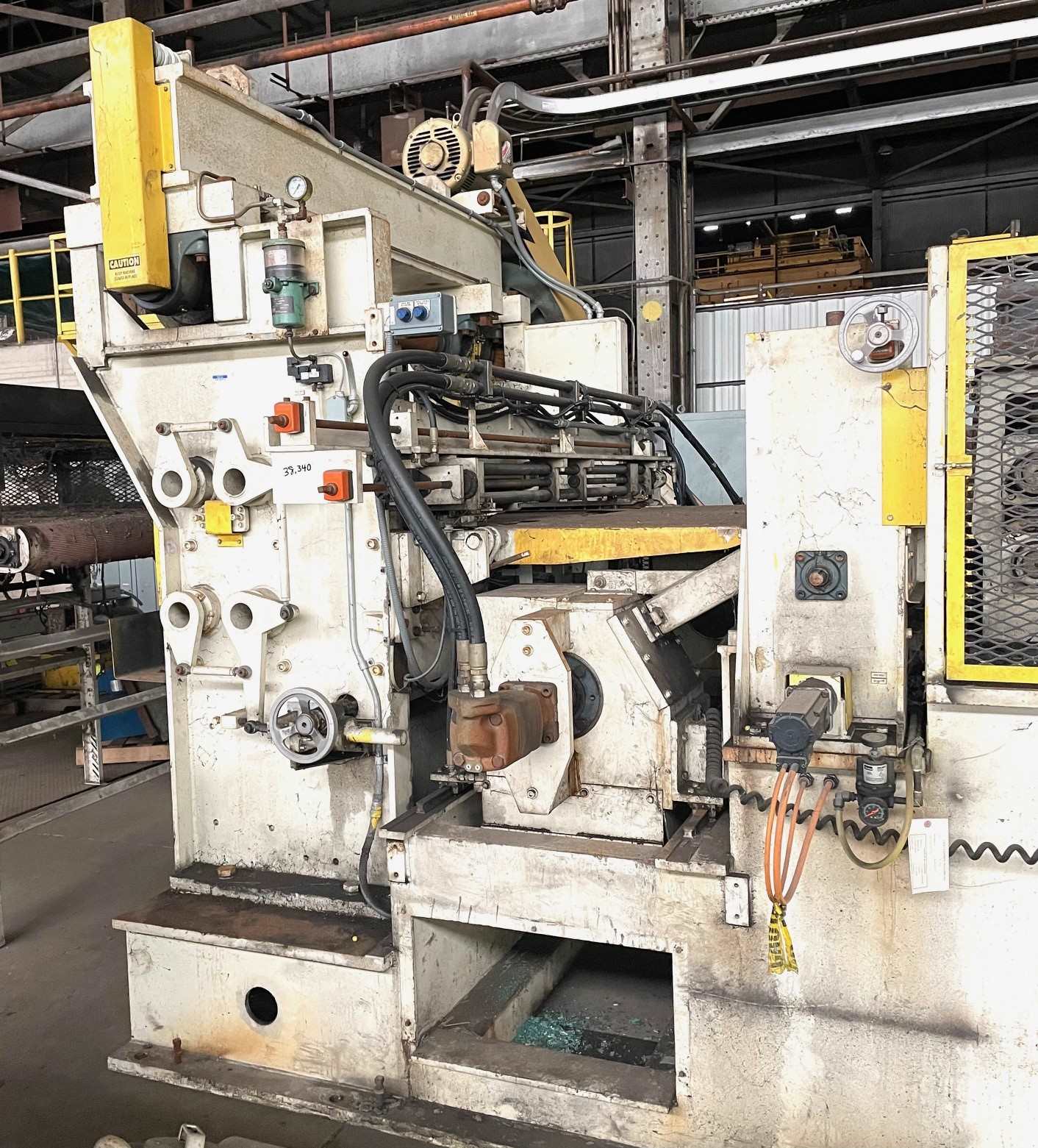

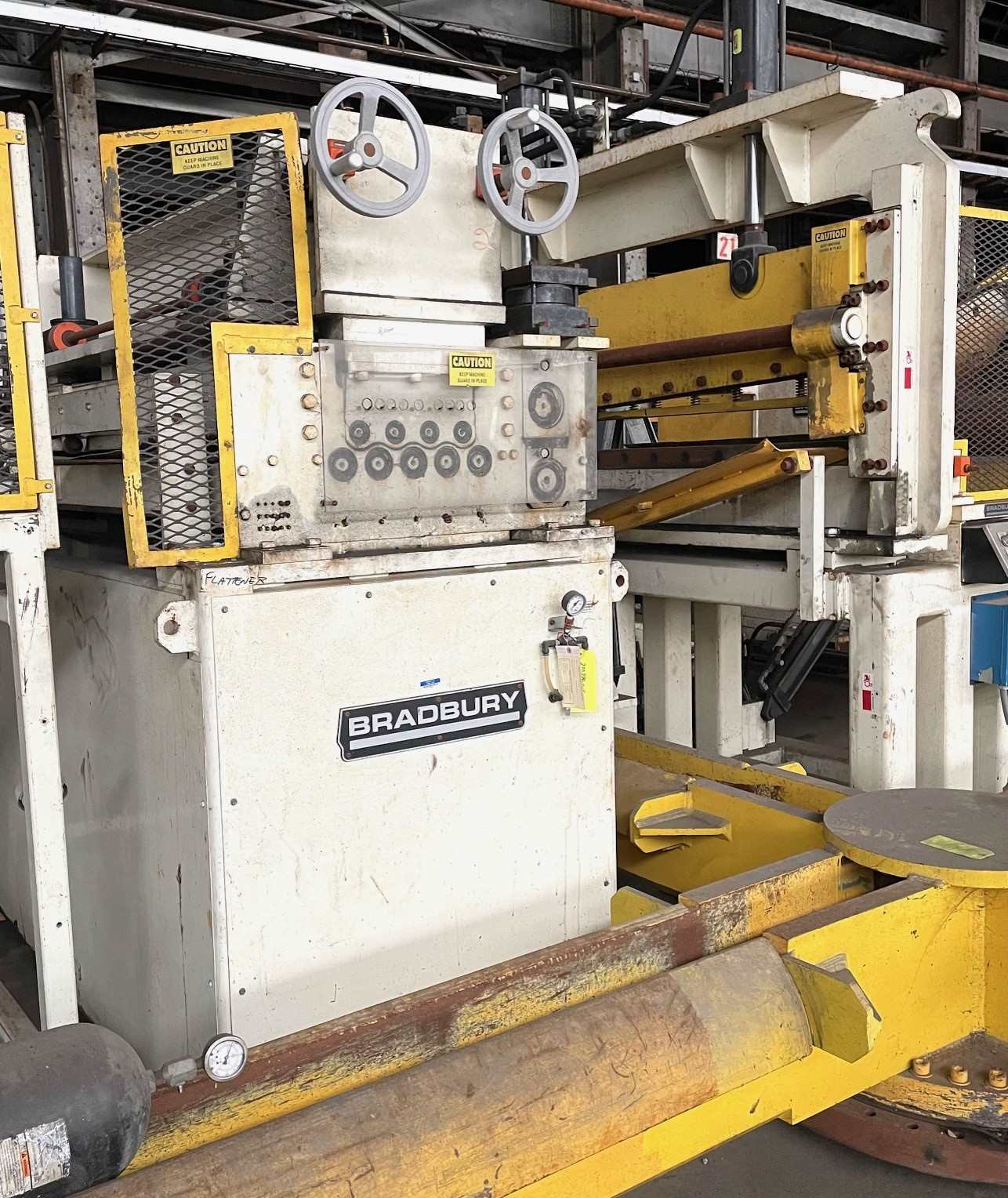

ROLLER FLATTENER
CATENARY GUIDE ASSEMBLY (LOOPER)

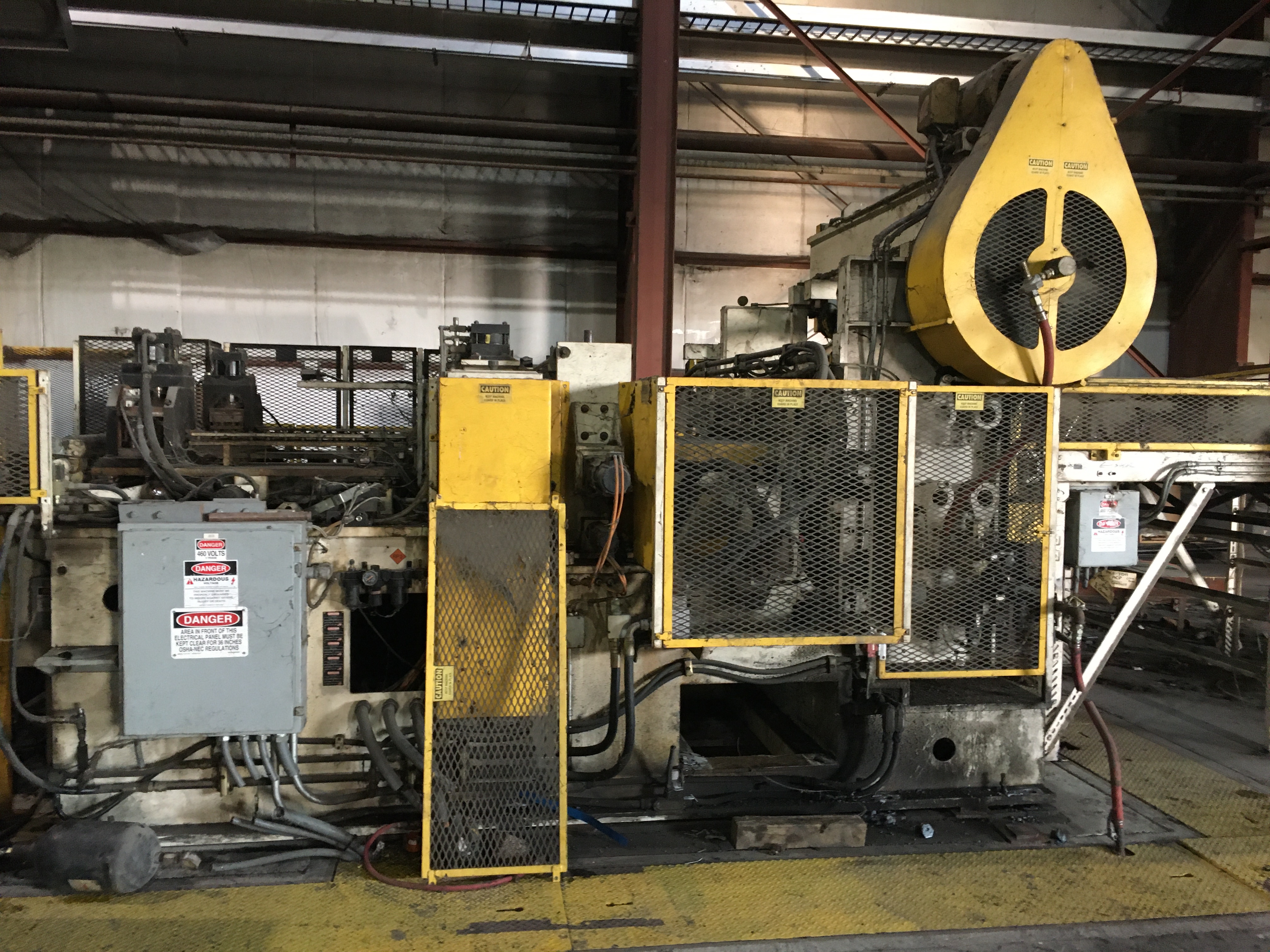

MAIN SHEAR ASSEMBLY ON COMMON BASE WITH NOTCHER, SIDE
TRIMMER AND SCRAP CHOPPER

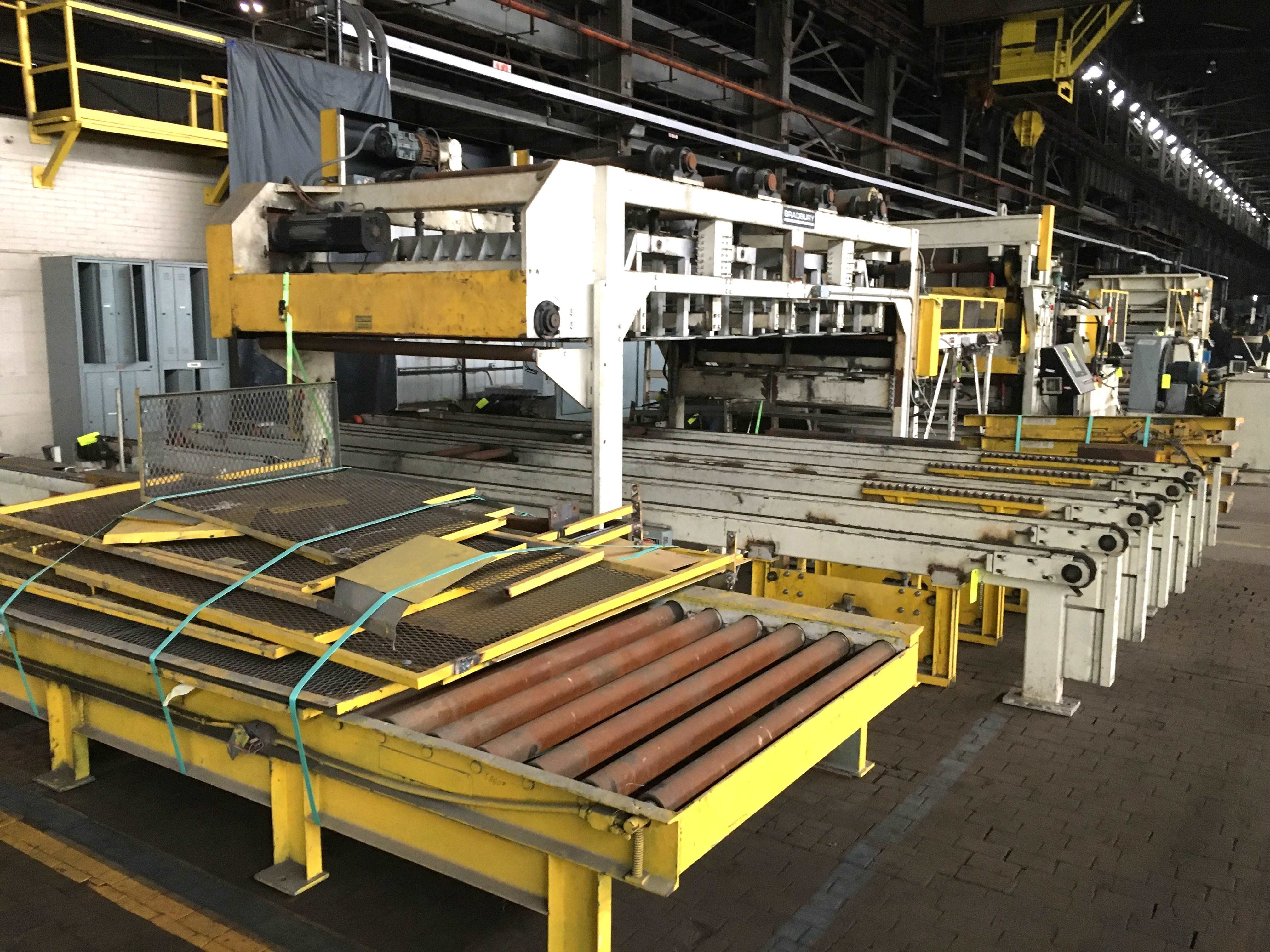

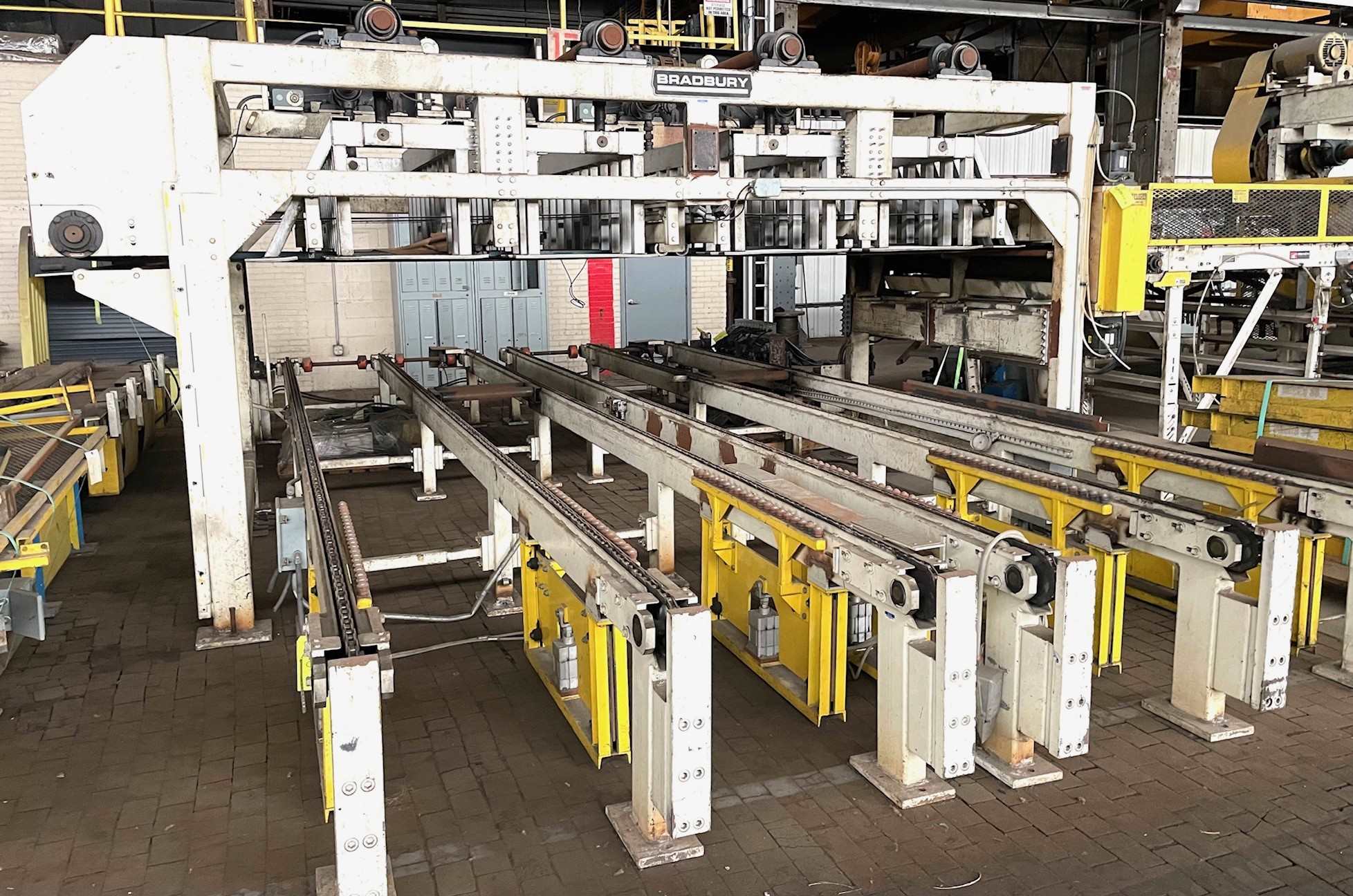

MAGNETIC STACKER
STACK TRANSFER CONVEYOR
RUNOUT TABLE SECTION
INVENTORY ID#: 200788-000-00
| INVENTORY ID | 20078800000 |
| TITLE | 72" (1830 mm) WIDE BRADBURY CUT-TO-LENGTH SHEAR LINE |
| PREVIOUS USE | SH |
| CUTTING TYPE | SH |
| CAPACITY | 72" (1830 mm) |
| MANUFACTURER OF EQUIPMENT | BRADBURY |
| YEAR OF MANUFACTURE | 2003 |
| MATERIAL PROCESSED (STEEL, STAINLESS, ETC.) | COLD ROLLED STEEL 50,000 PSI YIELD |
| TYPE (NON-CONT. OR CONTINUOUS) | NON-CONT |
| COIL WIDTH | 72" (1830 mm) |
| ENTRY COIL O.D. MIN | 28" (710 mm) |
| ENTRY COIL O.D. MAX | 60" (1525 mm) |
| ENTRY COIL I.D. MIN | 20" (510 mm) |
| ENTRY COIL I.D. MAX | 24" (610 mm) |
| DIRECTION OF TRAVEL (VIEWED FROM OPERATORS SIDE) | RIGHT TO LEFT |
