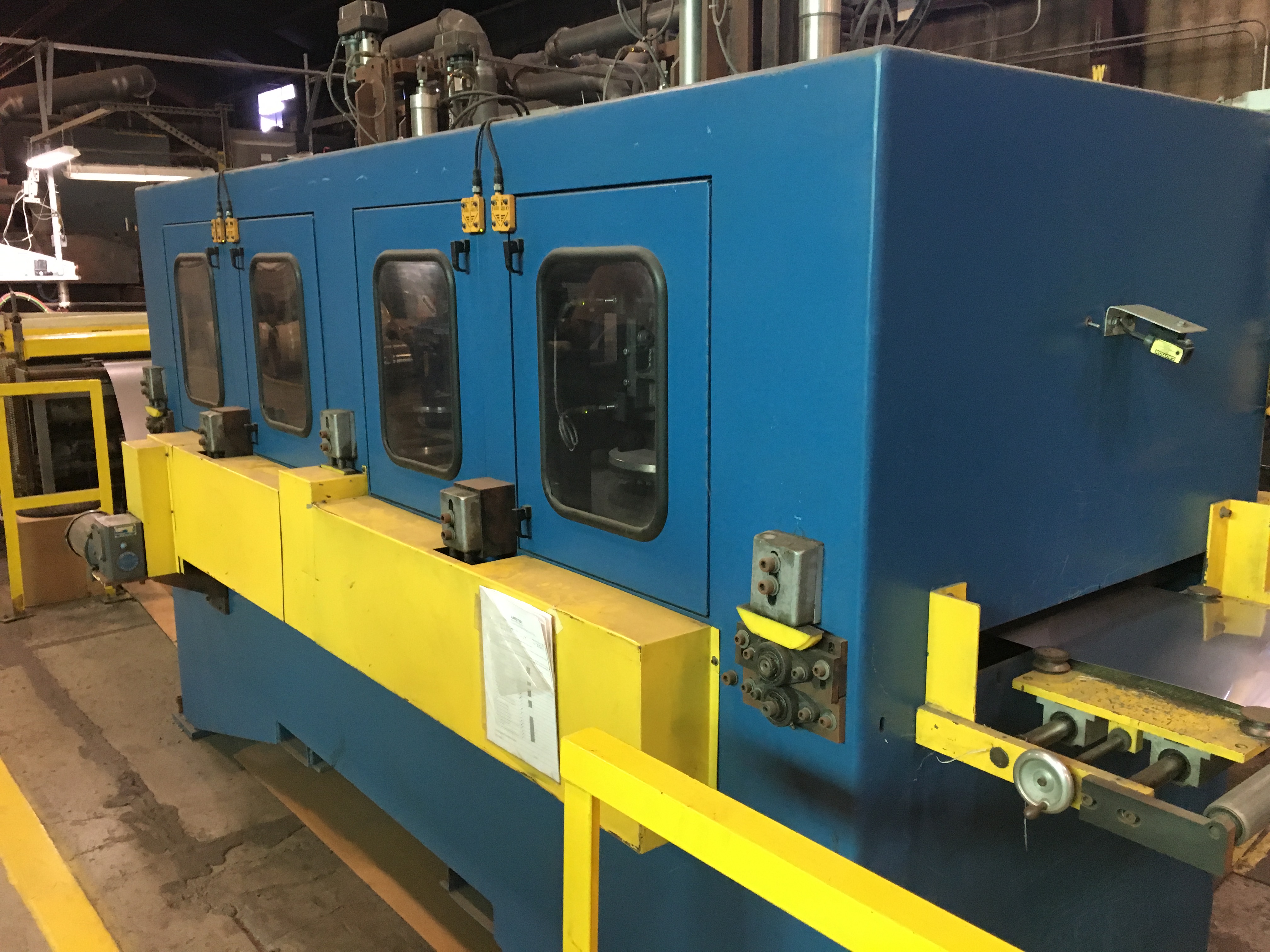

ADF FOUR HEAD ROTARY BRUSH POLISHER FOR CLADDING LINE

MANUFACTURER: ADF

GENERAL SPECIFICATIONS:

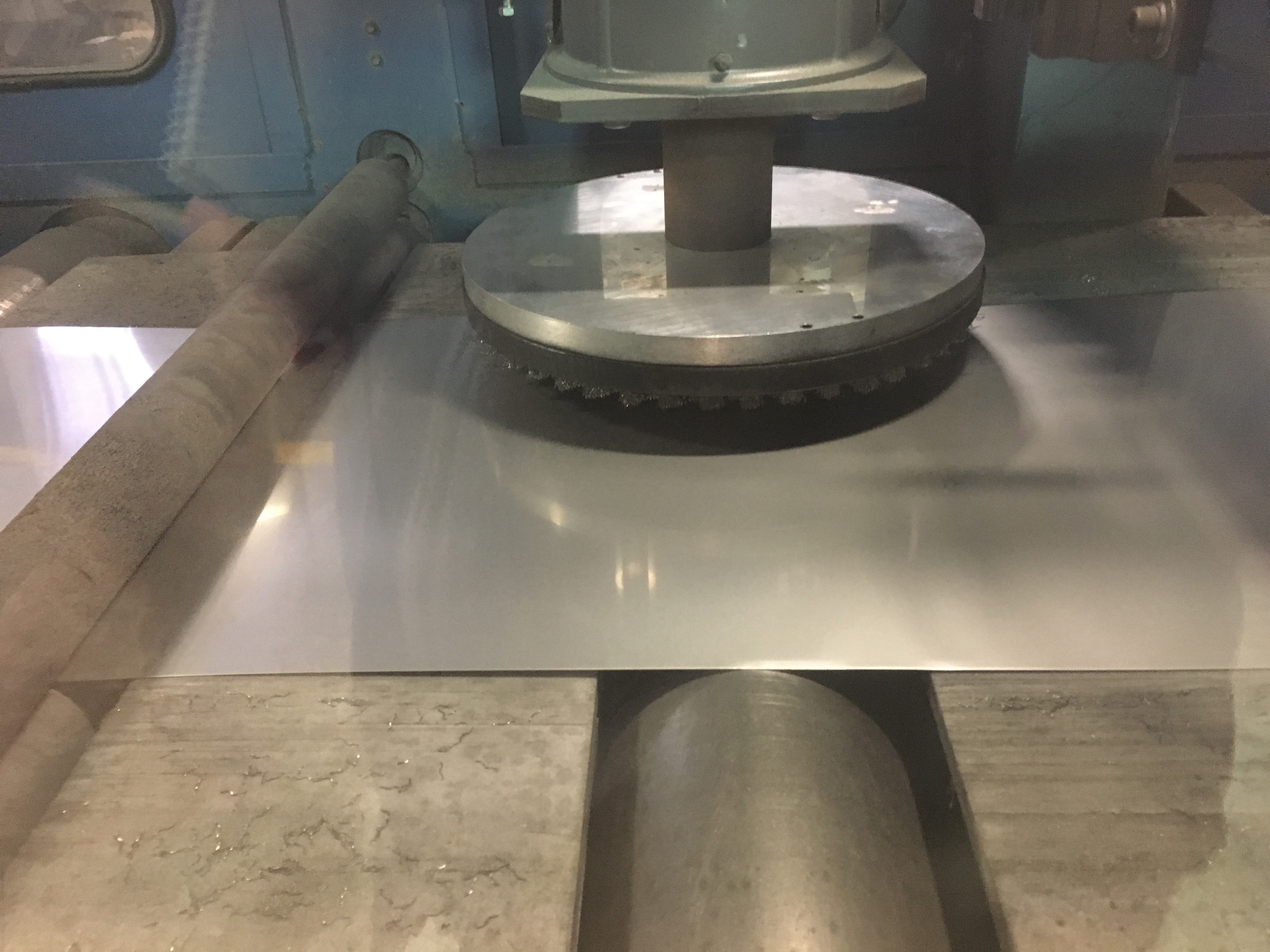

TYPE: FOUR HEAD VERTICAL MOUNTED SCRATCH BRUSH ASSEMBLIES

BRUSH ASSEMBLIES: 4

BRUSH DISC DIAMETER: 14.5" (370 MM)

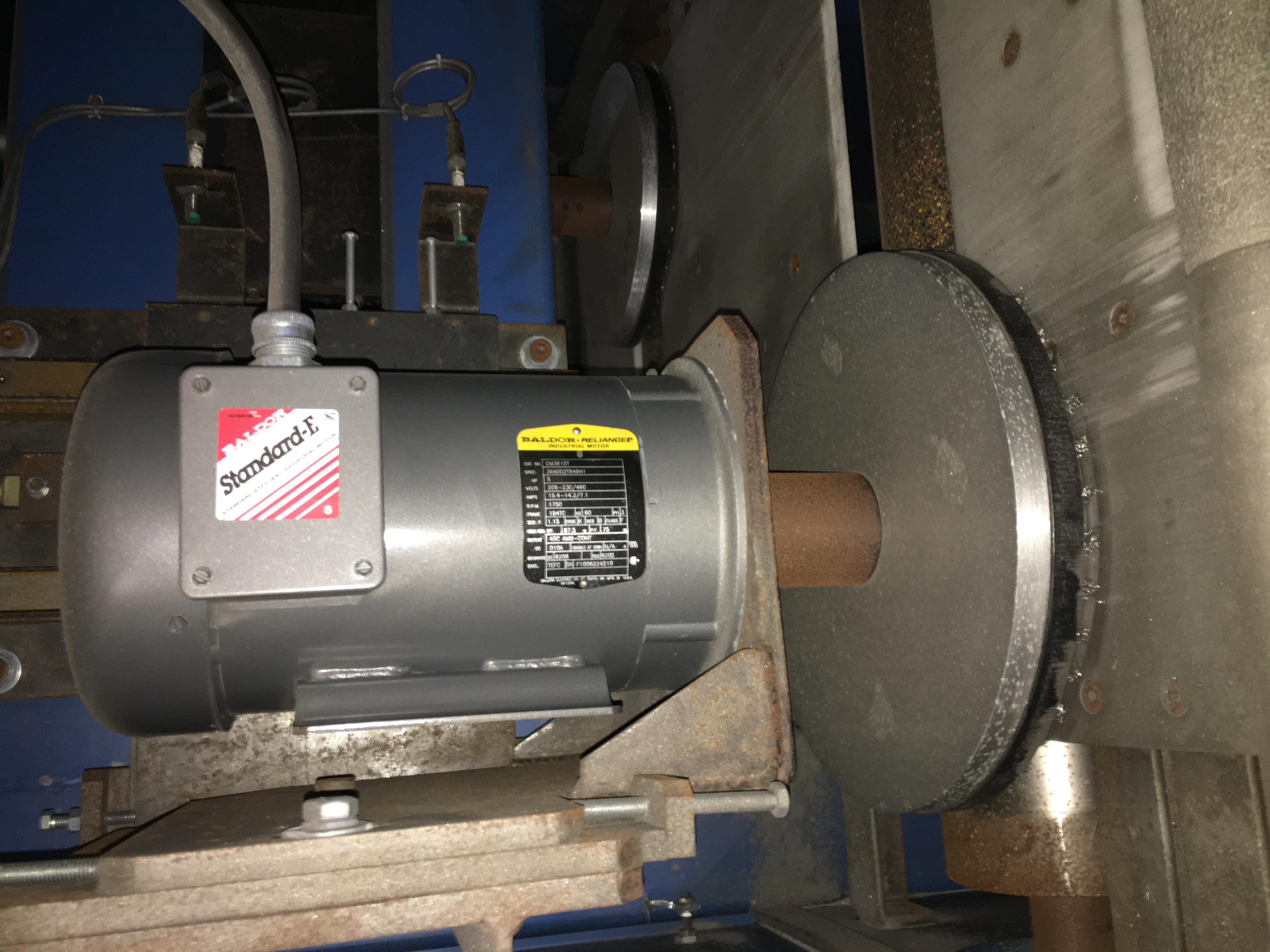

BRUSH MOTOR DATA: 5 HP, 1750 RPM, 208/230/460, VAC, BALDOR, I84TC FRAME, 1.15 SF

MATERIAL WIDTH: 24" (610 MM)

PASS LINE: 42" (1067 MM)

HEAD SPACING: 12" OPPOSED (24" LEFT SIDE / 24" RIGHT SIDE)

SUPPORTING ROLLERS: 6" DIAMETER AT 14" SPACING

MOTOR DRIVEN 1 HP, 1725 RPM, 56C FRAME

30:1 RATIO GEAR REDUCER

HEAD HEIGHT ADJUSTMENT: PNEUMATIC CYLINDER

STRIP GUIDES: ENTRY AND EXIT WITH MANUAL ADJUSTMENT

SHEET LENGTH: CONTINUOUS

PREVIOUS USE: SHEET SURFACE PREP FOR CLADDING LINE

FEATURES:

ALREADY DISMANTLED

ENTRY/EXIT GUIDES

SPARE BRUSHES & BLADES

INVENTORY #: 200644-000-00

INVENTORY ID	20064400000
TITLE	ADF FOUR HEAD ROTARY BRUSH POLISHER FOR CLADDING LINE
MATERIAL WIDTH	24
MANUFACTURER OF EQUIPMENT	ADF
TYPE	FOUR HEAD VERTICAL MOUNTED SCRATCH BRUSH ASSEMBLIES
MOTOR DATA	5 HP, 1750 RPM, 208/230/460 VAC, BALDOR, 184TC FRAME
BELT SIZE	14.5" DIAMETER BRUSH DISC
PREVIOUS USE	SHEET SURFACE PREP FOR CLADDING LINE
