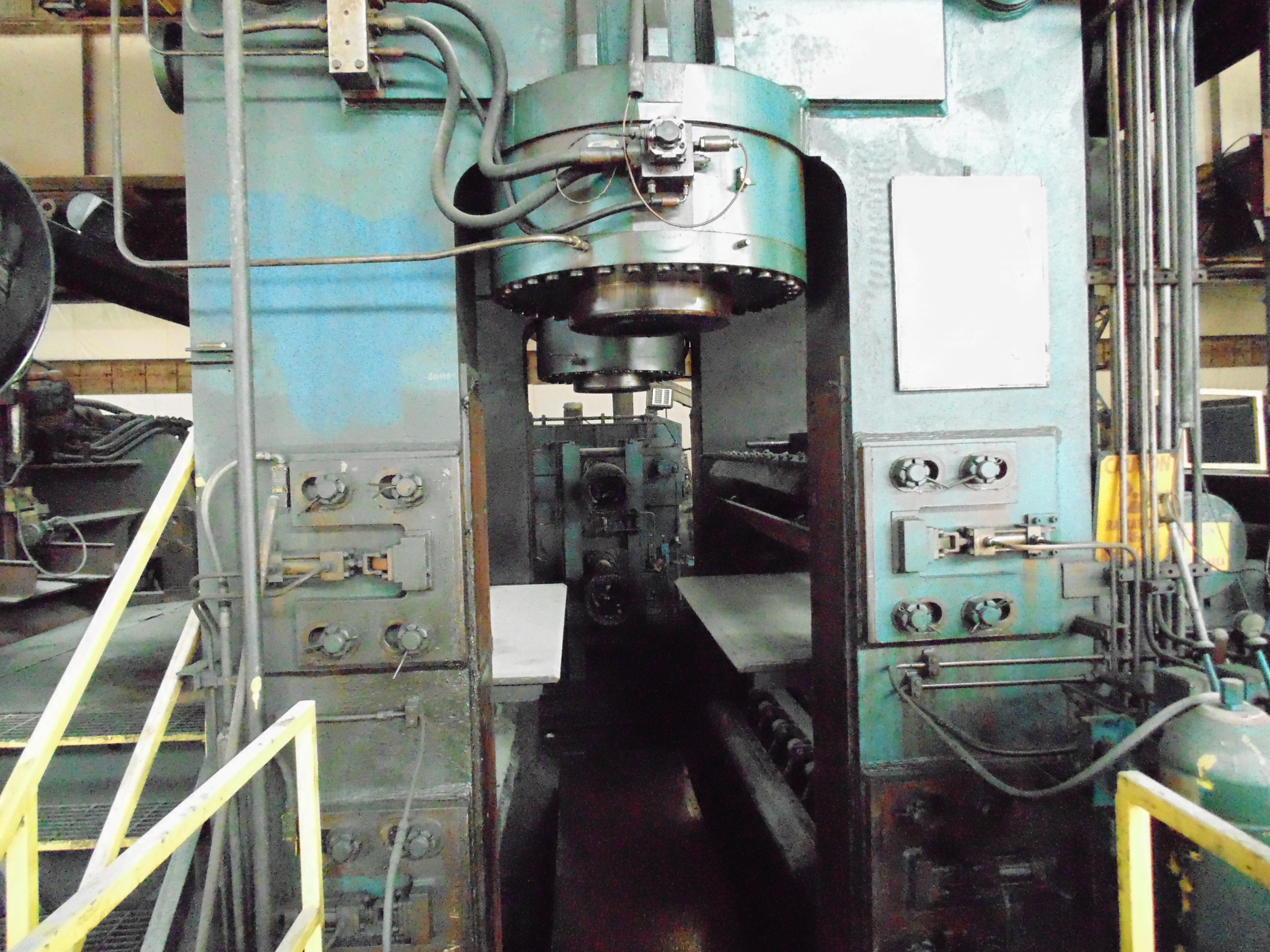

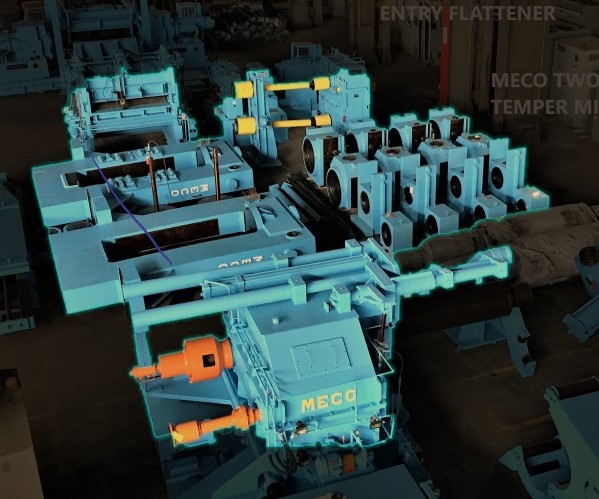

72" x 1/2" MECO TWO HIGH TEMPER MILL

MANUFACTURER: MECO

GENERAL SPECIFICATIONS:

MATERIAL: MILD STEEL

NUMBER OF STANDS: 1

CONFIGURATION: 2 HIGH NON-REVERSING

HOUSING POST SIZE: 28" X 18" (710 MM X 460 MM)

HOUSING CROSS SECTION: 504" (12802 MM)

STARTING COIL: 24" TO 72" WIDTH (610 MM TO 1830 MM)

80" MAX O.D. (2030 MM)

24" TO 30" I.D. (610 MM TO 760 MM)

COIL WEIGHT: 80,000 LBS (36287 KG)

FINISHED COIL: 24" TO 72" WIDTH (610 MM TO 1830 MM)

0.060 TO 0.375" @ 72" WIDE GAUGE

0.060 TO 0.500" @ 48" WIDE GAUGE

24" I.D.

LINE SPEED: 150 TO 300 FPM

DIRECTION OF TRAVEL: RIGHT TO LEFT (VIEWED FROM THE OPERATOR'S SIDE)

WORK ROLL FACE: 80" (2032 MM)

WORK ROLL DIAMETER: 38" (965 MM)

MOTOR STAND: 400 J[. PROGOMA; DESOGM. 300/1050 RPM

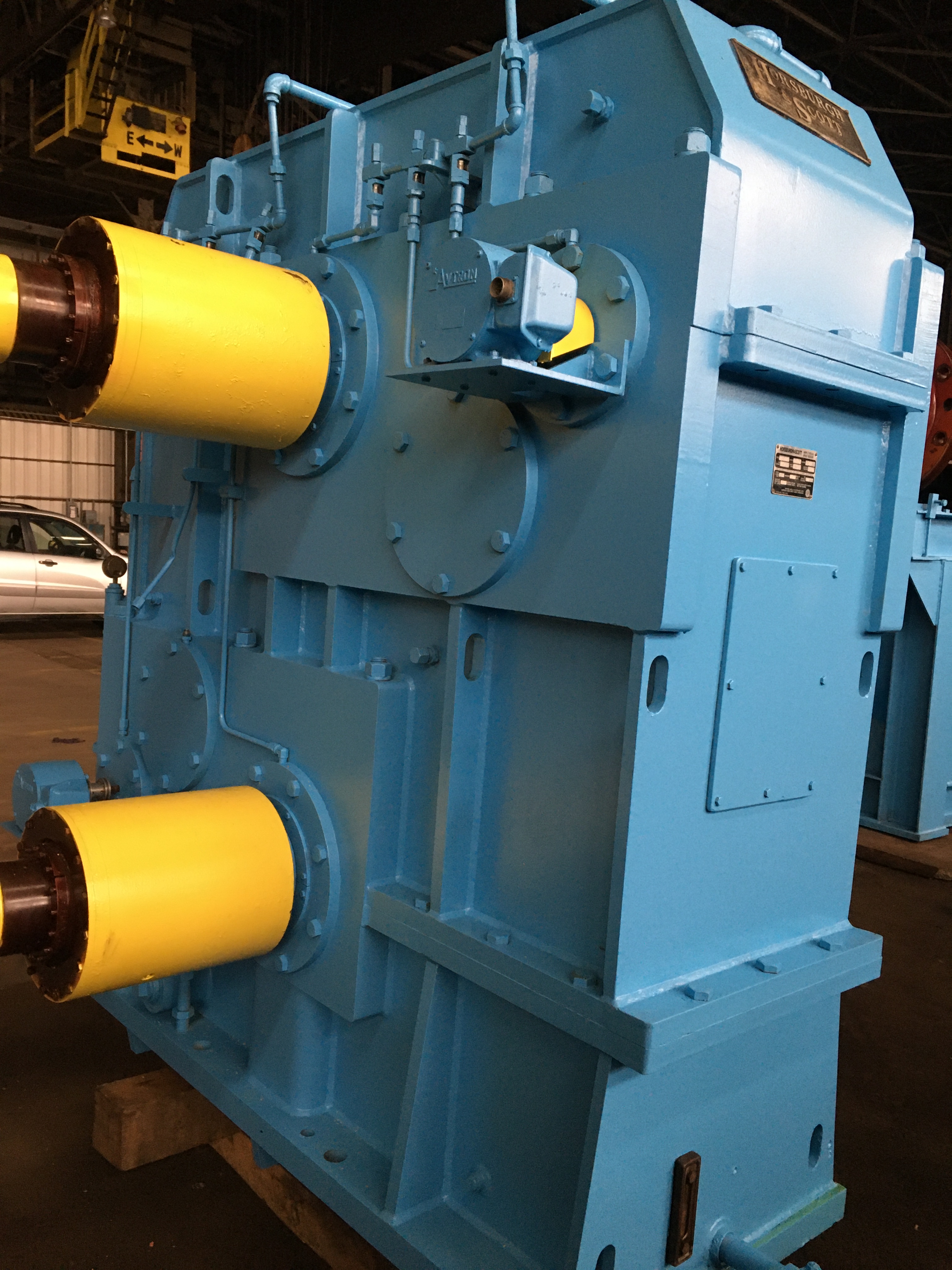

COMBINATION PINION: H&S SIZE 220 D.P.S., 19:60:1 RATIO, 820 RPM 1.58 SF

PINION CENTERS: 42" (1065 MM)

NUMBER OF SPINDLES: 2

BEARING TYPE: ROLLER

ROLL BENDING: OUTBOARD BEARING

PREVIOUS USE: PICKLING LINE TEMPER MILL

FEATURES:,

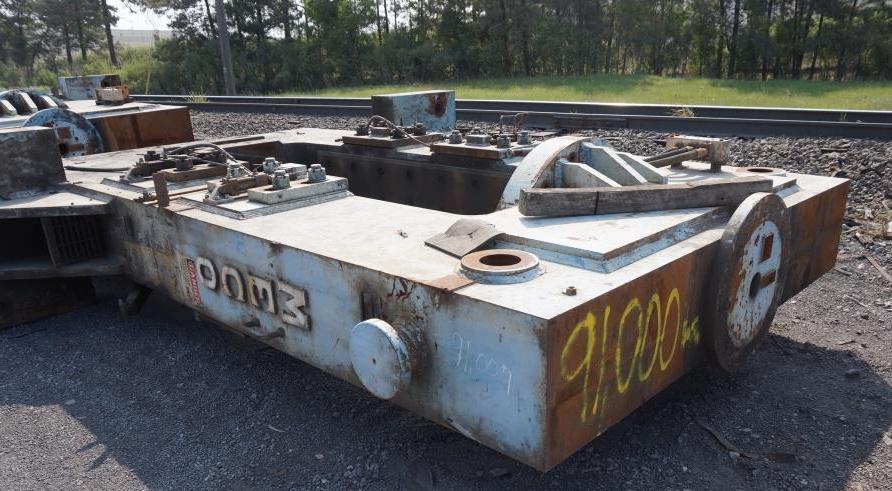

ALREADY DISMANTLED

HYDRAULIC ROLL FORCE CYLINDERS

ENTRY FEED ROLLS

EXIT RECOILER WITH BELT WRAPPER

ENTRY PAYOFF REEL

INVENTORY #: 200585-400-00

INVENTORY ID	20058540000
TITLE	72" x 1/2" MECO TWO HIGH TEMPER MILL
MILL WIDTH	80"
ROLL CONFIGURATION (2 HI OR 4 HI)	2
MANUFACTURER OF EQUIPMENT	MECO
MATERIAL ROLLED	MILD STEEL
NUMBER STANDS	1
REVERS/NONREV	NON REVERSING
MILL WIDTH	80
STARTING COIL WIDTH	24" TO 72" WIDTH
STARTING COIL GAUGE MIN	0.060" TO 0.500" GAUGE
STARTING COIL O D	80" MAX
STARTING COIL I D	24" TO 30"
STARTING COIL WEIGHT	80,000 LBS
FINISHED COIL WIDTH	24" TO 72" WIDE
FINISHED COIL GAUGE MAX	0.060 TO .500" WIDE GAUGE
FINISHED COIL GAUGE MIN	0.060 TO 0.375" @ 72" GAUGE
FINISHED COIL I D	24"
LINE SPEED	150 TO 300 FPM
DIRECTION OF TRAVEL (VIEWED FROM OPERATOR SIDE)	RIGHT TO LEFT
WR FACE	80" (TO BE VERIFIED)
MOTOR HP	400 HP ORIGINAL DESIGN
NUMBER OF MOTORS	1
MOTOR RPM	300/1050
MOTOR VOLTS	600
AC OR DC	DC
FEATURES 1	ALREADY DISMANTLED
FEATURES 2	HYDRAULIC ROLL FORCE CYLINDERS
FEATURES 3	ENTRY FEED ROLLS
