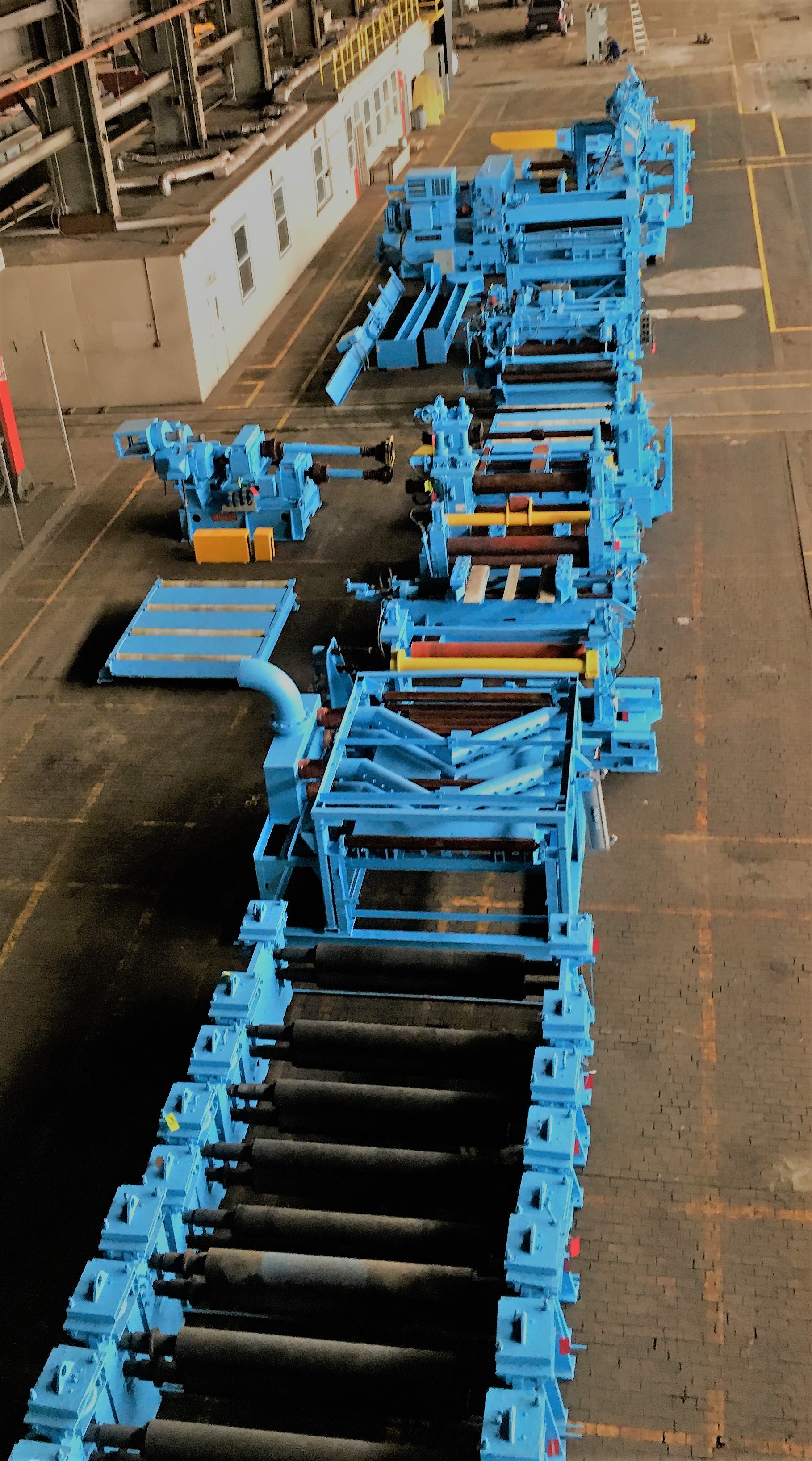

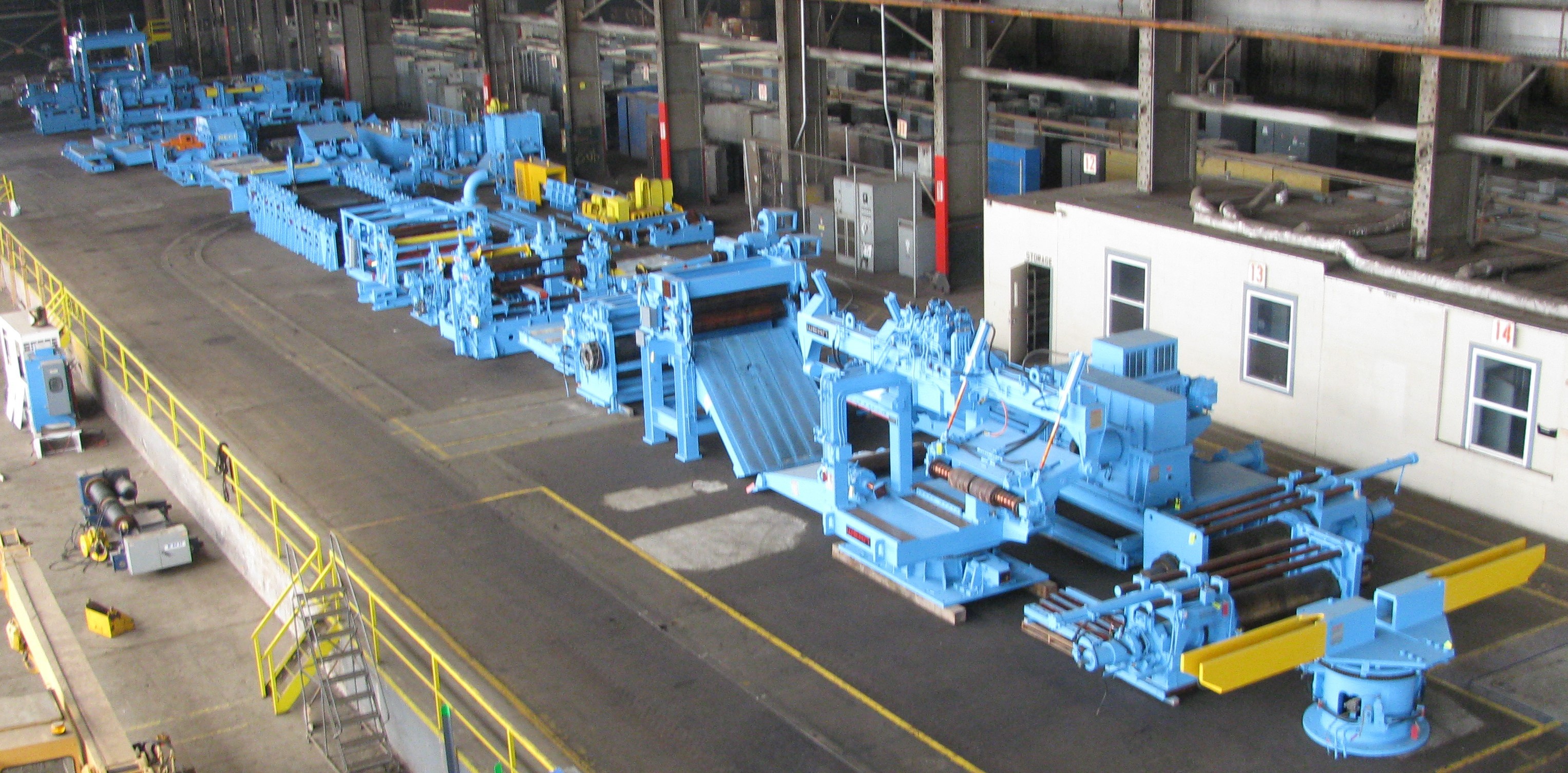

1/2" X 72" HEAVY GAUGE SHEAR AND TEMPER LINE
MANUFACTURER: WEAN / MECO DANIELI
AGE: 1993
GENERAL SPECIFICATIONS:
COIL WEIGHT: 80,000 LBS
COIL WIDTH: 24" - 72"
COIL GAUGE: .060 TO .500
COIL ID ENTRY: 24" - 32"
COIL ID EXIT: 24"
MATERIAL: MILL STEEL 80,000 YIELD
DOUBLE STUB MANDREL PAYOFF REEL
PROCESSOR: 2 OVER 3 ROLL FLATTENER AND PINCH ROLL

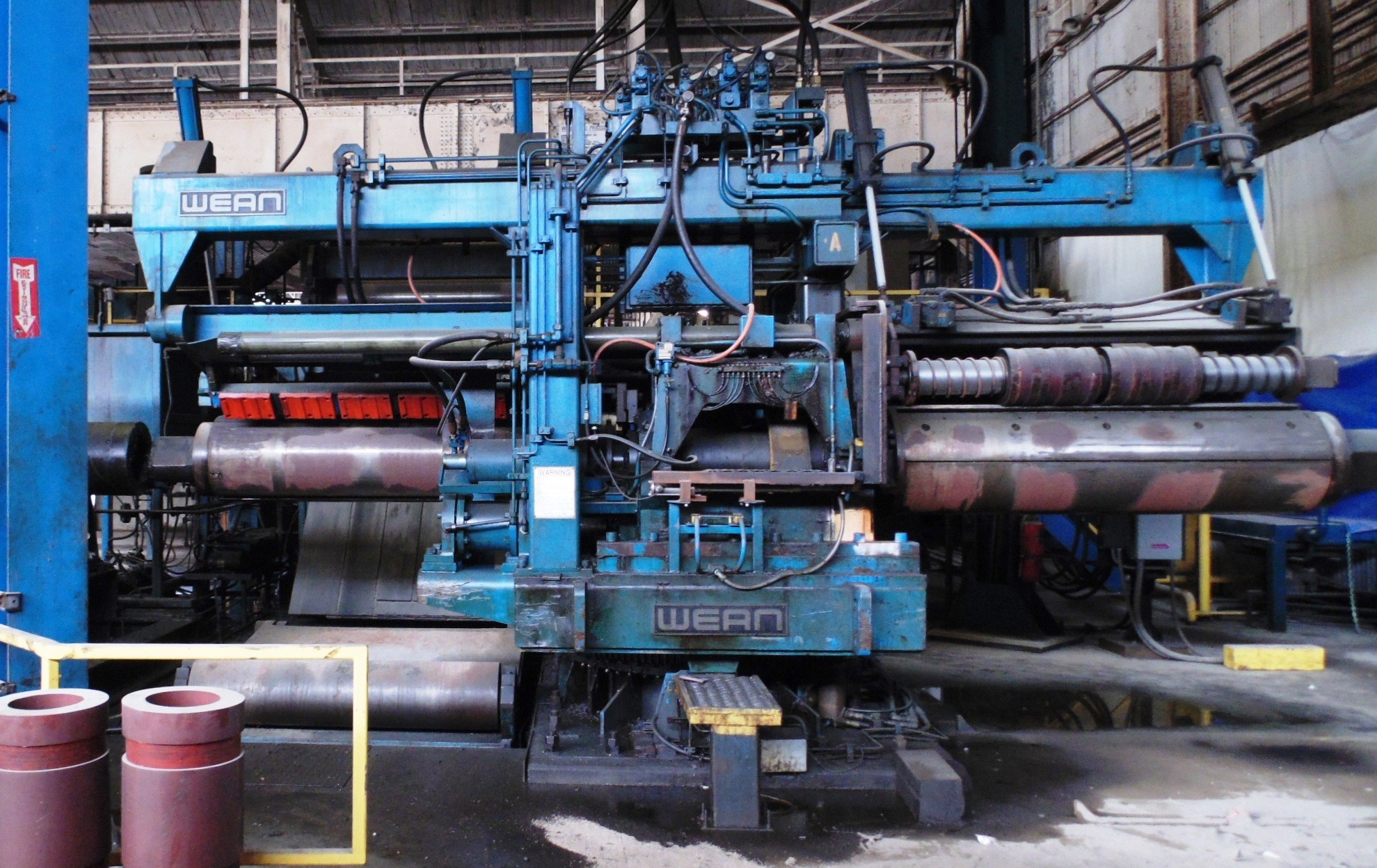

TEMPER MILL 38" X 80" 2-HI NON REVERSING
ROLLER BEARING
OUTBOARD BEARING
.060 TO .375 FOR 72 INCH COILS
.060 TO .500 FOR 48 INCH
150/300 FPM
REWIND REEL
COMPLETE WITH HYDRAULIC SYSTEM AND SPARES
CARRY OVER CONVEYOR
SLITTER
TENSION ROLL DEVICE
SIDE TRIMMER WITH SCRAP CHOPPER
SCRAP REMOVAL SYSTEM
SHEAR
RECOILER
BELT WRAPPER
COIL CAR
COIL TURNSTILE
CONDITION: VERY GOOD CONDITION
DISMANTLED - READY TO BE SHIPPED
MISSING: ENTRY COIL CAR; 400 HP SHEAR MOTOR
SPARE 1/2" X 80" SHEAR
INVENTORY #: 200585-201-00
| INVENTORY ID | 20058520100 |
| TITLE | 1/2" X 72" HEAVY GAUGE WEAN SHEAR AND TEMPER LINE |
| ENTRY COIL WIDTH MAX | 72" |
| CAPACITY | 80,000 YIELD |
| MANUFACTURER OF EQUIPMENT | WEAN / MECO DANIELI |
| YEAR OF MANUFACTURE | 1993 |
| MATERIAL | MILL STEEL |
| ENTRY COIL WIDTH MIN | 24" |
| ENTRY COIL GAUGE MIN | .060 |
| COIL WIDTH | 24" - 72" |
| ENTRY COIL GAUGE MAX | .500 |
| COIL GAUGE | .060 TO .500 |
| COIL WEIGHT | 80,000 LBS |
| ENTRY COIL O.D. MIN | 24" |
| ENTRY COIL O.D. MAX | 32" |
| ENTRY COIL I.D. MIN | 24" |
| EXIT COIL WIDTH MIN | 24" |
| ENTRY COIL I.D. MAX | 32" |
| EXIT COIL WIDTH MAX | 24" |
| EXIT COIL I.D. MAX | 24" |
