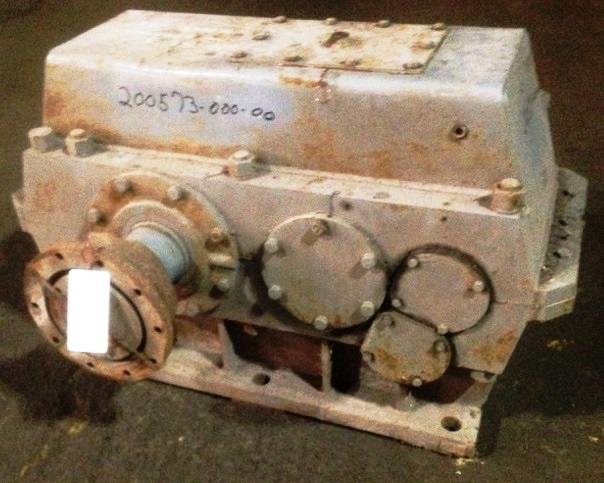

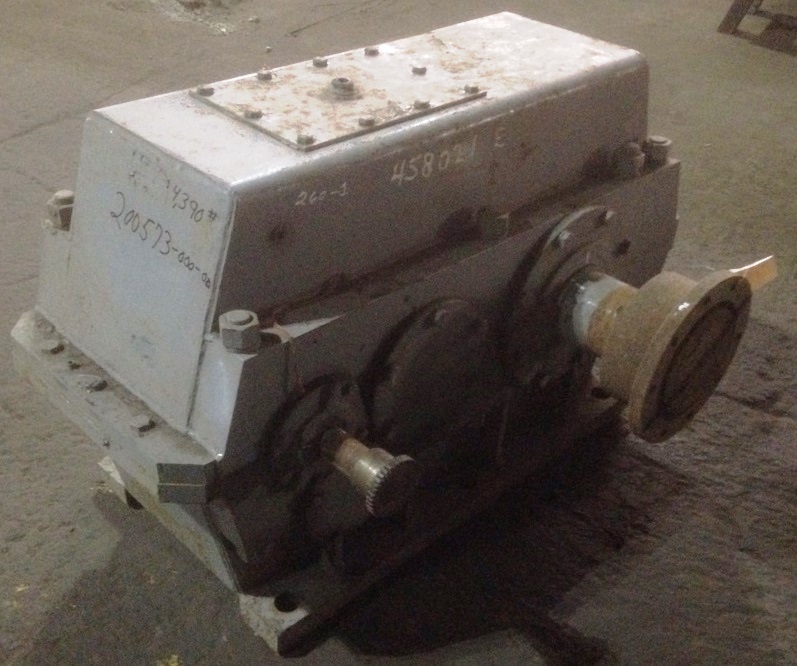

260/1 - HORSBURGH & SCOTT GEAR REDUCER / SPEED REDUCER / GEARBOX - USED
 "20057300000 260/1 - HORSBURGH & SCOTT GEAR REDUCER / SPEED REDUCER / GEARBOX - USED")
 "20057300000 260/1 - HORSBURGH & SCOTT GEAR REDUCER / SPEED REDUCER / GEARBOX - USED")
 "20057300000 260/1 - HORSBURGH & SCOTT GEAR REDUCER / SPEED REDUCER / GEARBOX - USED")
 "20057300000 260/1 - HORSBURGH & SCOTT GEAR REDUCER / SPEED REDUCER / GEARBOX - USED")
| INVENTORY ID | 20057300000 |
| TITLE | 260/1 - HORSBURGH & SCOTT GEAR REDUCER / SPEED REDUCER / GEARBOX - USED |
| RATIO | 260:1 RATIO (APPROX) |
| GEARBOX SHAFT ARRANGEMENT | PARALLEL |
| MANUFACTURER OF EQUIPMENT | HORSBURGH & SCOTT |
| REDUCTION | TRIPLE |

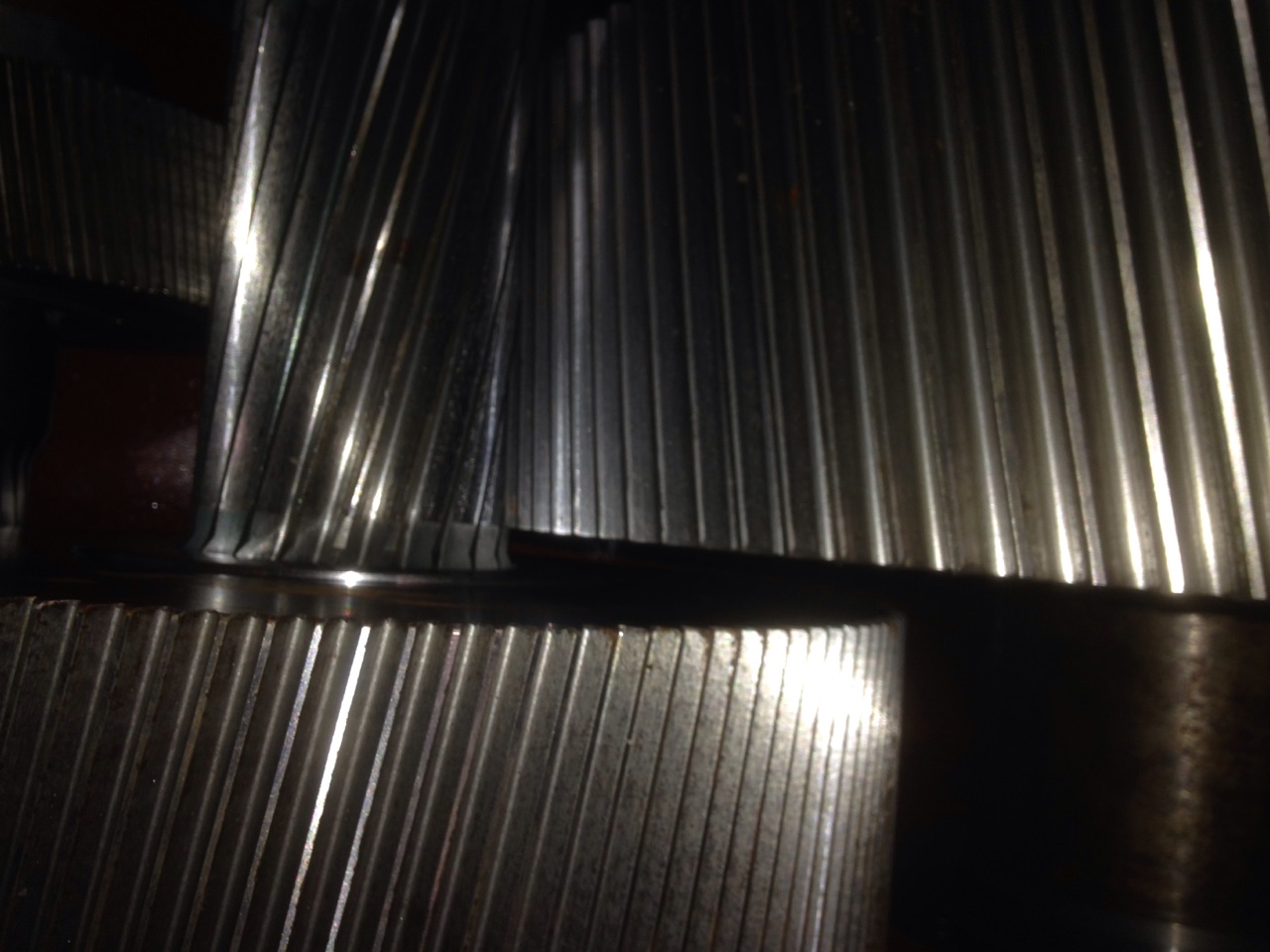

| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |

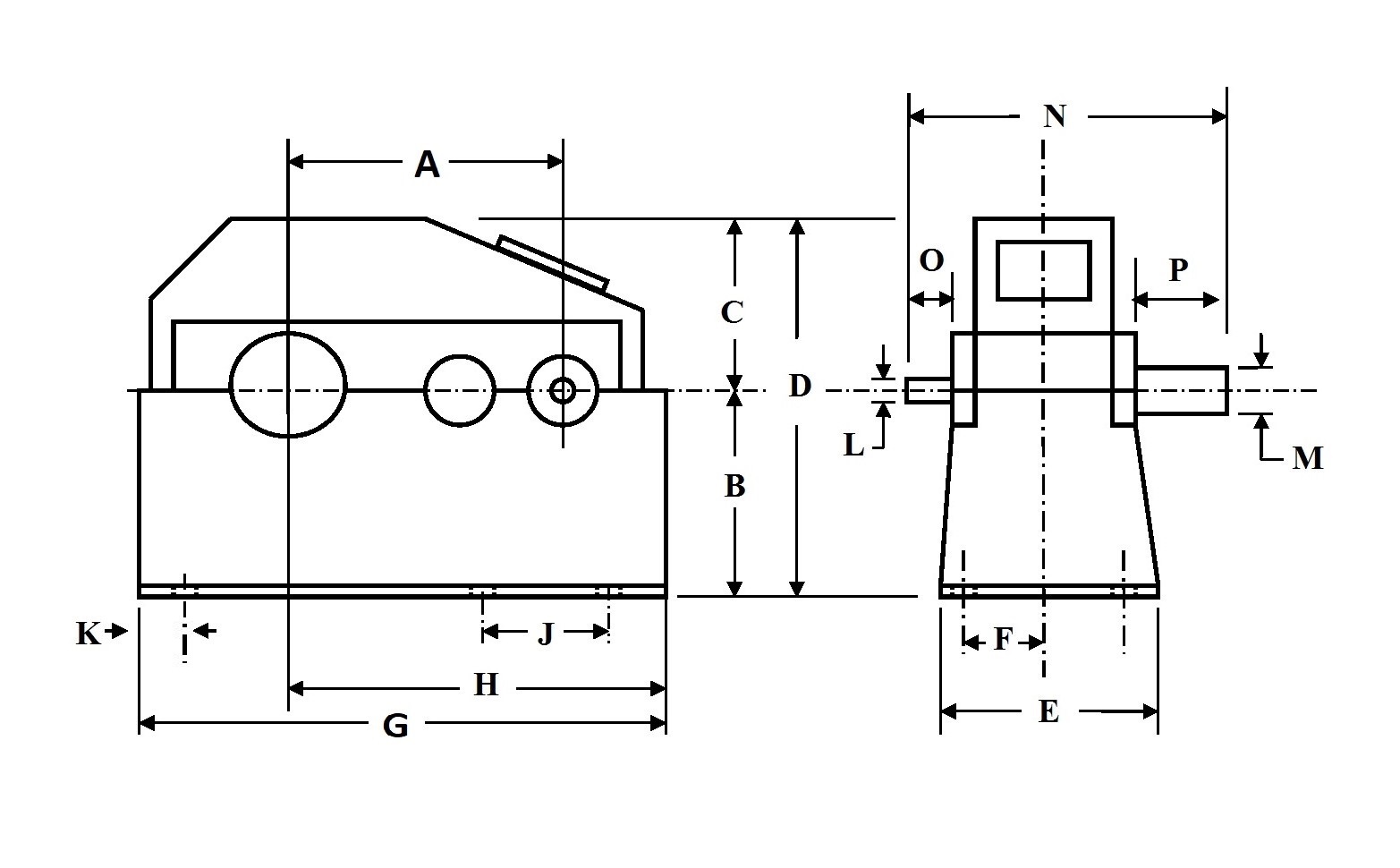

| DIMENSION A | 26 |
| DIMENSION B | 18 |
| DIMENSION C | 16 |
| DIMENSION D | 34 |
| DIMENSION E | 25 |
| DIMENSION F | 10.5 |
| DIMENSION G | 55 |
| DIMENSION H | 36 |
| DIMENSION J | 19.5 |
| DIMENSION K | 8 |
| DIMENSION L | 2 |
| DINEMSION M | 6 |
| DIMENSION N | 47 |
| DIMENSION O | 7.5 |
| DIMENSION P | 12 |
