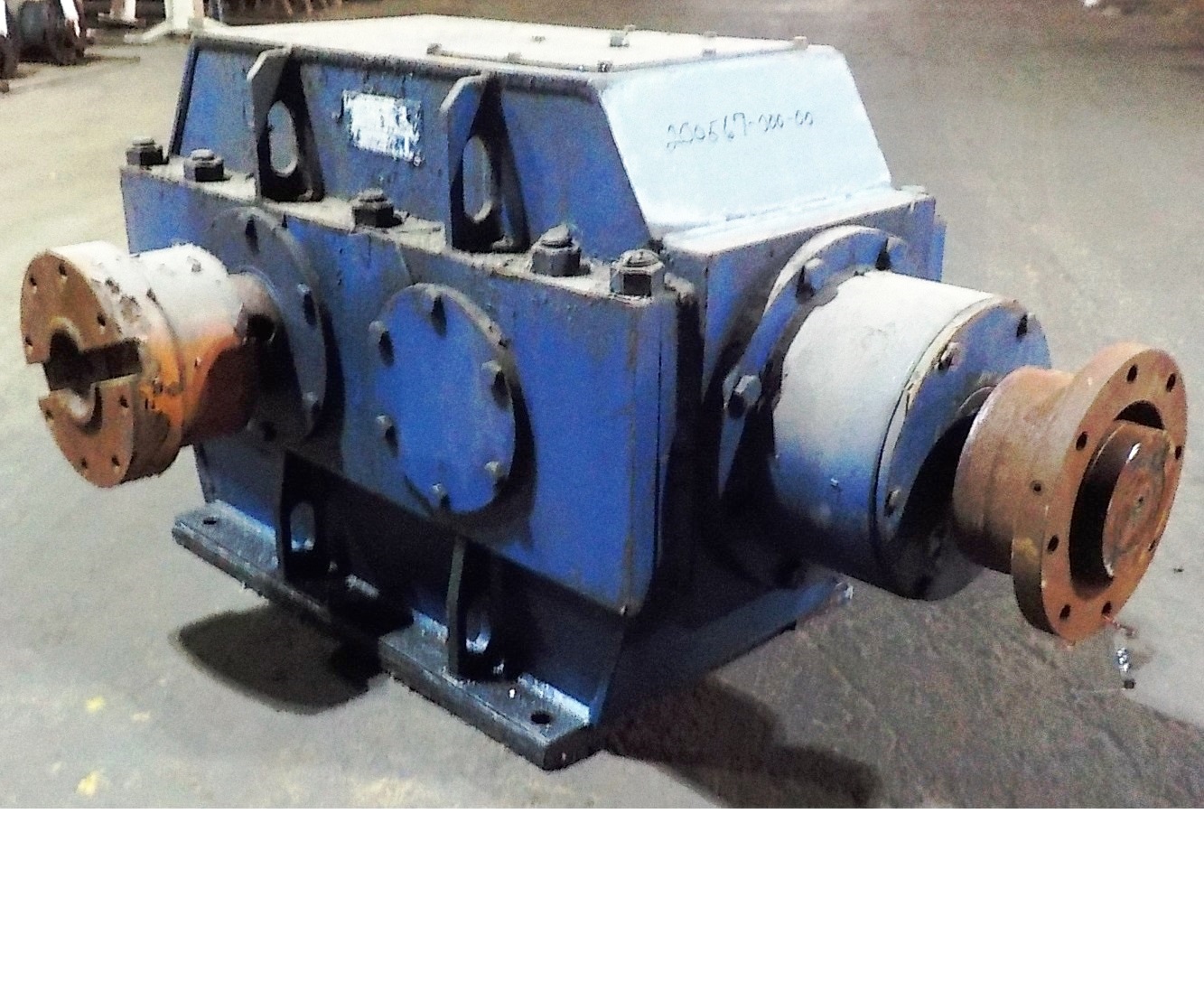

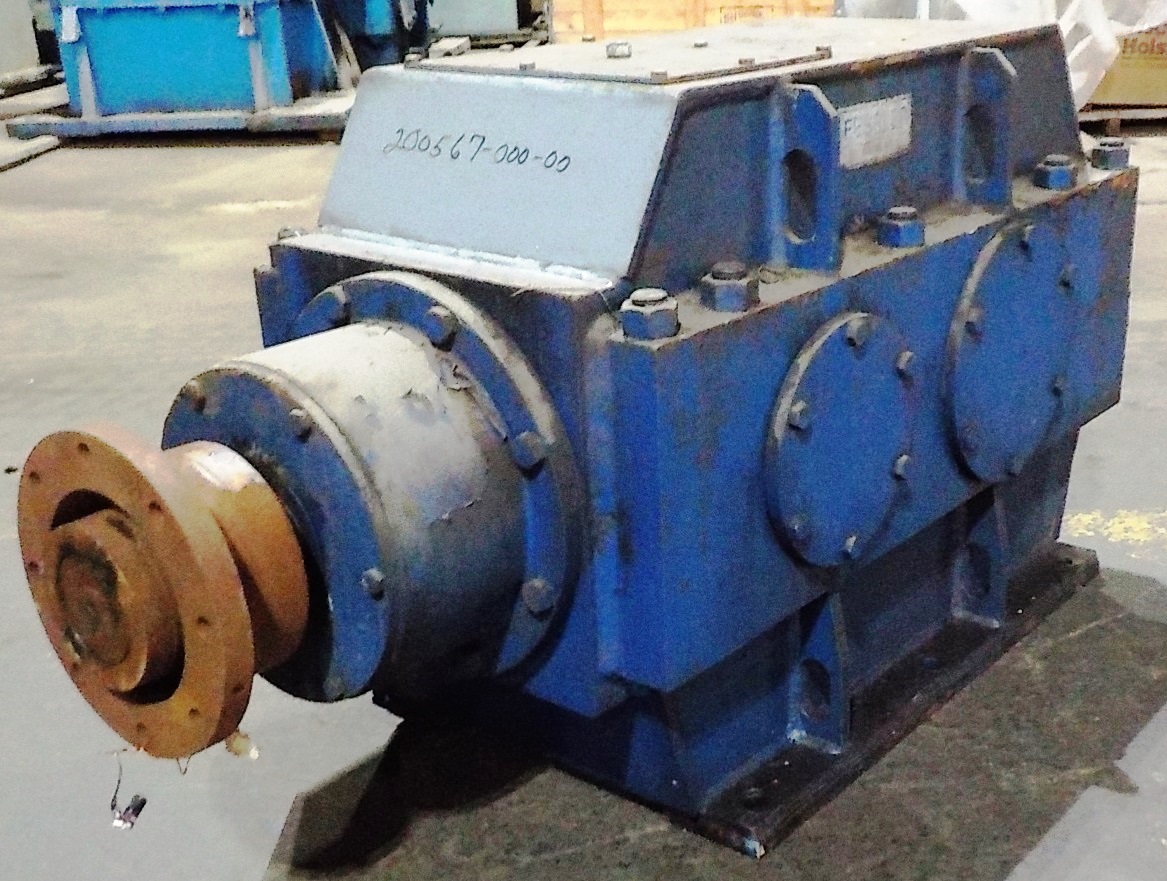

252 HP (187 KW), RPM INPUT 515, 5.76 RATIO, RPM OUTPUT 89, FESSLER 350XB2-1L RIGHT ANGLE GEAR REDUCER, USED
 "20056700000 252 HP (187 KW), RPM INPUT 515, 5.76 RATIO, RPM OUTPUT 89, FESSLER 350XB2-1L RIGHT ANGLE GEAR REDUCER, USED")
 "20056700000 252 HP (187 KW), RPM INPUT 515, 5.76 RATIO, RPM OUTPUT 89, FESSLER 350XB2-1L RIGHT ANGLE GEAR REDUCER, USED")
 "20056700000 252 HP (187 KW), RPM INPUT 515, 5.76 RATIO, RPM OUTPUT 89, FESSLER 350XB2-1L RIGHT ANGLE GEAR REDUCER, USED")
 "20056700000 252 HP (187 KW), RPM INPUT 515, 5.76 RATIO, RPM OUTPUT 89, FESSLER 350XB2-1L RIGHT ANGLE GEAR REDUCER, USED")
 "20056700000 252 HP (187 KW), RPM INPUT 515, 5.76 RATIO, RPM OUTPUT 89, FESSLER 350XB2-1L RIGHT ANGLE GEAR REDUCER, USED")
| INVENTORY ID | 20056700000 |
| TITLE | 252 HP (187 KW), RPM INPUT 515, 5.76 RATIO, RPM OUTPUT 89, FESSLER 350XB2-1L RIGHT ANGLE GEAR REDUCER, USED |
| HORSEPOWER | 252 |
| RPM INPUT | 515 |
| RATIO | 5.76:1 RATIO |
| RPM OUTPUT | 89 |
| GEARBOX SHAFT ARRANGEMENT | RIGHTANGLE |

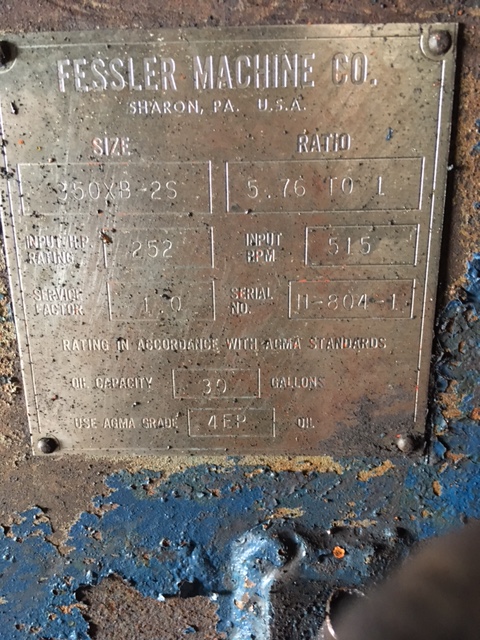

| MANUFACTURER OF EQUIPMENT | FESSLER |
| YEAR OF MANUFACTURE | 1987 |
| MODEL NUMBER | 350XB2-1L |
| SERIAL NUMBER | 11-804-2 |
| REDUCTION | DOUBLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1.0 |
| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |
| PREVIOUS USE | COIL BOX FROM HOT STRIP MILL |

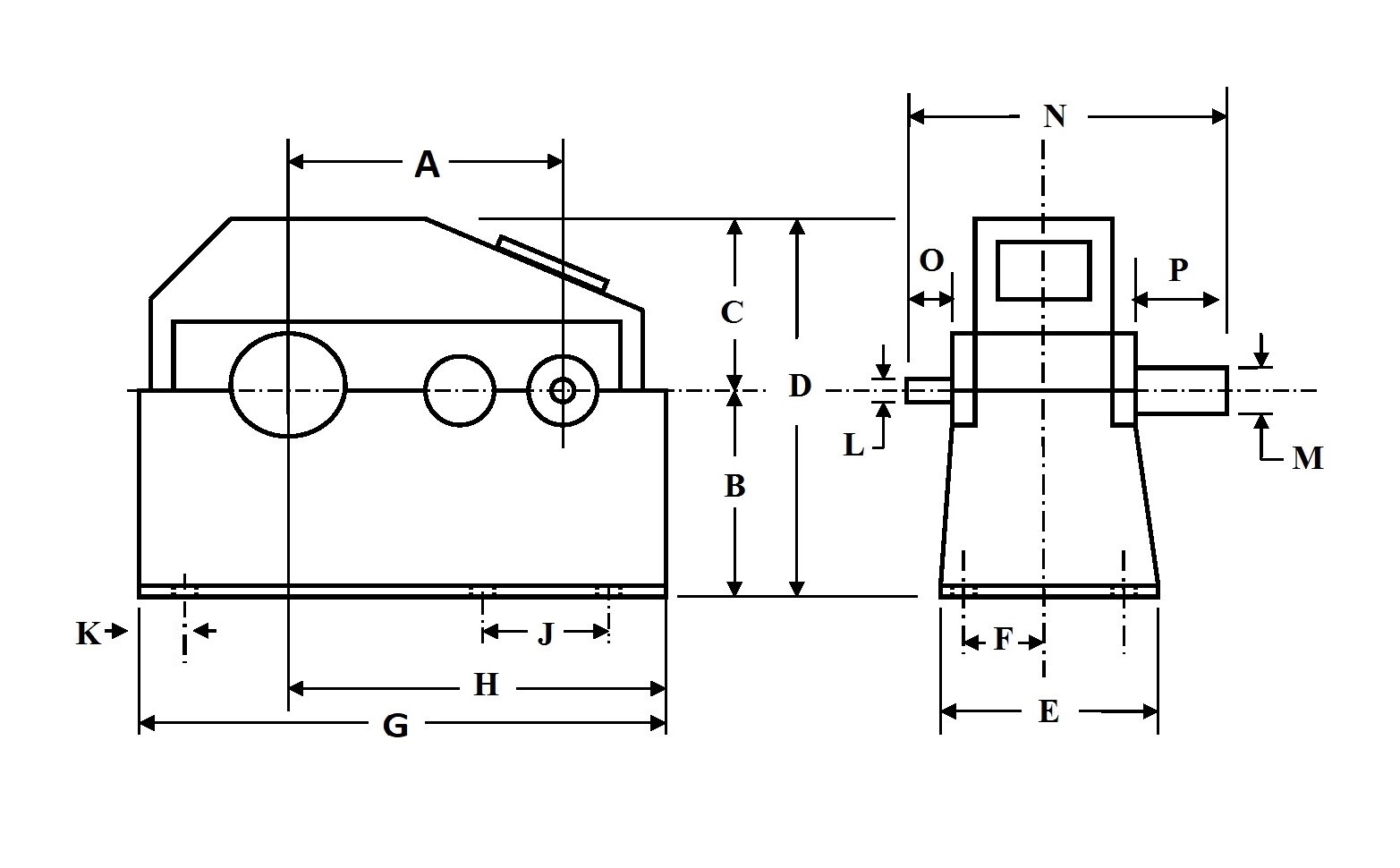

| DIMENSION A | N/A |
| DIMENSION B | 15.5 |
| DIMENSION C | 14 |
| DIMENSION D | 29.5 |
| DIMENSION E | 23 |
| DIMENSION F | 10 |
| DIMENSION G | 56 |
| DIMENSION H | 19.5 |
| DIMENSION J | 14.5 |
| DIMENSION K | 2.5 |
| DIMENSION L | 3.75 |
| DINEMSION M | 5.75 |
| DIMENSION N | 32 |
| DIMENSION O | 6.75 |
| DIMENSION P | 9.75 |
