MEP BITRONIC 4 STRAIGHTEN & CUT MACHINE
MANUFACTURER: MEP
AGE: 2009
SERIAL NO.: 240020
--- GENERAL SPECIFICATIONS ---
TYPE: STRAIGHTEN & CUT
CAPACITY: 0.21" (5.5 MM)
MATERIAL: CARBON STEEL ROD
COIL ID: 18" TO 32" (460 MM TO 810 MM)
COIL OD: 63" (1600 MM)
STRAIGHTENER: 7 OVER 6 IN LINE
SPEED: 400 FPM (2 M/S)

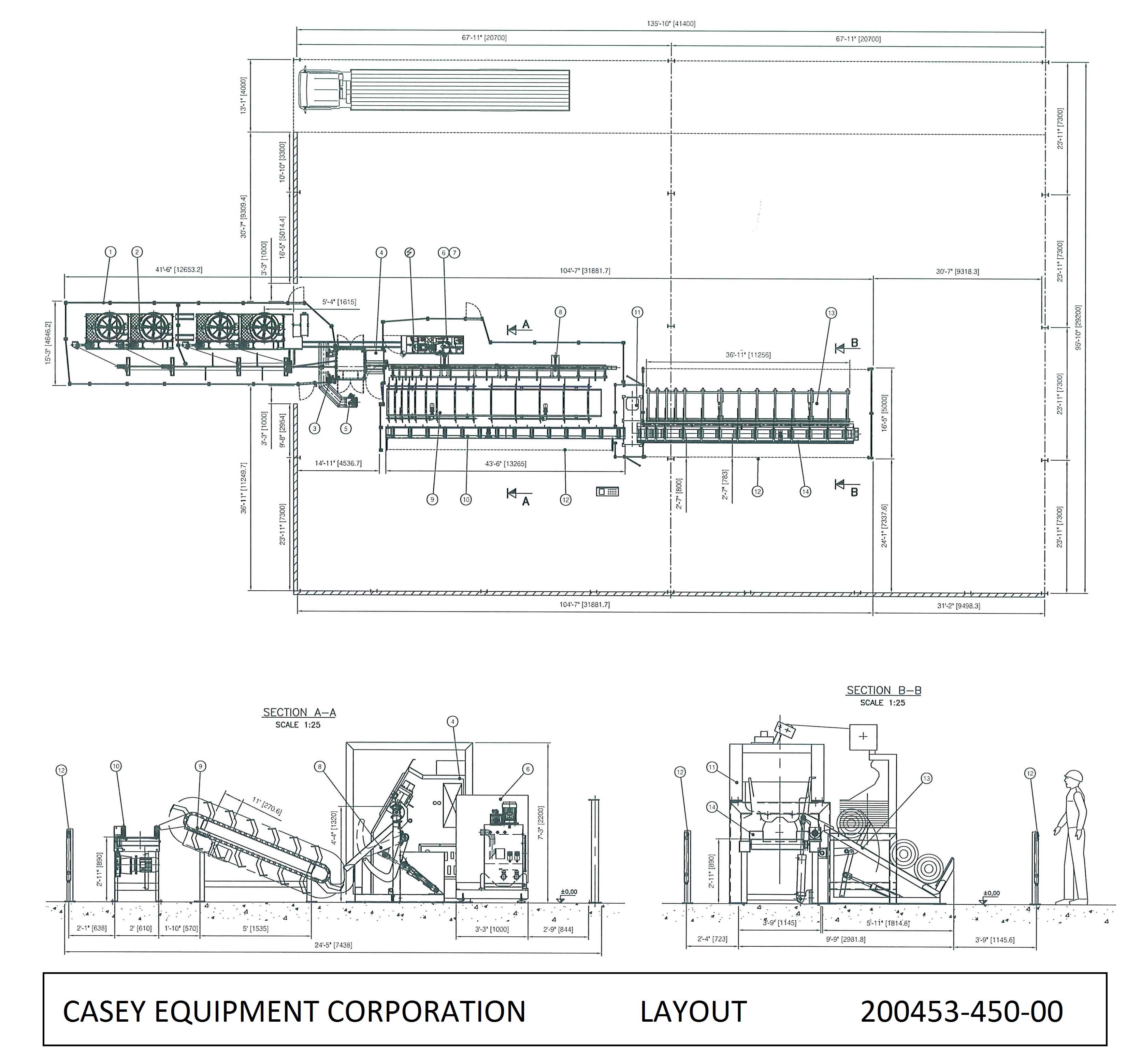

---- EQUIPMENT LAYOUT ----

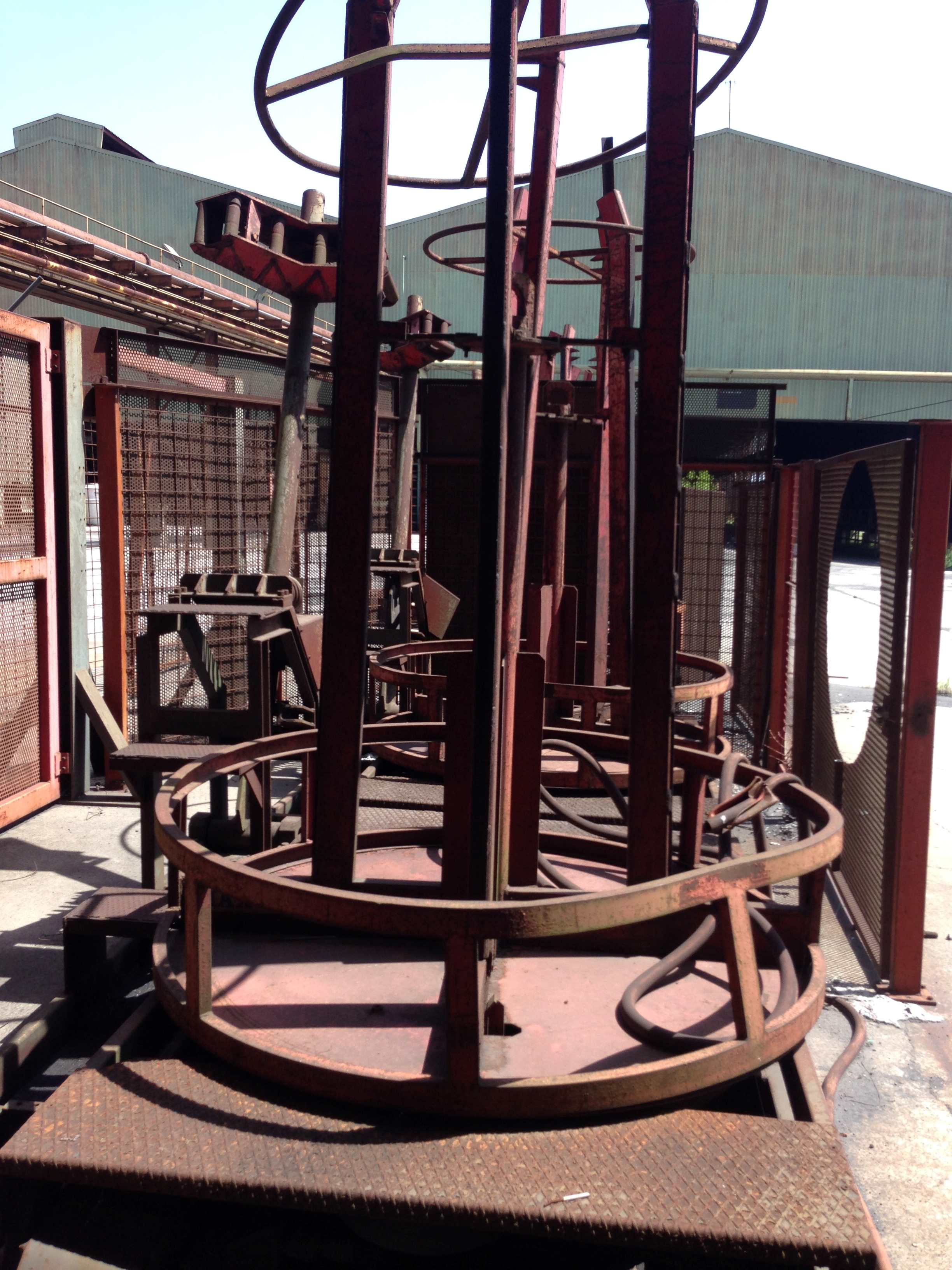

* 4 COIL PAYOFF STATIONS

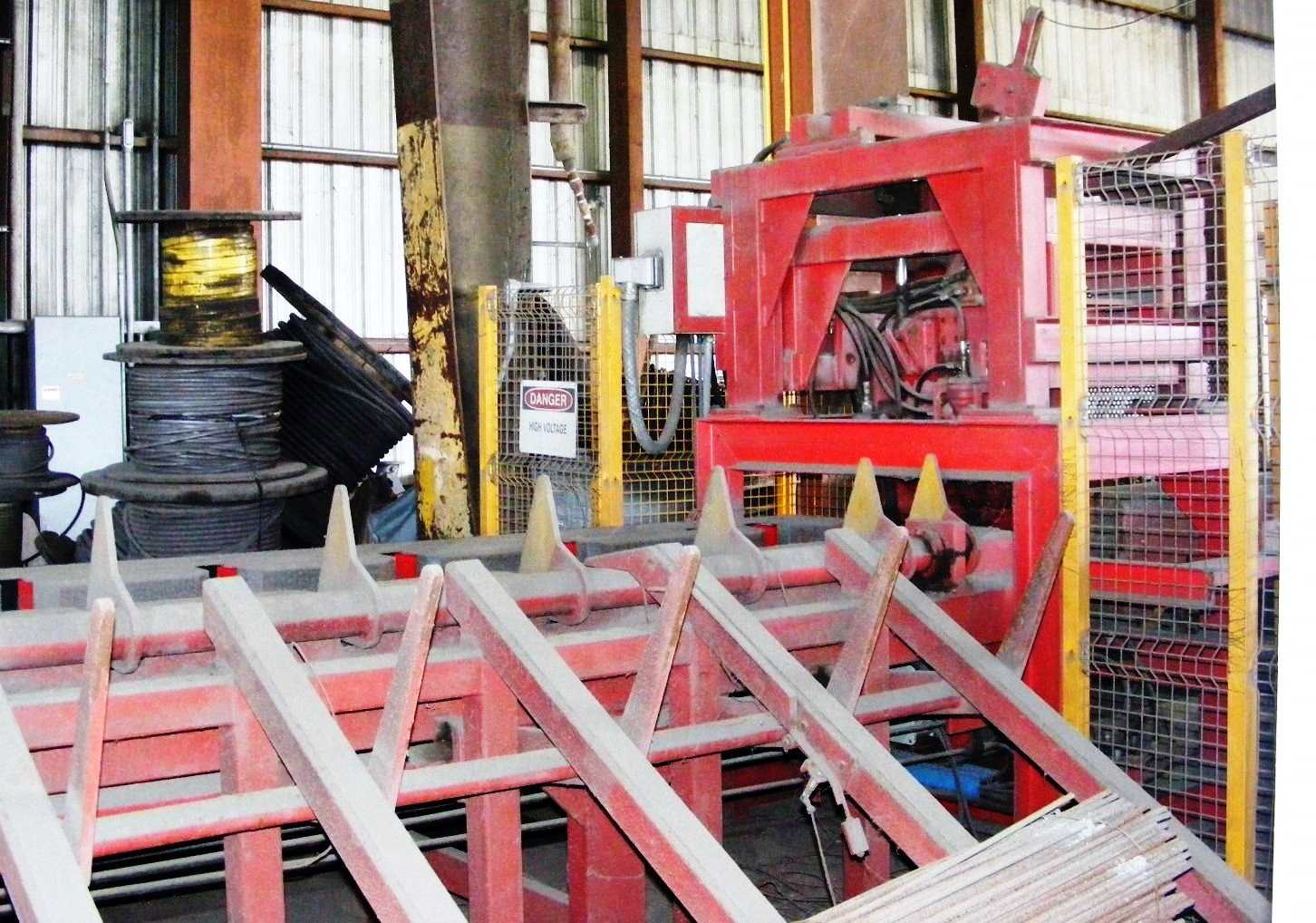

* AUTOMATIC STRAIGHTENING MACHINE
* CHAIN FEED TRANSFER

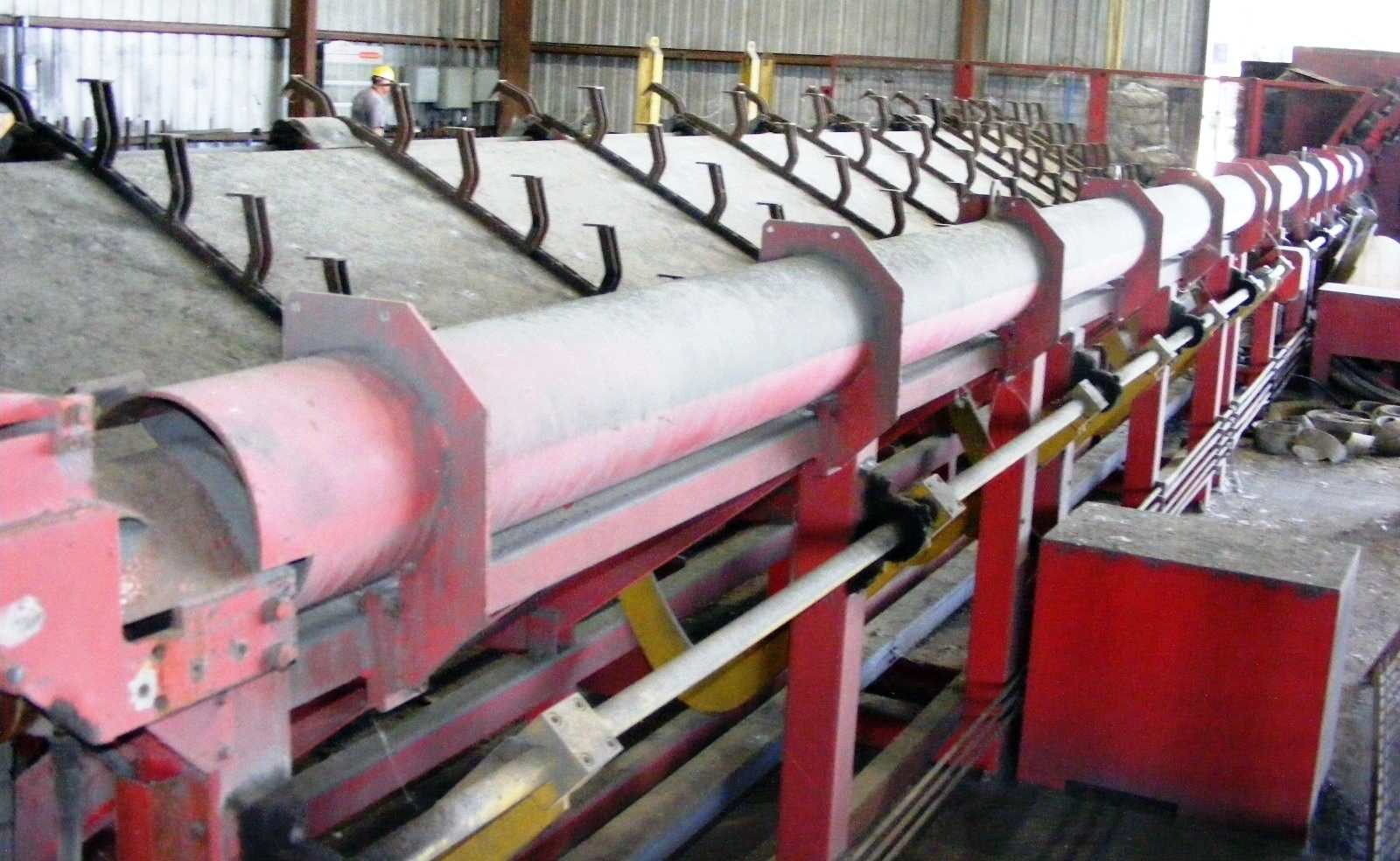

* 40' CHAIN CONVEYOR
* TYING MACHINE
* COLLECTING UNIT
MATERIAL FLOW: NON DIRECTIONAL
SPACE REQUIREMENT: 150' LENGTH X 30' WIDTH (45.67 M X 9.1 M)
ELECTRICAL REQUIREMENT: 440/60 HZ - 400V / 50 HZ
---- FEATURES ----
* CONTROL BOARD
* HYDRAULIC POWER PACK
* OPTICAL BARRIER PROTECTION
INVENTORY ID: 200453-450-00
| INVENTORY ID | 20045345000 |
| TITLE | MEP BITRONIC 4 STRAIGHTEN & CUT MACHINE (NCO) |
| STRAIGHTEN & CUT MACHINES | MEP BITRONIC 4 STRAIGHTEN & CUT MACHINE |
| MODEL NUMBER | BITRONIC 4 |
| MANUFACTURER OF EQUIPMENT | MEP |
| YEAR OF MANUFACTURE | 2009 |
| SERIAL NO | 240020 |
| TYPE | STRAIGHTEN AND CUT |
| CAPACITY | 0.21" (5.5 MM) |
| MATERIAL | REBARR |
| STRAIGHTENER | 400 FPM (2 M/S) |
| MATERIAL FLOW (VIEWED FROM OPERATOR'S SIDE) | NON DIRECTIONAL |
