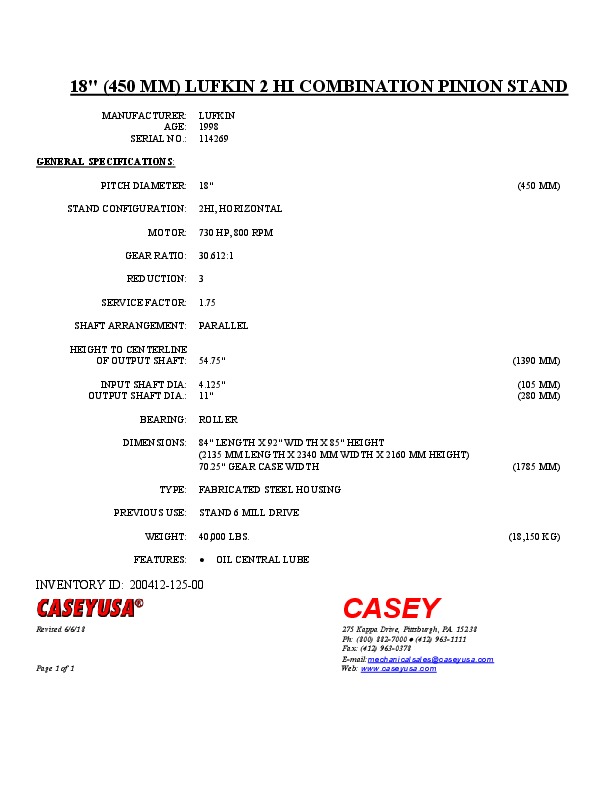

18" (450 MM) LUFKIN 2 HI COMBINATION PINION STAND
 "20041212500 18\" (450 MM) LUFKIN 2 HI COMBINATION PINION STAND")
 "20041212500 18\" (450 MM) LUFKIN 2 HI COMBINATION PINION STAND")
 "20041212500 18\" (450 MM) LUFKIN 2 HI COMBINATION PINION STAND")
 "20041212500 18\" (450 MM) LUFKIN 2 HI COMBINATION PINION STAND")
| INVENTORY ID | 20041212500 |
| TITLE | 18" (450 MM) LUFKIN 2 HI COMBINATION PINION STAND |
| PITCH DIAMETER | 18" |

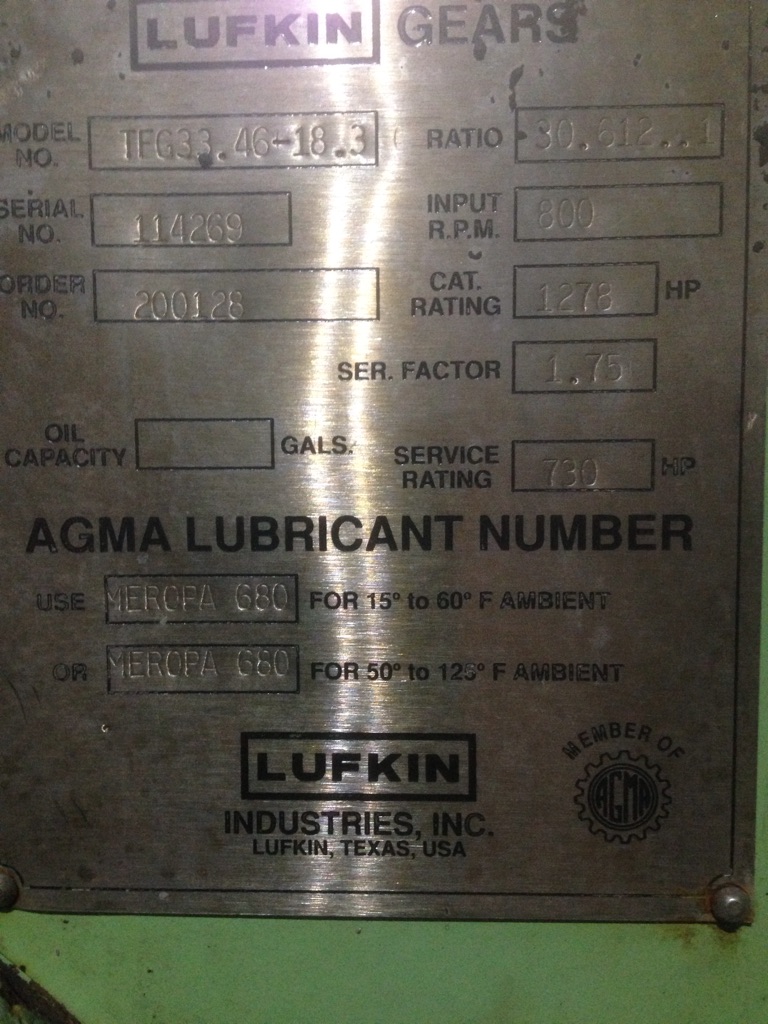

| MANUFACTURER OF EQUIPMENT | LUFKIN |
| YEAR OF MANUFACTURE | 1998 |
| SERIAL NUMBER | 114269 |
| CONFIGURATION (VERTICAL/HORIZONTAL) | HORIZONTAL |
| RATED HP | 730 |
| RATED RPM | 800 |
| RATIO TO 1 | 30.612 |
| SVC FACTOR (1.0, 1.5 ETC) | 1.75 |
| SHAFT ARRANGEMENT | PARALLEL |
| HEIGHT TO CENTERLINE OF OUTPUT SHAFT | 54.75 |
| INPUT SHAFT DIA | 4.125 |
| OUTPUT SHAFT DIA | 11 |
| BRG LUBE AVAILABLE | YES |
| DIMENSION WIDE HOUSING | 70.25 |
| DIMENSION WIDE OVER SHAFTS | 92 |
| DIMENSION LONG | 84 |
| DIMENSION HIGH | 84.46 |
| WEIGHT | 40,000 |
| HOUSING TYPE | FAB |
| PREVIOUS USE | STAND 6 MILL DRIVE |
| FEATURES 1 | OIL CENTRAL LUBE |
