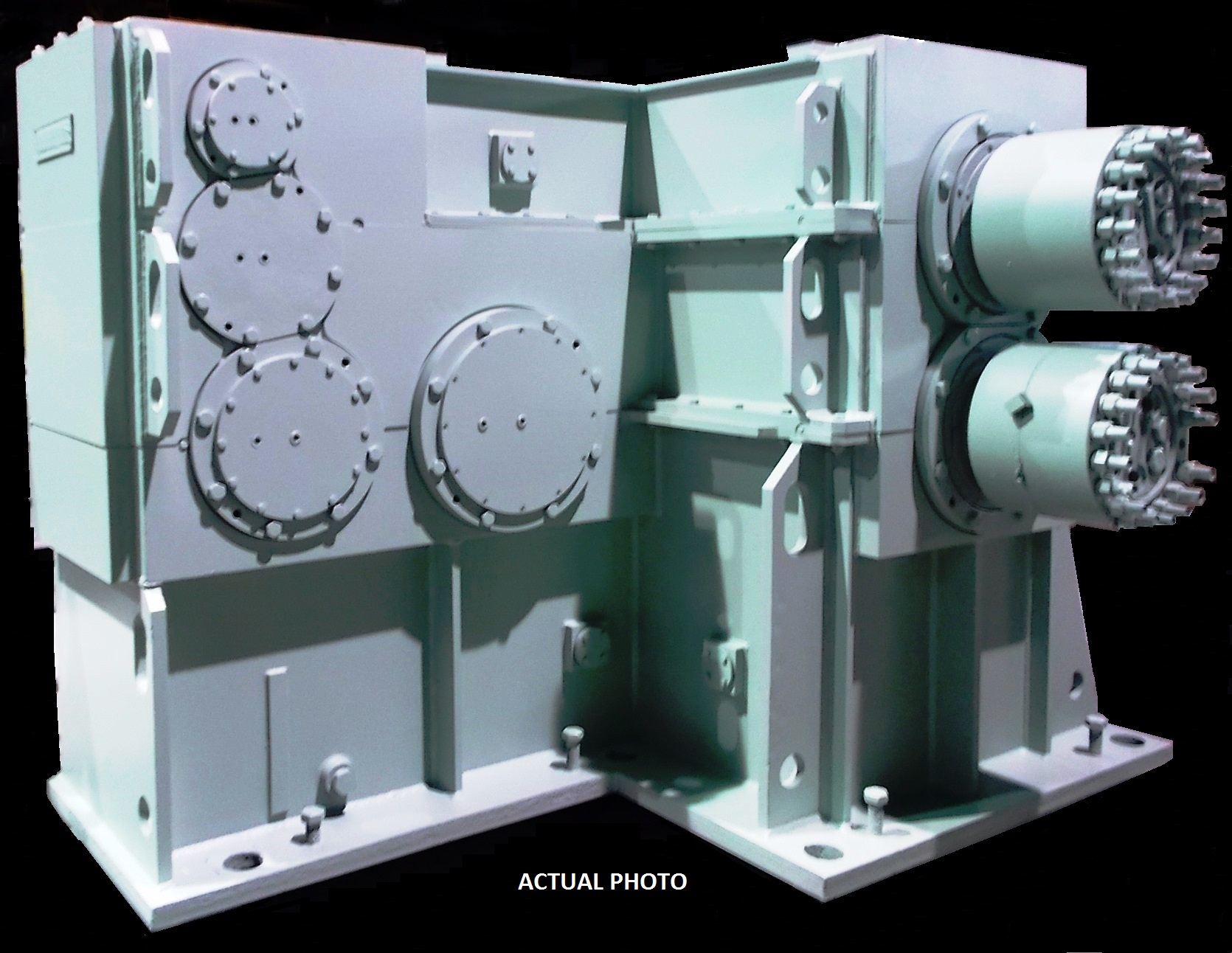

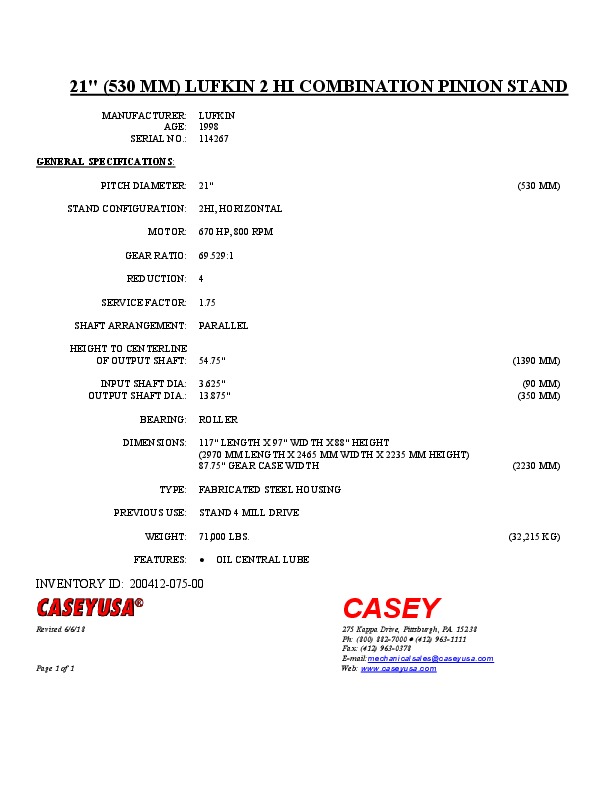

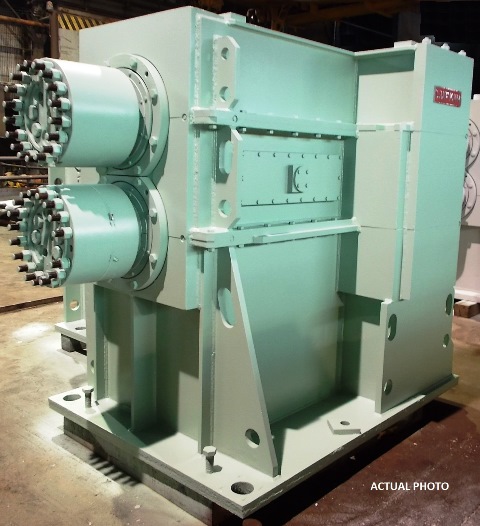

21" (530 MM) LUFKIN 2 HI COMBINATION PINION STAND
 "20041207500 21\" (530 MM) LUFKIN 2 HI COMBINATION PINION STAND")
 "20041207500 21\" (530 MM) LUFKIN 2 HI COMBINATION PINION STAND")
 "20041207500 21\" (530 MM) LUFKIN 2 HI COMBINATION PINION STAND")
 "20041207500 21\" (530 MM) LUFKIN 2 HI COMBINATION PINION STAND")
| INVENTORY ID | 20041207500 |
| TITLE | 21" (530 MM) LUFKIN 2 HI COMBINATION PINION STAND |
| PITCH DIAMETER | 21" |
| MANUFACTURER OF EQUIPMENT | LUFKIN |
| YEAR OF MANUFACTURE | 1998 |

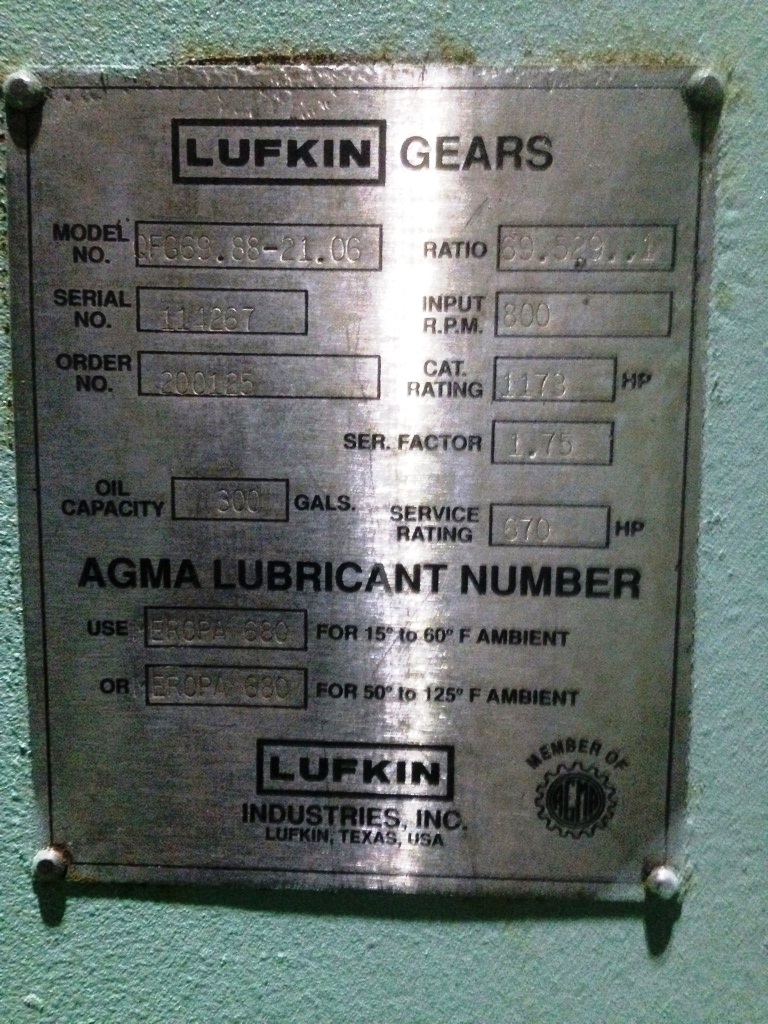

| SERIAL NUMBER | 114267 |
| CONFIGURATION (VERTICAL/HORIZONTAL) | HORIZONTAL |
| RATED HP | 670 |
| RATED RPM | 800 |
| RATIO TO 1 | 69.529 |
| SVC FACTOR (1.0, 1.5 ETC) | 1.75 |
| SHAFT ARRANGEMENT | PARALLEL |
| HEIGHT TO CENTERLINE OF OUTPUT SHAFT | 54.75 |
| INPUT SHAFT DIA | 3.625 |
| OUTPUT SHAFT DIA | 13.875 |
| BRG LUBE AVAILABLE | YES |
| DIMENSION WIDE HOUSING | 87.75 |
| DIMENSION WIDE OVER SHAFTS | 97.38 |
| DIMENSION LONG | 117 |
| DIMENSION HIGH | 87.72 |
| WEIGHT | 71,000 |
| HOUSING TYPE | FAB |
| PREVIOUS USE | STAND 4 MILL DRIVE |
