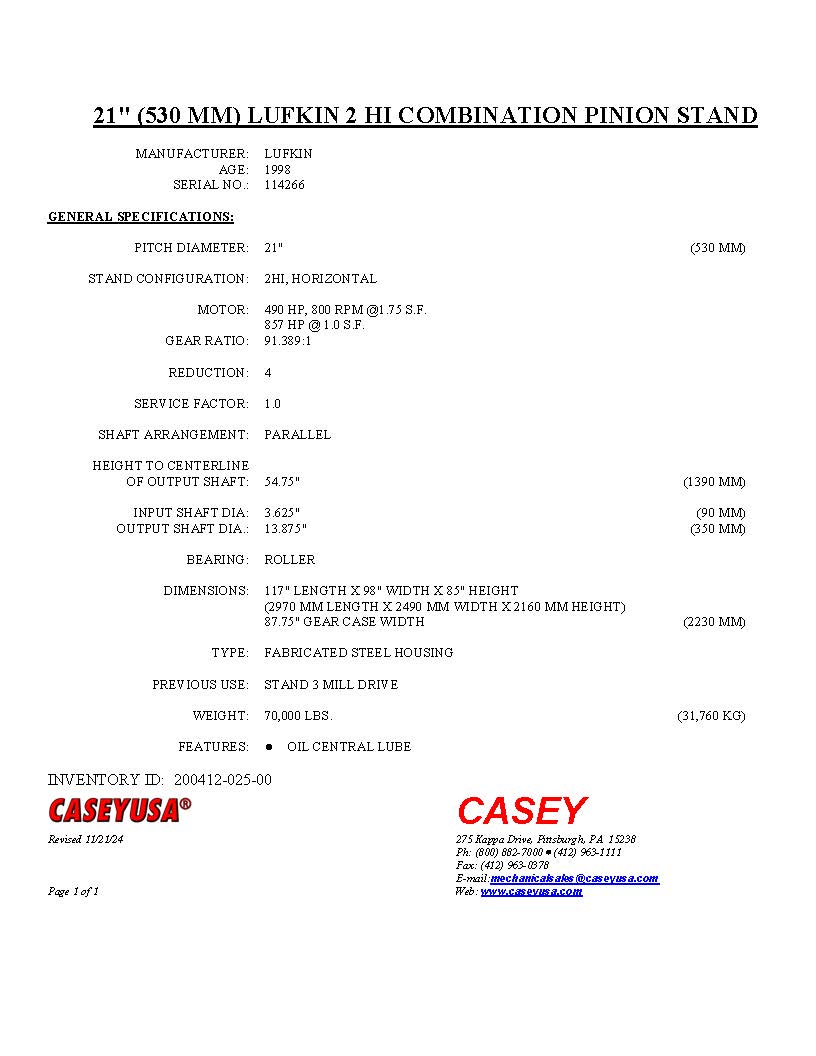

21" (530 MM) LUFKIN 2 HI COMBINATION PINION STAND

INVENTORY ID	20041202500
TITLE	21" (530 MM) LUFKIN 2 HI COMBINATION PINION STAND
PITCH DIAMETER	21"
MANUFACTURER OF EQUIPMENT	LUFKIN
YEAR OF MANUFACTURE	1998
SERIAL NUMBER	114266
CONFIGURATION (VERTICAL/HORIZONTAL)	HORIZONTAL
RATED HP	490
RATED RPM	800
RATIO TO 1	91.389
SVC FACTOR (1.0, 1.5 ETC)	1.75
SHAFT ARRANGEMENT	PARALLEL
HEIGHT TO CENTERLINE OF OUTPUT SHAFT	54.75
INPUT SHAFT DIA	3.625
OUTPUT SHAFT DIA	13.875
BRG LUBE AVAILABLE	YES
DIMENSION WIDE HOUSING	87.75
DIMENSION WIDE OVER SHAFTS	97.38
DIMENSION LONG	117
DIMENSION HIGH	84.72
WEIGHT	70,000
HOUSING TYPE	FAB
PREVIOUS USE	STAND 3 MILL DRIVE
