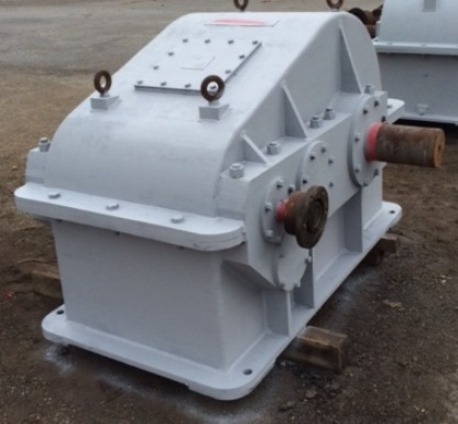

15HP (11 KW), RPM INPUT 725, 286.4 RATIO, RPM OUTPUT 2.5, PALMER-BEE HT-33 GEAR REDUCER / SPEED REDUCER / GEARBOX USED - NCO
 "20040700000 15HP (11 KW), RPM INPUT 725, 286.4 RATIO, RPM OUTPUT 2.5, PALMER-BEE HT-33 GEAR REDUCER / SPEED REDUCER / GEARBOX USED - NCO")
 "20040700000 15HP (11 KW), RPM INPUT 725, 286.4 RATIO, RPM OUTPUT 2.5, PALMER-BEE HT-33 GEAR REDUCER / SPEED REDUCER / GEARBOX USED - NCO")
 "20040700000 15HP (11 KW), RPM INPUT 725, 286.4 RATIO, RPM OUTPUT 2.5, PALMER-BEE HT-33 GEAR REDUCER / SPEED REDUCER / GEARBOX USED - NCO")
 "20040700000 15HP (11 KW), RPM INPUT 725, 286.4 RATIO, RPM OUTPUT 2.5, PALMER-BEE HT-33 GEAR REDUCER / SPEED REDUCER / GEARBOX USED - NCO")
| INVENTORY ID | 20040700000 |
| TITLE | 15HP (11 KW), RPM INPUT 725, 286.4 RATIO, RPM OUTPUT 2.5, PALMER-BEE HT-33 GEAR REDUCER / SPEED REDUCER / GEARBOX USED - NCO |
| HORSEPOWER | 15 |
| RPM INPUT | 725 |
| RATIO | 286.40:1 RATIO |
| RPM OUTPUT | 2.5 |
| GEARBOX SHAFT ARRANGEMENT | PARALLEL |
| MANUFACTURER OF EQUIPMENT | PALMER-BEE |
| MODEL NUMBER | HT-33 |
| SERIAL NUMBER | A-13298 |
| REDUCTION | TRIPLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1.6 |
| GEAR TYPE (HERRINGBONE, WORM, ETC) | HERRING BONE |
| BEARING TYPE | ROLLER |
| PREVIOUS USE | HSM EXIT CONVEYOR |

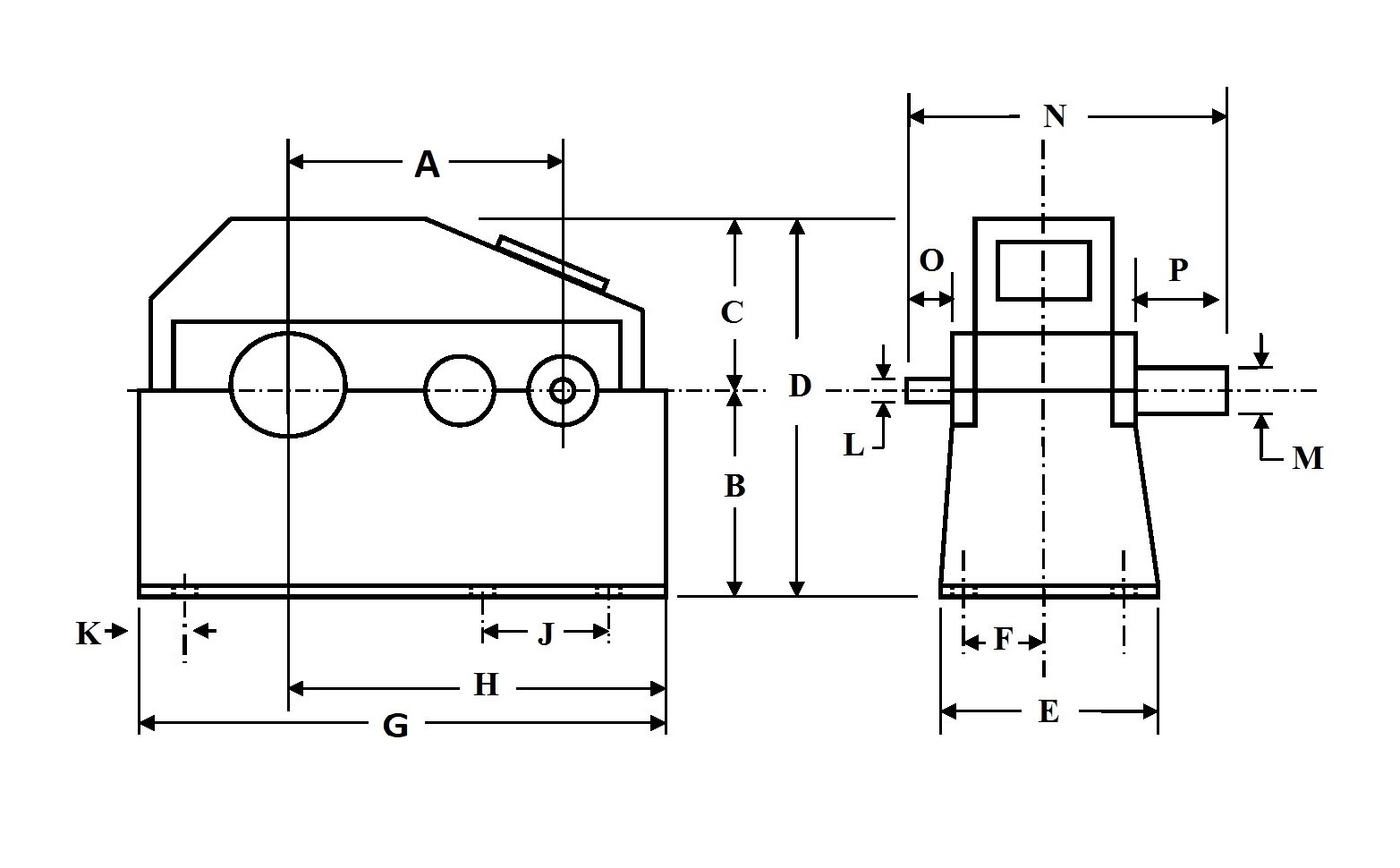

| DIMENSION A | 33 |
| DIMENSION B | 22.875 |
| DIMENSION C | 22 |
| DIMENSION D | 44.875 |
| DIMENSION E | 39 |
| DIMENSION F | 17.5 |
| DIMENSION G | 70 |
| DIMENSION H | 45 |
| DIMENSION J | 60 |
| DIMENSION K | 5 |
| DIMENSION L | 2.75 |
| DINEMSION M | 6.375 |
| DIMENSION N | 66 |
| DIMENSION O | 5.5 |
| DIMENSION P | 11.75 |
