| INVENTORY ID | 20039700000 |
| TITLE | 37 HP (27 KW), RPM INPUT 575, 261/375 RATIO, RPM OUTPUT 2.2/1.5, HORSBURGH & SCOTT WD4800-2400 GEAR REDUCER / SPEED REDUCER / GEARBOX, USED |
| HORSEPOWER | 37 |
| RPM INPUT | 575 |
| RATIO | 261/375:1 RATIO |
| RPM OUTPUT | 2.2/1.5 |
| GEARBOX SHAFT ARRANGEMENT | PARALLEL |
| MANUFACTURER OF EQUIPMENT | HORSBURGH & SCOTT |
| MODEL NUMBER | WD4800-2400 |
| SERIAL NUMBER | 310534 |
| REDUCTION | DOUBLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1.0 |
| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |

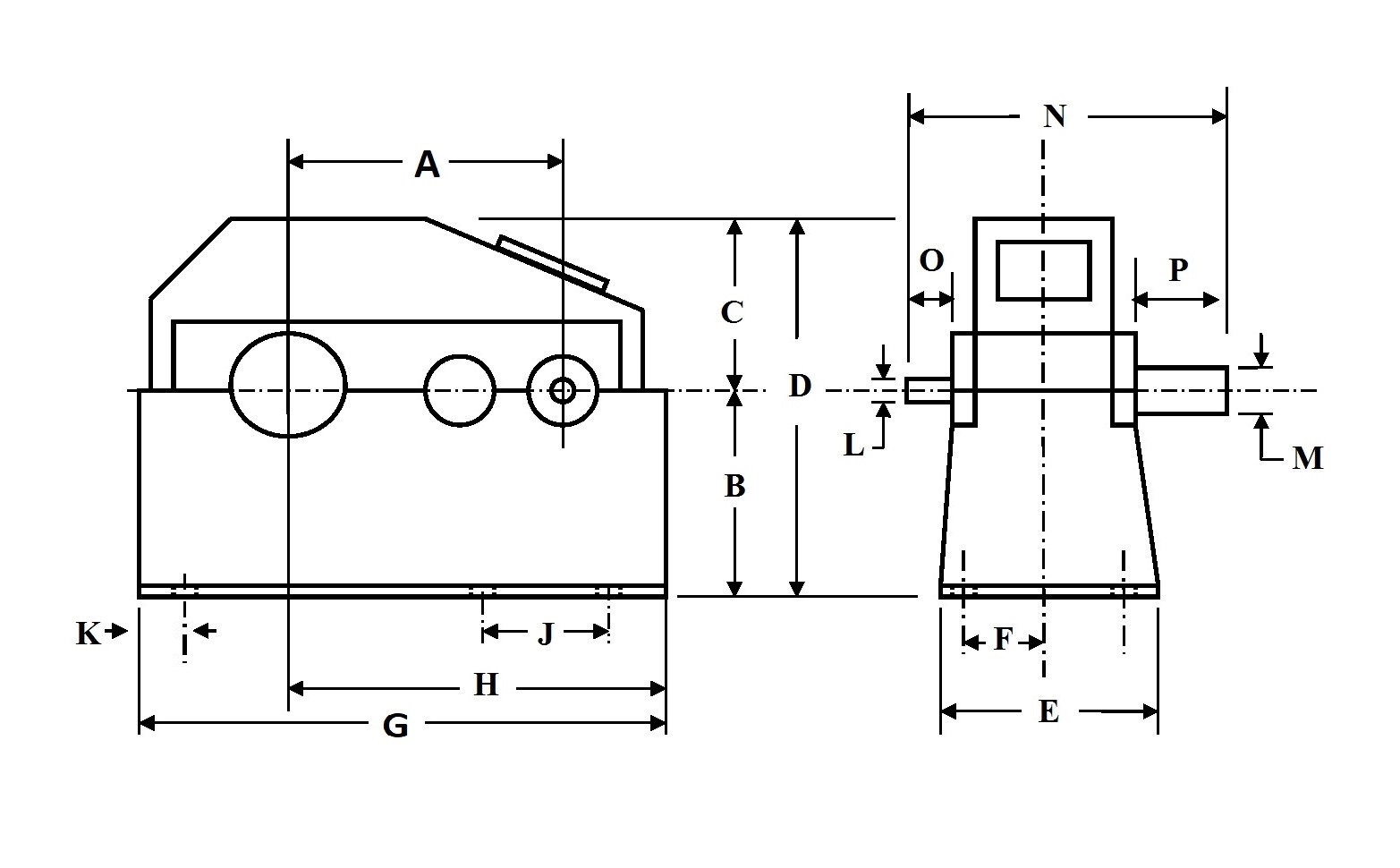

| DIMENSION A | 22 |
| DIMENSION B | 32.375 |
| DIMENSION C | 37 |
| DIMENSION D | 69.375 |
| DIMENSION E | 36 |
| DIMENSION F | NO END BOLT HOLES |
| DIMENSION G | 59 |
| DIMENSION H | 35 |
| DIMENSION J | 26 |
| DIMENSION K | 3.375 |
| DIMENSION L | 2.5 |
| DINEMSION M | 8 |
| DIMENSION N | 59 |
| DIMENSION O | 12.75 |
| DIMENSION P | 12.938 |
