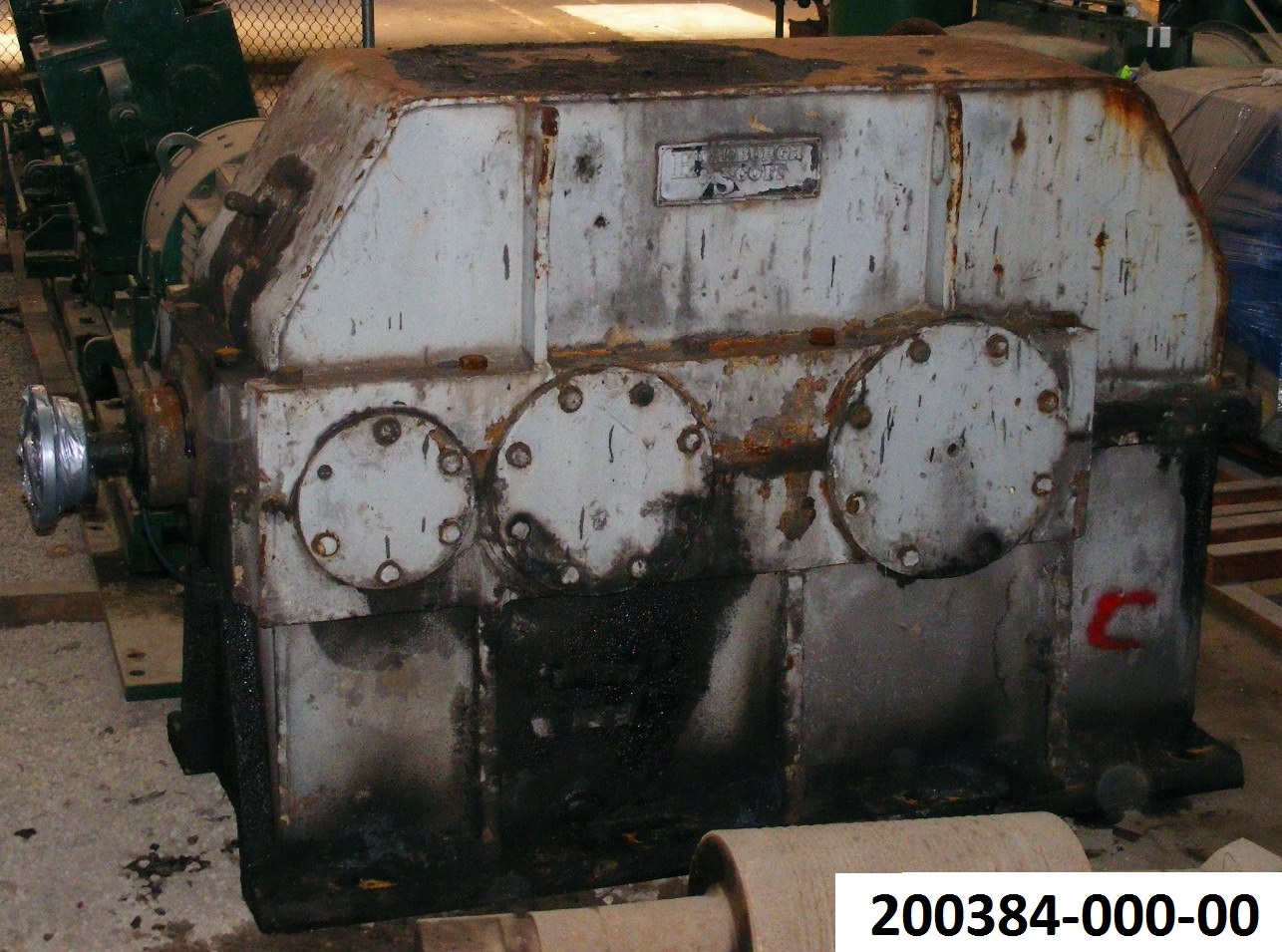

101 HP (75 KW), RPM INPUT 485, 63.62 RATIO, RPM OUTPUT 7.6, H&S LBD-6000 RIGHT ANGLE GEAR REDUCER / SPEED REDUCER / GEARBOX, USED
 "20038400000 101 HP (75 KW), RPM INPUT 485, 63.62 RATIO, RPM OUTPUT 7.6, H&S LBD-6000 RIGHT ANGLE GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20038400000 101 HP (75 KW), RPM INPUT 485, 63.62 RATIO, RPM OUTPUT 7.6, H&S LBD-6000 RIGHT ANGLE GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
| INVENTORY ID | 20038400000 |
| TITLE | 101 HP (75 KW), RPM INPUT 485, 63.62 RATIO, RPM OUTPUT 7.6, H&S LBD-6000 RIGHT ANGLE GEAR REDUCER / SPEED REDUCER / GEARBOX, USED |
| HORSEPOWER | 101 |
| RPM INPUT | 485 |
| RATIO | 63.62:1 RATIO |
| RPM OUTPUT | 7.6 |
| GEARBOX SHAFT ARRANGEMENT | RIGHTANGLE |
| MANUFACTURER OF EQUIPMENT | HORSBURGH - SCOTT |
| MODEL NUMBER | LBD-6000 |
| SERIAL NUMBER | K2322 |
| REDUCTION | TRIPLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1 |
| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |

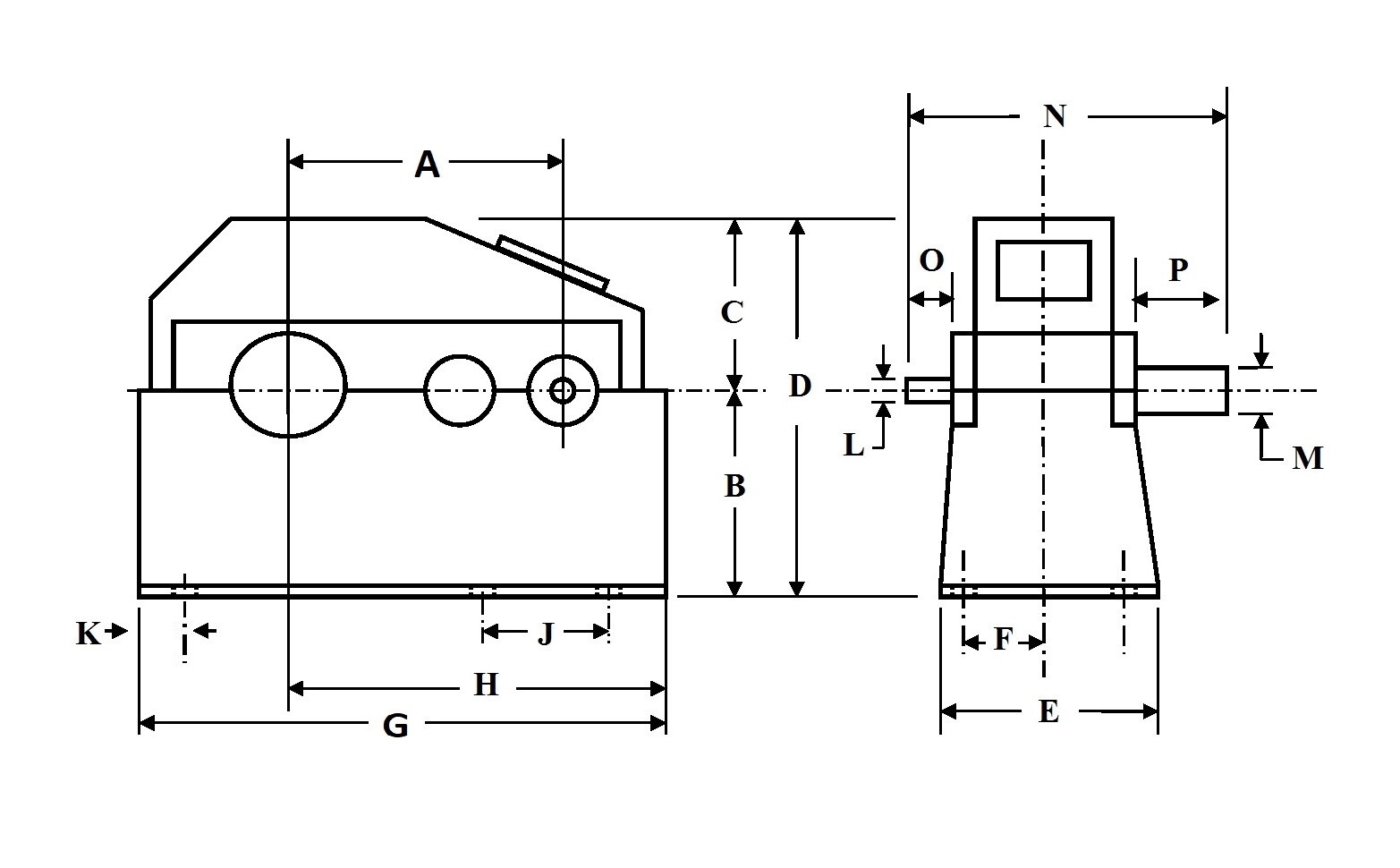

| DIMENSION A | 48 |
| DIMENSION B | 34.25 |
| DIMENSION C | 29.75 |
| DIMENSION D | 64 |
| DIMENSION E | 40 |
| DIMENSION F | 17.5 |
| DIMENSION G | 89 |
| DIMENSION H | 56.5 |
| DIMENSION J | 27 |
| DIMENSION K | 5 |
| DINEMSION M | 9 |
| DIMENSION L | 3 |
| DIMENSION N | 56 |
| DIMENSION O | 7.75 |
| DIMENSION P | 16.5 |
