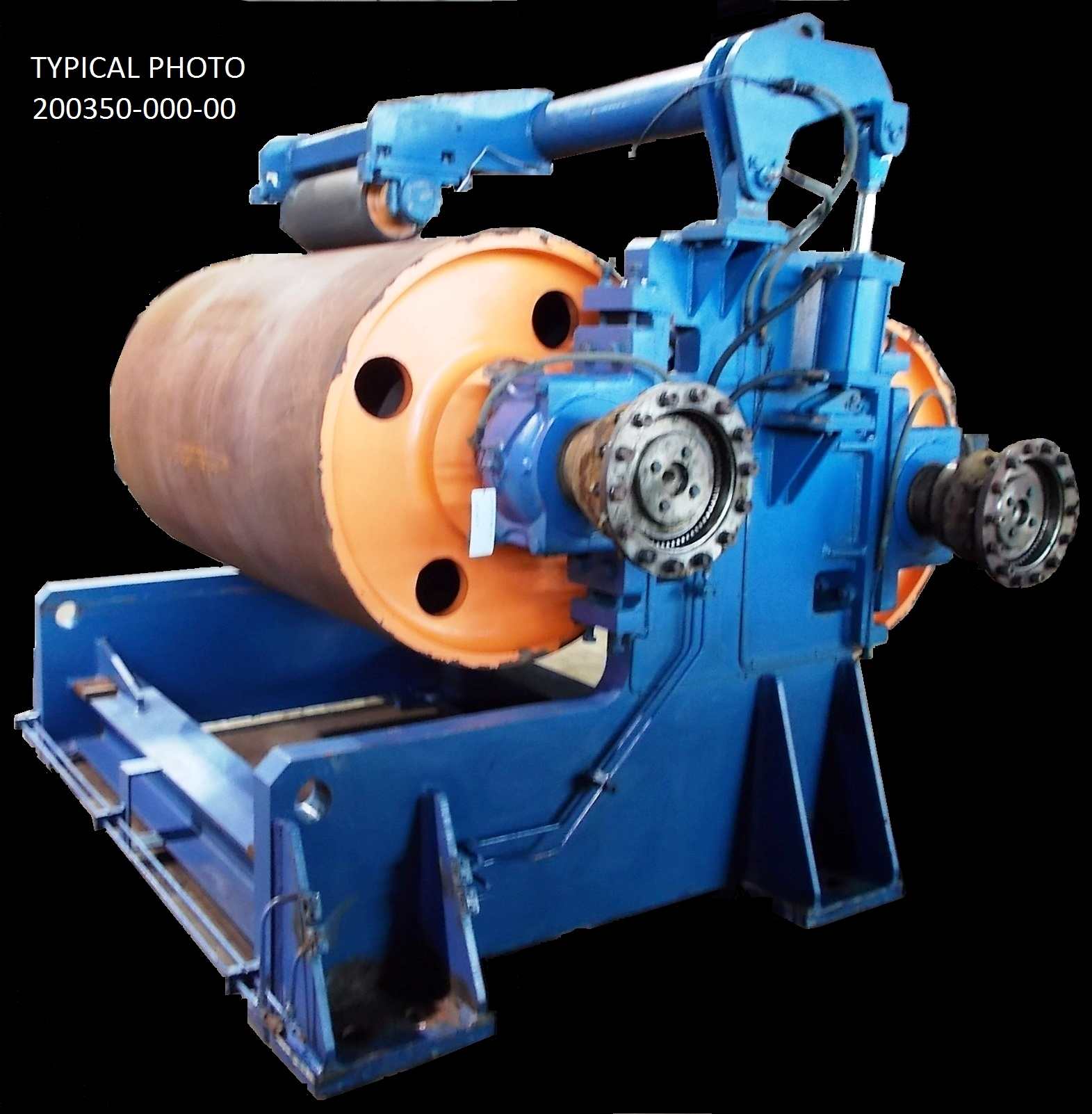

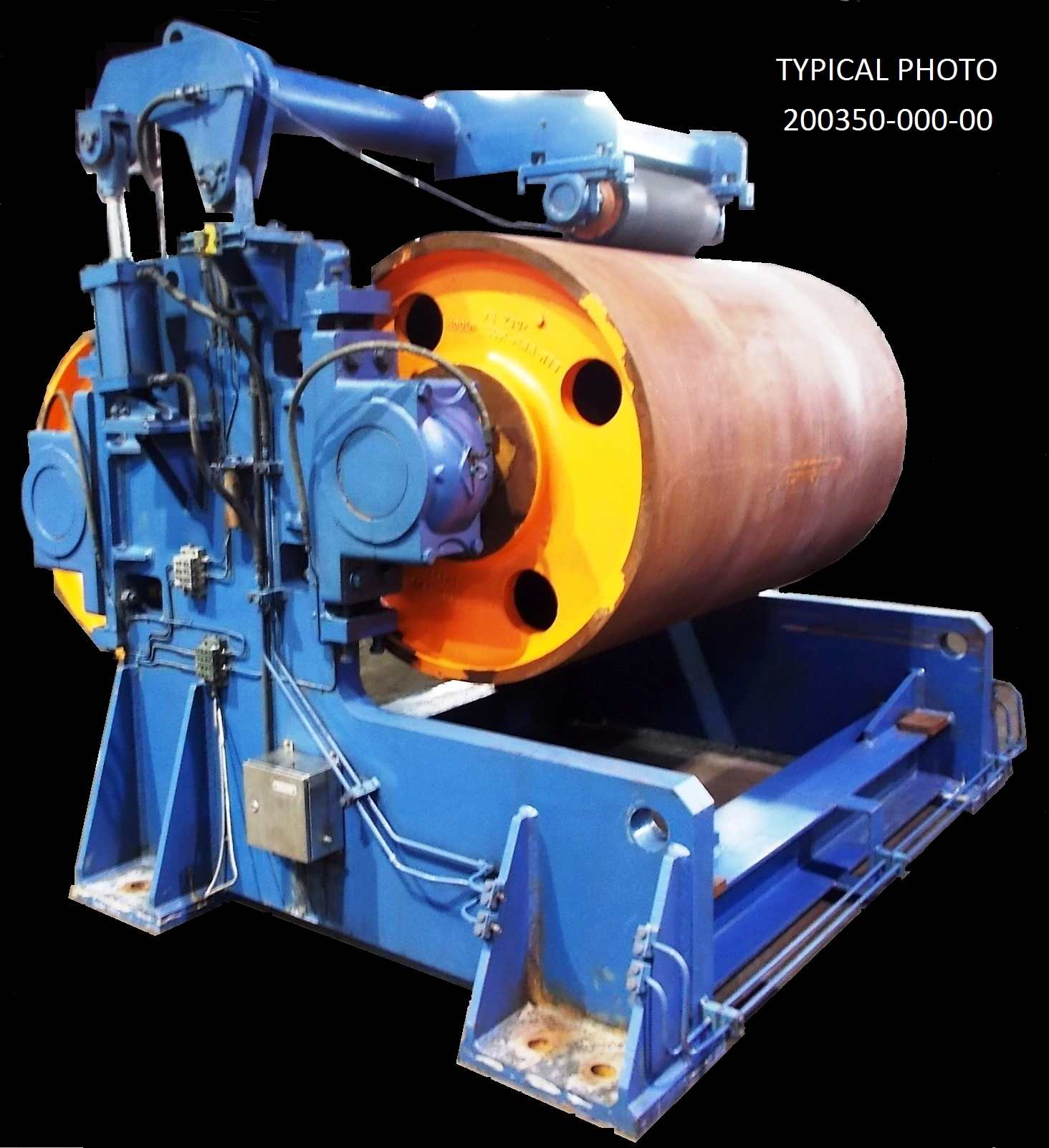

72" (1830 MM) FACE X 48" (1220 MM) DIAMETER VOEST ALPINE TWO ROLL BRIDLE ROLLS
MANUFACTURER: VOEST ALPINE
DATE OF MANUFACTURE: 1999
GENERAL SPECIFICATIONS:
ROLL FACE: 72" (1830 MM)
ROLL DIAMETER: 48" (1220 MM)
ROLL CONFIGURATION: S SHAPE
NUMBER OF ROLLS: 2
SPEED: 2000 FPM MAX (10.2 MPS)
DIRECTION OF TRAVEL: RIGHT TO LEFT (VIEWED FROM OPERATOR'S SIDE)
MOTOR DATA: MOTORS AVAILABLE SEPARATELY
ROLL 3 - 135 HP (100 KW), 1800 RPM, 660 V, 60 HZ, SIEMENS
FRAME 447/9TTFS, AC (REFERENCE INVENTORY# 200306-001-00
ROLL 4 - 148 HP (110 KW), 1800 RPM, 660V, 60 HZ, SIEMENS
FRAME 447/9TTFS, AC (REFERENCE INVENTOY # 200306-002-00)
GEARBOX DATA:
GEARBOXES AVAILABLE SEPARATELY
148 HP, (110 KW) PITTSBURGH GEAR KD200F, 14:4222:1 RATIO
(REFERENCE INVENTORY #: 200306-003-00
148 HP (110 KW) PITTSBURGH GEAR KD200F, 14:4222:1 RATIO
(REFERENCE INVENTORY # 200306-004-00)
PREVIOUS USE: no. 3B BRIDLE FROM PICKLING LINE
DIMENSIONS: 122" LENGTH X 112" WIDTH X 95" HEIGHT
(3100 MM LENGTH X 2850 MM WIDTH X 2400 MM HEIGHT)
WEIGHT: 40,000 LBS (18143 KG)
FEATURES:
PIVOTING SNUBBER ROLL
INVENTORY #: 200350-000-00
| INVENTORY ID | 20035000000 |
| TITLE | 72" (1830 MM) FACE X 48" (1220 MM) DIAMETER, 283 HP, VOEST ALPINE TWO ROLL BRIDLE ROLLS, PROCESS LINE COMPONENT |
| ROLL FACE | 72 |
| NUMBER OF ROLLS | 2 |
| NUMBER OF ROLLS AVAILABLE | 2 |
| MANUFACTURER OF EQUIPMENT | VOEST ALPINE |
| YEAR OF MANUFACTURE | 1999 |
| ROLL CONFIGURATION (1 OVER 1, 2 OVER 1, ETC.) | S SHAPE |
| SPEED | 2000 |
| MATERIAL FLOW (VIEWED FROM OPERATOR'S SIDE) | RIGHT TO LEFT |
| DRIVE MOTORS HP (FOR ALL ROLLS) | 283 |
| MOTOR HP | 283 |
| MOTOR RPM | 1750 |
| MOTOR VOLTS | 660 |
| MOTOR VOLTAGE TYPE (AC / DC) | AC |
| MOTOR FREQUENCY | 60 |
| MOTOR MANUFACTURER | SIEMENS |
| OVERALL LENGTH | 122 |
| OVERALL WIDTH | 112 |
| OVERALL DEPTH | 0 |
| OVERALL HEIGHT | 95 |
| TOTAL WEIGHT | 40000 |
| FEATURE 1 | PIVOTING SNUBBER ROLL |
| FEATURE 2 | ALREADY DISMANTLED |
