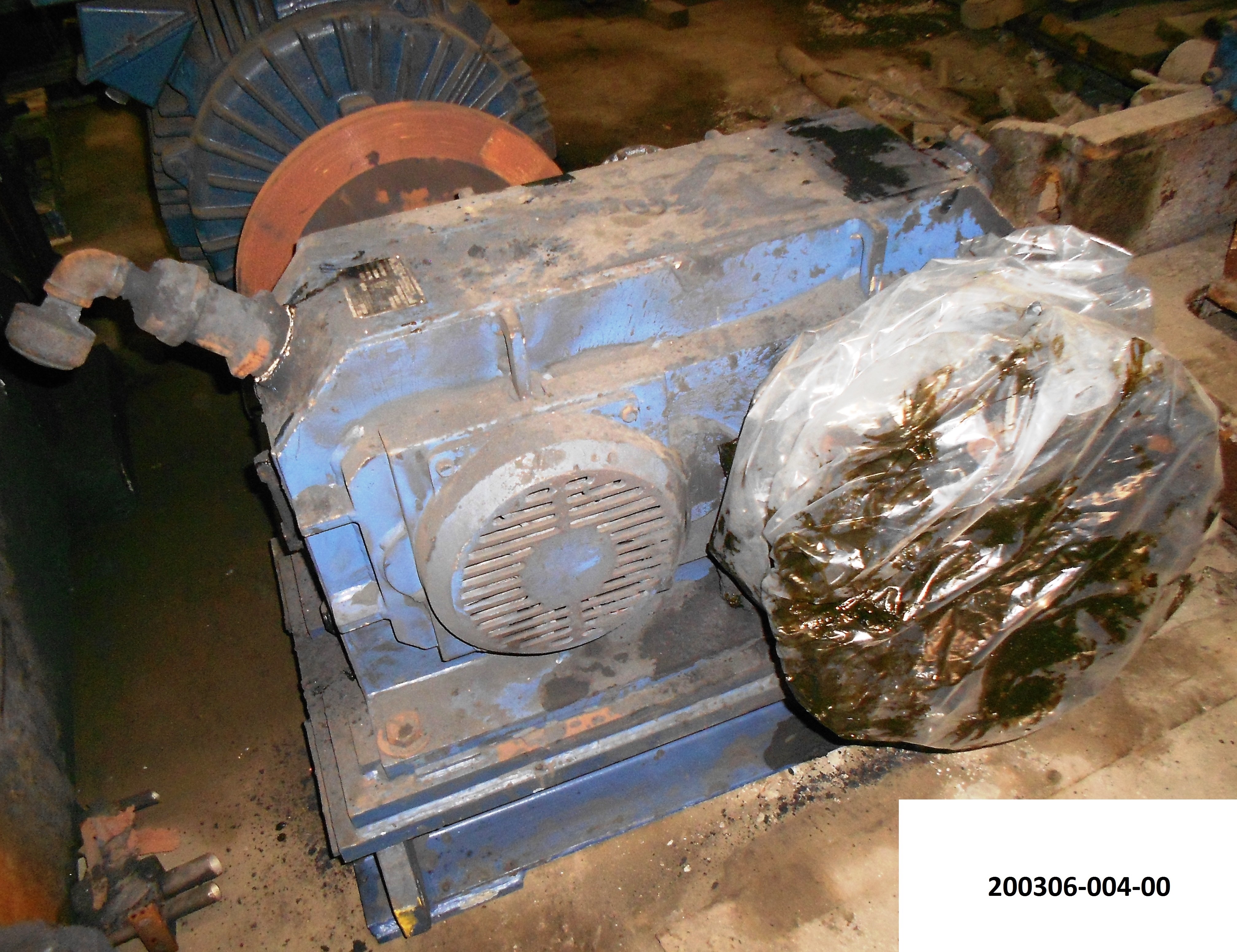

148 HP (110 KW), RPM INPUT 1750, 14.4222 RATIO, RPM OUTPUT 122, PITTSBURGH GEAR KD200F GEAR REDUCER / SPEED REDUCER / GEARBOX, USED
 "20030600400 148 HP (110 KW), RPM INPUT 1750, 14.4222 RATIO, RPM OUTPUT 122, PITTSBURGH GEAR KD200F GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20030600400 148 HP (110 KW), RPM INPUT 1750, 14.4222 RATIO, RPM OUTPUT 122, PITTSBURGH GEAR KD200F GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20030600400 148 HP (110 KW), RPM INPUT 1750, 14.4222 RATIO, RPM OUTPUT 122, PITTSBURGH GEAR KD200F GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20030600400 148 HP (110 KW), RPM INPUT 1750, 14.4222 RATIO, RPM OUTPUT 122, PITTSBURGH GEAR KD200F GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
| INVENTORY ID | 20030600400 |
| TITLE | 148 HP (110 KW), RPM INPUT 1750, 14.4222 RATIO, RPM OUTPUT 122, PITTSBURGH GEAR KD200F GEAR REDUCER / SPEED REDUCER / GEARBOX, USED |
| HORSEPOWER | 148 |
| RPM INPUT | 1750 |
| RATIO | 14.4222:1 RATIO |
| RPM OUTPUT | 122 |
| GEARBOX SHAFT ARRANGEMENT | PARALLEL |
| MANUFACTURER OF EQUIPMENT | PITTSBURGH GEAR |
| YEAR OF MANUFACTURE | 1999 |
| MODEL NUMBER | KD200F |
| SERIAL NUMBER | 92701-2 |
| REDUCTION | DOUBLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1.79 |
| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |
| PREVIOUS USE | BRIDAL ROLL |

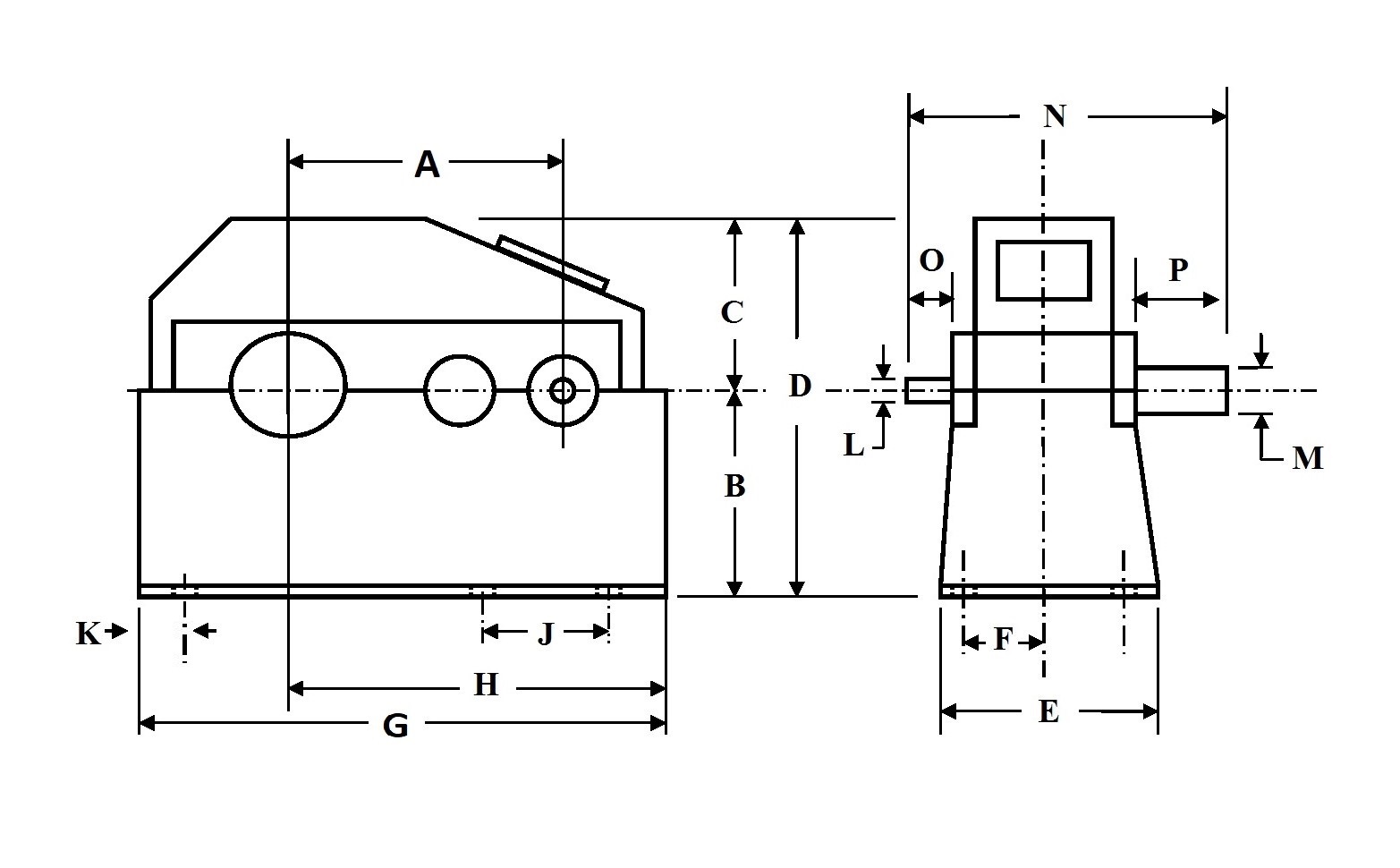

| DIMENSION A | 14.5 |
| DIMENSION B | 12.5 |
| DIMENSION C | 8 |
| DIMENSION D | 20.5 |
| DIMENSION E | 17.5 |
| DIMENSION F | 7 |
| DIMENSION G | 35 |
| DIMENSION H | 22.75 |
| DIMENSION J | 14 |
| DIMENSION K | 3.5 |
| DIMENSION L | 1.75 |
| DINEMSION M | 3 |
| DIMENSION N | 25 |
| DIMENSION O | 4.25 |
| DIMENSION P | 9.5 |
