14 HP (10 KW), RPM INPUT 870, 10.08 RATIO, RPM OUTPUT 86, HORSBURGH & SCOTT GEAR REDUCER / SPEED REDUCER / GEARBOX, USED
 "20030400300 14 HP (10 KW), RPM INPUT 870, 10.08 RATIO, RPM OUTPUT 86, HORSBURGH & SCOTT GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20030400300 14 HP (10 KW), RPM INPUT 870, 10.08 RATIO, RPM OUTPUT 86, HORSBURGH & SCOTT GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20030400300 14 HP (10 KW), RPM INPUT 870, 10.08 RATIO, RPM OUTPUT 86, HORSBURGH & SCOTT GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "20030400300 14 HP (10 KW), RPM INPUT 870, 10.08 RATIO, RPM OUTPUT 86, HORSBURGH & SCOTT GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
| INVENTORY ID | 20030400300 |
| TITLE | 14 HP (10 KW), RPM INPUT 870, 10.08 RATIO, RPM OUTPUT 86, HORSBURGH & SCOTT GEAR REDUCER / SPEED REDUCER / GEARBOX, USED |
| HORSEPOWER | 429 |
| RPM INPUT | 1750 |
| RATIO | 10.4118:1 RATIO |
| RPM OUTPUT | 168 |
| GEARBOX SHAFT ARRANGEMENT | PARALLEL |

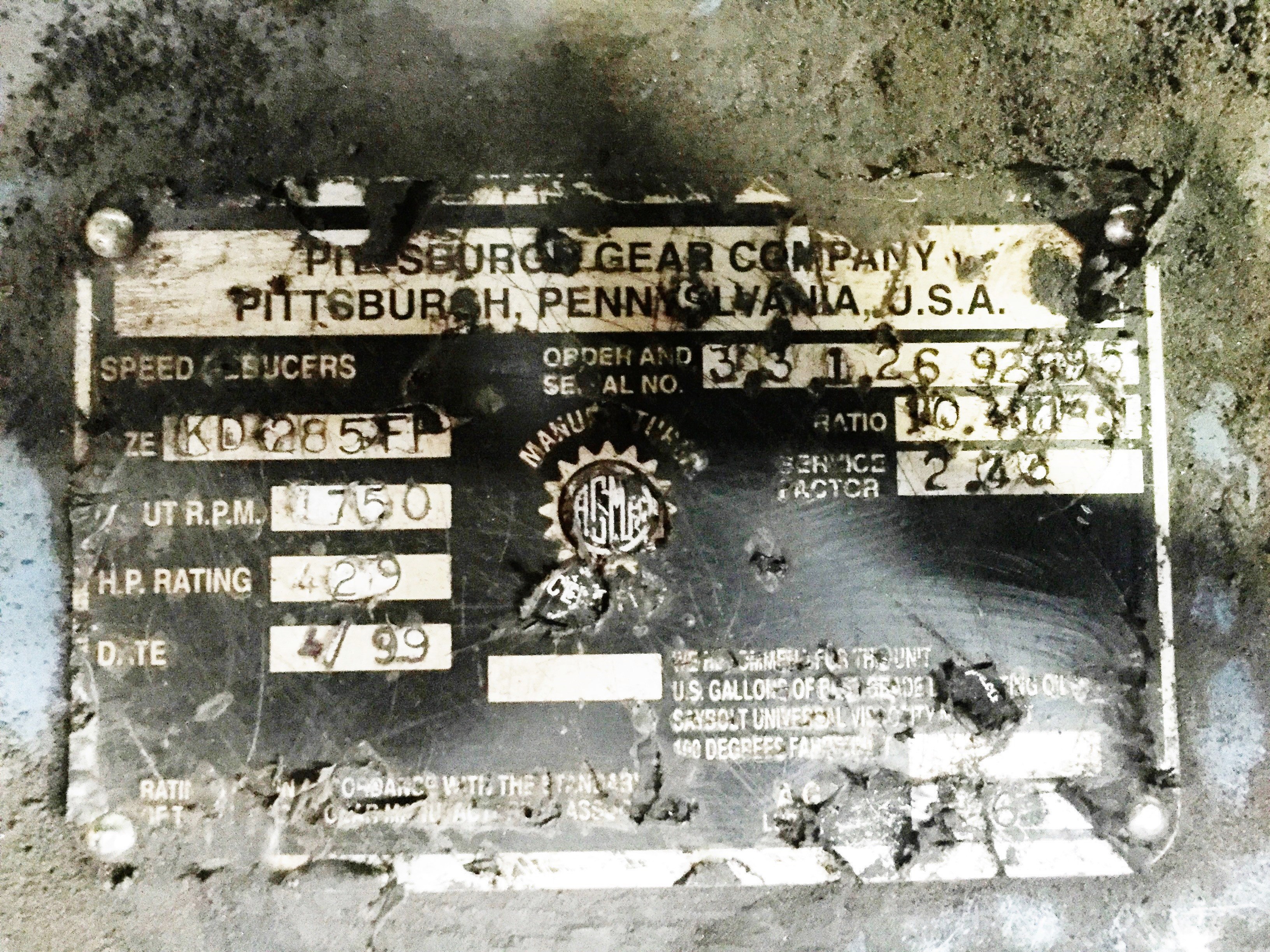

| MANUFACTURER OF EQUIPMENT | PITTSBURGH GEAR |
| YEAR OF MANUFACTURE | 1999 |
| MODEL NUMBER | KD285FF |
| SERIAL NUMBER | 92995 |
| REDUCTION | DOUBLE |
| SVC FACTOR (1.0, 1.5 ETC) | 2.45 |
| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |
| PREVIOUS USE | BRIDLE ROLL |

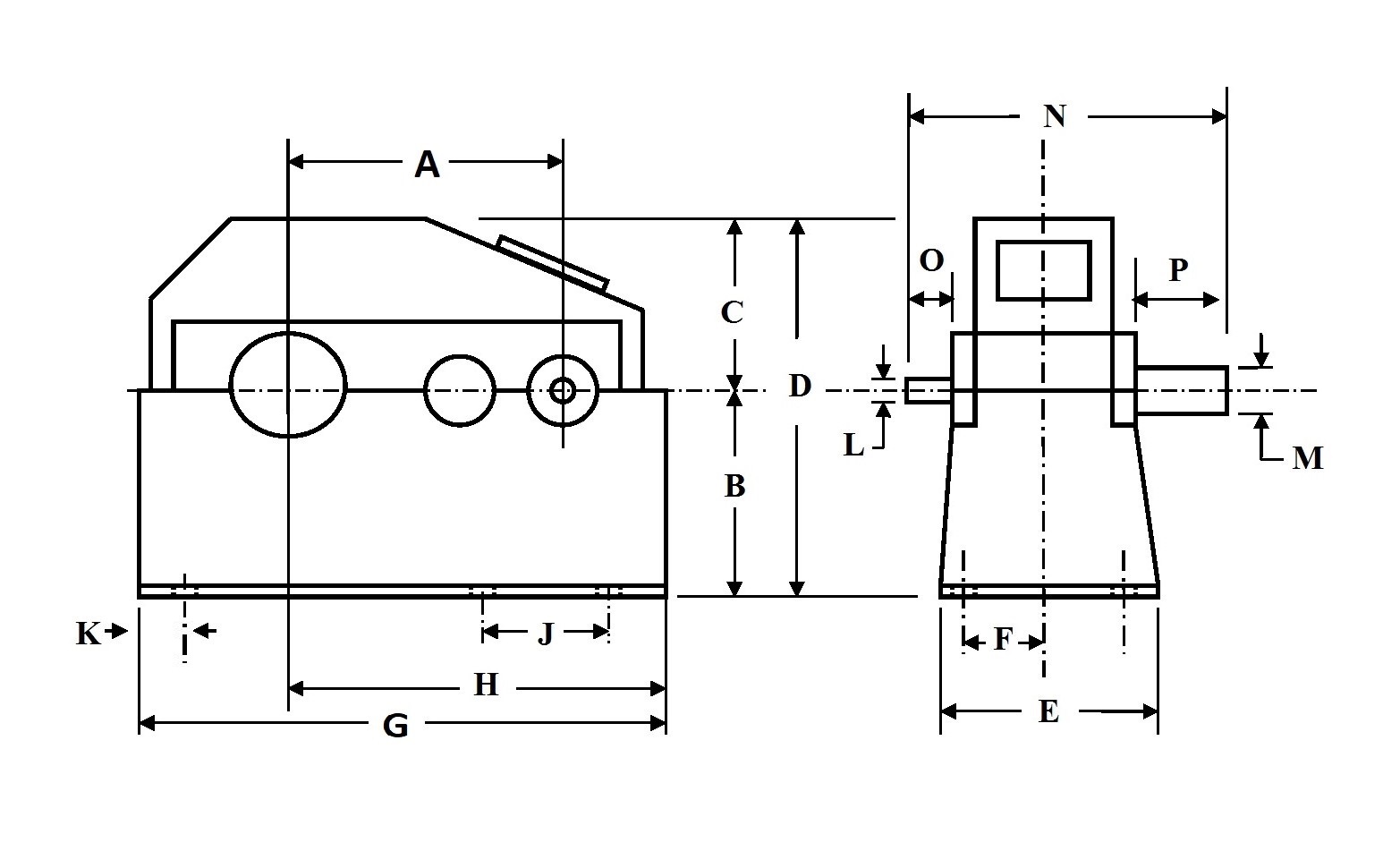

| DIMENSION A | 20 |
| DIMENSION B | 14 |
| DIMENSION C | 9 |
| DIMENSION D | 23 |
| DIMENSION E | 22.5 |
| DIMENSION F | 7.5 |
| DIMENSION G | 42 |
| DIMENSION H | 28 |
| DIMENSION J | 14.5 |
| DIMENSION K | 2.75 |
| DIMENSION L | 2.75 |
| DINEMSION M | 6 |
| DIMENSION N | 38 |
| DIMENSION O | 5 |
| DIMENSION P | 12 |
