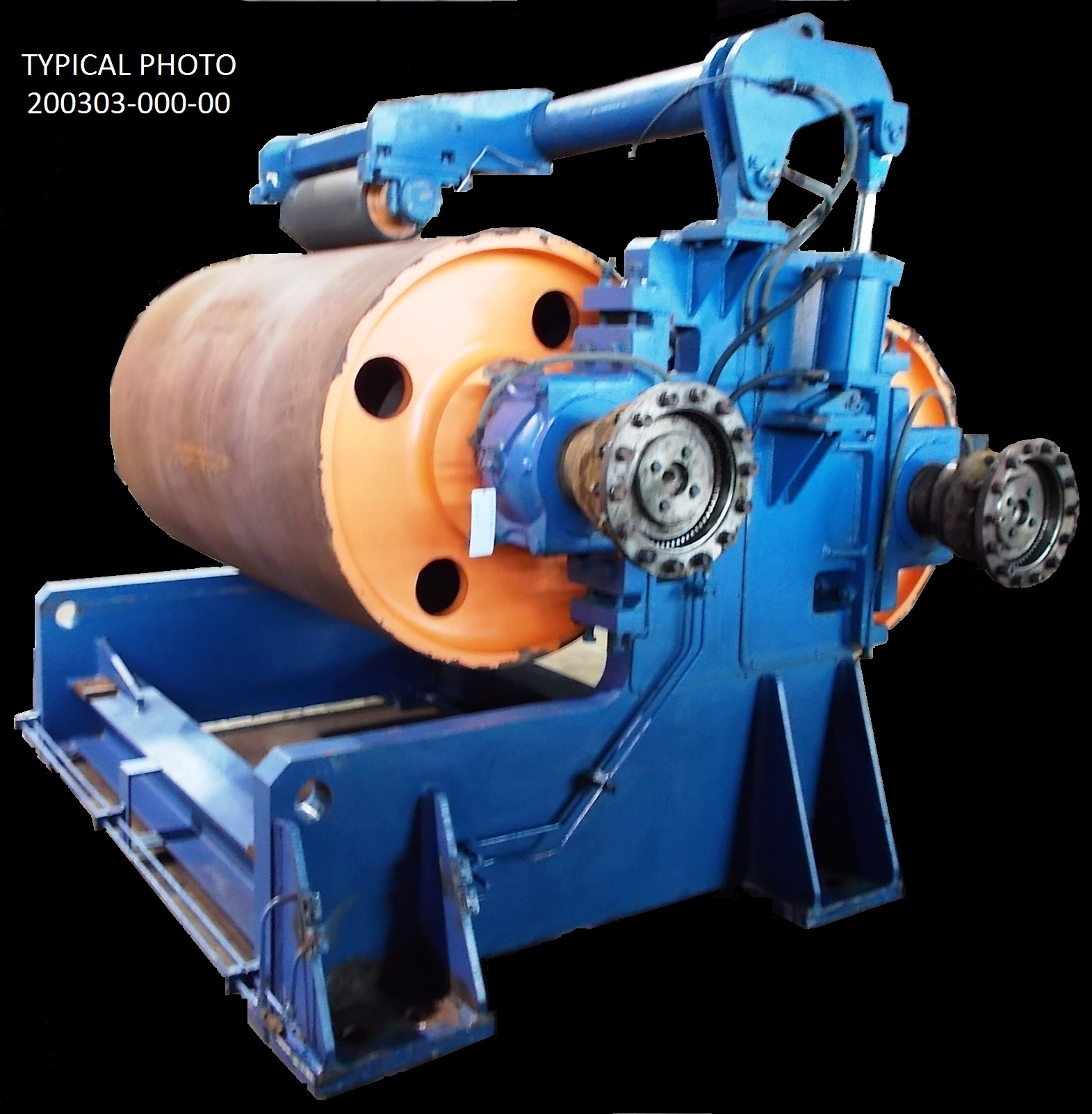

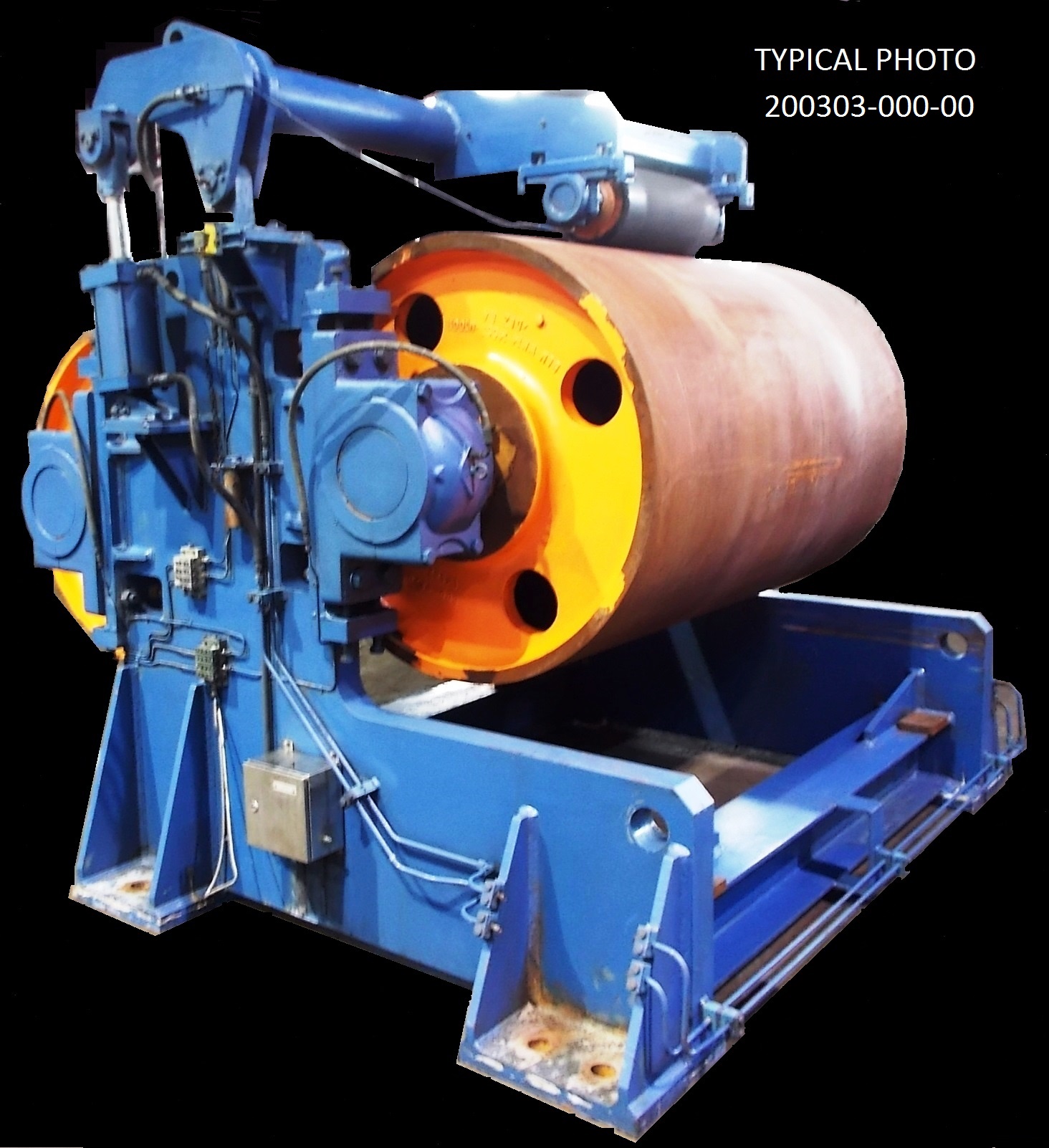

72" FACE X 48" (1830 MM X 1220 MM) DIAMETER VOEST ALPINE, 558 HP, TWO ROLL BRIDLE ROLLS, PROCESS LINE COMPONENT

72" FACE X 48" (1830 MM X 1220 MM) DIAMETER VOEST ALPINE TWO ROLL BRIDLE ROLLS

MANUFACTURER: VOEST ALPIN

AGE: 1999

GENERAL SPECIFICATIONS:

ROLL FACE: 72" (1830 MM)

ROLL DIAMETER: 48" (1220 MM)

ROLL CONFIGURATION: S SHAPE

NUMBER OF ROLLS: 2

SPEED: 2000 FPM MAX (10.2 MPS)

DIRECTION OF TRAVEL: RIGHT TO LEFT (VIEWED FROM OPERATOR'S SIDE)

MOTOR DATA: MOTORS AVAILABLE SEPARATELY

ROLL 1 - 430 HP (320 KW), 1735 RPM, 650 V, 60 HZ

SIEMENS, CGZ 5011S, AC (REFERENCE INVENTORY #: 200303-001-00)

ROLL 2 - 128 HP (95 KW), 1735 RPM, 600 V, 60 HZ, SIEMENS AC

(REFERENCE INVENTORY # 200303-002-00)

GEARBOX DATA:

GEARBOXES AVAILABLE SEPARATELY

190 HP (140 KW) PITTSBURGH GEAR KD200OFF, 10.4293:1 RATIO

(REFERENCE INVENTORY #: 200303-003-00)

127 HP (94 KW) PITTSBURGH GEAR K185F, 10.416:1 RATIO

(REFERENCE INVENTORY #: 200304-004-00

PREVIOUS USE: NO 2a BRIDLE FROM PICKLING LINE

DIMENSIONS: 123" LENGTH X 119" WIDTH X 95" HEIGHT

(3124 MM LENGTH X 3022 MM WIDTH X 2413 MM HEIGHT)

WEIGHT: 40,700 LBS (18461.2 KG)

FEATURES:

PIVOTING SNUBBER ROLL

ALREADY DISMANTLED

INVENTORY #: 200303-000-00

INVENTORY ID	20030300000
TITLE	72" FACE X 48" (1830 MM X 1220 MM) DIAMETER VOEST ALPINE, 558 HP, TWO ROLL BRIDLE ROLLS, PROCESS LINE COMPONENT
ROLL FACE	72
NUMBER OF ROLLS	2
MANUFACTURER OF EQUIPMENT	VOEST ALPINE
YEAR OF MANUFACTURE	1999
ROLL CONFIGURATION (1 OVER 1, 2 OVER 1, ETC.)	S SHAPE
SPEED	2000
MATERIAL FLOW (VIEWED FROM OPERATOR'S SIDE)	RIGHT TO LEFT
DRIVE MOTORS HP (FOR ALL ROLLS)	558
MOTOR HP	558
NUMBER OF MOTORS	2
MOTOR RPM	1735
MOTOR VOLTS	650
MOTOR VOLTAGE TYPE (AC / DC)	AC
MOTOR FREQUENCY	60
OVERALL LENGTH	123
OVERALL WIDTH	119
OVERALL DEPTH	95
TOTAL WEIGHT	40700
FEATURE 1	PIVOTING SNUBBER ROLL
FEATURE 2	ALREADY DISMANTLED
