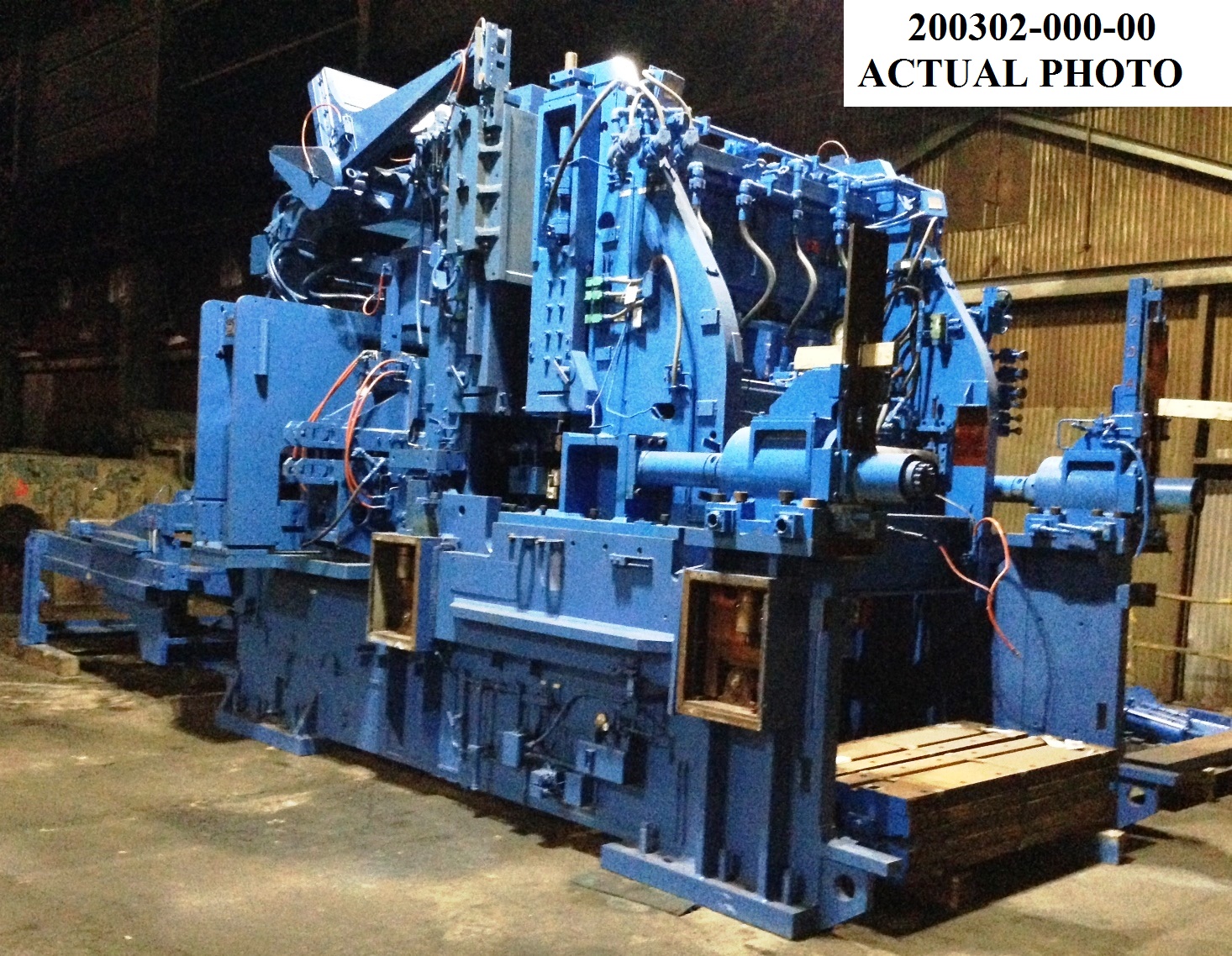

62" WIDE X .25" (157 MM X 6.35 MM) TAYLOR WINFIELD COMBINATION STRIP FLASH BUTT WELDER

MANUFACTURER: TAYLOR WINFIELD

AGE: 1998

GENERAL SPECIFICATIONS:

PRODUCT WIDTH: 22" TO 62" (55 MM TO 1575 MM)

PRODUCT GAUGE: 0.065" TO 0.250" (1.65 MM TO 6.5 MM)

MATERIAL: LOW CARBON STEEL

TYPE OF WELDER: STRIP FLASH BUTT WELDER

MATERIAL TRAVEL: NON-DIRECTIONAL

TRANSFORMER KVA: 2 X 400 KVA, 460 PRIMARY VOLTS, 60 TRANSFORMER FREQUENCY

TRANSFORMER SERIAL #: 65799

LINE SPEED: 80 FPM THREADING SPEED

DIMENSIONS: 320" LENGTH X 128" WIDTH X 161" HEIGHT

(81.20 MM LENGTH X 3250 MM X 4090 MM HEIGHT)

FEATURES:

NOTCHER / PUNCH

DUAL PUMPING HYDRAULIC UNIT

TRIMMER ROLLS

ENTRY FEED TABLE

DISMANTLED

INVENTORY #: 200302-000-00

INVENTORY ID	20030200000
TITLE	62" WIDE X .25" (157 MM X 6.35 MM) TAYLOR WINFIELD COMBINATION STRIP FLASH BUTT WELDER
PRODUCT WIDTH	62
PRODUCT GAUGE	0.065" TO 0.25"
MANUFACTURER OF EQUIPMENT	TAYLOR WINFIELD
YEAR OF MANUFACTURE	1998
SERIAL NO	980146
MATERIAL (LO/HI CARBON STEEL, STAINLESS, ALUMINUM)	LOW CARBON STEEL
TYPE OF WELDER (BUTT, SPOT, ARC)	STRIP FLASH BUTT WELDER
MATERIAL TRAVEL (R TO L OR L TO R)	NON-DIRECTIONAL
TRANSFORMER KVA	2 X 400
TRANSFORMER PRIMARY VOLTS	460
TRANSFORMER FREQUENCY	60
LINE SPEED	80
OVERALL LENGTH	320
OVERALL WIDTH	128
OVERALL HEIGHT	161
FEATURE 1	NOTCHER / PUNCH
FEATURE 2	DUAL PUMPING HYDRAULIC UNIT
FEATURE 3	TRIMMER ROLLS
